1000' Belden XCGB4 0001000 23 AWG 4 Pair Category 6 Premise Cross Connect Cable
Click Thumbnails to Enlarge
DESCRIPTION
• Belden XCGB4 0001000 Category 6 Premise Cross Connect Cable (250MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Riser-CMR
APPLICATION
• Cross-Connect, Interconnect
MATERIAL
• Bare Copper
INSULATION
• Polyolefin + Fluorinated Ethylene Propylene (PO+FEP)
COLOR CODE
• White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
STANDARDS AND COMPLIANCE
• Flammability / Reaction to Fire: UL 1685 (UL Loading)
• CPR Compliance: CPR UKCA Class: Eca
• NEC / UL Compliance: Cross-Connect
• Data Category: Category 6
• European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
• UK Regulation Compliance: UKCA Mark
• APAC Compliance: China RoHS II (GB/T 26572-2011)
• Other Standard Compliance(s): Third party verified to ANSI/TIA-568-C.2, Category 6
PRODUCT SPECIFICATIONS
| Size AWG | 23 |
|---|---|
| Number of Pairs | 4 |
| Stranding | Solid |
| Overall Diameter (inch) | 0.185 |
| Temperature | 60°C |
| Weight (lbs) | 18 |
HAVE A LARGE ORDER OVER $5000? ASK US IF WE CAN DO BETTER ON THE PRICE.
Shipping
***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note eBay's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
About Nassau National Cable

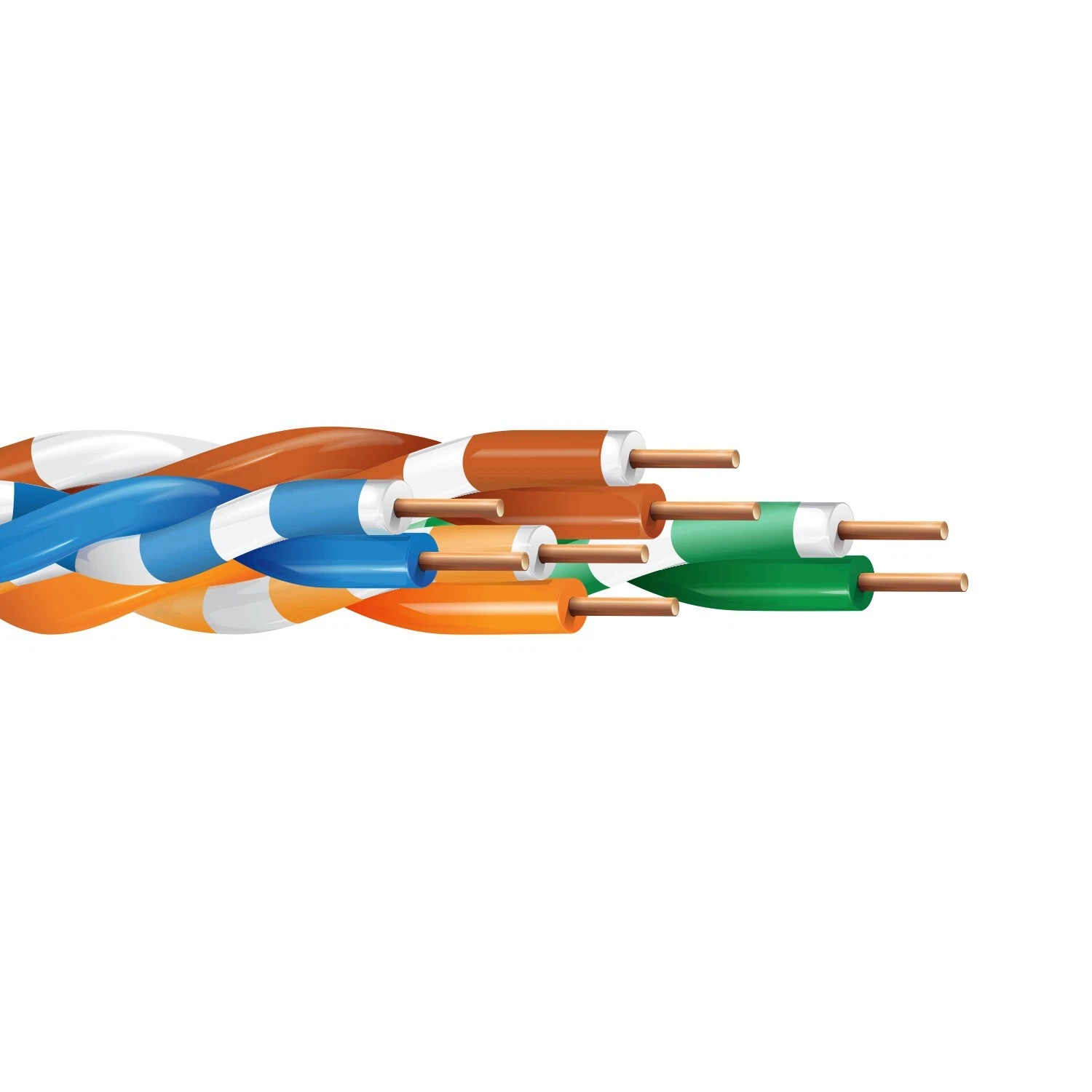

(disclaimer: these images of wire in no way reflect the product being sold and are for aesthetic purposes only)
