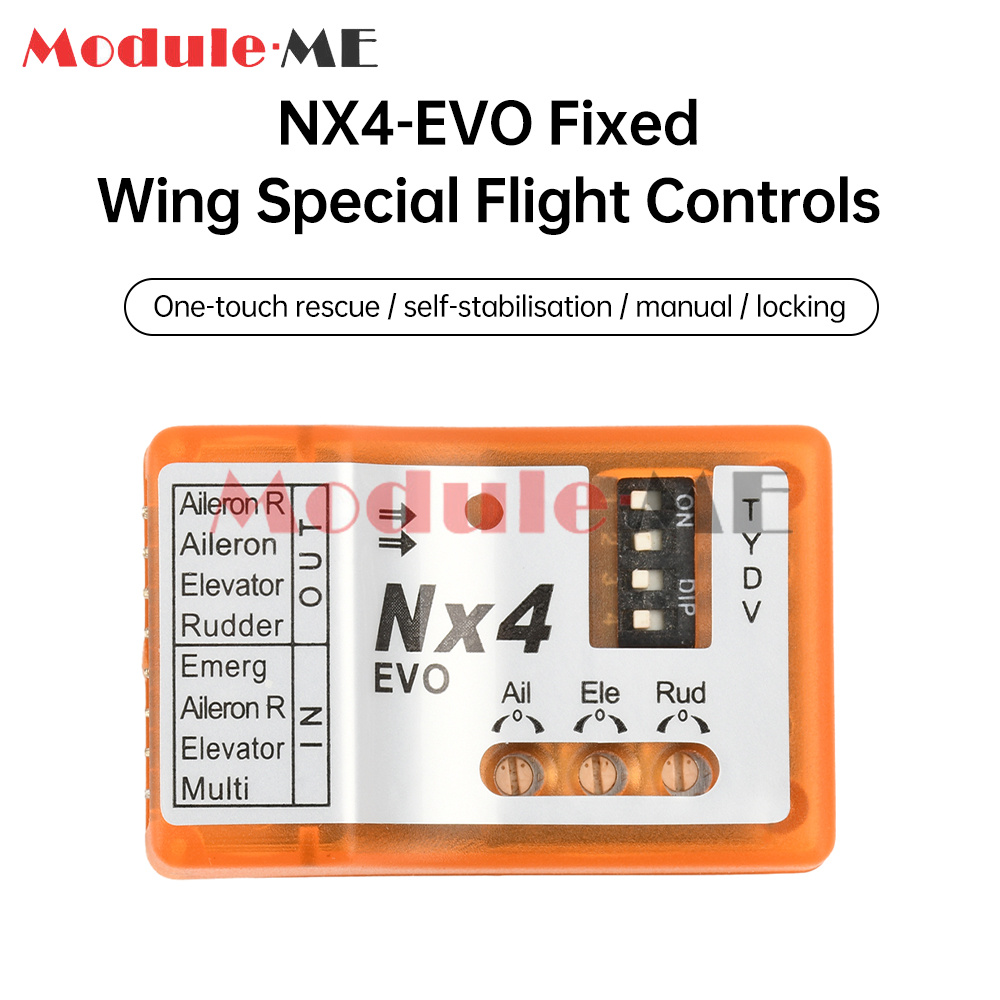

NX4 PRO EVO Flight Controller 3D Flight Gyroscope Auto Balance Module W/ Rescue
NX4-EVO with one-button rescue function
1. Multi-level flight modes: from learning to fly to advanced, it is convenient for players to progress step by step and gradually improve their flying skills.
2. Flexible mode switching: the remote control switches between stabilizing, locking and shutting down modes to adapt to different scenarios.
3. Excellent stabilization algorithm: provide excellent flight stability while maintaining sensitivity. 4.
4. No need to mix the control settings: simplify the installation steps and get started quickly.
5. Support a variety of wing types: compatible with fixed wing, V-tail, delta wing, wide range of applications.
Nx4-EVO:
Input voltage: DC 4.5-6V
Response frequency: 100Hz
Operating temperature: 0-50°C

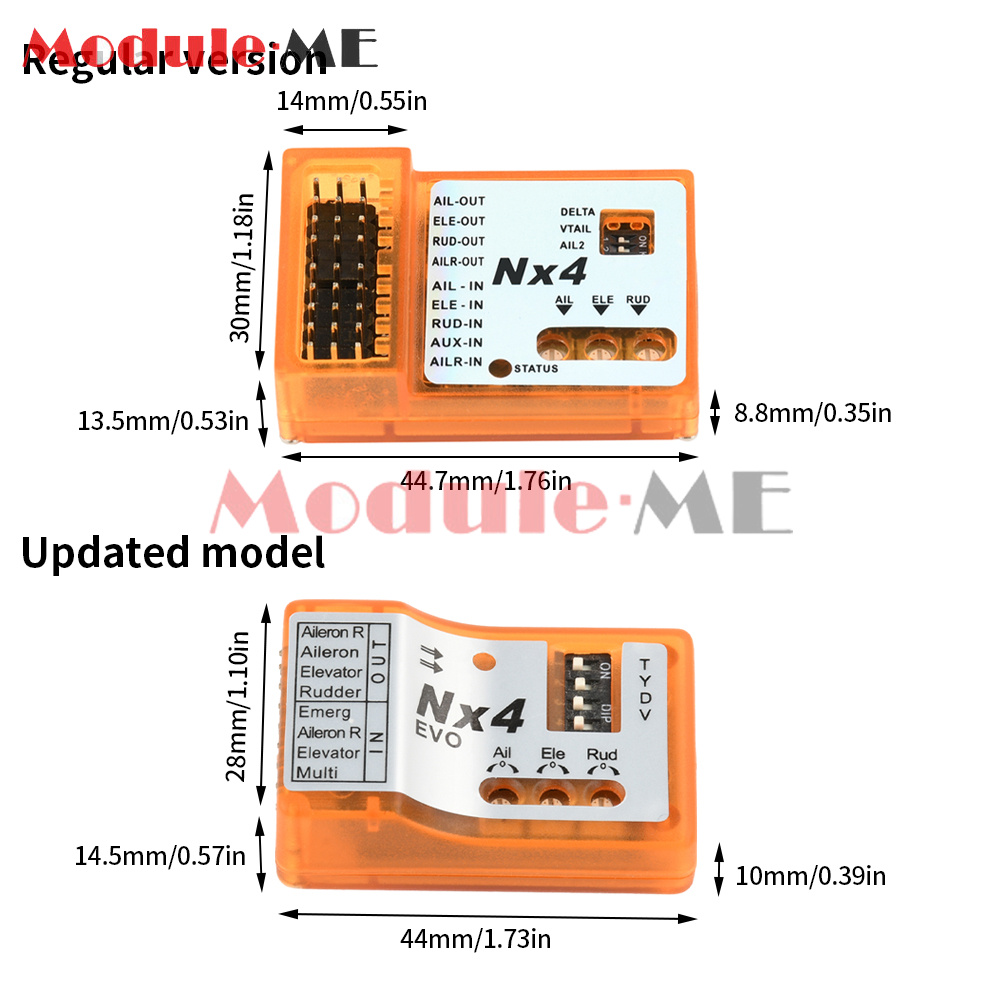

Dimensions (LWH): 43x28x15mm
Functional features:
1.Provide up to 4 flight levels, convenient for players to progress step by step.1 gear: learn to fly mode, 2 gear: practice mode, 3 gear: advanced mode, 4 gear: advanced mode.

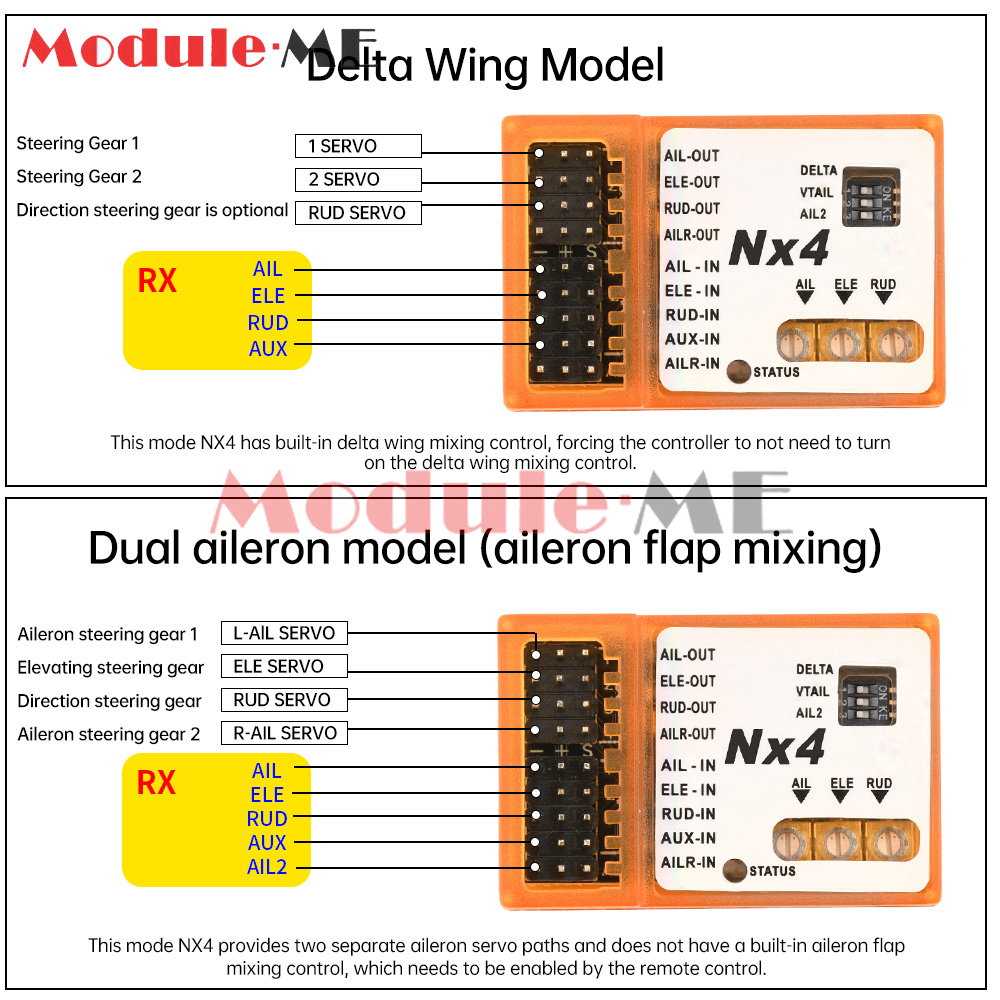

2. Support normal fixed wing (single aileron signal and double aileron signal), V-tail (support double aileron signal, can be used for V-tail glider), delta wing.
3. Independent potentiometer on the flight control board to adjust the sensitivity of each axis.
4. Automatically distinguish between normal single aileron and dual aileron mode.
5. Remotely adjust the total sensitivity of the flight control, and remotely turn off the flight control.
6. With auto-balance flight function.
7. With one-key rescue function.
8. With attitude lock function.
9. Provide aileron servo Y-line function.
Product Parameters:
Power supply: DC 5-6V, directly ESC BEC power supply can be
Shape: 44mmX29mmx13mm
Functional features:
1.Support normal fixed wing (single aileron servo and dual aileron servo), V-tail, delta wing.
2. Can be switched to normal stabilization, lock mode, off mode by remote control.
3. Independent potentiometer on the board to adjust the sensitivity of each axis.
4. Adopting excellent algorithm, it does not reduce the operation sensitivity while stabilizing.

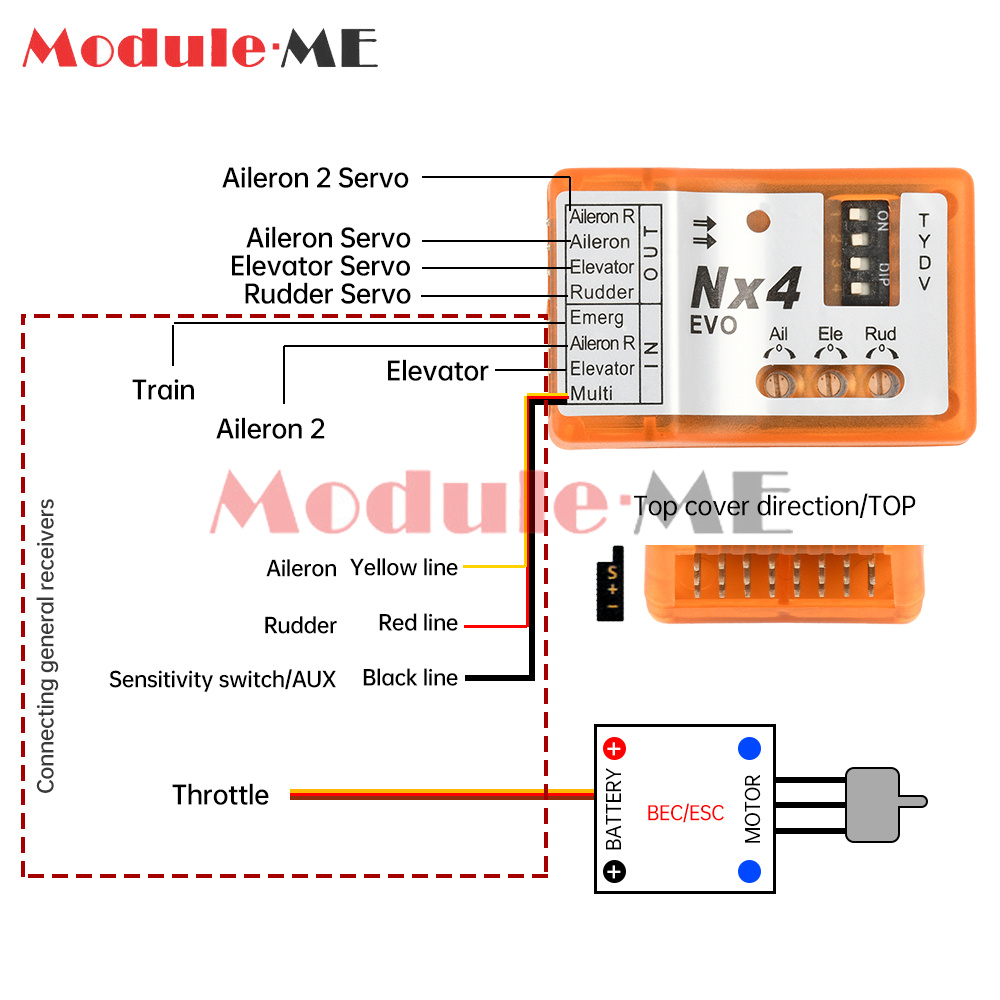

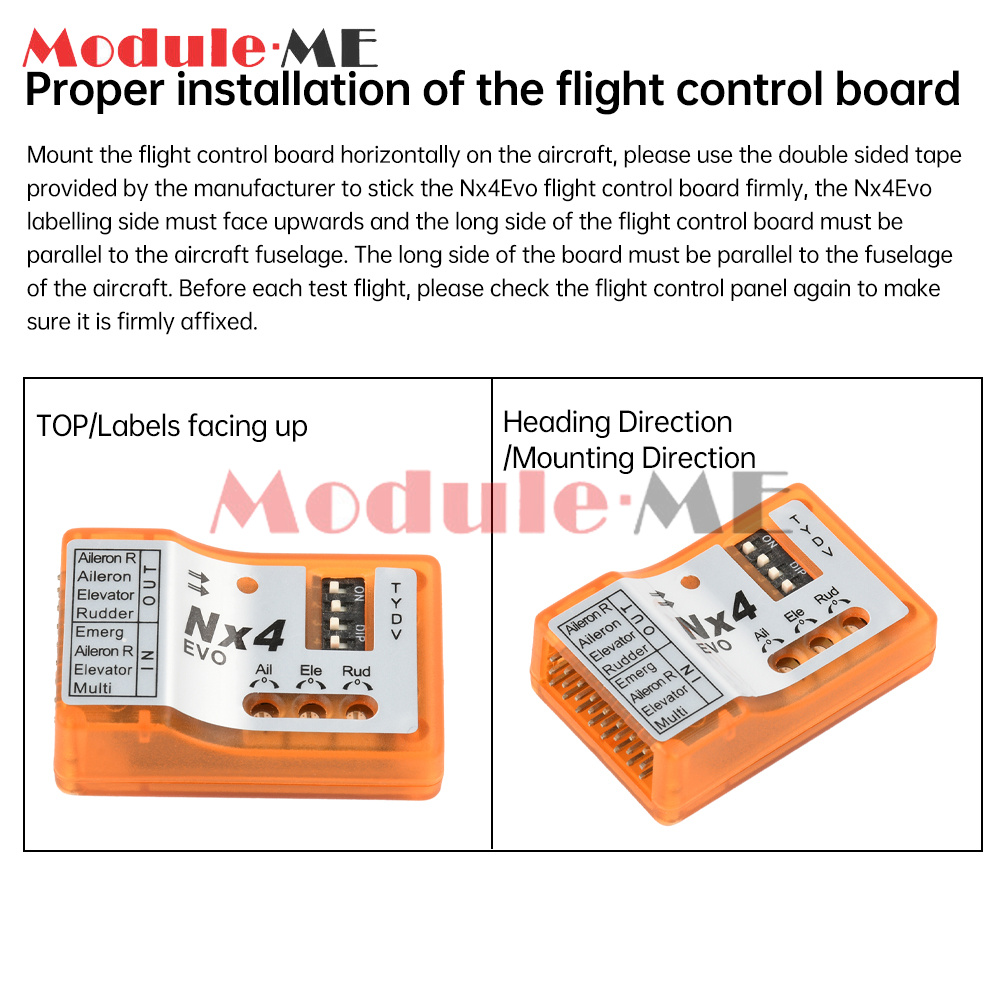

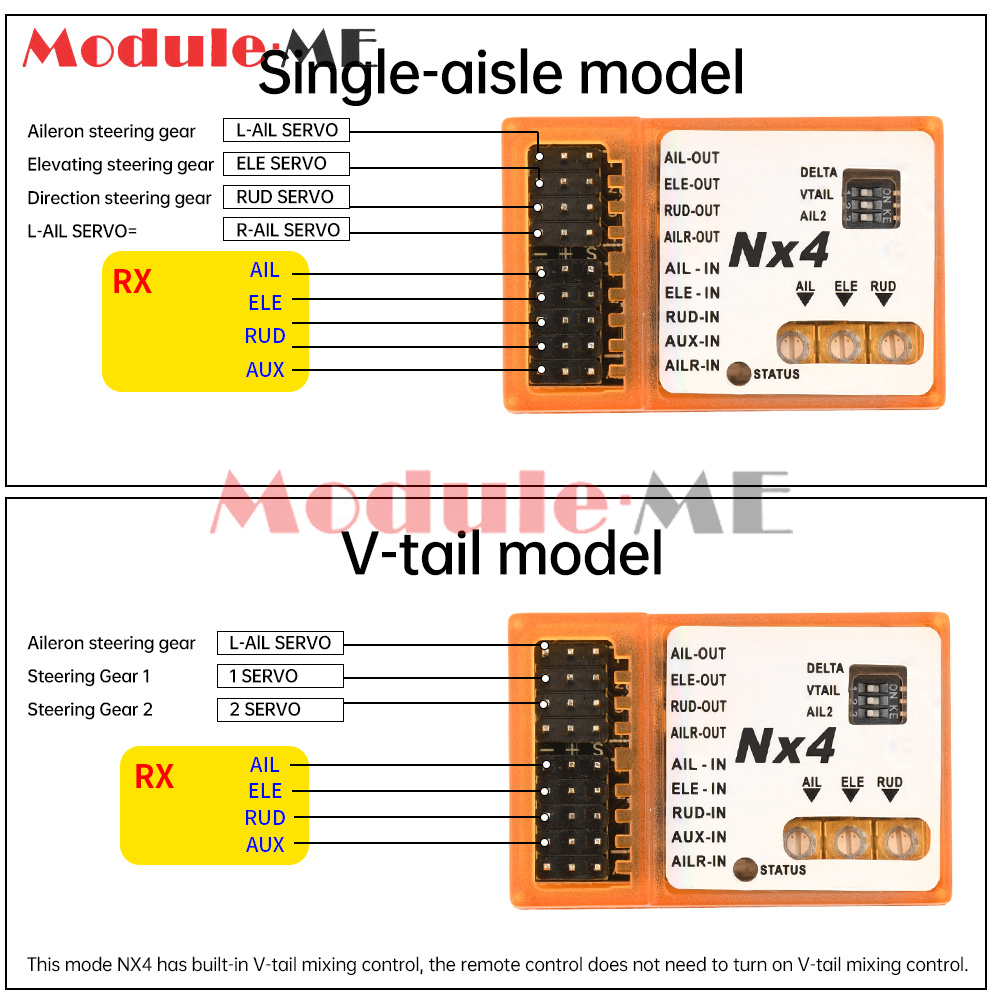

1, refer to the instructions for the correct connection, and check whether the remote control is working properly, (the flight control does not need to set the mixing control)

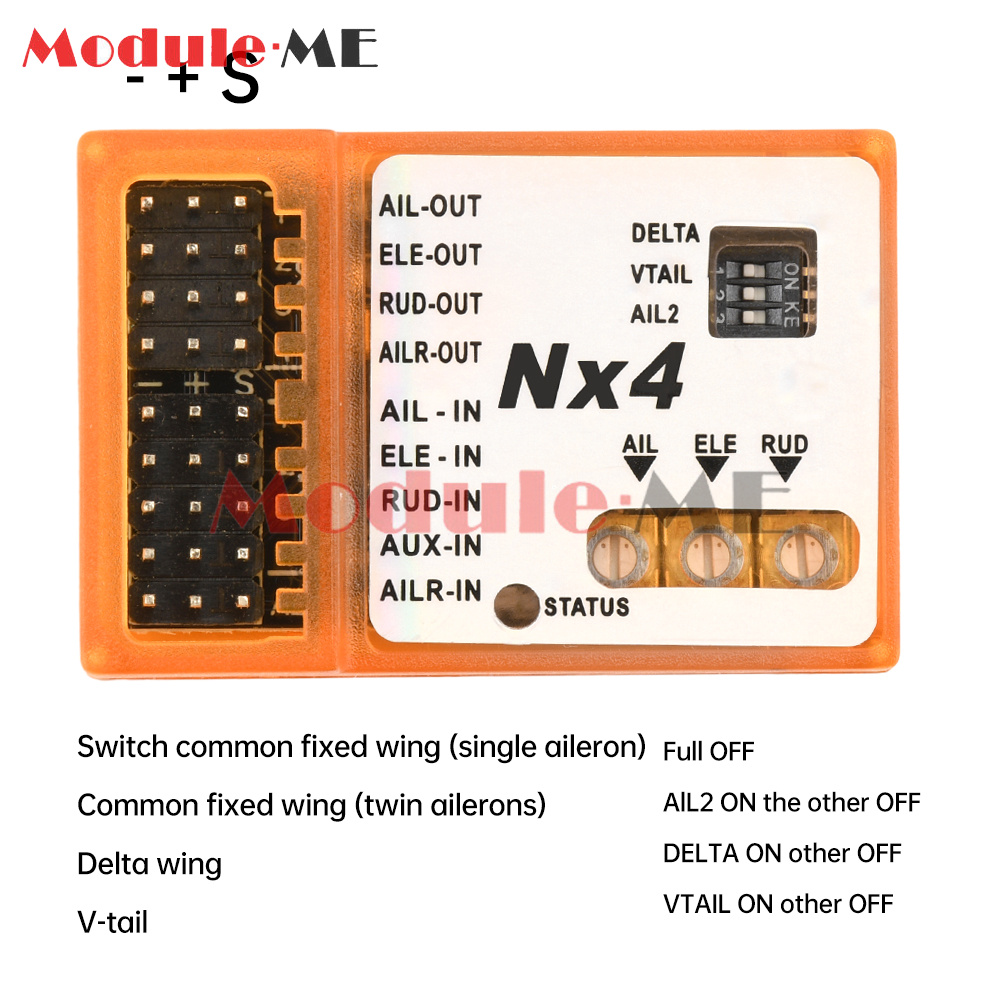

2, adjust the dip switch to select the correct model. And check whether the remote controller control rudder surface is normal.
3, Adjust the gyro working direction and sensitivity through the potentiometer switch, and check whether the gyro working direction of each rudder surface is correct. (Please use the sensitivity for the first flight)
4, set up one-key rescue (refer to the manual, when turn on the one-key rescue, the elevator rudder must be cocked upward and then back to horizontal, otherwise you need to set it up separately)
5, through the remote control mode switch, toggle back and forth, calibrate the remote control neutral point. (When replacing the remote control or receiver, the neutral point must be calibrated)

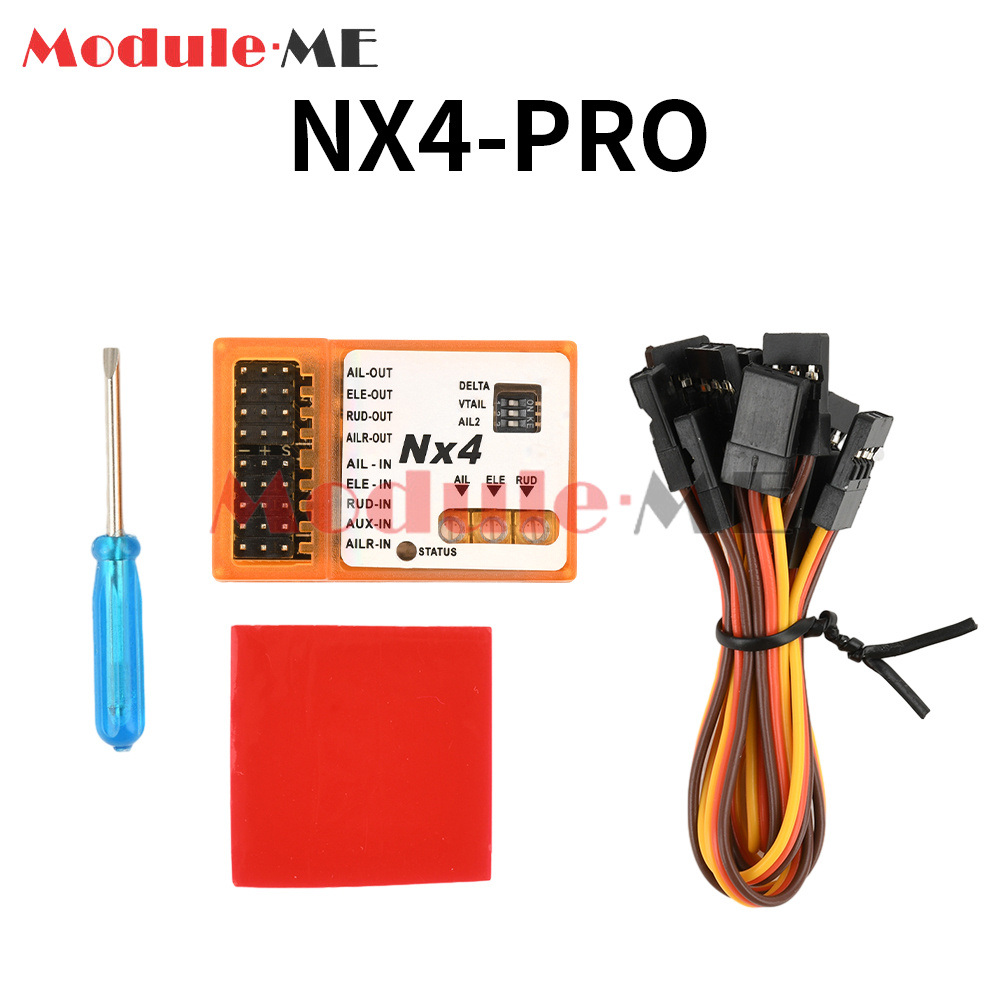

1 x Control board
1 x Accessory kit
