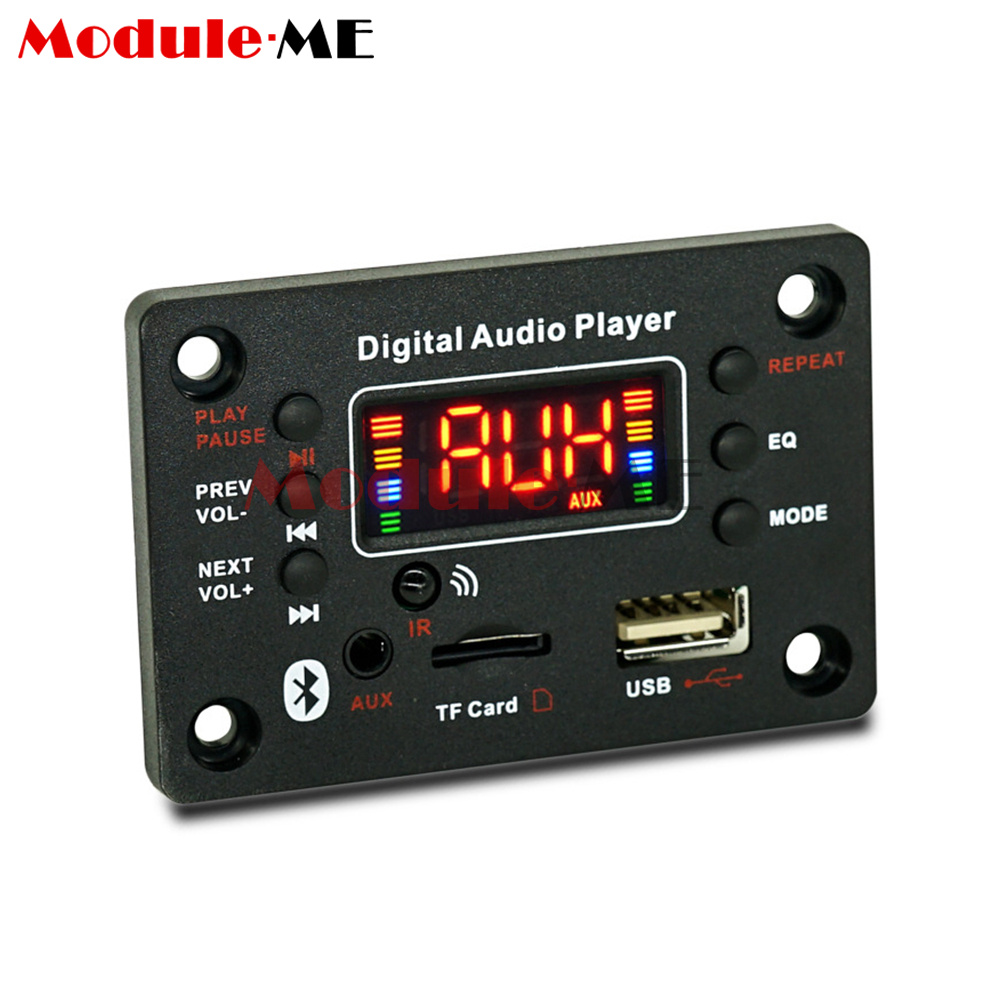

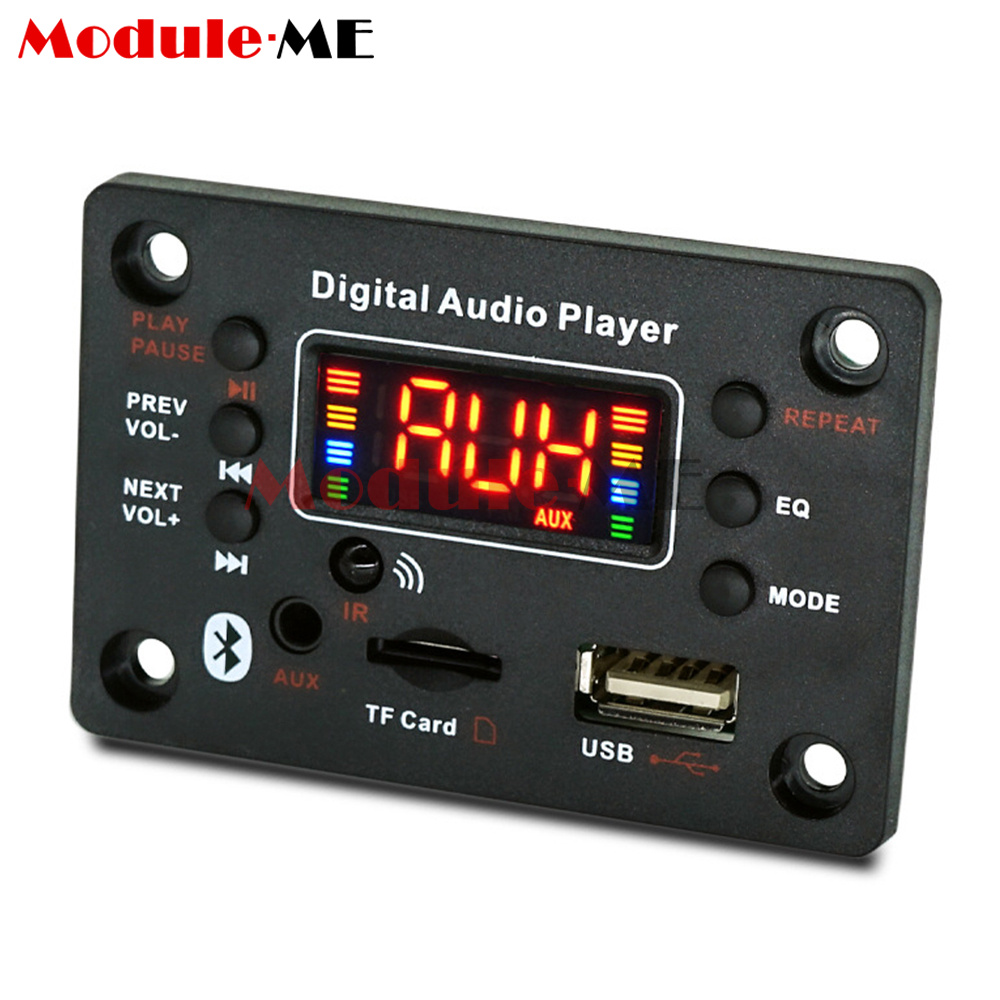

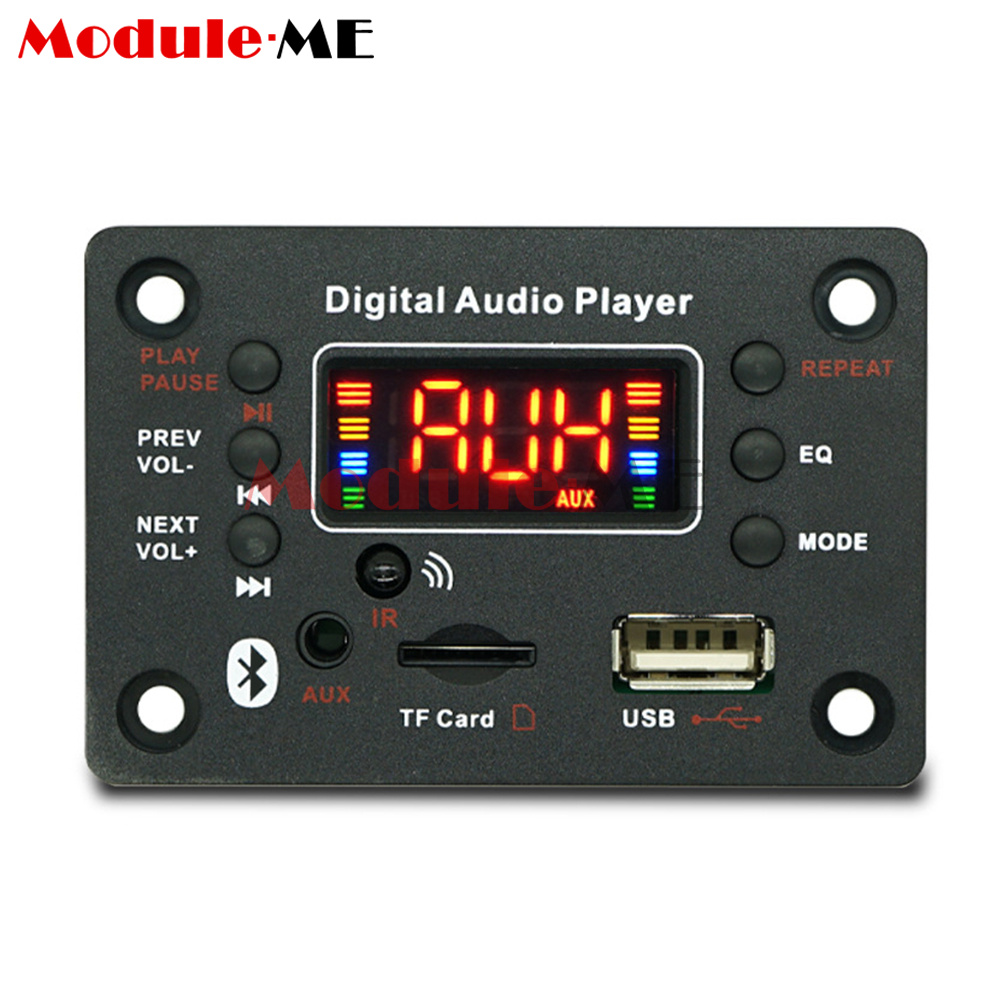

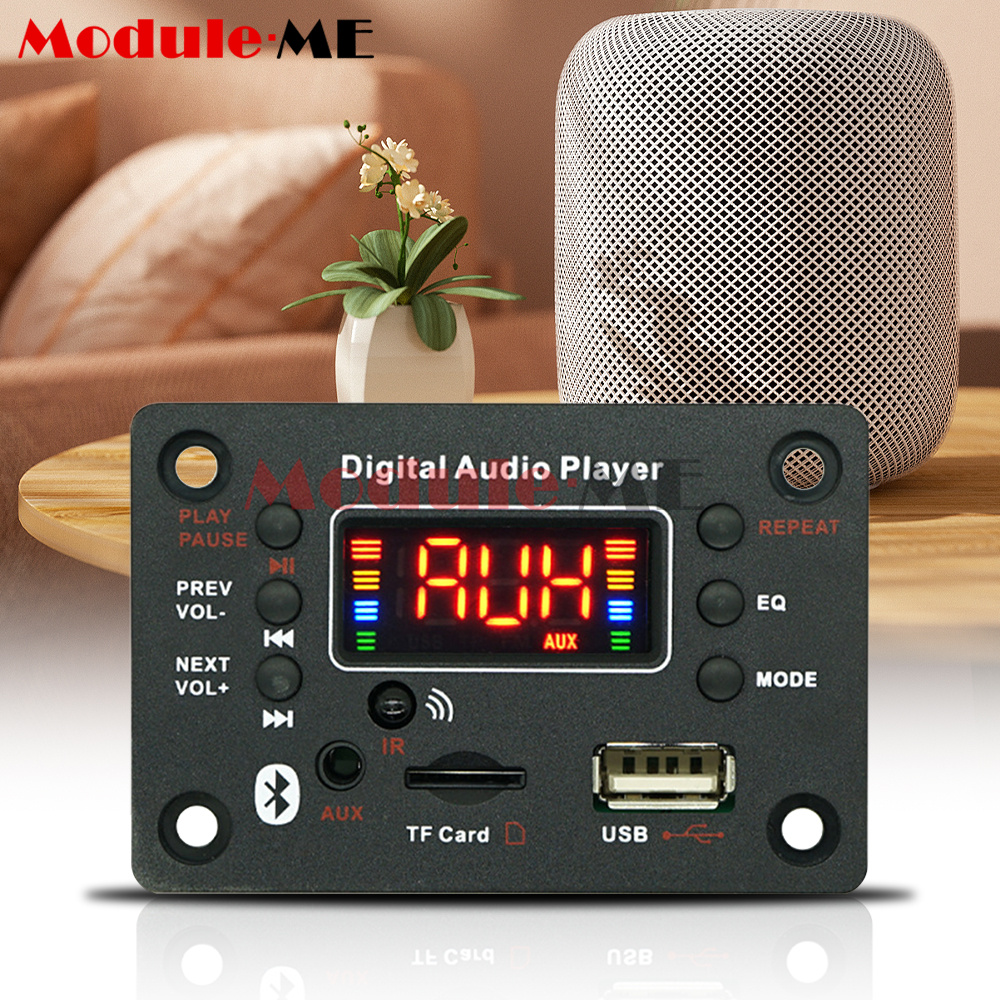

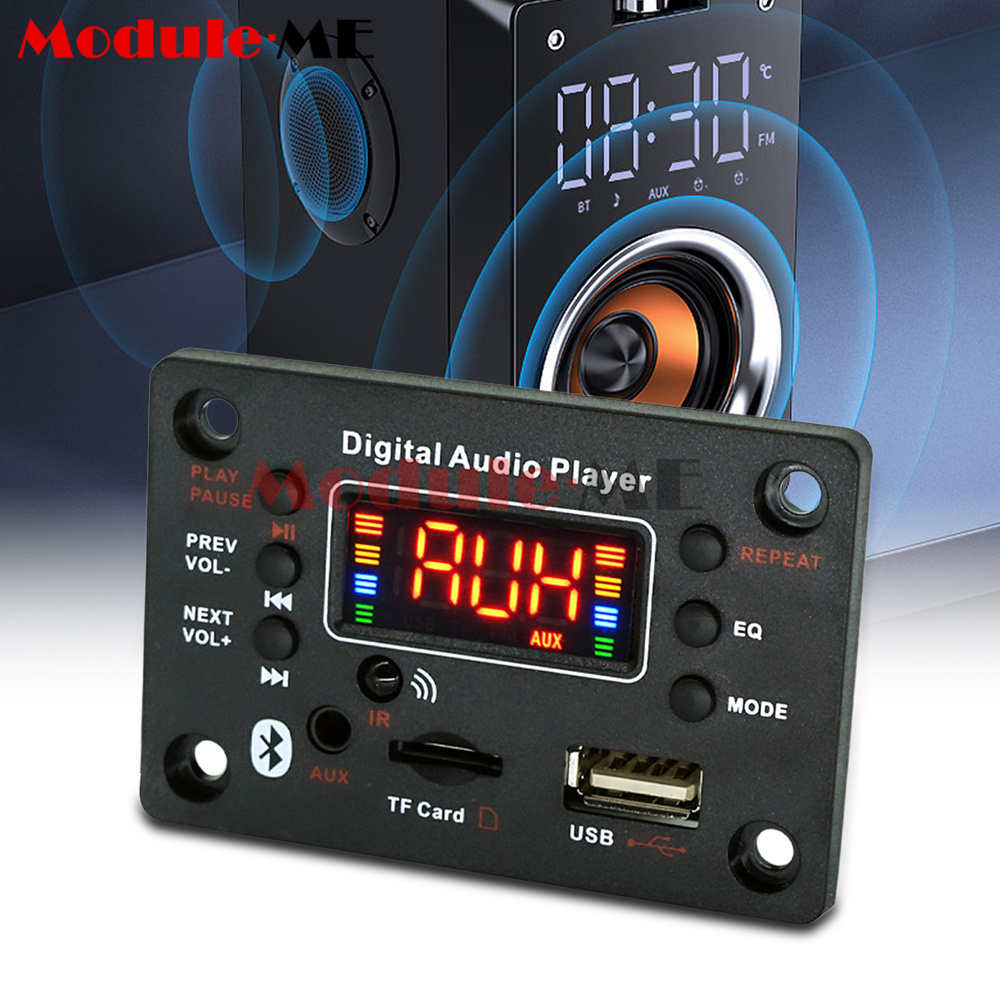

DC7-20V 2x40W Bluetooth Digital Audio Player MP3 Decoder / Power Amplifier Board
Product selling points:
1. Use of high quality materials, quality assurance
2. Dual decoding support MP3 / WMA / WAV / FLAC / APE lossless format music
3. Support Bluetooth function, Bluetooth version 5.0
4. Support recording function
5. Colour digital screen display
6. Power-off memory function
7. Support radio FM, retrieval frequency band (87.5MHZ-108.0MHZ)
1. Use of high quality materials, quality assurance
2. Dual decoding support MP3 / WMA / WAV / FLAC / APE lossless format music
3. Support Bluetooth function, Bluetooth version 5.0
4. Support recording function
5. Colour digital screen display
6. Power-off memory function
7. Support radio FM, retrieval frequency band (87.5MHZ-108.0MHZ)
Parameters:
Power supply range: DC7V-20V Recommended 12V power supply
Power supply range: DC7V-20V Recommended 12V power supply
Key operation details
1. PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station;
2. VOL-key: short press to select the previous song; long press to reduce the volume, double click to switch to the previous folder;
3、Short press is to select the next song; long press is to increase the volume, double click to switch to the next folder;
4、REPEAT:Press once for single song loop function, press again to cancel single song loop and play in sequence;
5、EQ:Sound field mode, test 6 kinds of sound quality; (classical) (jazz) (rock) (heavy bass) (pop) (normal)
6、MODE button: switch between USB / TF / FM / audio input / Bluetooth function in sequence; long press to start recording, press the button again to cancel the recording function and play the recording file; only internal recording (only recording frequency input, radio FM, Bluetooth); recording than need to connect a storage device, for example: U disk or TF card;
Description of the recording function
When recording than need to connect a storage device, such as: U disk or TF card
1. PAUSE: short press is to switch between pause and play; long press is to radio FM automatic station;
2. VOL-key: short press to select the previous song; long press to reduce the volume, double click to switch to the previous folder;
3、Short press is to select the next song; long press is to increase the volume, double click to switch to the next folder;
4、REPEAT:Press once for single song loop function, press again to cancel single song loop and play in sequence;
5、EQ:Sound field mode, test 6 kinds of sound quality; (classical) (jazz) (rock) (heavy bass) (pop) (normal)
6、MODE button: switch between USB / TF / FM / audio input / Bluetooth function in sequence; long press to start recording, press the button again to cancel the recording function and play the recording file; only internal recording (only recording frequency input, radio FM, Bluetooth); recording than need to connect a storage device, for example: U disk or TF card;
Description of the recording function
When recording than need to connect a storage device, such as: U disk or TF card

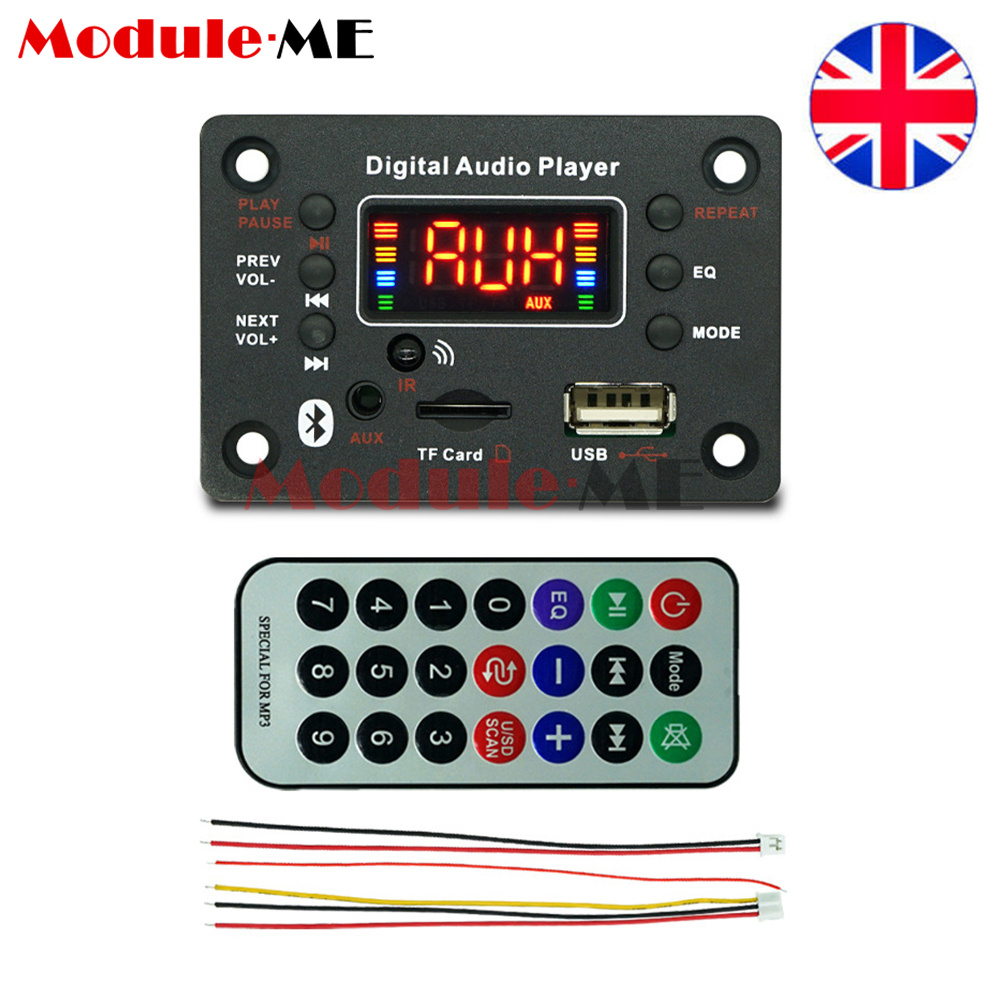

Package list:
decoder board*1
Remote control*1
Terminal cable*4
decoder board*1
Remote control*1
Terminal cable*4
