Coilovers Suspension Kit for Silvia S14 Silvia 240SX 1995-1998 Shocks Absorbers

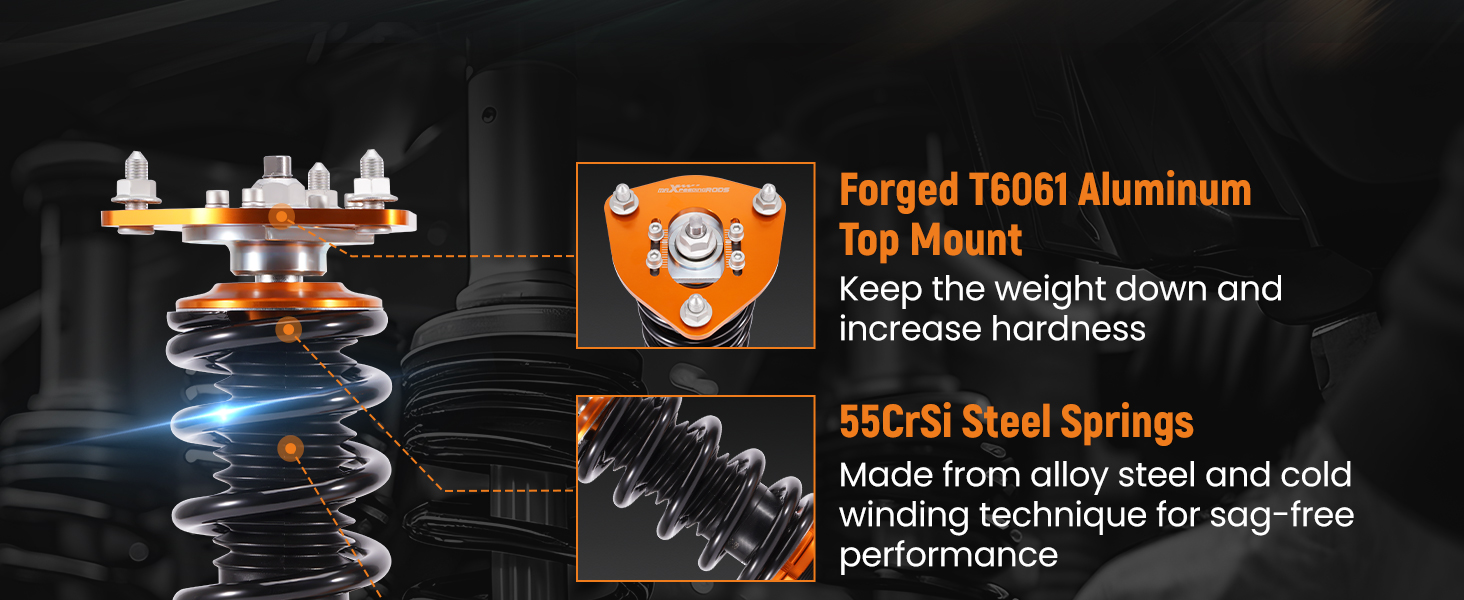

Aluminum Top mounts with Pillow ball

Aluminum top mounts with Pillow ball provide bind free operation and precise feed-back to the driver.

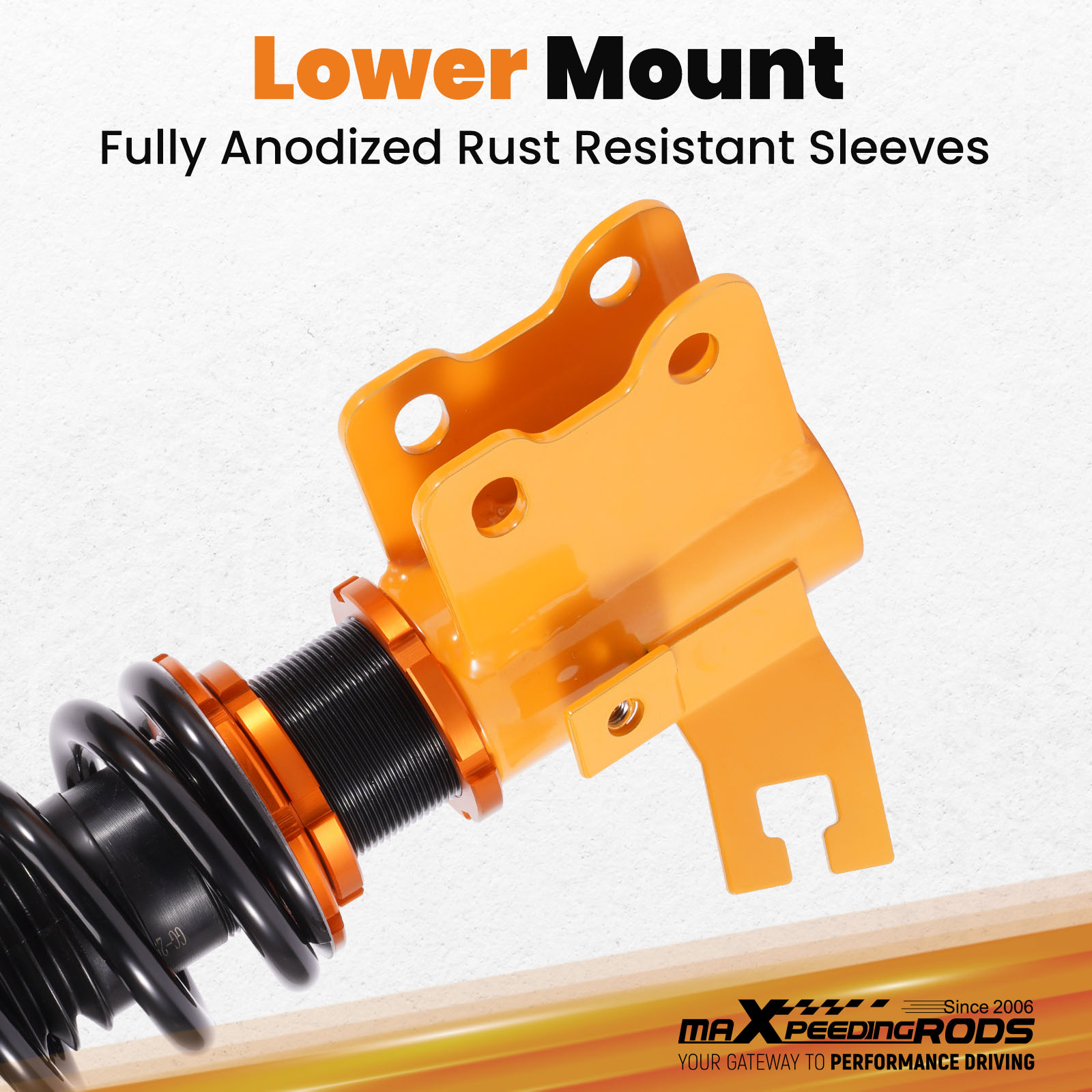

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

Drops From 1 to 3 Inch From Factory Ride Height

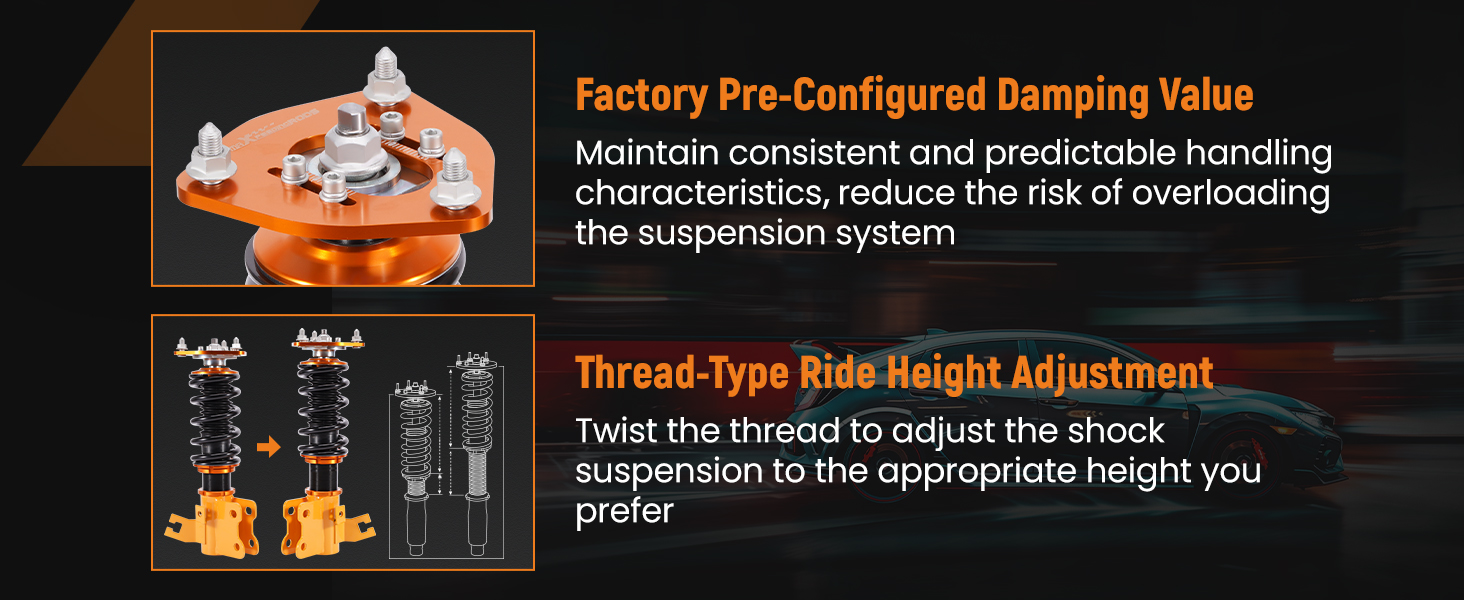

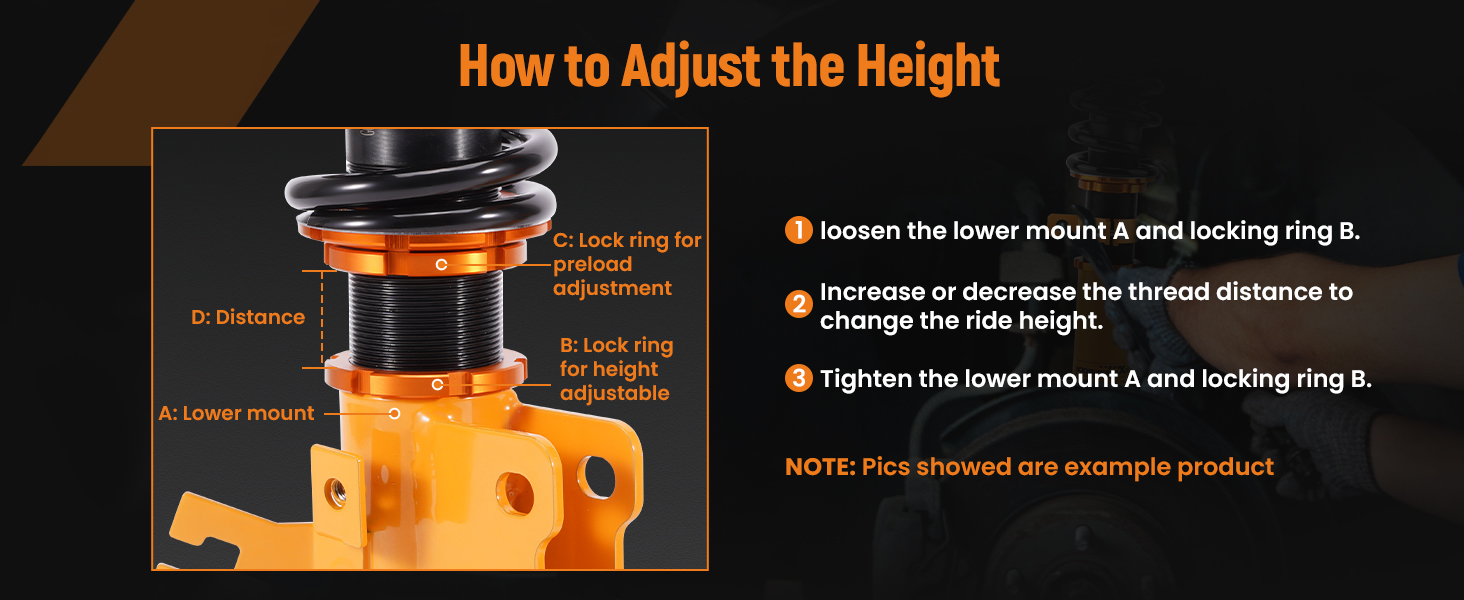

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

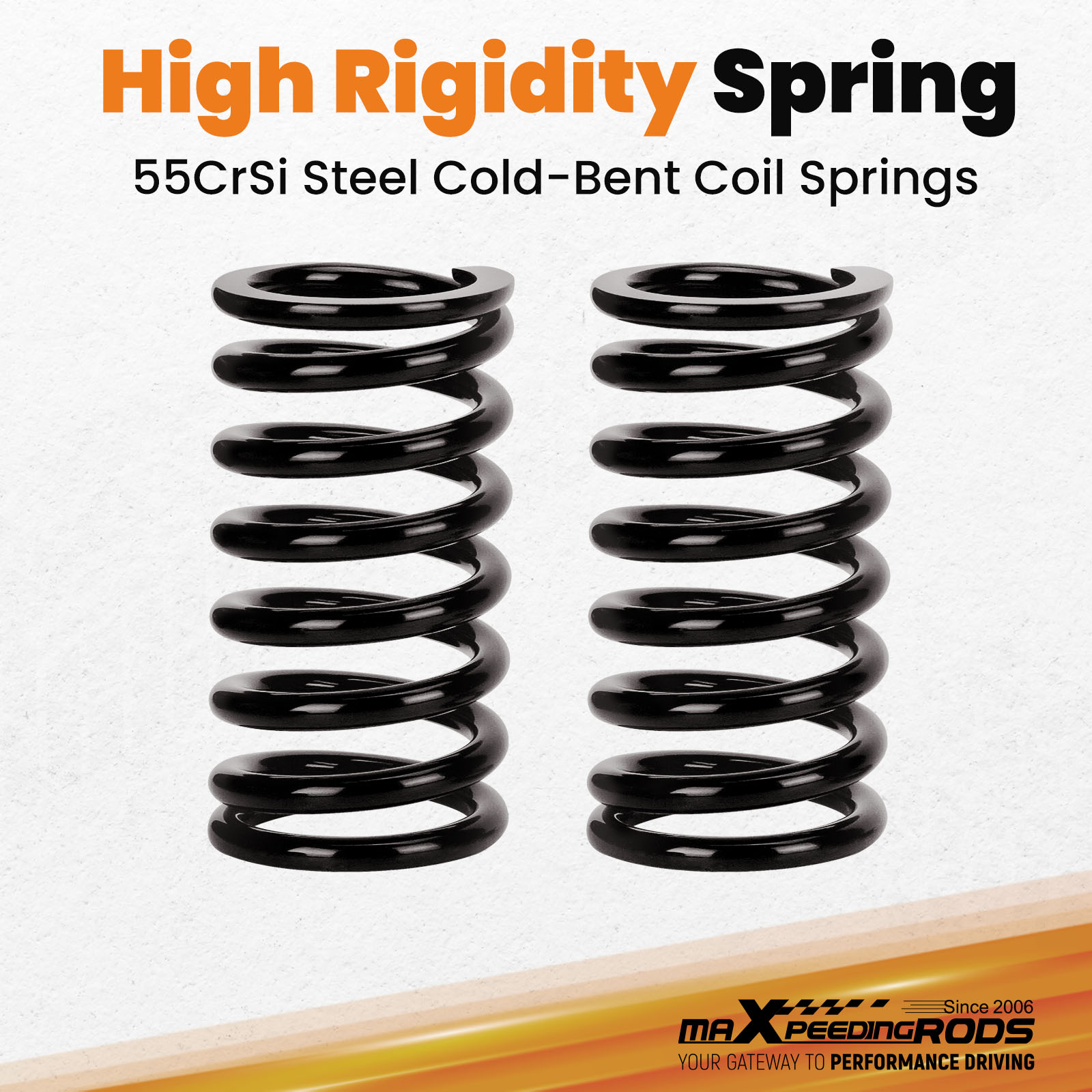

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Height adjustable Yes
Front Spring length 180 mm
Rear Spring length 230 mm
Front spring length 8 kg/mm (448 lbs/in)
Rear spring length 6 kg/mm (336 lbs/in)
Package Including 2 Front + 2 Rear
Warranty 1 Year

Features

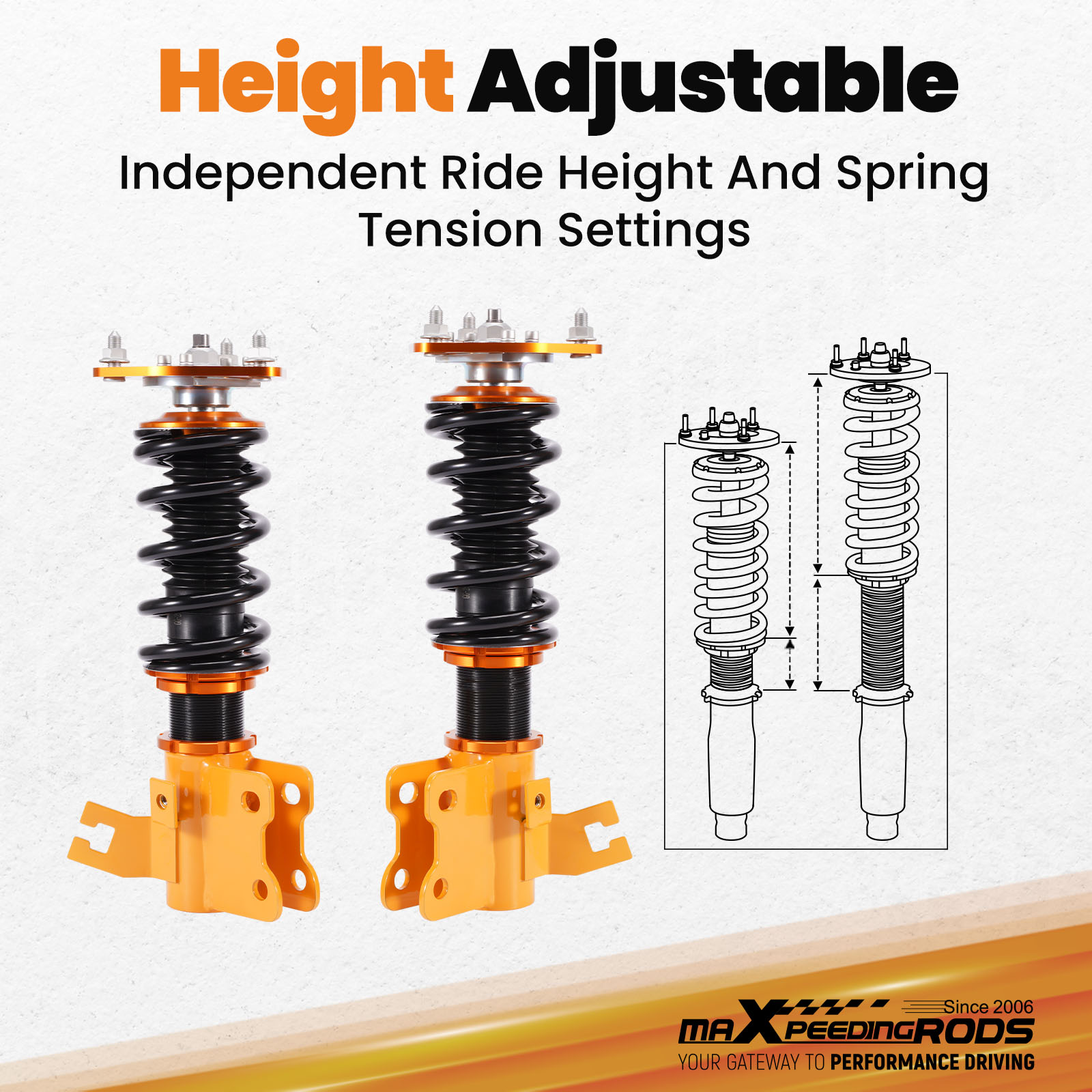

Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering
High Rigidity 55CrSi Steel Cold-bent Coil Springs
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase

Fitment



For Nissan S14 Silvia 1994-1998 (Japan Market)
For Nissan S14 200SX BASE MODEL/ LE 1994-1998 (Europe / Australia/ New Zealand Market)
For Nissan S14 240SX BASE MODEL/ LE/SE 1995-1998 (USA Market)
Note: Don't fit Nissan 200SX SE /SE-R


Specification

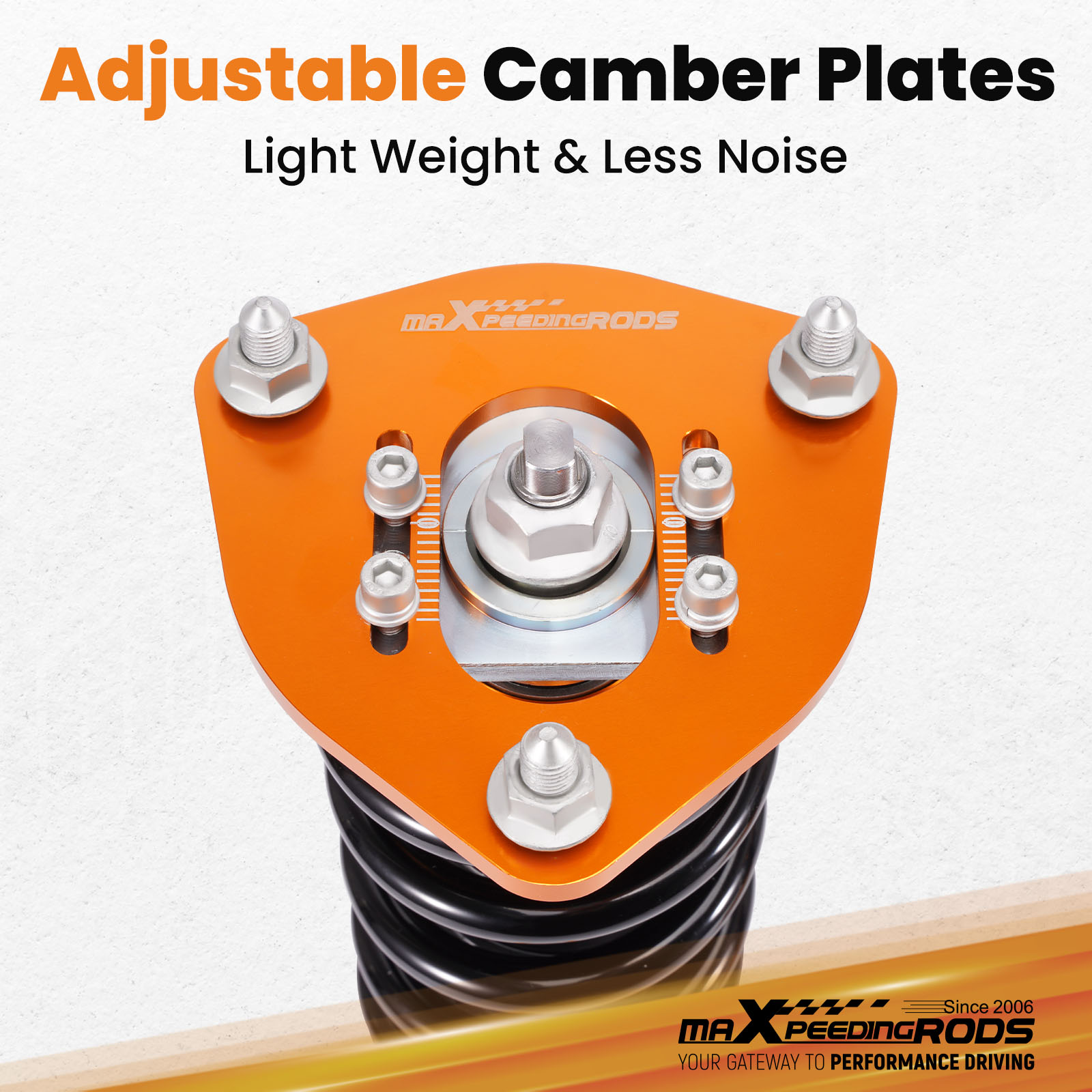

- Front top mount: Pillow ball with camber plate
- Damping adjustable: Not available
- Camber adjustable: Available
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring rate Front: 8 kg/mm (448 lbs/in)
- Spring rate Rear: 6 kg/mm (336 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 180 mm
- Spring length Rear: 230 mm
- Spring Preload advised: 7-10 mm
- Color: Golden body with black spring


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Top Camber Plate with Pillow Ball Mount Provides More Precise Feel From Suspension And Steering; Full 1 Year Limited Warranty From Date Of Purchase.
