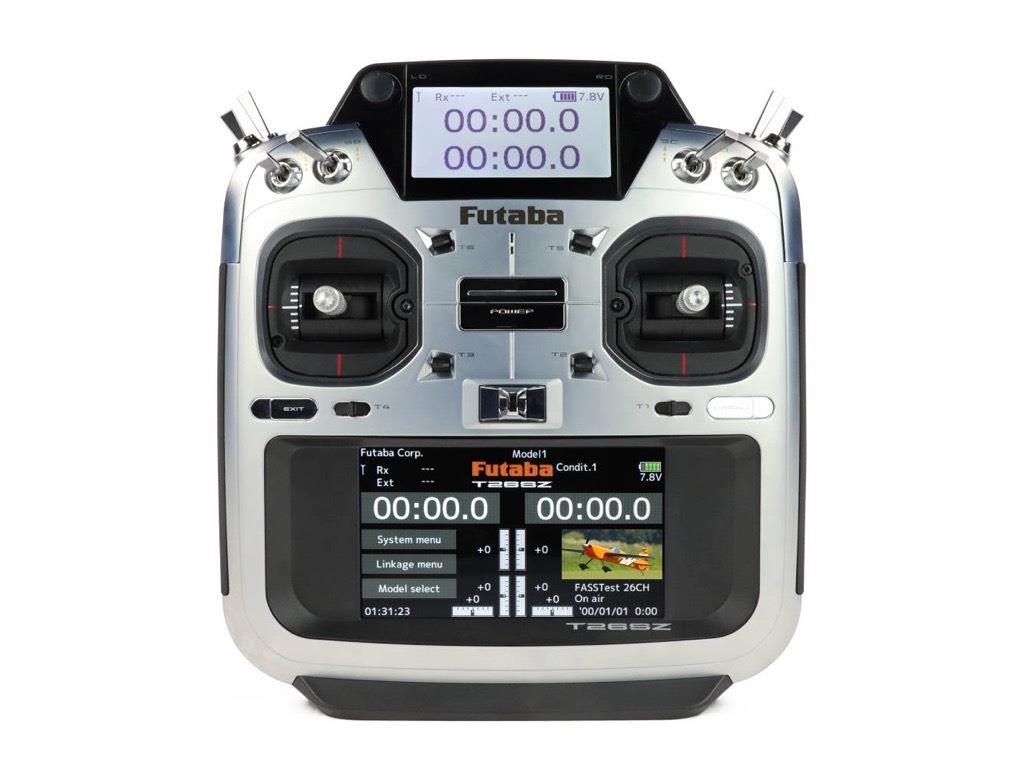

Futaba T26SZ 26 Channel Air Radio, Multi Mode, w/R7214SB Rx : FUT05003226-3

Futaba T26SZ 26 Channel Air Radio, Multi Mode, w/R7214SB Rx : FUT05003226-3

Key Features

• FASSTest26, FASSTest18, FASSTest12, S-FHSS & T-FHSS protocols.
• 26 channels (24+2).
• Full colour 4.3 inch touch screen.
• 3.0” LCD sub display.
• High quality finish.
• Model image display.
• Smooth non-contact stick potentiometer.
• Shoulder switch upgrade / replacement.
• Four rear sliders (paired).
• Vibration alert.
• Voice.
• Telemetry system.
• Four stick modes (1-4).
• MicroSD card software update.
• High capacity LiPo.
• Earphone jack.
• USB-C charging.
• Calendar clock.
• S.BUS I/F enabled.
• Wireless trainer system.
• ±240 step sub trim.
• Sub trim balance.
• DLPH-2 settings.
• Receiver mode-setting port.
• Gyro setting for CGY755 / 760R / 770R / GYA553.
• 8 flight conditions.
• 30 pre-programmed mixers.
• 10 free programmable mixers.
• Retract and door sequencer.
• 13 fixed-wing types.
• 3 fixed-wing tail types.
• 2 fixed-wing rudder types.
• 8 helicopter swash types.
• Supports 14 telemetry sensor types.
• GPS enabled.

What's in the Box

• 1x T26SZ 26-channel transmitter.
• 1x R7214SB receiver.
• 1x 7.4V 2000mAh Li-Ion Tx battery pack.
• 1x USB-C charge lead.
• 1x Neck strap.
• 1x Tool set.
• 1x Short manual (full manual download).

Product Description

Thoughtfully positioned between the much-loved, mid-range T16IZS and the highly-desirable range-topping T32MZ-WC, Futaba’s brand-new, high end T26SZ is the answer to many a prayer. For pilots who fly anything and everything, demand unquestioned reliability and seek a future-proof radio that offers the highest level of programming sophistication, Futaba’s T26SZ will be impossible to ignore. With its user-friendly interface, twin screens, silky-smooth hall effect non-contact gimbals, near like-for-like 32MZ feature set, elegant styling and latest FASSTest 26ch protocol, the '26SZ is highly likely to tick every box on your extensive wish list. With instant boot-up, incredible receiver pricing and satellite-free airframe installations, the T26SZ is, we’re tempted to say, the perfect choice. Here's just a hint of what to expect:

S.BUS2 SYSTEM

Multiple servos, gyros and telemetry sensors can be easily installed with a minimum of cables.

COLOUR LCD MAIN DISPLAY

HVGA 4.3" full colour backlit LCD transflective (indoor / outdoor visible) touch screen.

LCD SECONDARY DISPLAY

A high quality reflective LCD for easy recognition of telemetry information.

SD CARD PORT

Update software, store model data and upload picture files using the microSD port.

HIGH CAPACITY LI-ION

2100mAh offers a comfortable operating duration and real peace of mind.

INTUITIVE PROGRAMMING

Model-specific programming and editing has never been easier.

MULTIPROP CHANNEL EXPANSION

Using the MPDX-1 multiprop decoder (sold separately) one channel can be divided into eight channels. Two MPDX-1s can be used.

FEELS GOOD

Magnetic detection non-contact potentiometers offer fine, ultra-precise, long-lasting operation. A throttle stick external adjustment screw allows ratchet or self-neutralising spring adjustment.

SWITCH REPLACEMENT

Change four of the toggles on the right and left shoulder with your chosen two-position, three-position or momentary switch.

Key Programming Features/For full list see manual

• Model name (15 characters)
• Sub trim
• Sub trim balance
• Servo reverse
• Fail-safe
• Exponential
• Throttle cut
• End point / ATV (30 - 140%)
• Servo speed
• Trainer function
• Servo monitor
• Trim setting (step, rate, mode)
• Data editor (for S.Bus equipment)
• 10 programmable mixers
• 30 pre-programmed mixers
• Aileron differential
• Air brake
• Flap trim
• Flap setting
• Butterfly
• Camber mix
• Camber flap-elevator
• Elevator to camber
• Aileron to camber flap
• Aileron to rudder
• V tail
• Ailevator
• Winglet
• Aileron to brake flap
• Snap roll
• Servo monitor
• Twin timers
• Stick alarm
• Battery fail-safe
• Gyro sense
• Multi engine
• Motor mix
• Condition name
• AFR (dual rate)
• AFR (curve mode)
• AFR curve point number (17 points)
• Logic switch (condition switch only)
• Acceleration mixing
• Pitch curve / pitch trim
• Throttle curve / throttle hover trim
• Pitch to needle mix
• Revolution mix
• Swash ring
• Idle down
• Throttle limiter
• Swash setting
• Swash AFR
• System timer
• Function setting
• Governor

Telemetry functions

• Temperature
• RPM (magnetic & optic)
• Altitude
• GPS
• Voltage
• Receiver battery
• Current
• Data logging
