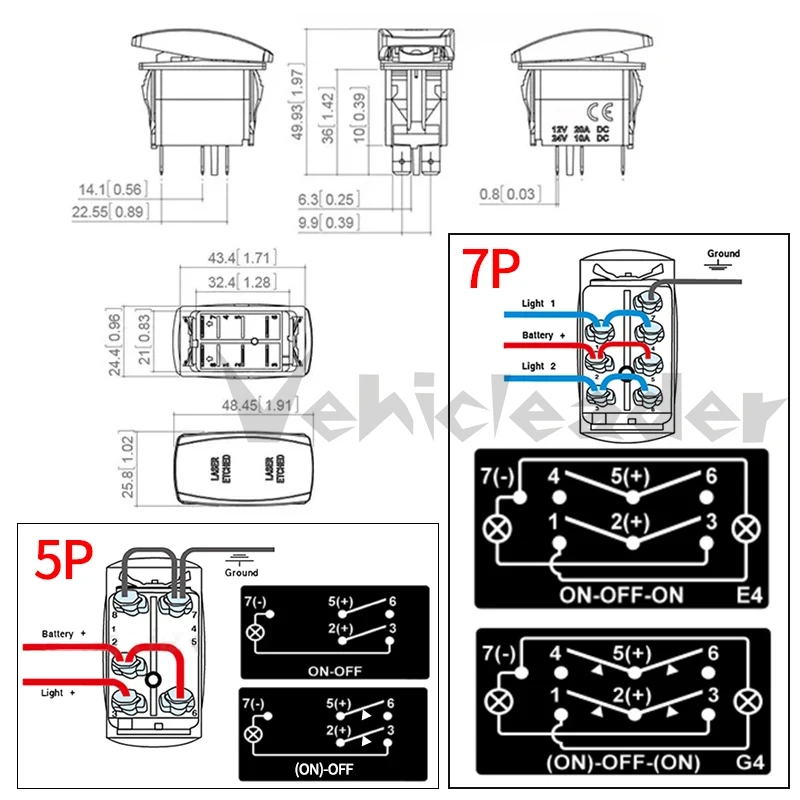

NOTE：The wiring harness is only for wiring instructions, the package only includes switches, not the wiring harness
NOTE：The wiring harness is only for wiring instructions, the package only includes switches, not the wiring harness

Features:
Ultra-high-end luxury switch with LED indicator light

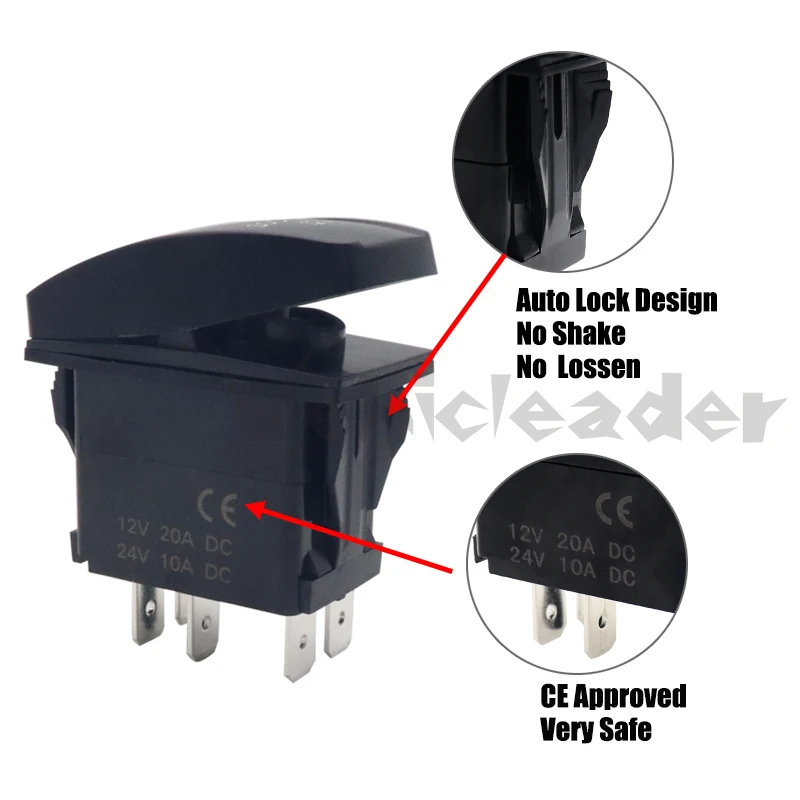

CE certified quality, made of environmentally friendly anti-retardant materials
12-24v car universal voltage; suitable for conversion control car people all equipment
Output circuit protection, overload protection, reverse polarity protection, multiple protection, safety to use.


Specification:

Material: ABS & Environmental anti-retardant materials
Color: Black
LED Light Color: Blue
Number of light: 2 led light
Dimension: like the picture shows

Pin: SPST 5pin & DPDT 7pin

Switch Actions: ON OFF, (ON) OFF, ON OFF ON, (ON) OFF (ON)

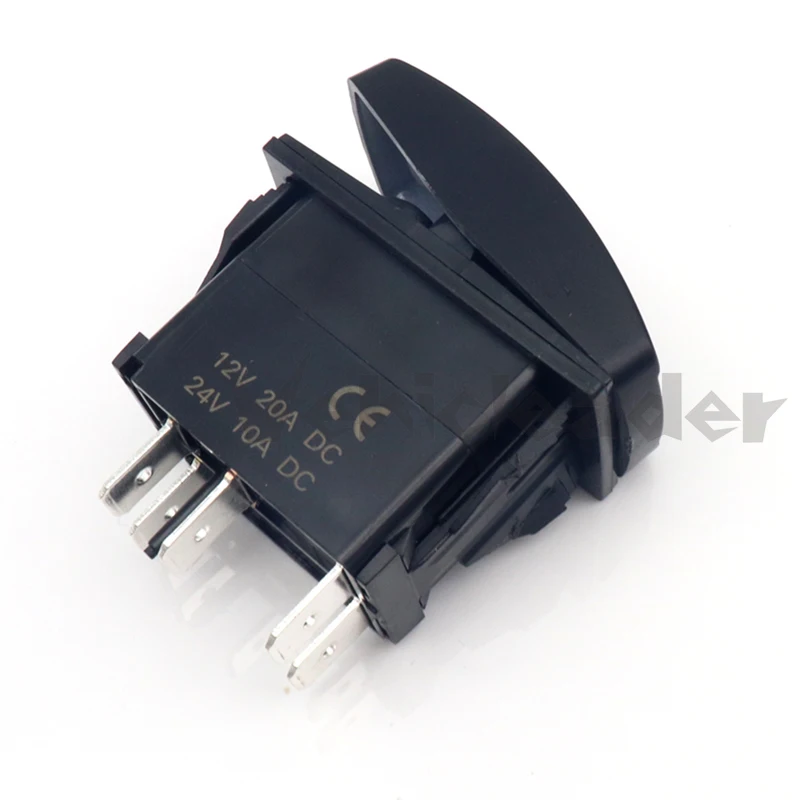

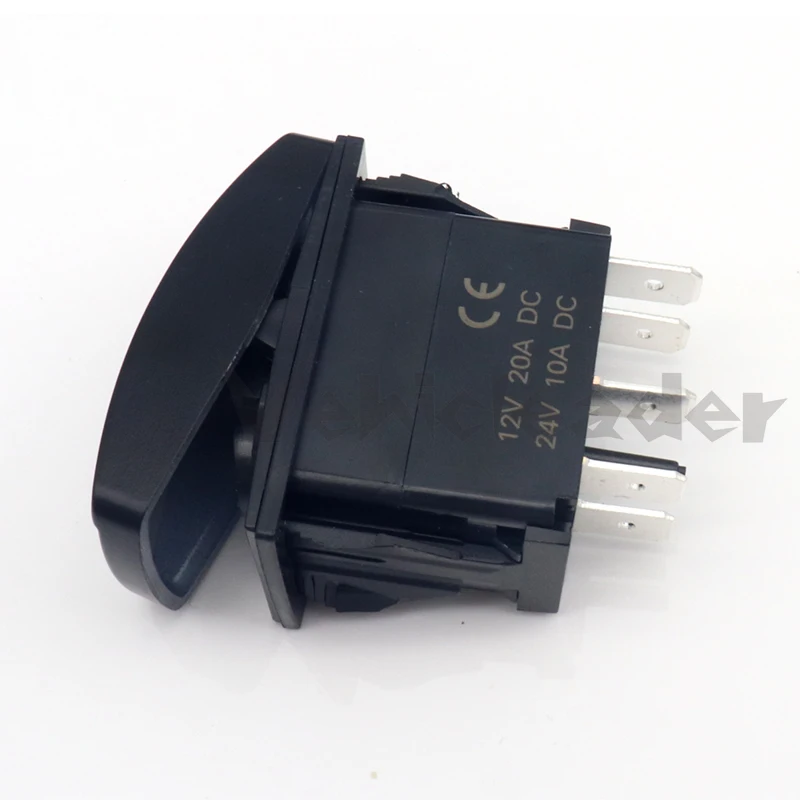

DC 12V/20A,24V/10A

Suitable for all 12 / 24v car battery installation, such as cars, motorcycles, buses, boats, RVs, boats, trailers, etc.


Special Switches

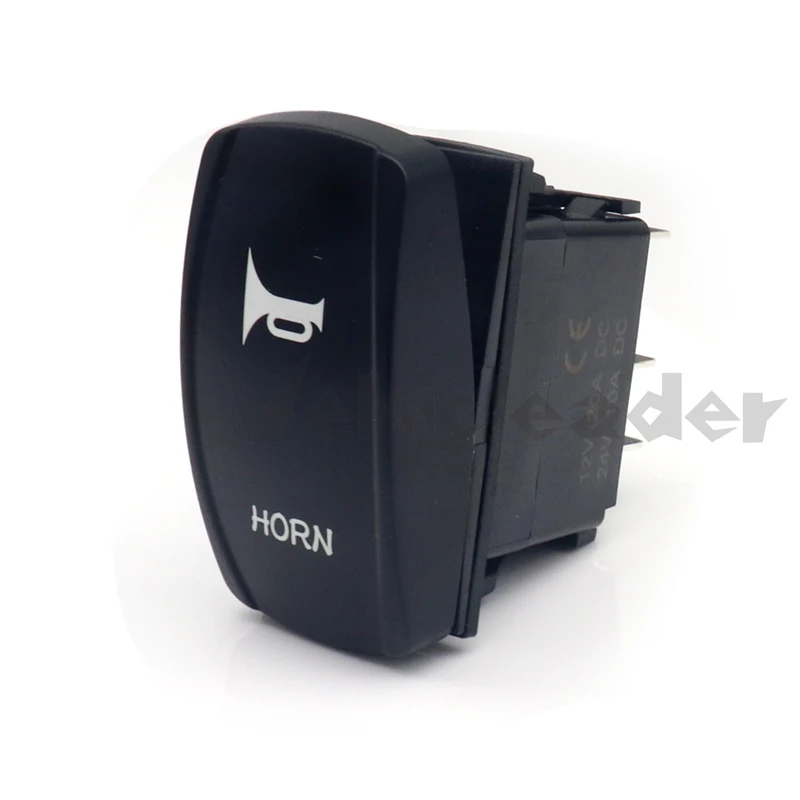

5Pins (on)-off rocker switch :Horn

7Pins (on)-off-(on) rocker switch : DRIVE TILT

7Pins on-off-on rocker switch : BILGE PUMP, HIGH LOW , NAV/ ANC LIGHTS,FAN OVERRIDE FRONT REAR LOCKER

momentary switches: After pressing it,it will automatically return to its original switch position.

not momentary switches :After pressing it, not automatic return,you have to press it again to restore the original position.



Package included:
1 x LED light bar switch（not include wiring harnesses, only LED switches.）
