1 Set Raycus Fiber Laser Marking Machine with default 150*150mm lens (20W/30W/50W Optional)

    1 x Rotary Axis (D80 Rotary Axis/Ring Jewelry Rotary Axis/Round Wheel Rotary Axis )(Optional)
    1 Pcs U Disk (USB)
    1 Pcs Data Line
    1 Software Ezcad2
    1 Set Foot Switch
    1 Set Assembly Tools
    4 pcs Fixed Sheet Metal
    1 Set Power Cable
    10 Pcs Metal Card

Note: The marking area is optional :

50x50/70x70/110x110/150x150/200x200/220x220/300x300mm,

we ship 150x150mm lens as default, buyer can also choose other size after placing the order,)

This product defaults to 110V US plug. If you need 220V, please leave a message

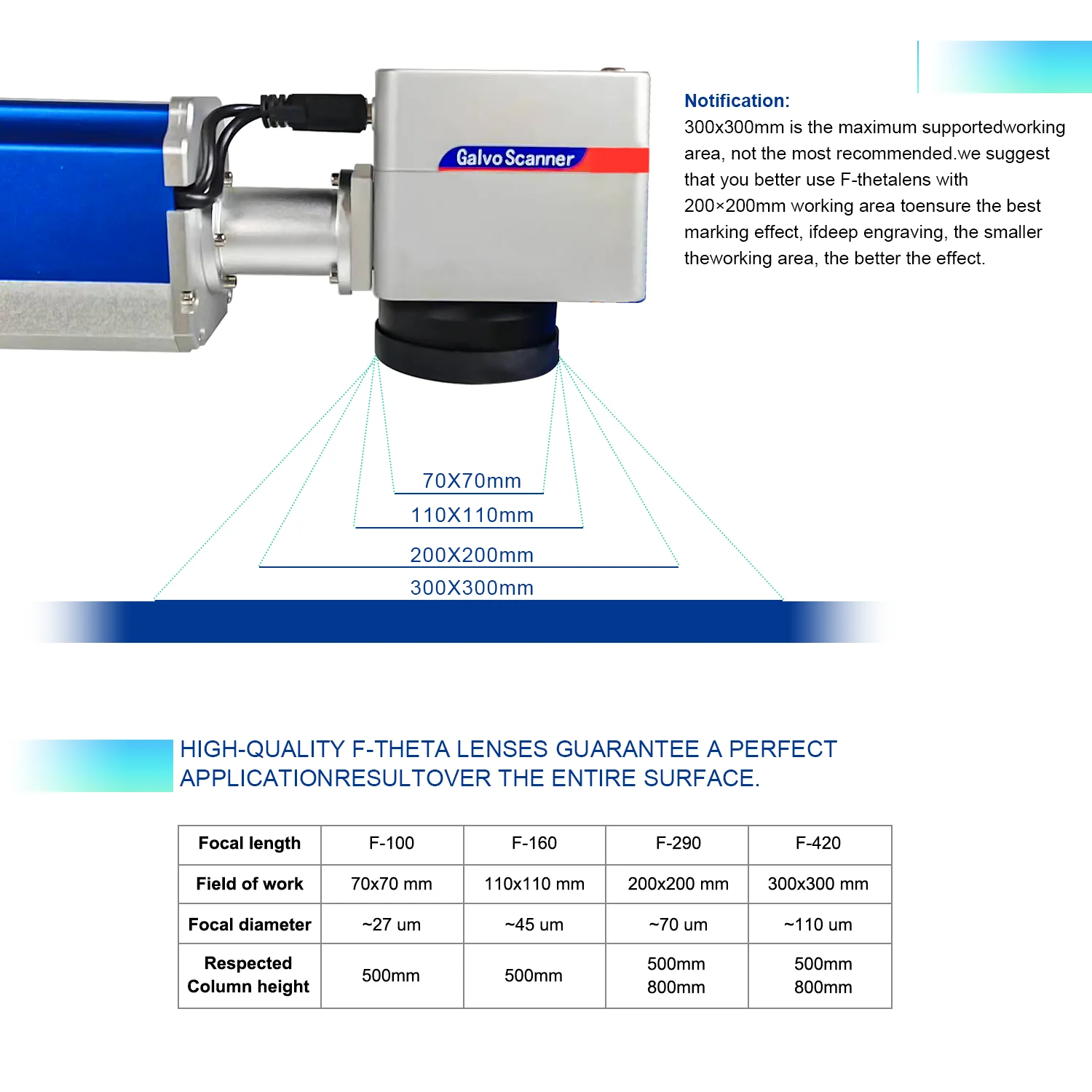

How to choose lens

With Same Lens, The Higher Power, The Deeper Engrave.

With Same Power, The Smaller Lens, The Deeper Engrave，

Bigger Lens Engrave Bigger Area，

Smaller Lens Engrave Deeper Depth,

if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is very weak , so not biggest lens area is best ,but choose suitable lens.

20w choose 70mm*70mm , 110mm*110mm,200mm*200mm
30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm, 200mm*200mm
50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm, 300mm*300m



Technical Parameter

Model
Laser power	20W/30W/50W/60W Raycus
Field Mirror(Work Area)	150*150mm( 50*50mm / 70*70mm / 110*110mm / 200*200mm /300*300mm Optional. Support extra purchase.）
Cooling Mode	Air Cooling
Laser Wavelength	RAYCUS is 10.64 um,
Frequency of pulse	RAYCUS is 20-100 KHz
Marking Depth	≤0.3 mm
Marking Speed	≤4000 mm/s(RC1001) (it can change to SG7110 , 8000mm/s ,price is higher US$150)
Marking Lines	1-10 lines
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	±0.002 mm
Resolution Ratio	0.1 mm
Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
Control Software	EZCAD ENGLISH Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power	≤0.9 KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog

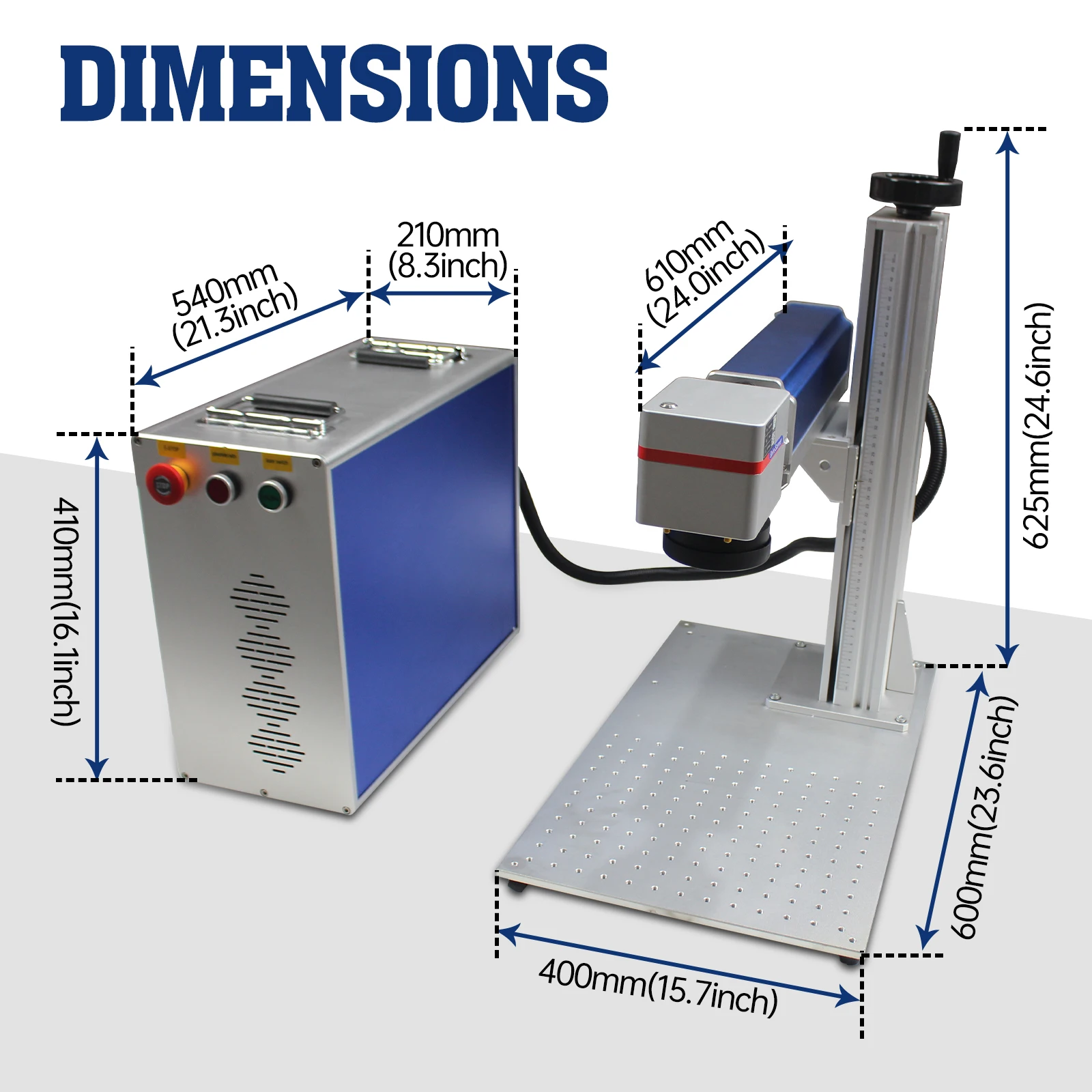

Dimensions(L*W*H)	95 x 78 x 55 cm
Power supply requirements	220 V or 110V (Optional)
Weight	48KG
Warranty	24 months

The motherboard supports win10 and supports 32-bit 64-bit.

1:Fully build the platform professional fiber laser marking machine shop, please customers to patronize, do not just look at the price. To look at the quality of the machine, use high-quality machine parts to give customers the best price and quality service! Provide S/N coding for our machines, machine lifetime service,

2: Machine configuration:

A;Fiber Laser brand: Raycus

B; SINO-GALVO RC1001 galvanometer with Red dots assistant focusing align.

C; Taiwan Meanwell (MW) power supply,

D; Motherboard with Rotary axis function, free built-in drive & rotary axis port.

E: Rotary axis (Optional)

3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine.
