Coilovers Suspension Lowering Kit For Honda Accord 2008-2012 Acura TSX 09-14

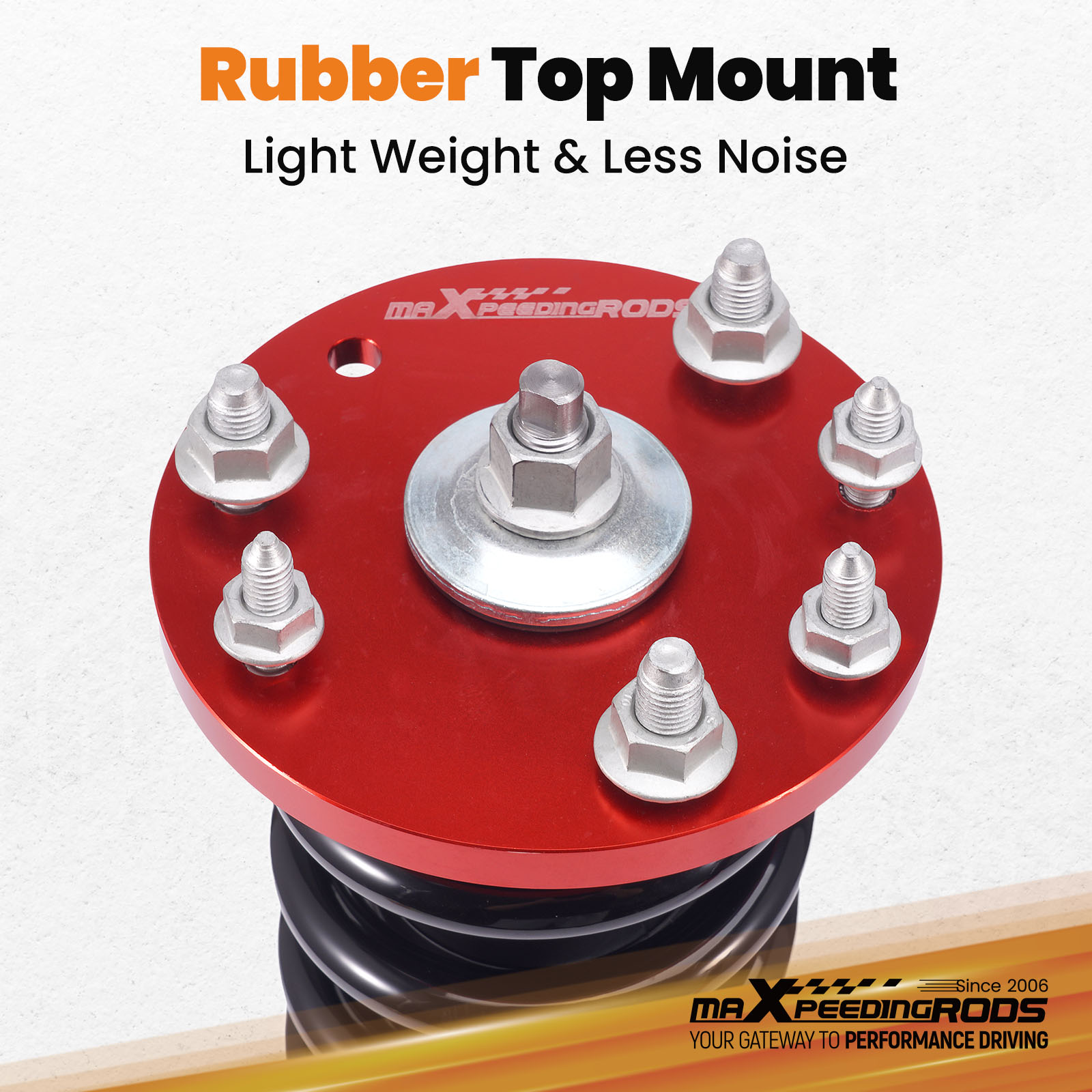

Aluminum Upper Mounts

Aluminum Upper Mounts with Hardened Rubber Bushings for Noise Reduction.

Anodized Shock Body With Anti-Corrosion Coating

Manufactured From High Quality T-6061 Billet Aluminum With Anodized Finish For Superior Strength And Corrosion Protection.

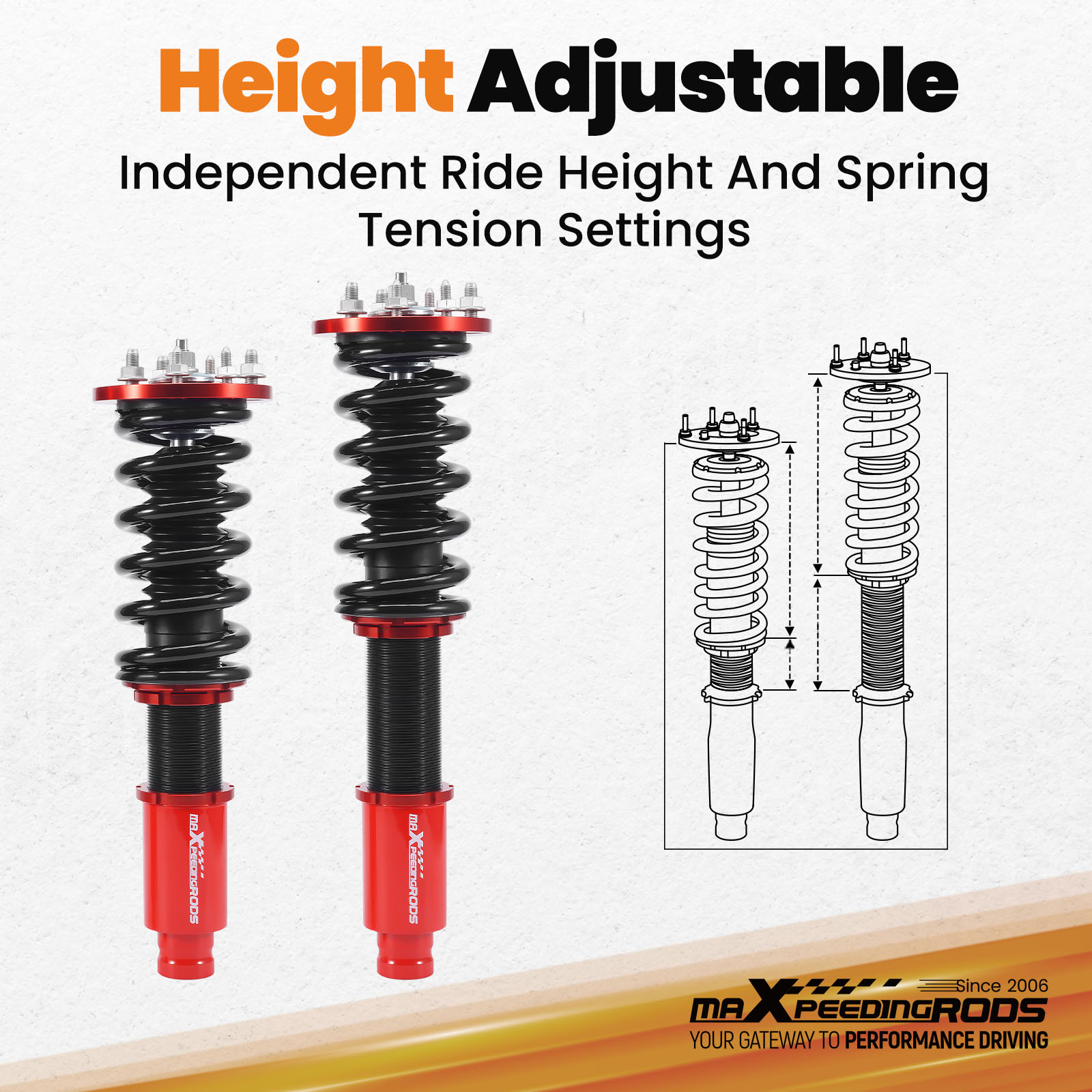

Drops From 1 to 3 Inch From Factory Ride Height

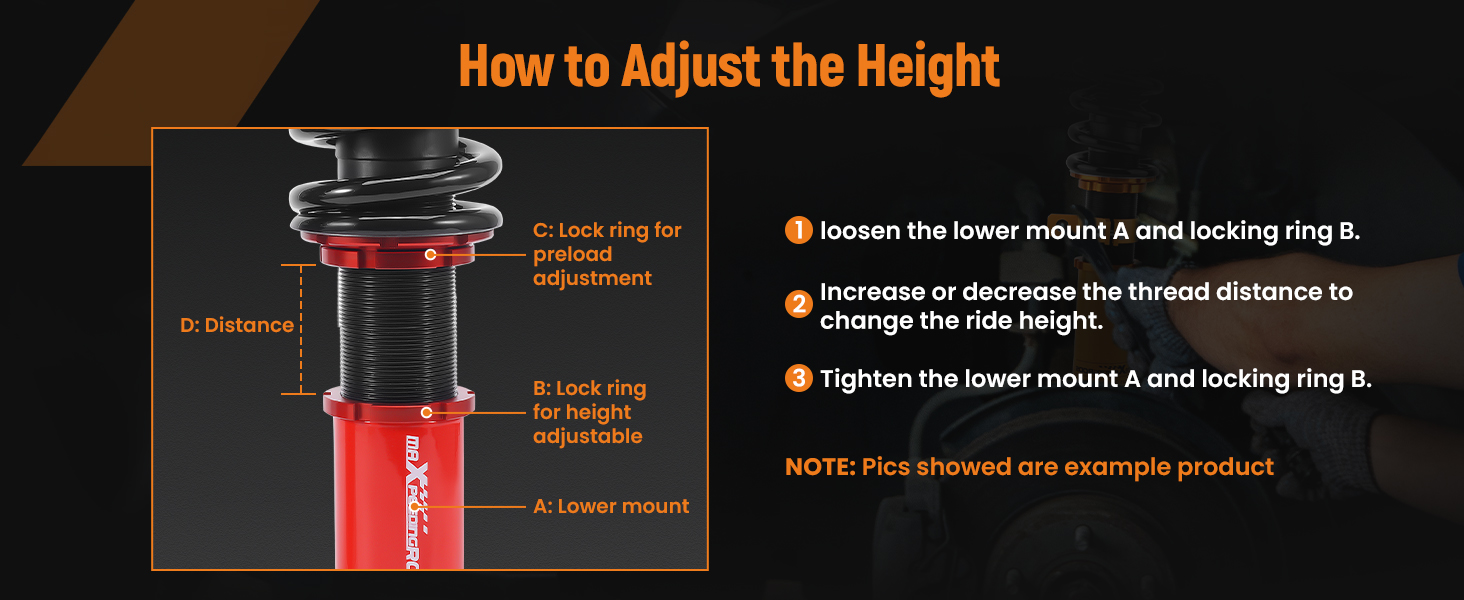

Full Threaded Absorber Tube Casing For Independent Height Adjustment.

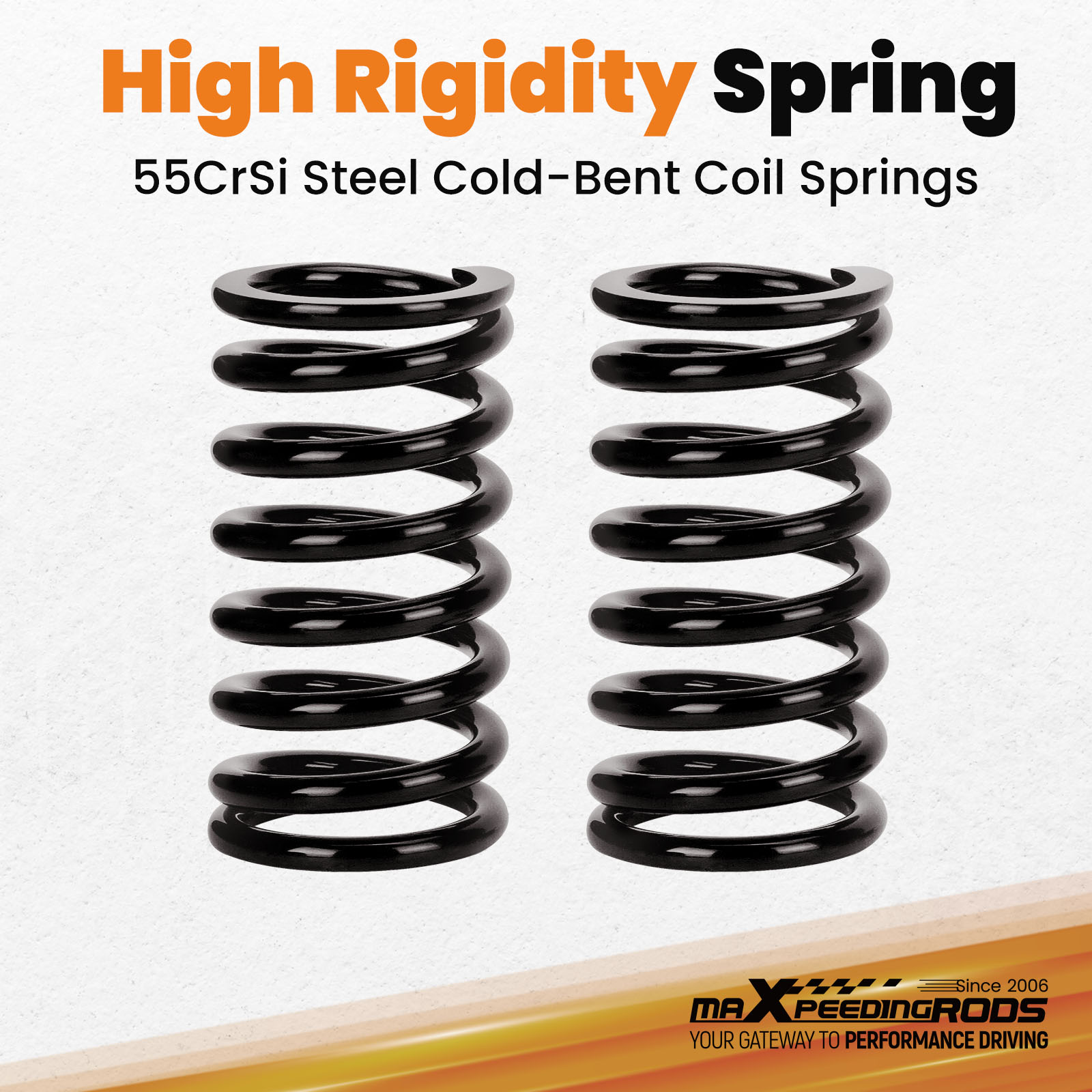

Durable Cold Wound Steel & Heat Treated Coils

High Rigidity 55CrSi Steel Cold-bent Coil Springs - Over 600k Continuously Stress Test With 0.04% Distortion Rate.

Specifications


Adjustable height Yes, Lowering 1-3 inch
Front Spring length 200 mm
Rear Spring length 200 mm
Front spring length 10 kg/mm (560 lbs/in)
Rear spring length 7 kg/mm (392 in/lbs)
Front spring inner diameter 70.5 mm
Rear spring inner diameter 70.5 mm
Package Including 2 Front + 2 Rear
Warranty 1 Year

Feature


Ride Height Adjustable - Drops From 1 to 3 Inch From Factory Ride Height
High Rigidity Cold-bent Coil Springs

Aluminum Upper Mounts with Hardened Rubber Bushings for Noise Reduction
Anodized Shock Body With Anti-Corrosion Coating
Adjustment spanner wrenches and pictured hardware are included
Full 1 Year Limited Warranty From Date of Purchase


Application

For Honda Acoord VIII Sedan (USA) CP2/CP3 2008-2012
For Acura TSX Sedan (USA) CU2 2009-2014, excluding Special Edition
For Honda Accord VIII Coupe CS1\CS2 (USA) 2008-2012
For Acura TSX Sport Wagon(USA) 2011-2013
For Honda Accord VIII Sedan ((EU/JPN) CU1 2008-2013
For Honda Accord VIII Type-S Sedan ((EU/JPN) CU2 2008-2013
For Honda Accord Tourer Wagon ((EU/JPN) CW1/CW2/CW3  2008-2013
For Honda Euro Sedan (Australia& New Zealand) CU1/CU2 2008-2015

Note: For Accord trim levels EX,-L, LX-S and TSX Sedan & Sport Wagon have strut tower bar mounting points.
For Accord trim levels LX, SE and LX-P have reserved factory mounting points.


Specifications


- Top mounts: Front and rear standard rubber top mounts
- Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
- Spring Rate Front: 10 kg/mm (560 lbs/in)
- Spring Rate Rear: 7 kg/mm (392 lbs/in)
- Front spring inner diameter: 70.5 mm
- Rear spring inner diameter: 70.5 mm
- Spring length Front: 200 mm
- Spring length Rear: 200 mm
- Spring Preload advised: 7-10 mm
- Color: Red body with black spring


Package included


2x Front coil-overs
2x Rear coil-overs
2x C spanners


★ 30-day Money Back & 12-Month Replacement Guarantee. Please feel free to contact us if there is any question.

Height Adjustable Lowering Kit; Independent Ride Height And Spring Tension Settings; High Rigidity 55CrSi Steel Cold-bent Springs; Anodized Shock Body With Anti-Corrosion Coating; Full 1 Year Limited Warranty From Date Of Purchase.
