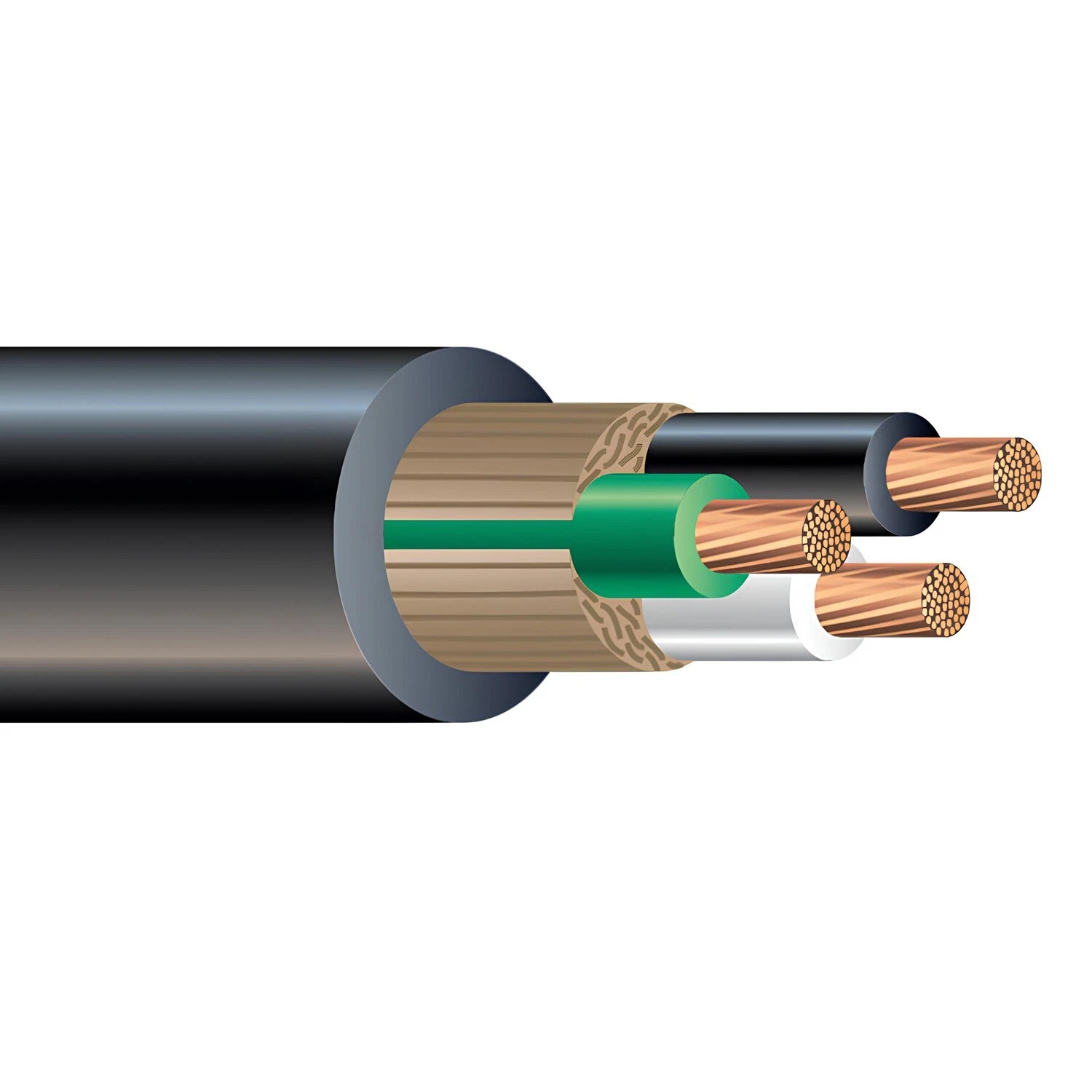

10/3 SOOW Power Cable Flexible CPE Jacket Black UL CSA 600V (30 Amp Rated)
Click Thumbnails to Enlarge
APPLICATION
• 10/3 SOOW Flexible Cords are designed for extra hard usage on industrial equipment, heavy tools, battery chargers, portable lights, welding leads, marine dockside power, power extensions and mining applications.
CONDUCTOR
• Stranded Bare Copper
INSULATION
• Ethylene Propylene Diene Monomer insulation (EPDM)
JACKET
• Black CPE Jacket
COLOR CODE
• Black, White & Green
STANDARDS
• UL 62
• CSA C22.2 No. 49
• Flame Test Meets FT2, and MSHA
• OSHA Accepted
• NEC Article 700 permitted use for specific Applications
• NFPA 70 permitted use in Hazardous Locations Classes I, II, III, Divisions 1 & 2 as outlined in Articles 501, 502, 503 Section 140
PRODUCT SPECIFICATIONS
| Size AWG | 10 |
|---|---|
| Number of Conductors | 3 |
| Number of Strands | 103 |
| Insulation Thickness (inches) | 0.045 |
| Jacket Thickness (inches) | 0.095 |
| Overall Diameter (inches) | 0.660 |
| Ampacity | 30 Amps |
| Weight (lbs/1000ft) | 230 |
