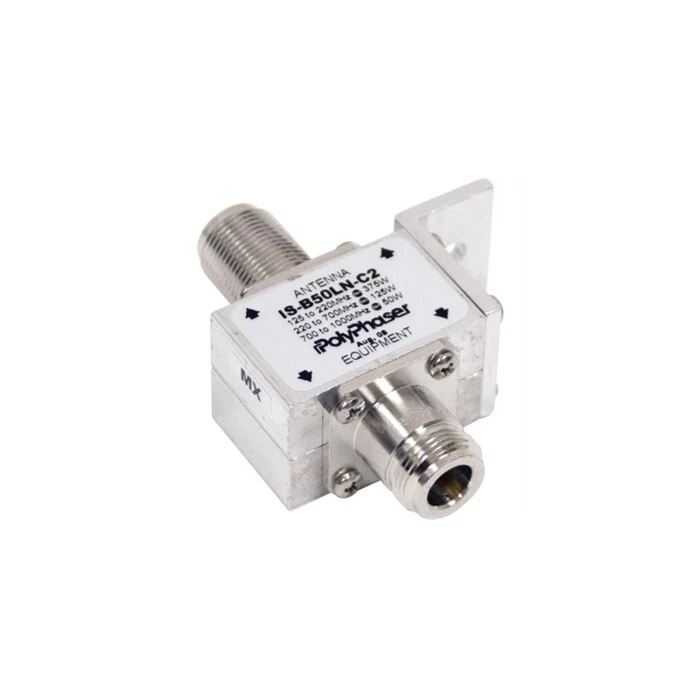

PolyPhaser IS-B50LN-C2 Type N F/F Bulkhead Coaxial RF Surge Protector
10MHz - 1GHz, DC Block, 1.5kW, 120uJ, 20kA, Blocking Cap, Hole Mount

Click Thumbnails to Enlarge

DESCRIPTION

• RF surge protector (also known as lightning arrester or surge arrestor) IS-B50LN-C2 from PolyPhaser, integrating a RF blocking capacitor with a gas tube (GT or GDT). This RF surge protector component is manufactured in a coaxial in-line design with wide operating frequency range.

APPLICATIONS

• HF, UHF and VHF Radios
• Ham Radios
• Remote industrial Monitoring

FEATURES

• Surge current of 20kA
• Max Power 1.5KW
• Frequency range from 10 MHz to 1000 MHz
• N Female to N Female connectors
• VSWR <1.1:1
• Multi-strike capability
• CE & RoHS compliant

COMPLIANCE CERTIFICATIONS

• CE Compliant: Yes
• Certifications: NOM

MECHANICAL SPECIFICATIONS

• Length: 2.72 in [69.09 mm]
• Width/Diameter: 1 in [25.4 mm]
• Height: 2.25 in [57.15 mm]
• Weight: 0.35 lbs [158.76 g]
• Configuration: Input Connector (N Female)
• Configuration: Output Connector (N Female)

ENVIRONMENTAL SPECIFICATIONS

• Operating Range: -50°C to +50°C
• Storage Range: -55°C to +85°C
• Vibration: 1G up to 100Hz
