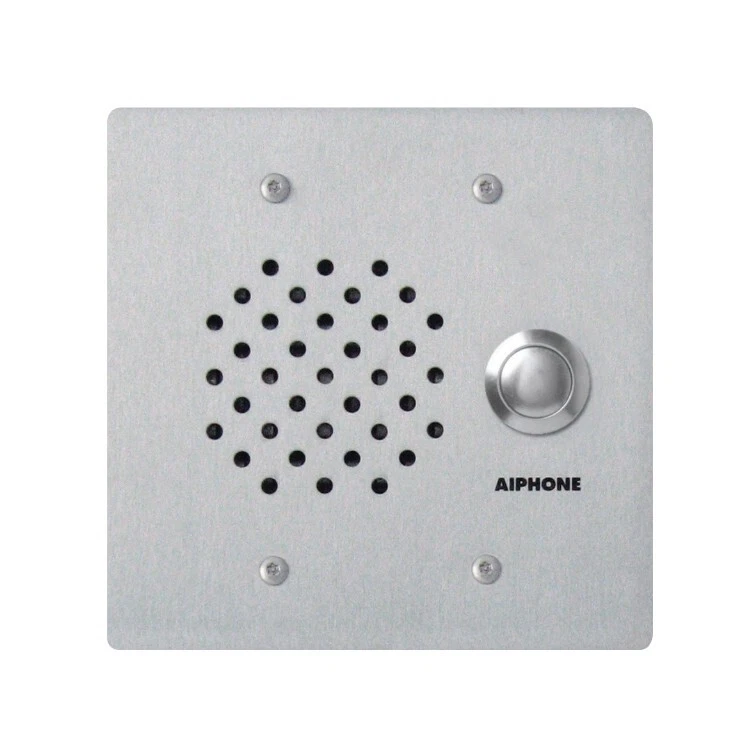

Aiphone LE-SS/A Stainless Steel 2-Gang Door Sub Station

Click Thumbnails to Enlarge

DESCRIPTION

• The LE-SS/A vandal and weather resistant sub stations for Aiphone’s LEM, LEF, and IX (with IX-1AS) systems. The units are constructed of 12 Gauge stainless steel. They can be flush mounted into a standard 2-gang box or surface mounted into the SBX-2G/A. Each unit includes tamper proof screws and a tool for installation. The LE-SS/A has a stainless steel mechanical call button. Communication at the sub station is hands-free.

FEATURES

• Provides communication and call-in
• Stainless steel mechanical call button
• Moisture and puncture resistant speaker
• 3-layer steel baffle protects speaker from tampering
• Hands-free communication when master answers
• Fits standard 2-gang electrical box

SPECIFICATION

• Power Source: Supplied by master
• Speaker: 20Ω, 2-½" diameter, water and puncture resistant
• Call button: Stainless steel SPST
• Faceplate: 12 gauge stainless steel
• Communication: Hands-free
• Mounting: Flush mount into a 2-gang box or surface mount with SBX-2G/A
• Mounting hardware: 6x32 T-10 Torx tamper screws (tool supplied)
• Terminations: Color-coded prewired pigtails
• Wiring distance: 650' w/22AWG, 1600' w/18AWG
• Dimensions: 4-11⁄16" H x 4-11⁄16" W x 2" D
