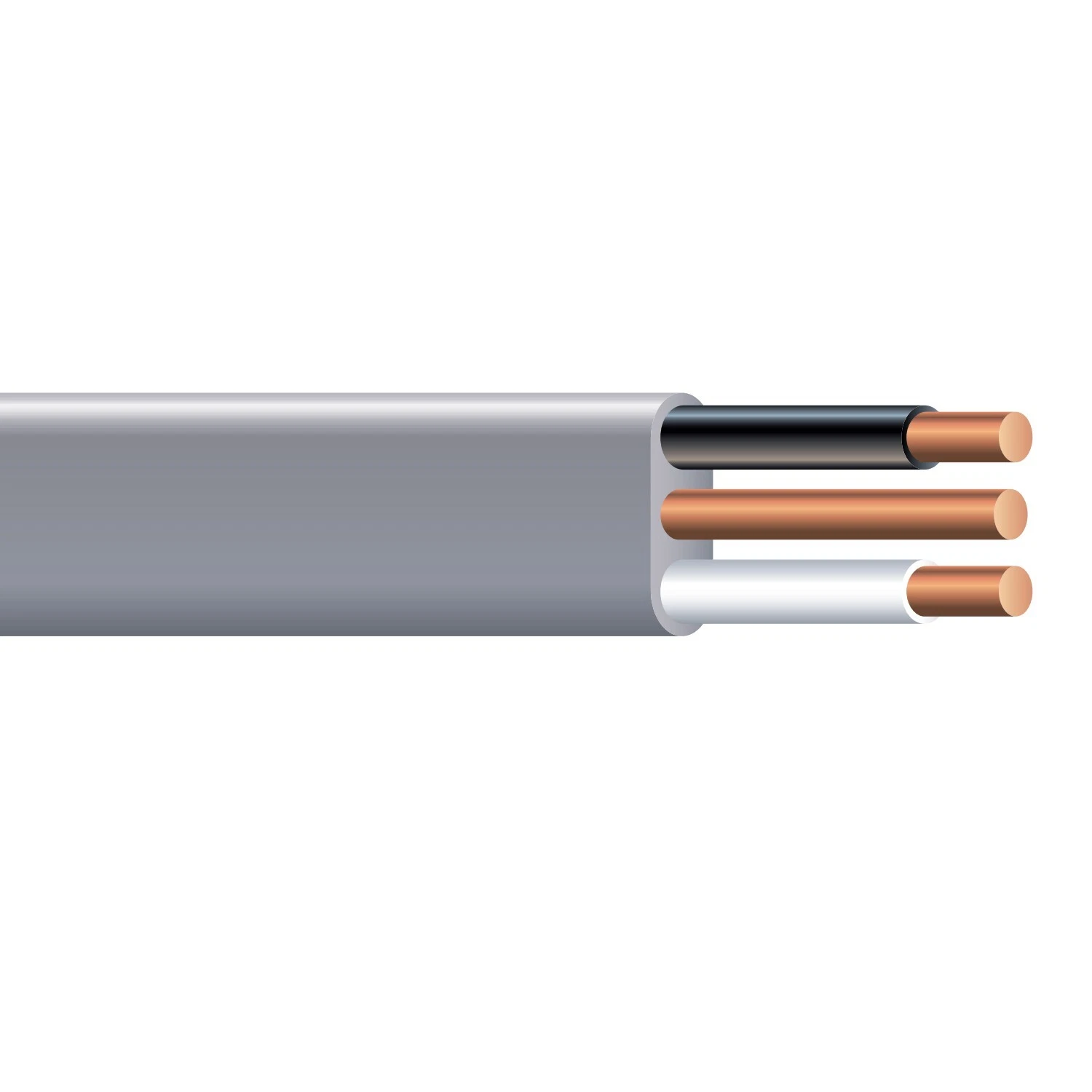

10/2 UF-B Wire With Ground Underground Feeder Direct Burial Cable (30 Amp) 600V
Click Thumbnails to Enlarge
APPLICATION
• 10/2 UF-B Cable Permitted for use underground, including direct burial in earth as feeder, or branch circuit cable where provided with overcurrent protection. Suitable for interior wiring in wet, dry, or corrosive locations under recognized wiring methods of the National Electrical Code (NEC). Acceptable for installation as a non-metallic sheathed cable in accordance with NEC Article 340.
CONDUCTOR
• Solid annealed soft bare copper Conductor
INSULATION
• PVC Insulation
JACKET
• Gray PVC Jacket
• Sunlight & moisture Resistant
GROUND WIRE
• Soft bare copper Conductor
INDUSTRY STANDARDS
• UL Standard 493
• ASTM-B3
• ASTM-B8
• Federal Specification A-A-59544
• NFPA70: National Electrical Code
• RoHS Compliant.
PRODUCT SPECIFICATIONS
| Size AWG | 10 |
|---|---|
| Number of Conductors | 2 + 1 Ground |
| Ground Wire Size AWG | 10 |
| Insulation Thickness (inches) | 0.024 |
| Overall Diameter (inches) | 0.518 X 0.215 |
| Allowable Ampacity | 30 Amps |
| Weight (Lbs/1000ft) | 140 |
HAVE A LARGE ORDER OVER $5000? ASK US IF WE CAN DO BETTER ON THE PRICE.
CUT TO LENGTH
Looking for Custom Length? Please feel free to contact us, We can do all cut to lengths.
OTHER VALUE ADDED SERVICES
• Expedited Shipping
• Cut to Length Paralleling
• Color Striping & Dyeing
• Reel Lagging
• Special Labeling & Packages
Shipping
***Free shipping on most orders.
Need the wire fast? Ask about our expedited shipping to get it to you on time. Signature required for all deliveries. Please note eBay's delivery dates are only estimates actual delivery dates may be faster or longer, please message us for exact delivery times.***
Payment & Returns
***All returns must be made within 30 days from the date of purchase or they will not be accepted. Nassau National Cable does not cover re-delivery fees, extraneous shipping expenses or change of address fees after shipping***
Feedback
Feedback will be left as soon as feedback is left for us.
About Nassau National Cable
(disclaimer: these images of wire in no way reflect the product being sold and are for aesthetic purposes only)
We have been in business for over 60 years and are family owned and operated. We have been on the inc 5000 in 2014, 2015, and 2016 as one of the fastest growing privately owned companies. We look forward to serving you.
Some of our customers are shown below:
