DIY Electronic Kits Ultrasonic Suspension Standing Wave Controller DIY Soldering

Overview

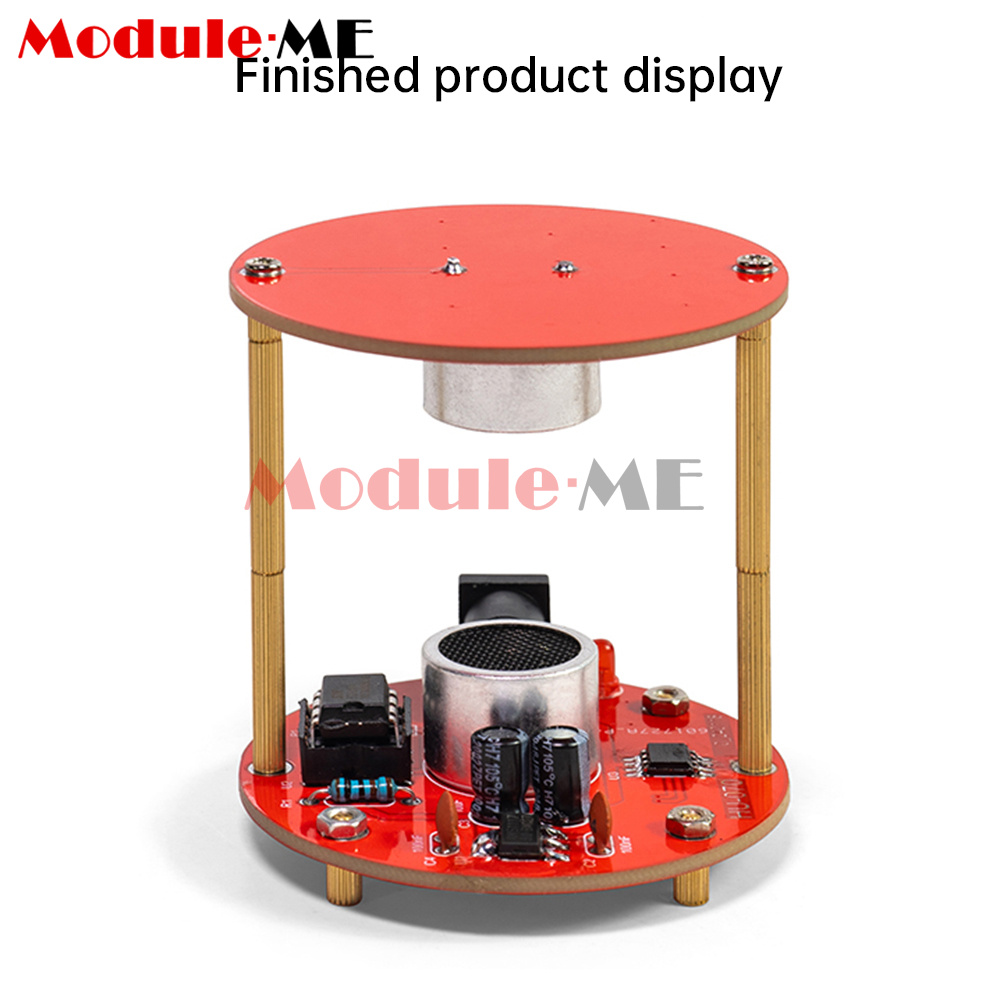

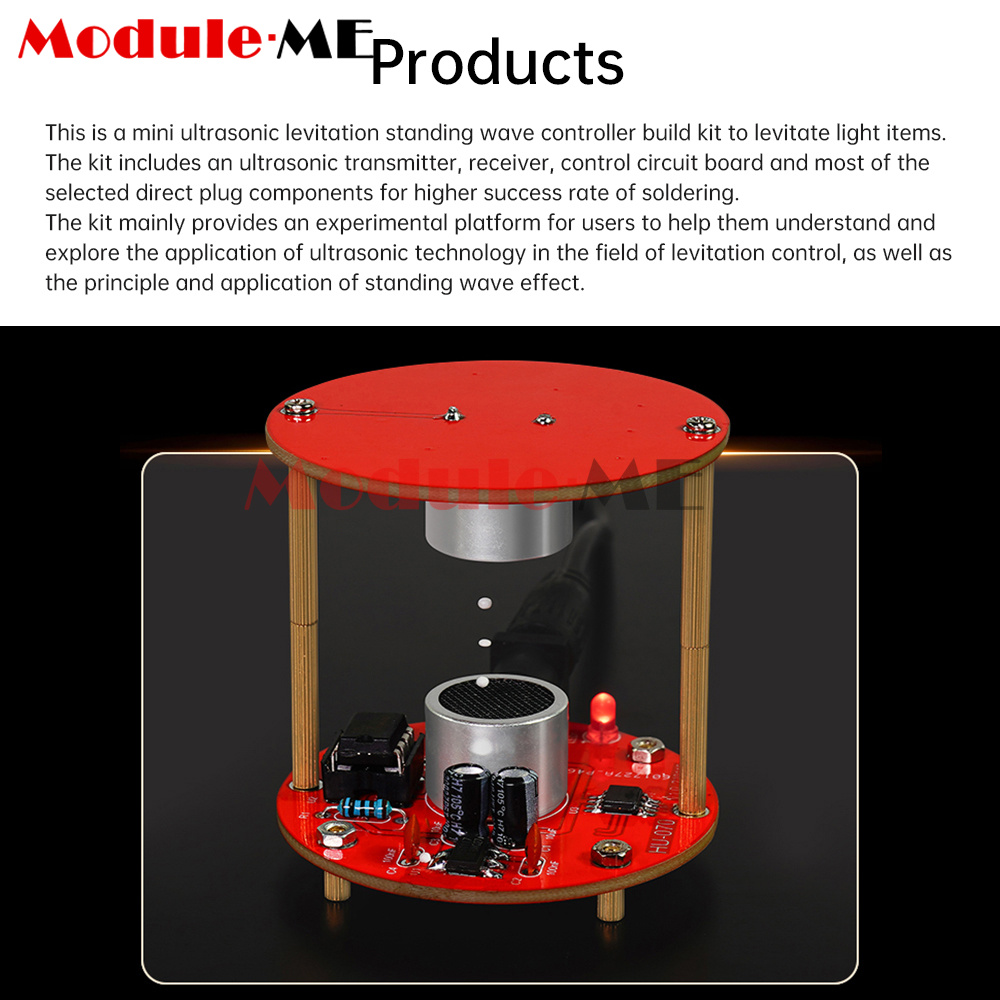

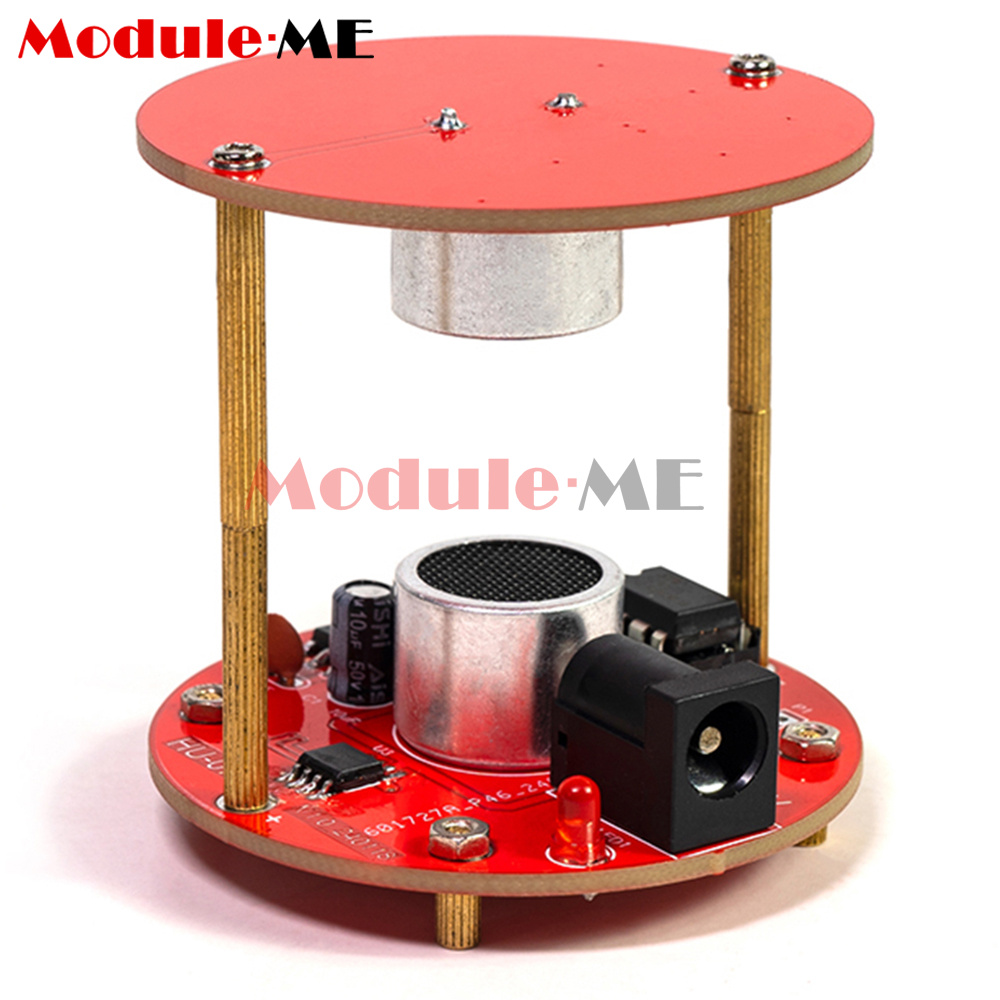

This is a mini ultrasonic levitation standing wave controller building kit to levitate light objects. The kit includes an ultrasonic transmitter, receiver, control board, and most of the components are selected to be plugged in directly for a higher success rate of soldering. The kit mainly provides an experimental platform for users to understand and explore the application of ultrasonic technology in the field of levitation control, as well as the principle and application of standing wave effect.

Features
1.Double layer circuit board design, simple circuit, easy to weld stable and long lasting.
2.This is a mini ultrasonic levitation standing wave controller making kit, which can levitate slight items.
3.The kit includes ultrasonic transmitter, receiver, control circuit board and most of the selected direct insertion components, welding success rate is higher.
4. Preferred direct components Easy to weld, higher reliability, can levitate light items, such as foam, etc. can be suspended for a long time.

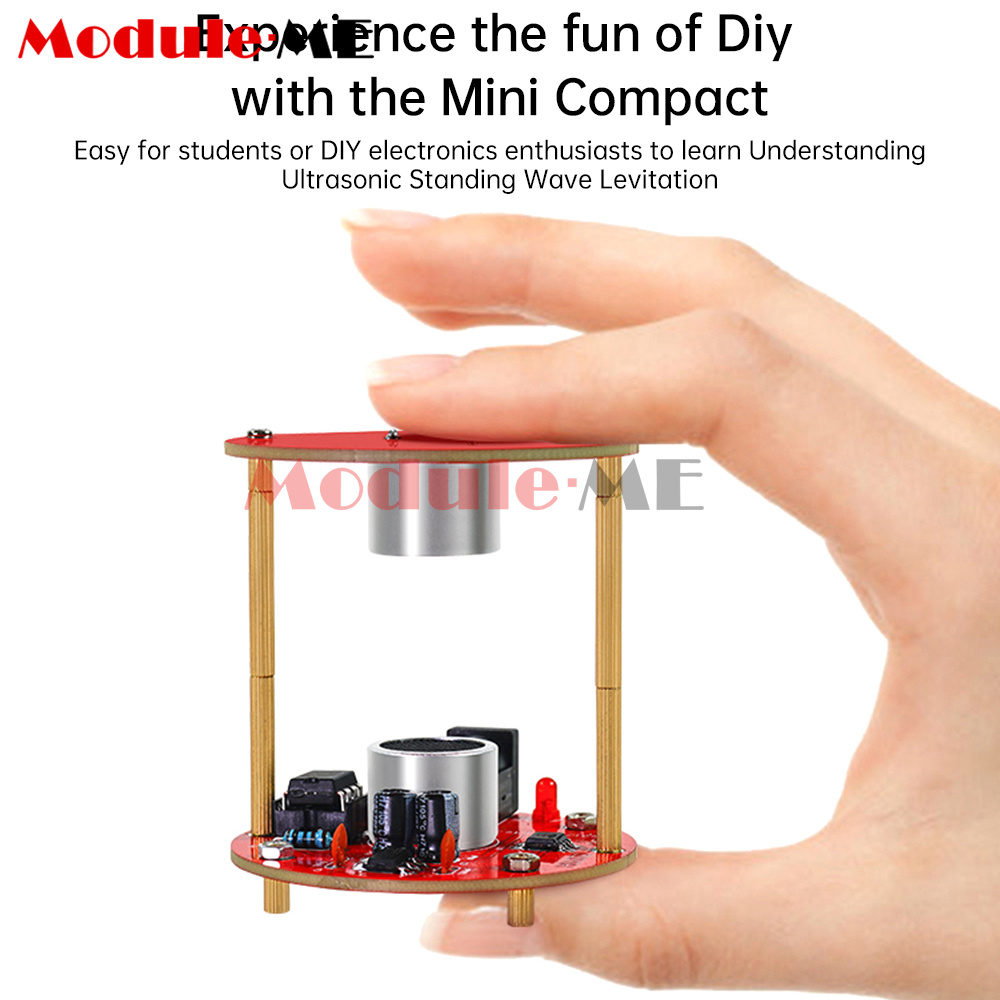

5. Mini and compact, experience DIY fun, easy for students or DIY electronics enthusiasts to learn to understand the ultrasonic standing wave levitation.

Specification
Kit name:ultrasonic levitation standing wave controller production kit
Power supply:DC9~12V
Operating voltage: 9V or 12V
Operating current: 9V is 36mA, 12V is 45mA
Adapter input voltage: AC110-220V
Power connector: DC5.5*2.1MM
PCB length: radius 25MM, purely manual measurement, there are 1~2mm error

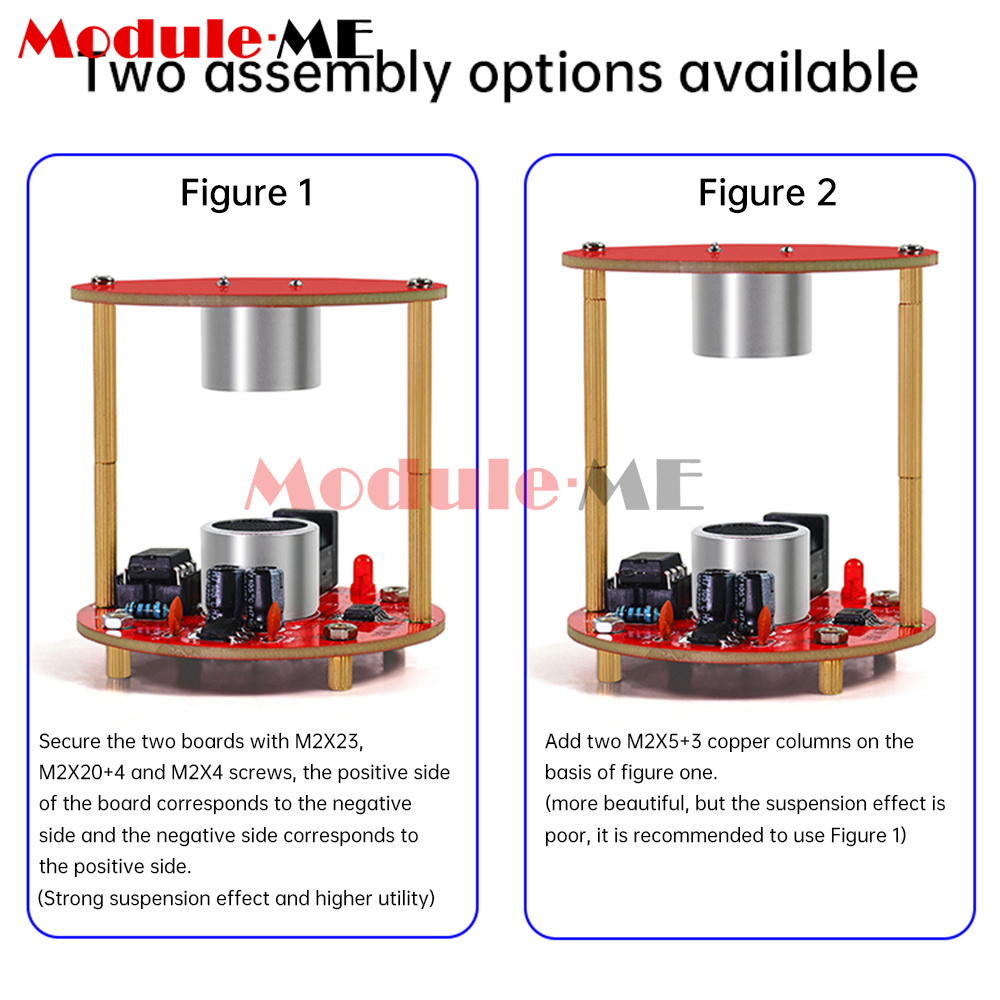

Kit height:46MM or 46+5MM free adjustment
This levitator in the air to 40KHZ frequency operation, can capture the density of 2-3MM diameter quality of light objects, can be suspended slight items, such as foam, etc. can be suspended for a long time.

Notes:

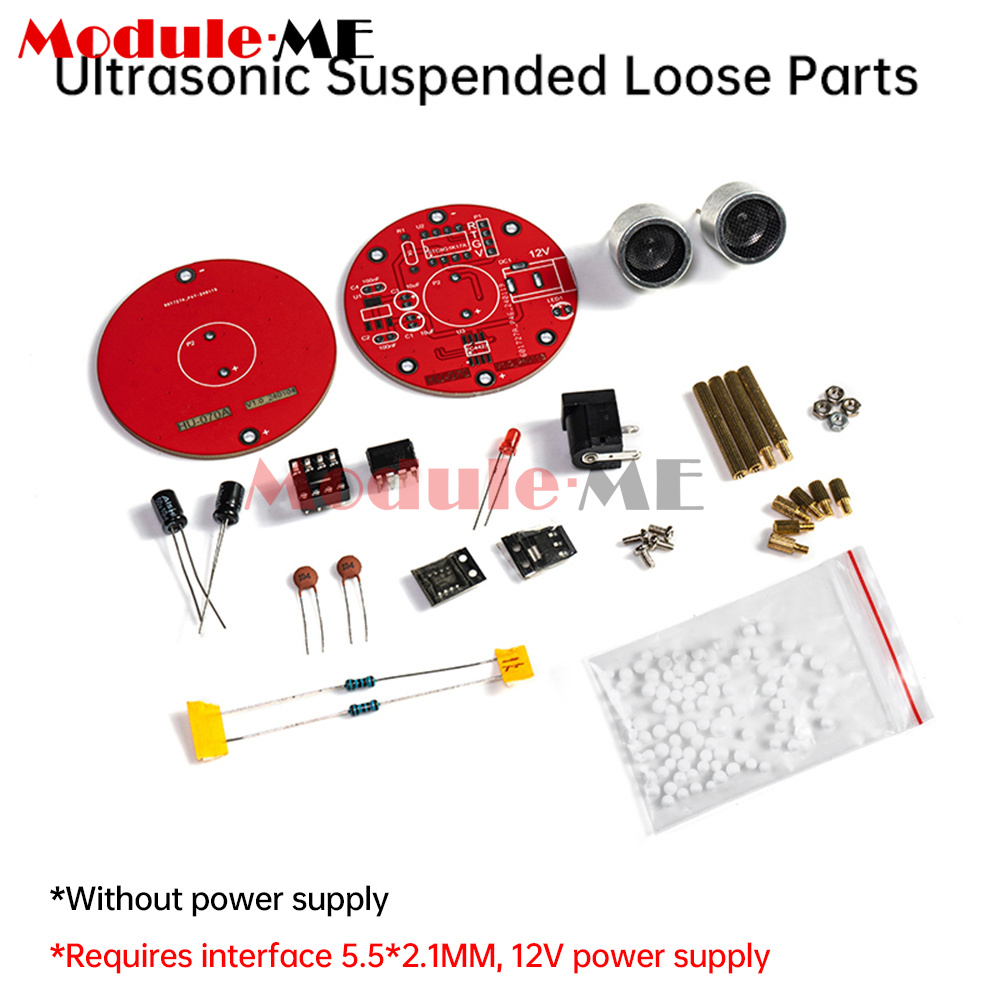

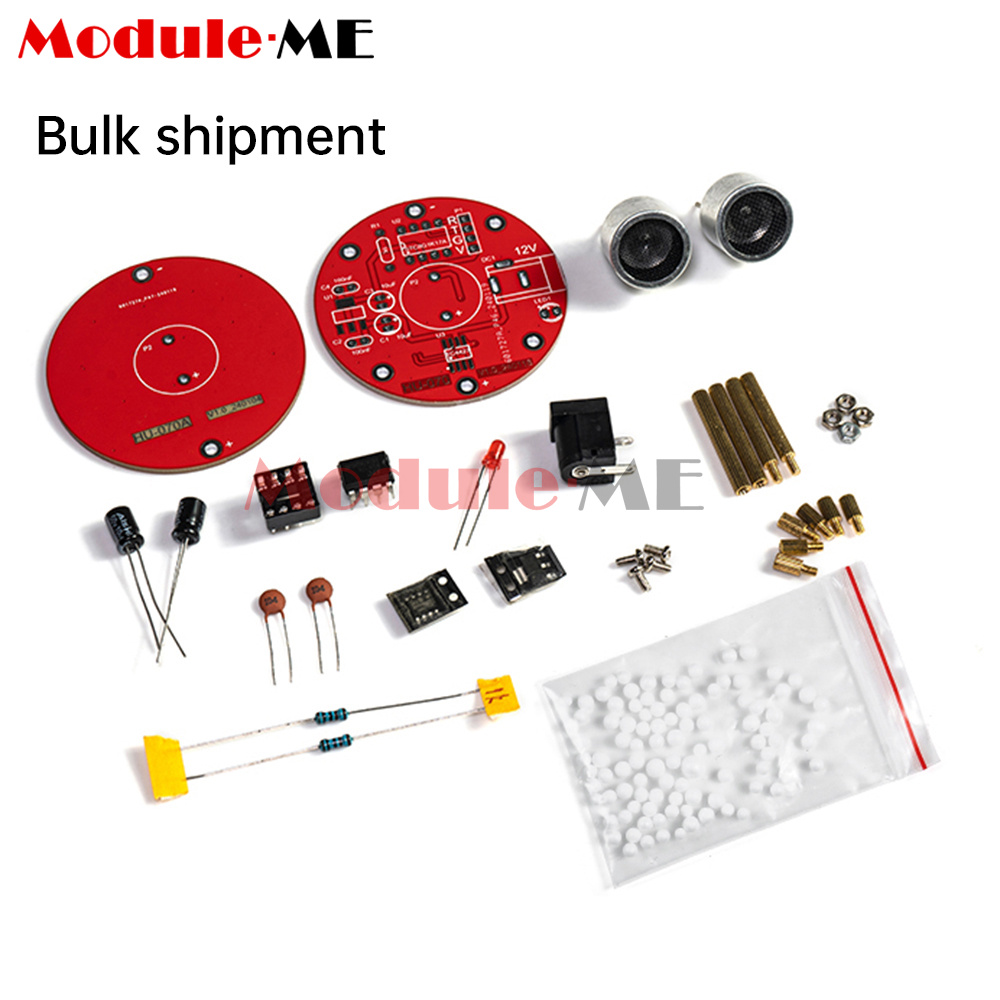

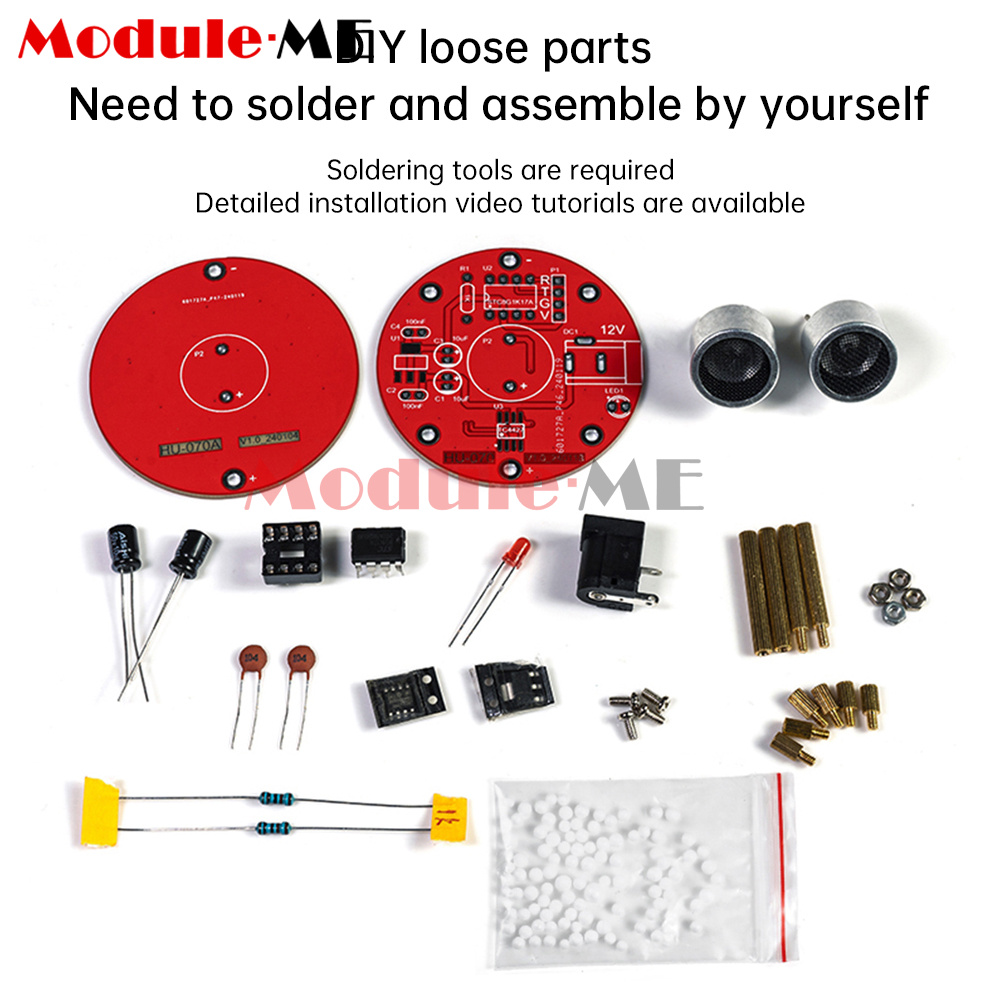

DIY loose parts need to be assembled by welding, need to provide their own welding tools

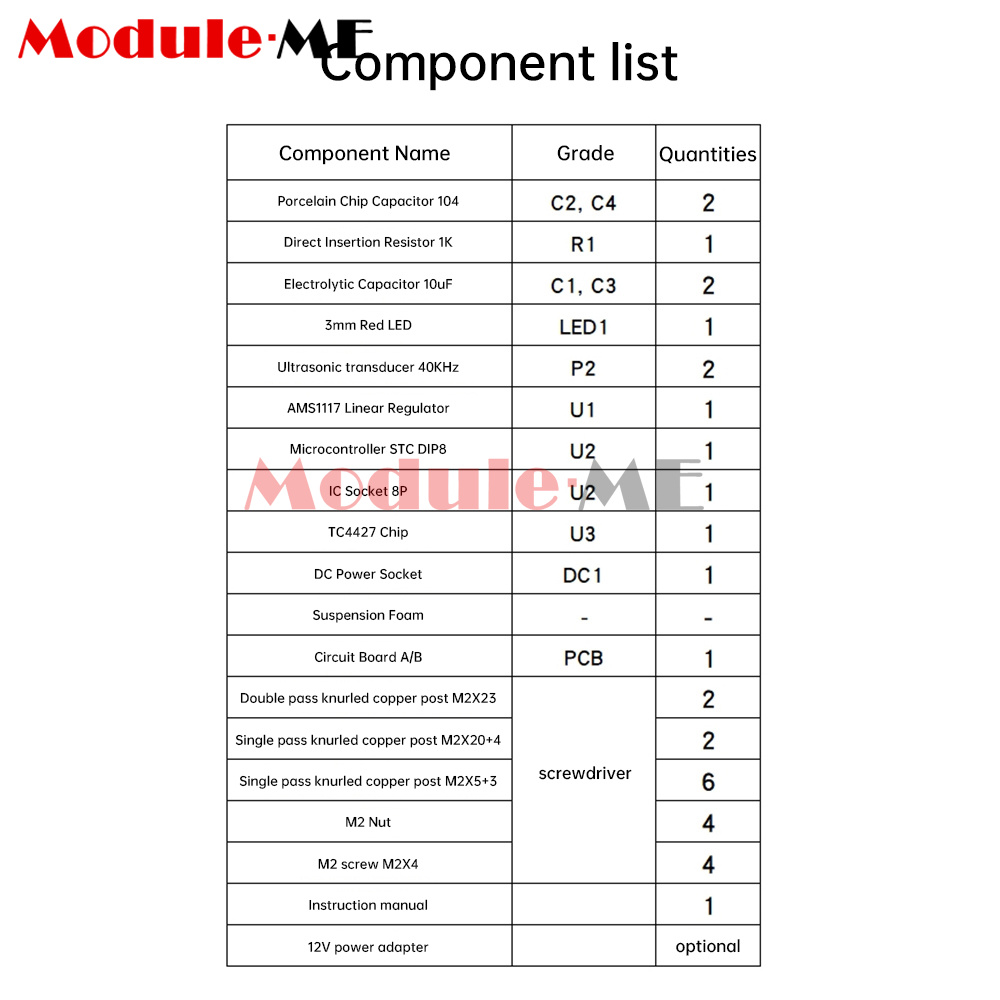

List

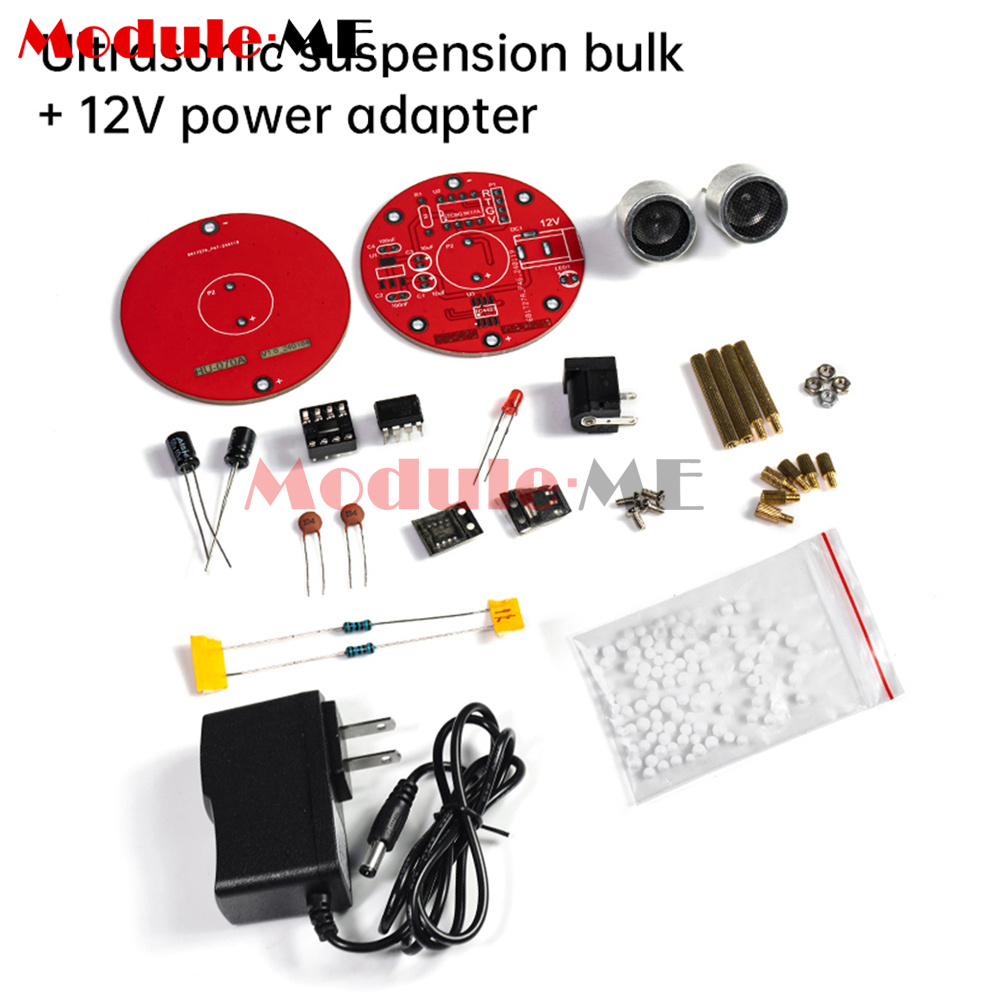

1 x Kit (Adapter power supply optional)
