Features:
1. This 801D welder will not cause interference to the circuit system or cause tripping.
2. The new-designed capacitor energy storage welder uses the latest energy-gathered pulse technology, is has great welding power，the soldered dot is uniform and beautiful, no blackening.

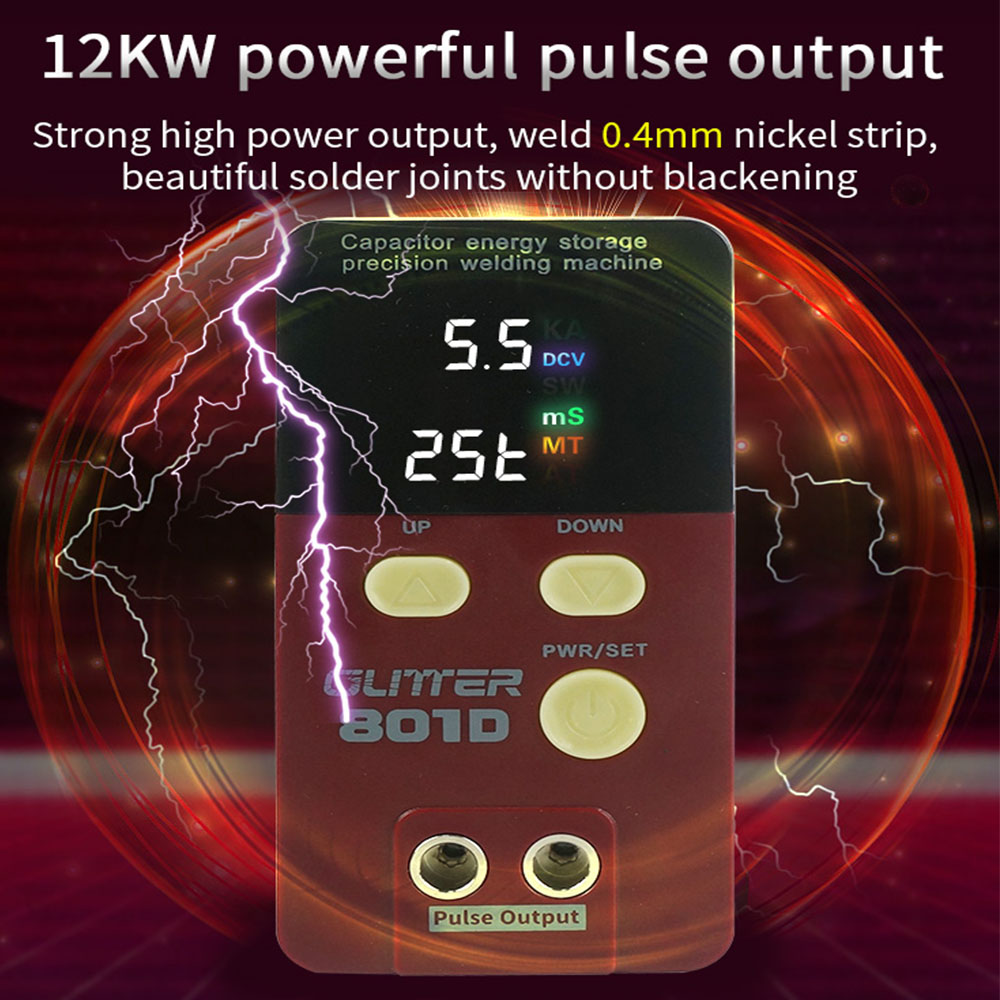

3. The maximum output of the 801D welder is 12 kilowatts. It can be used for large batteries welding.
4. The new operation interface allows you to adjust the energy output according to an object's thickness.

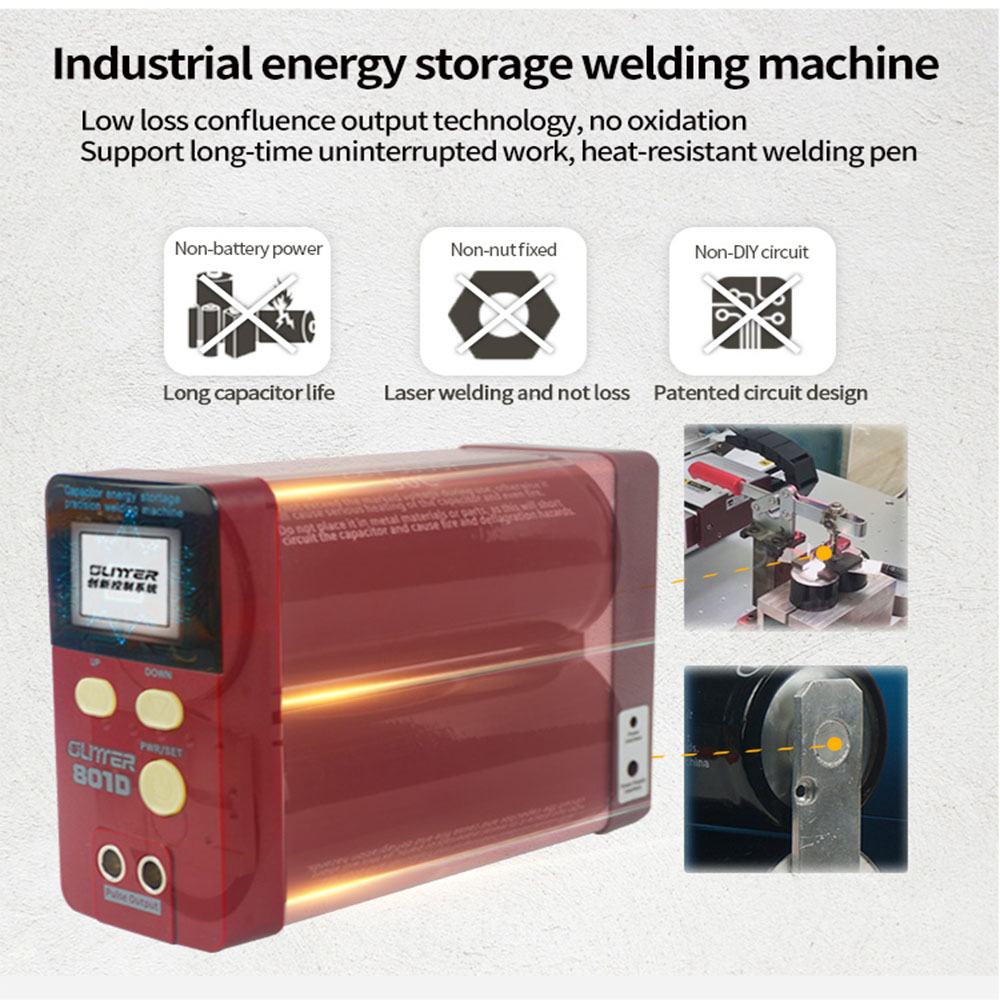

5. The core components of the welder are two super capacitors with long working life and large capacity, the machine can be used for long time welding work.
6. Switch between ‘AT/MT’ two welding modes conveniently to meet specific needs.

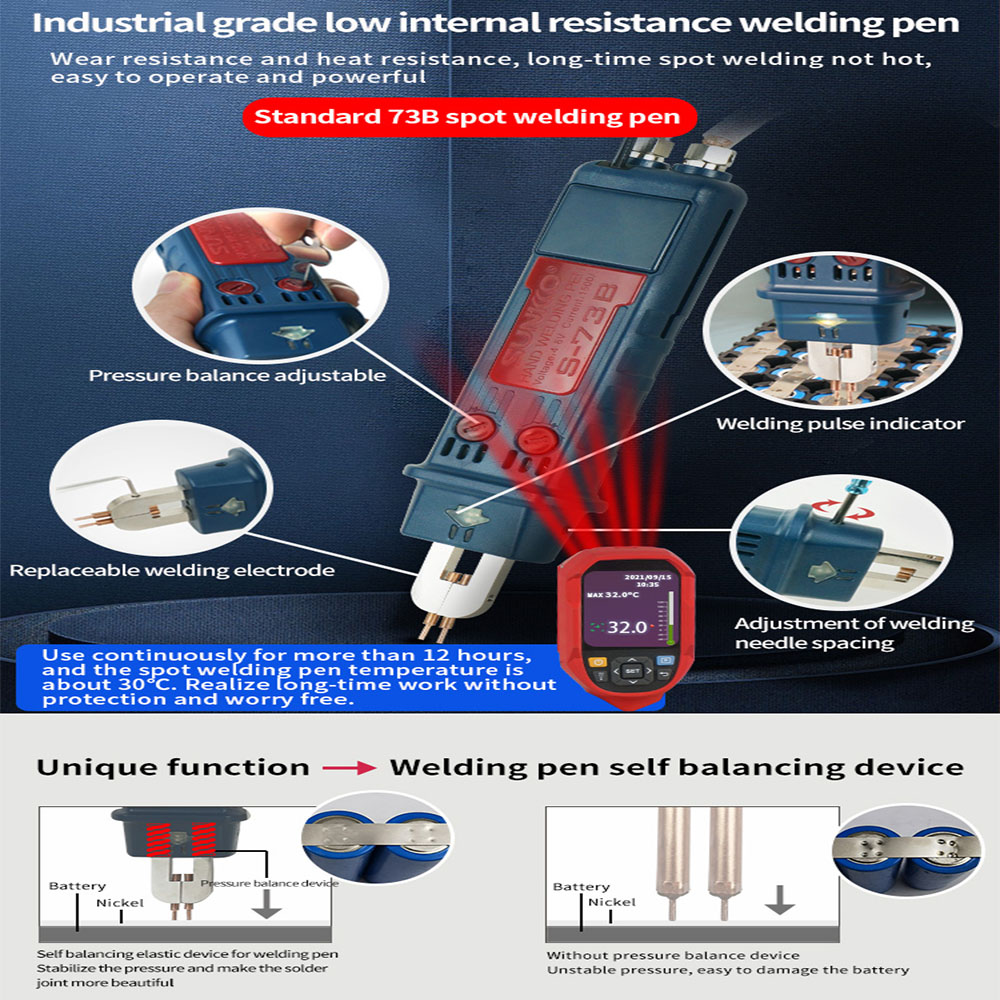

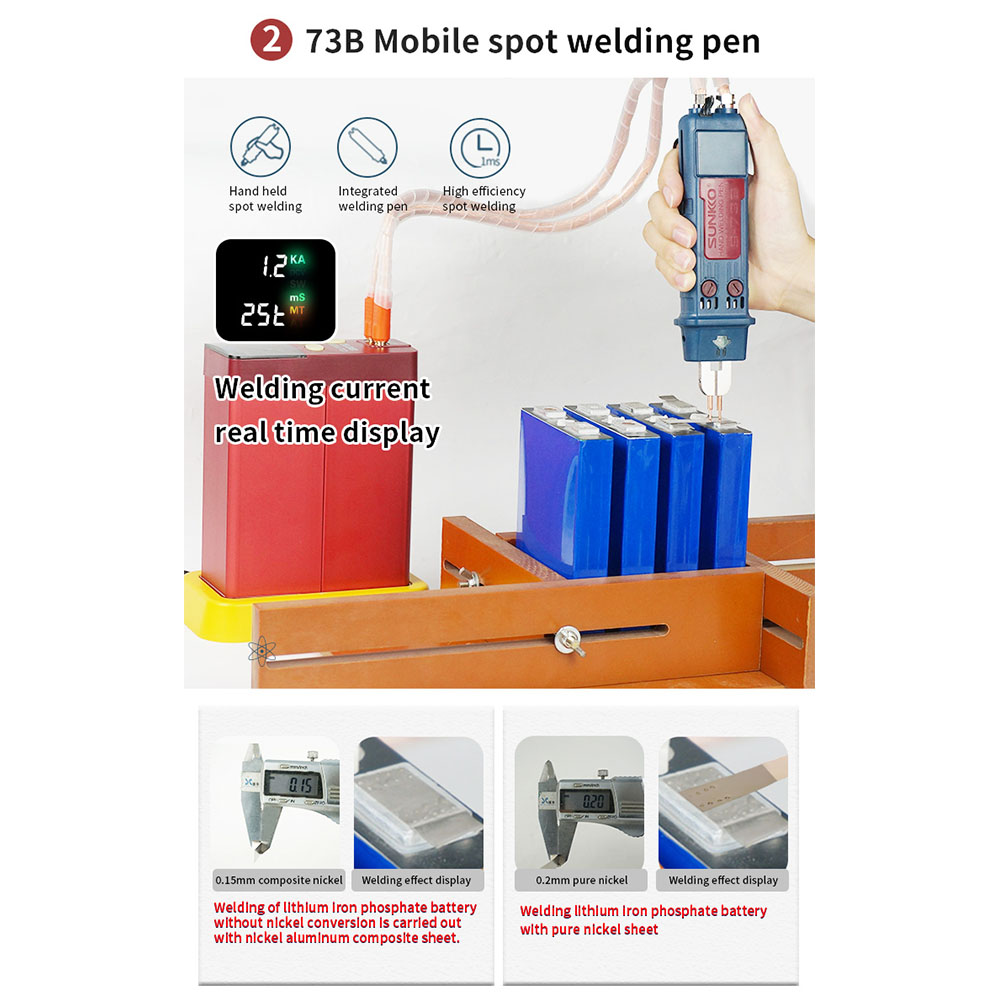

7. Compatible with 7 series mobile welding pen.

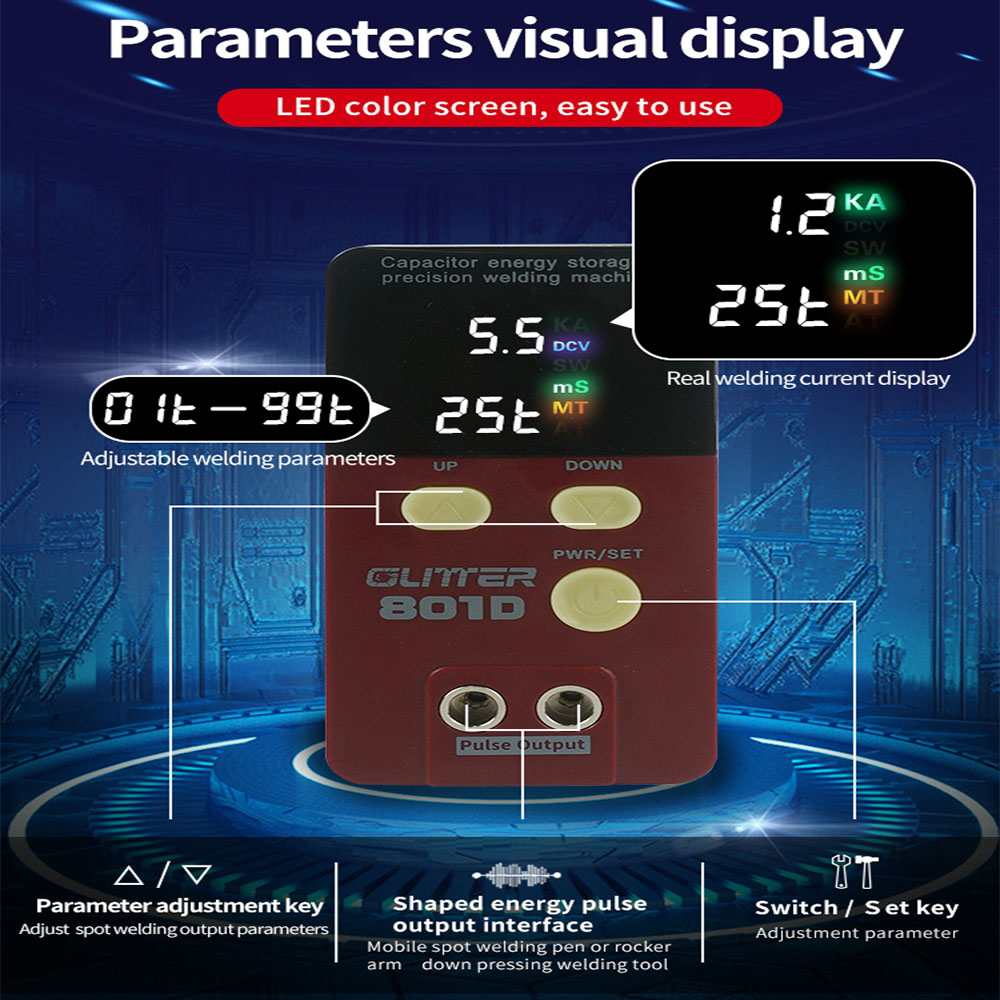

8. The compact aluminum alloy shell can effectively dissipate heat.9. The LED screen will display the instantaneous current value during welding work.

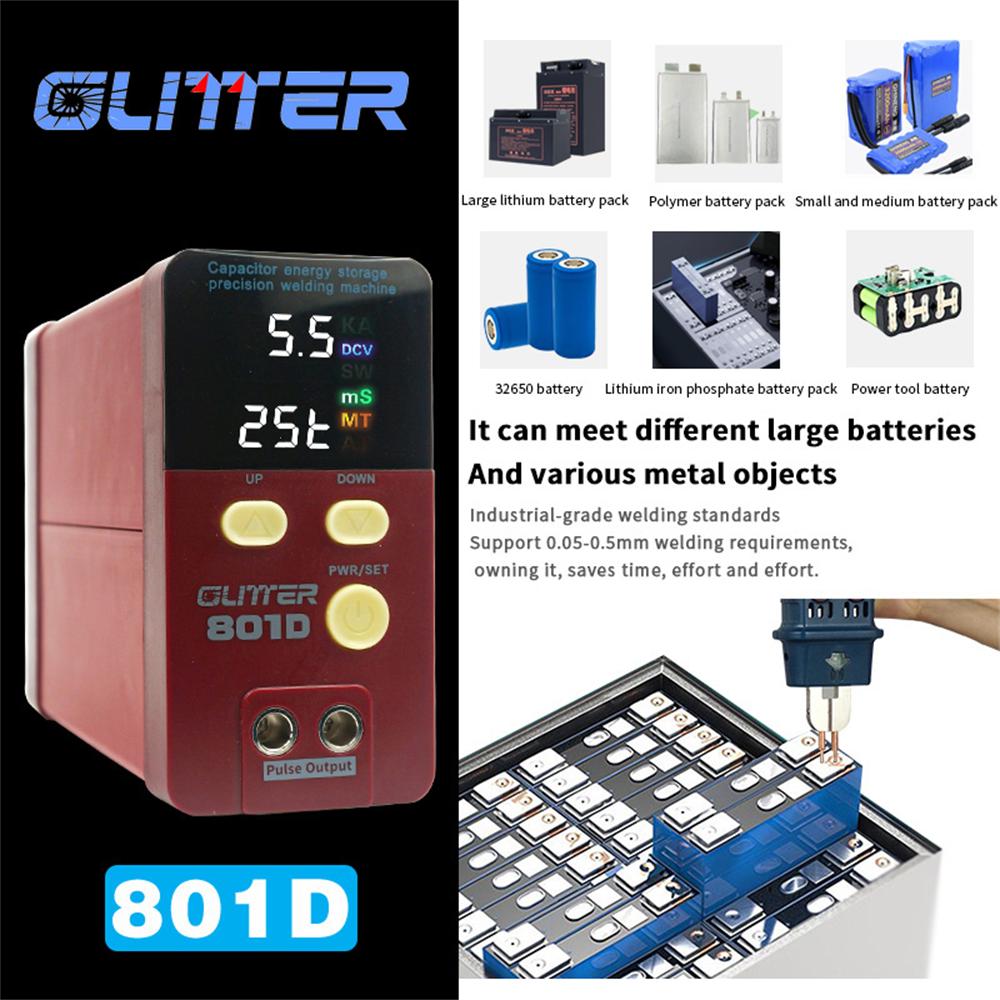

Applications:
1）NiMH, NiCd AAA, AA, C and D lithium-ion batteries or rechargeable battery packs.
2）Assemble or repair battery packs and portable sources.
3）Production of small battery packs for mobile electronic devices.
4）Welding of lithium polymer battery, cellphone battery, and protective circuit board.
5）Spot welding leaders to different metal projects, such as iron, stainless steel, brass, molybdenum and titanium.
Parameters:
Model: GLITTER 801D
Voltage Output: 5.0~6V (Peak )

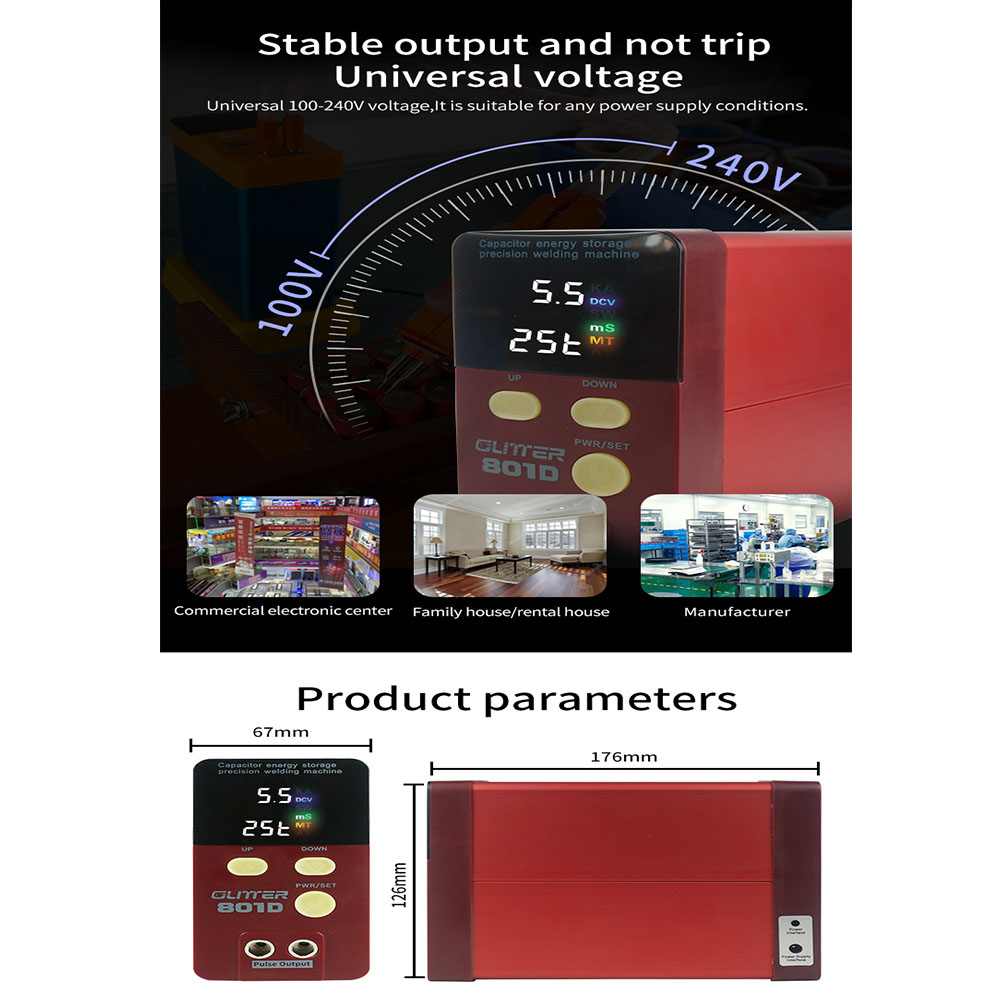

Voltage Input: AC 100-240V 50/60HZ
Peak Welding Energy: 238J
Pulse Power: 12KW (Peak)

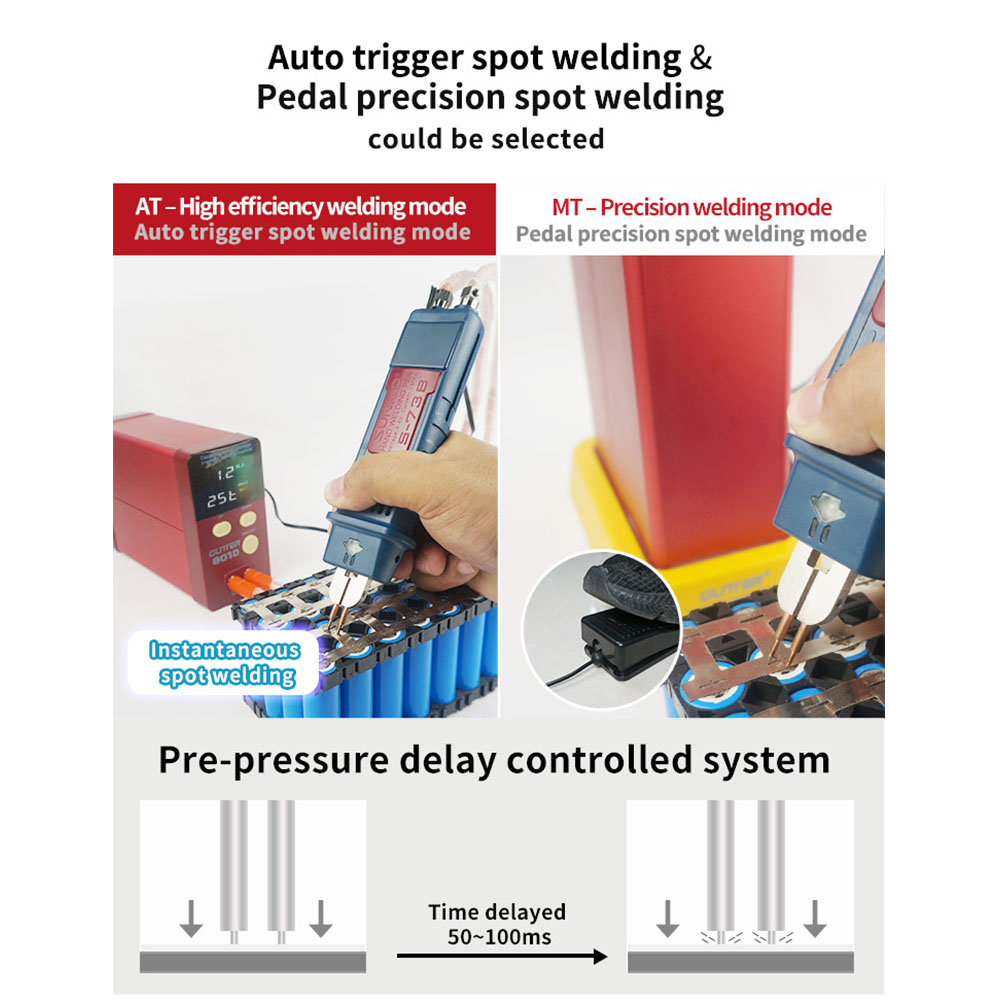

Trigger Mode: AT/MT
AT mode--automatic welding(no foot pedal control, suitable for welding a large number of batteries for a long time).
MT mode--control with foot pedal(Convenient for parameter adjustment and welding debugging to achieve the best spot welding effect).
Energy Grade: 0-99T

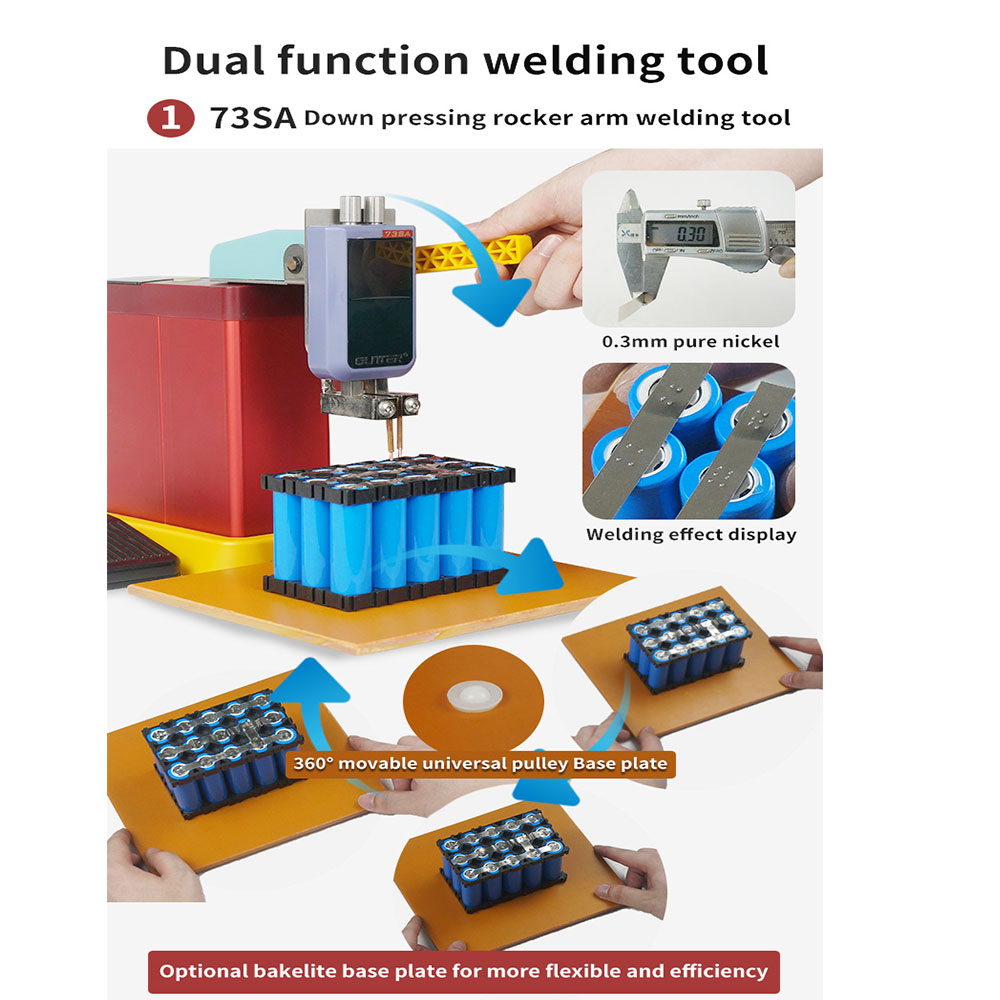

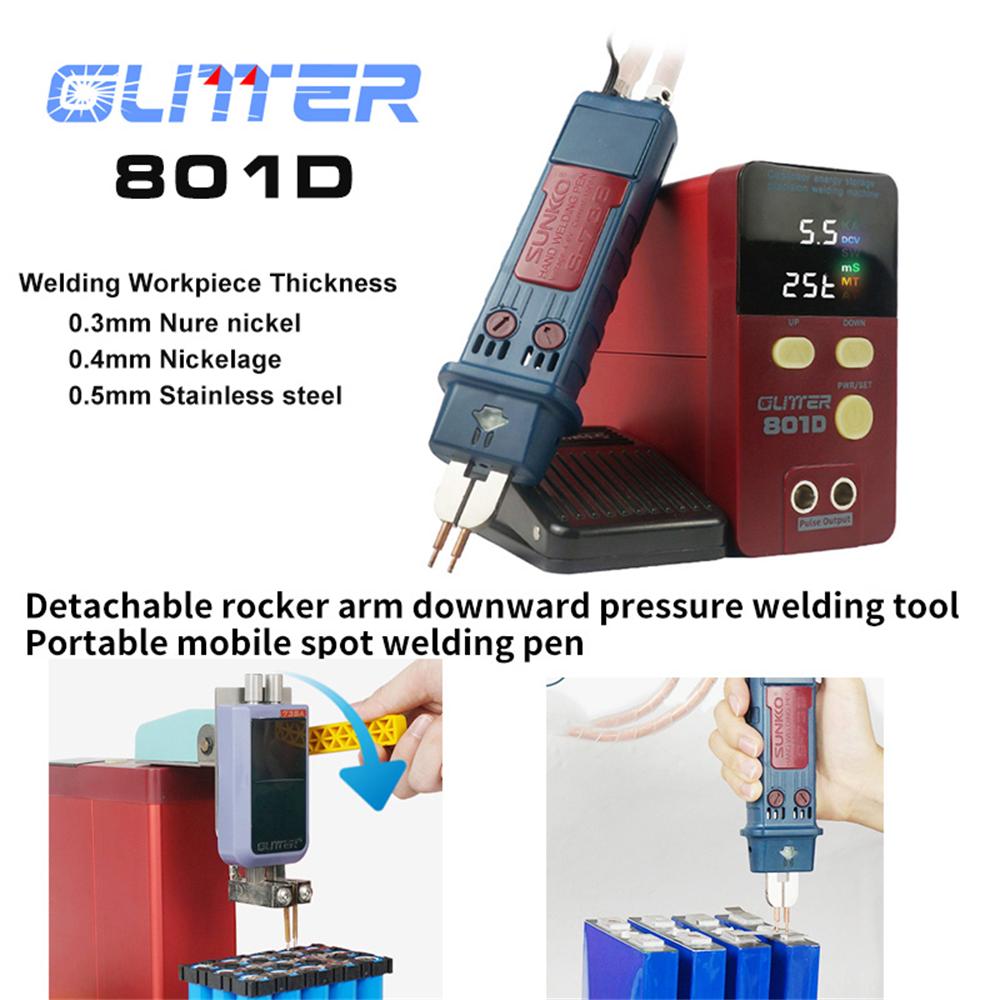

Welding Mode: Push down spot welding/Mobile pen spot welding
Pluse Time: 0~20mS
Preload Delay: 20~50mS
Adapter Parameter: 15V2A~3A (Peak)
Charging Time: 20~30(min)

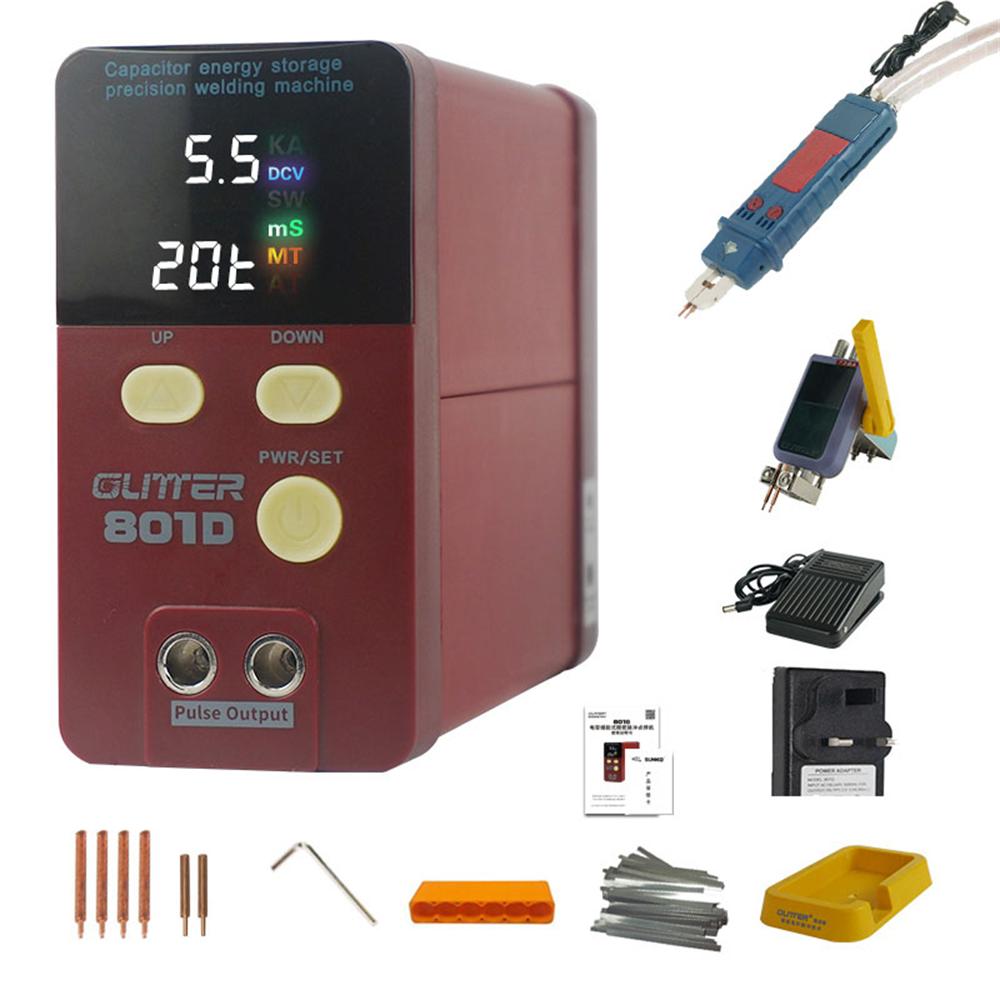

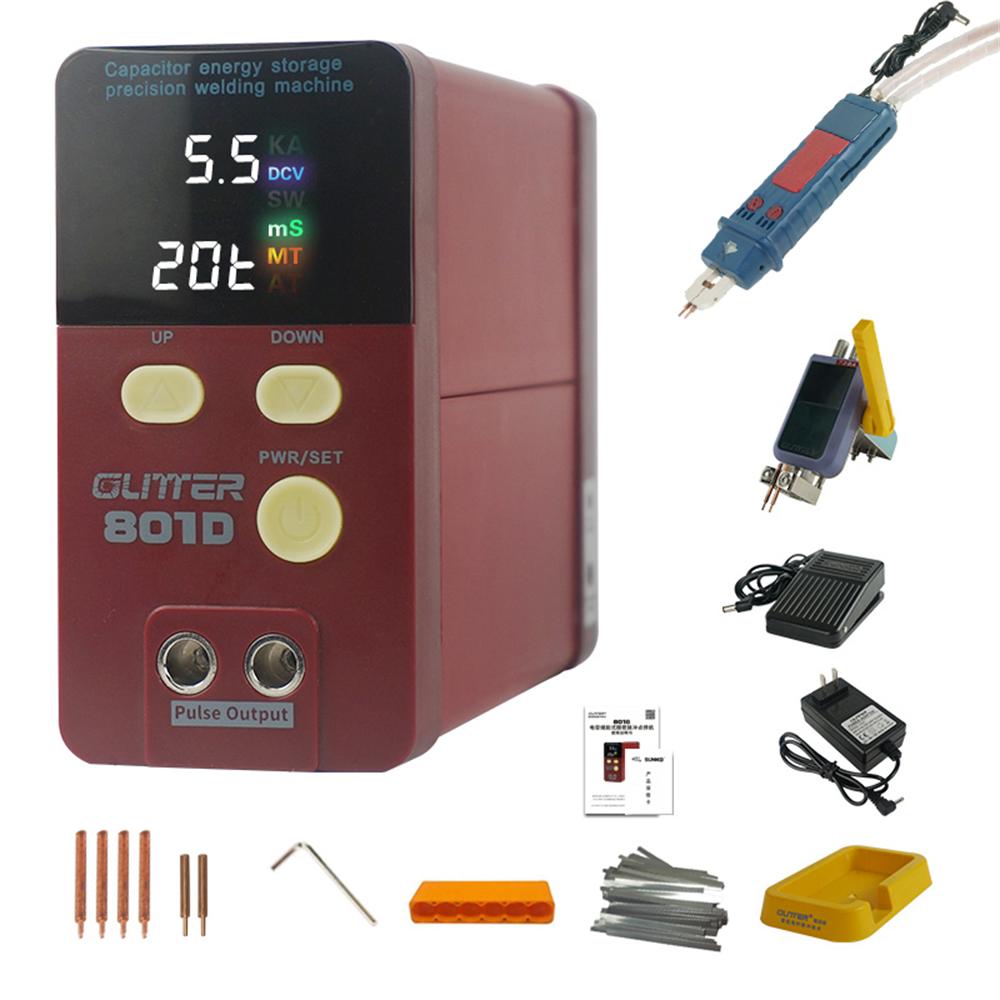

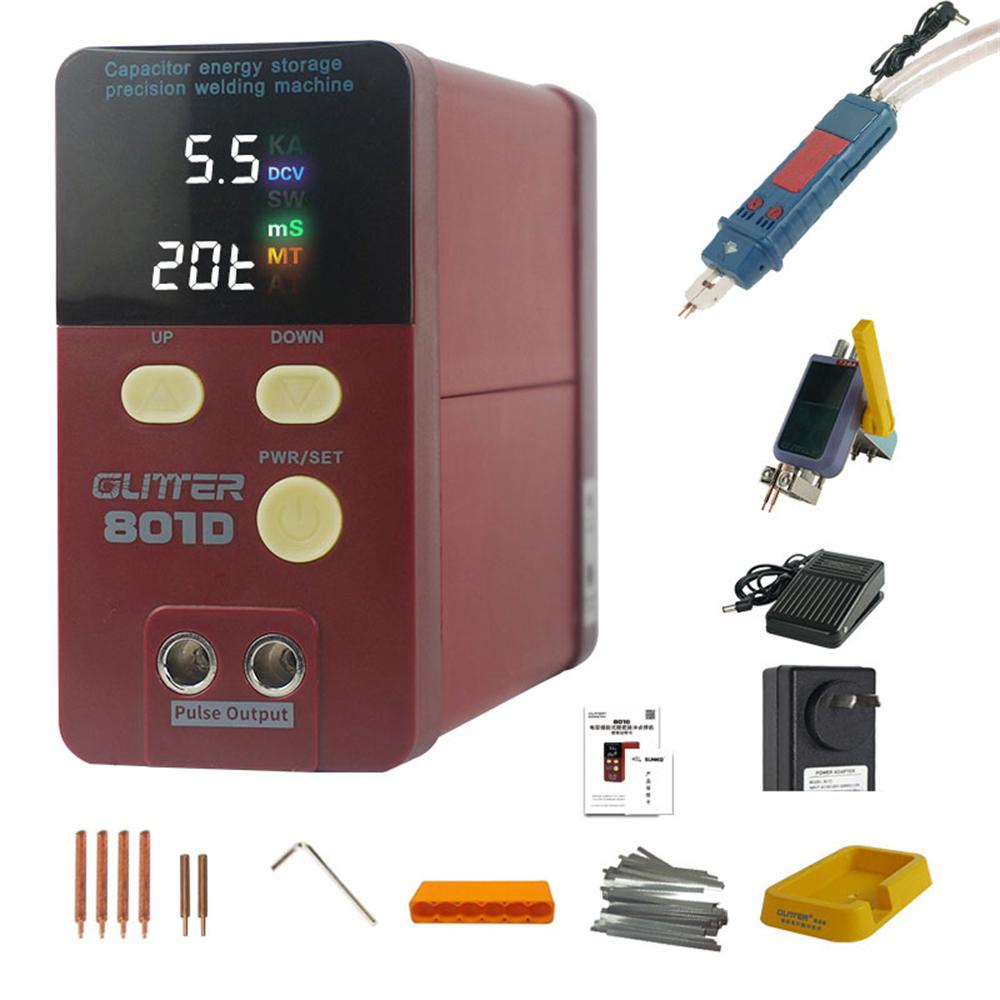

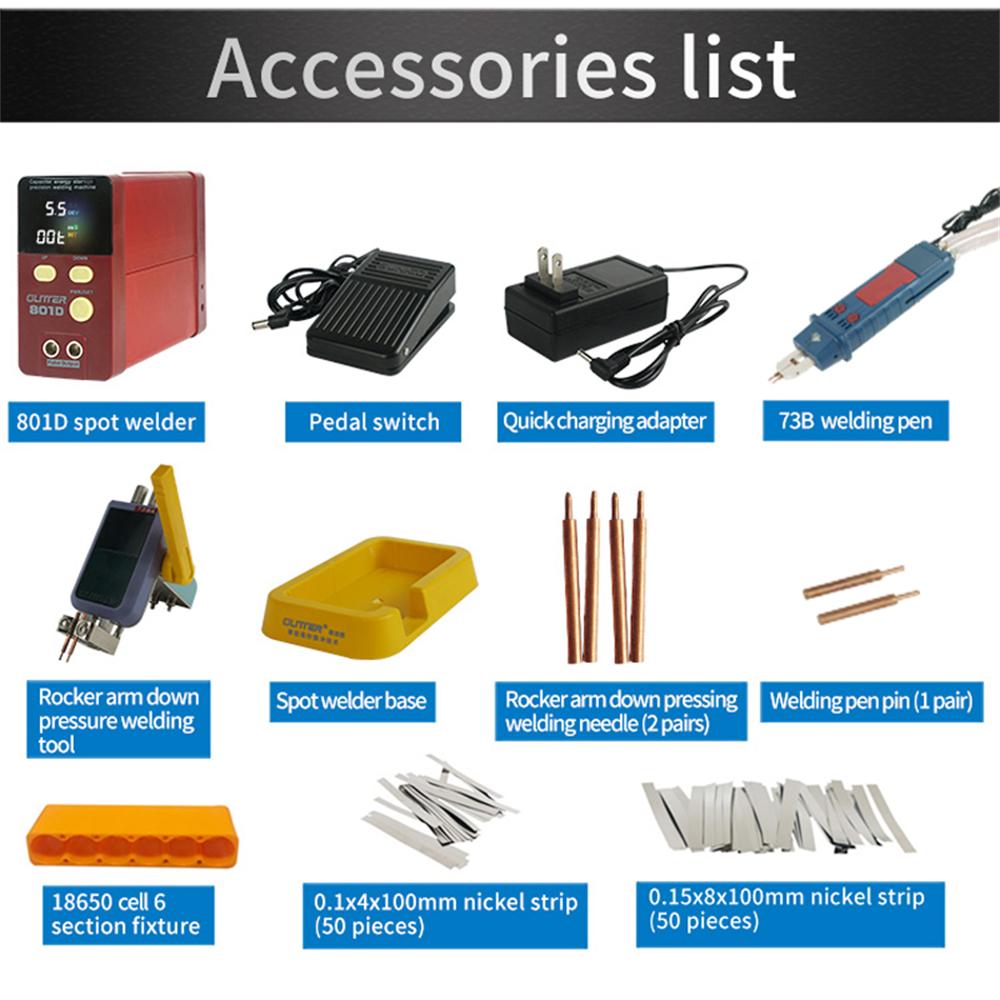

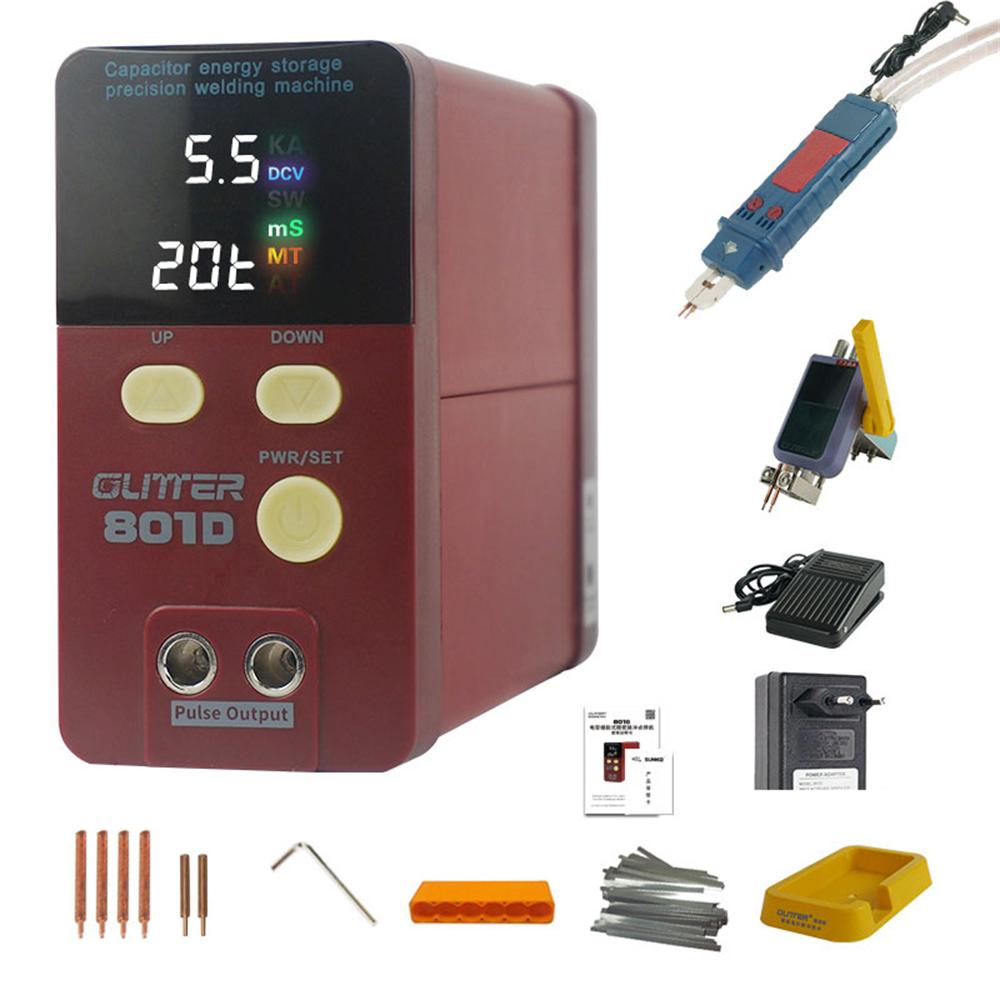

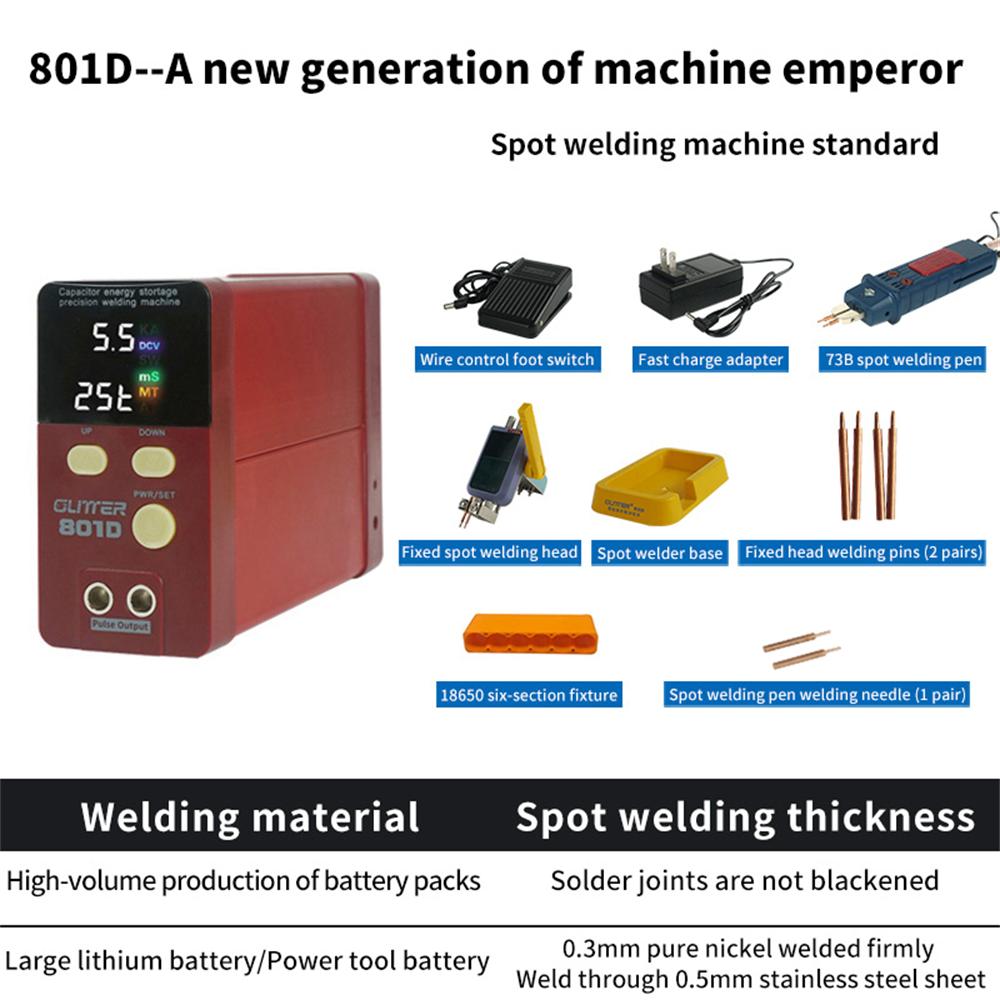

Package includes:
1 set of 801D Battery Pack Spot Welding
