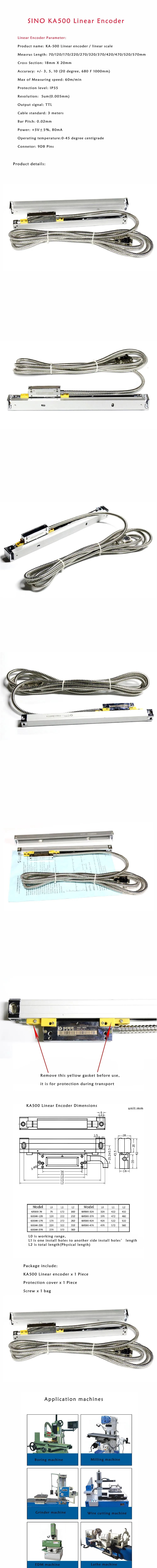

SINO KA-500 DRO Linear Scale 5um TTL Lathe Mill Machine KA500-220mm Slim Grating Ruler Optical Encoder
KA-500 is a slim series model for those machines which has little spaces for installion. For the KA series of linear encoder from our company, every ruler has passed through the strict quality measure technology dynamic laser control is used to ensure that the precision of every ruler has met the required standard before being delivered from the factory.
KA-500 slim linear encoder available in 70mm-770mm, but from 570mm-770mm, it need to customized, and the scale cross section size is 18*20mm.
Package include:
-1 piece Sino KA500-220mm scale, 1 piece scale cover, 1 bag screw
Scale Fufures
Parameter
Product name: KA-500 Linear scale
Available Measrus Length: 220mm
Cross Section: 18mm X 20mm
Accuracy: +/- 3, 5, 10 (20 degree, 680 F 1000mm)
Max of Measuring speed: 60m/min
Protection level: IP55
Resolution: 5um(0.005mm)
Output signal: TTL
Cable standard: 3 meters
Bar Pitch: 0.02mm
Power: +5V±5%, 80mA
Operating temperature:0-45 degree centigrade
Connetor: 9 Pins
