Model： TH-9800plus

（2025 newest version, please feel free to contact with us send the new programming software to you）

Frequency Range

RX (AM and FM):26-33MHz,47-54MHz,108-180MHz，320-512MHz，750-950MHz(Cellular Blocked)

TX(FM):26-33MHZ,47-54MHz,134-174MHZ(144-146MHZ1144-148MHz),400-480MHz(430-4401430-450MHz)

Channel Capacity

809 Channels

Channel Spacing

2.5 /5 /6.25 /10 / 12.5 /15 /20 /25 /50 kHz

Main features

Quad band transmit and receiver

Cross Band Repeat

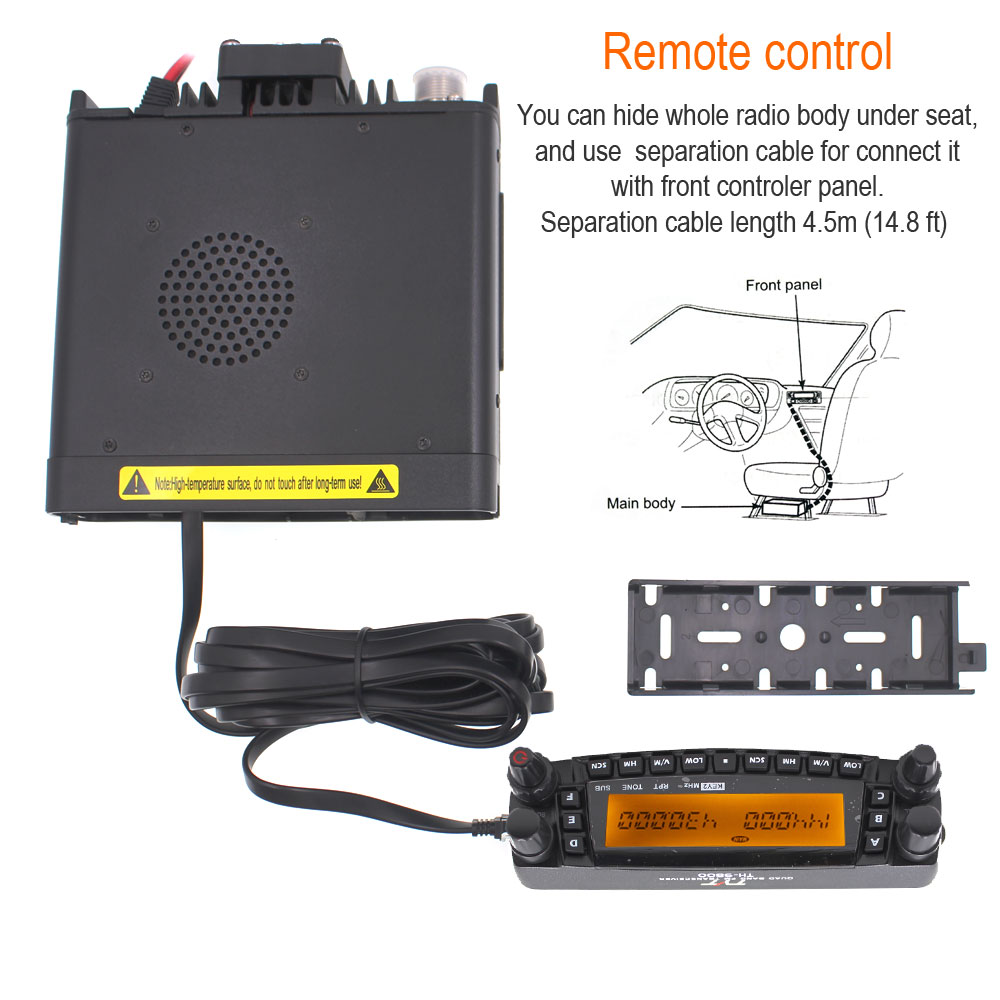

Separately Front Panel

809 Memory Channels

DTMF Microphone

Fm Radio 108-135.995MHz

High/Low Output Power Levels

Reverse Frequency Selection

Dual (V/U) Squelch Set Levels

Dual Repeater Offsets Select-Able

Multi Scanning

Repeater Offset

Keypad Lock Function

Channel Name Editing

Ctcss/Dcs Encode/Decode
