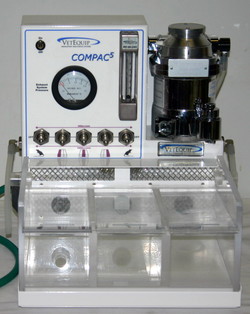

VETEQUIP ANESTHESIA SYSTEM, MODEL COMPAC 5 WITH ISOFLURANE VAPORIZER

VetEquip
Anesthesia Center
Model Compac 5
Item Number 901812

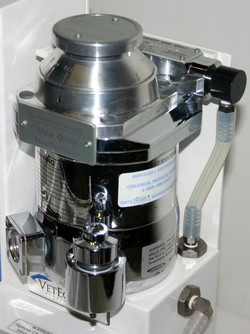

With Isoflurane Vaporizer

See additional 14 photos below.

Manufactures Description:

A revolutionary anesthesia system that combines the best features of every VetEquip system! The COMPAC5 has two independent breathing circuits and one to three independent vented induction chambers.

* All circuits are independent of each other
* All circuits have a "flip-switch" choice of ½ LPM, 1 LPM or OFF
* All chambers and circuits are vented; no pollution, no chamber flushing

“Traditional” anesthesia machines require the operator to calculate a needed flowrate based
on the circuit load, then carefully adjust a flowmeter to meter oxygen through a vaporizer
that delivers a specific concentration of anesthetic vapor. Each time a circuit is added or
removed from the system, the operator must recalculate the flowrate and re-adjust the
flowmeter.

The COMPAC 5 completely eliminates the need to calculate flowrates and flowmeter
adjustments by incorporating advanced pneumatic components to deliver preset flows of
anesthetic gas to 5 independent patient circuits. Because each circuit is controlled simply by
an multi-flow switch, the COMPAC5 allows the operator to quickly and conveniently add
(activate) or remove (deactivate) circuits without the cumbersome need to recalculate the
flowmeter setting; regardless of how many circuits are on or off, the flowrate in each active
circuit is automatically controlled and adjusted by internal pneumatic components to
consistently and accurately deliver the preset flowrate to the remaining active circuits.

Each circuit has the ability to deliver: 1) 500cc/min in the “up” position; 2) 1000cc/min in
the “down” position; 3) set to “off” (no flow) in the central position.

Has a small broken piece of acrylic on the front of the slide between the second and third lid (see last picture at the bottom, doesn’t effect operation).

The third chamber on the right side is coated with some kind of epoxy on the bottom.

30 Day warranty.

University, Fortune 1000 Company and Federal Gov. agency (certified SAM vendor) Purchase Orders with open billing, Net 30.

Controller Overall Dimensions: 15"W x 16"D x 16"H
Net Weight: 34 Pounds
