Shure GLXD24R+/SM58-Z3 Digital Wireless Rack System with SM58 Vocal Microphone

  • FREE FAST SHIPPING

    We guarantee shipment within one business-day of your completed order.

  • 30 DAYS RETURN POLICY

    See our return policy

  • ONLINE SUPPORT

    Have a query? Just contact our support team

  • 100% SECURE CHECKOUT

    Checkout safely with peace of mind

TECHNICAL INFORMATION

Shure GLXD24R+/SM58-Z3 Digital Wireless Rack System with SM58 Vocal Microphone



Take Your Wireless Vocal Performance to the Next Level

The GLX-D+ Dual Band Digital Wireless is the ideal solution for musicians and performers who want to use wireless with confidence and hassle-free. Every aspect of it is managed automatically and completely reliably, so you can focus on performance. Thanks to new dual-band wireless technology, the GLX-D can operate on both 2.4GHz and 5.8GHz, doubling the available bandwidth while intelligently avoiding interference to ensure reliable, uninterrupted audio. The included lithium-ion battery with smart charging for up to 12 hours of use (improved from the previous generation GLX-D) can be recharged in multiple ways and offers fast charging capabilities.

Available with several legendary microphone options (including the SM58®) in tabletop, half-rack and guitar pedal system configurations. Combined with a frequency manager and directional antenna accessories (both sold separately), rack-mount receiver systems are ideal for small to medium installations where more channels are required.

Always come through clear and precise to captivate your audience with transparent audio and durable setup from the GLX-D+ Dual Band and SM58 capsule. Don't let the fear of drop outs scare you. The dual band selects backup frequencies to keep the system (transmitter and receiver) ready to move in no-time in case interference occurs. The continuous interference monitoring enables a seamless switch without interruption during a performance. Keep performing reliably without any ongoing management.

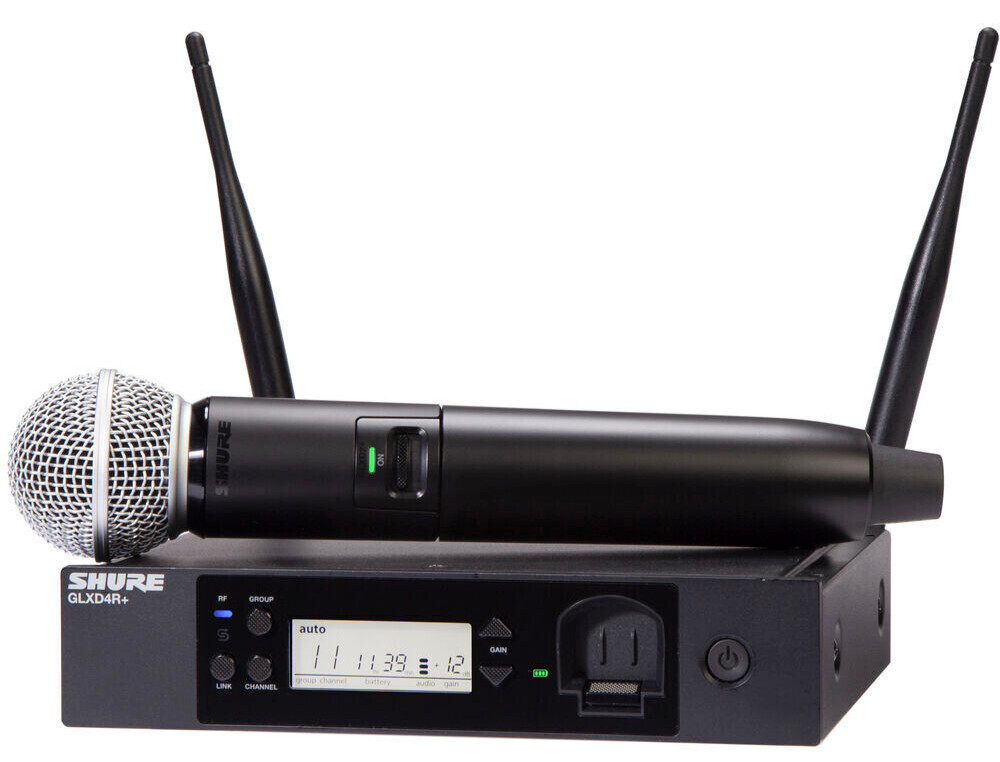

This system includes the classic SM58 microphone and the GLXD4R+ half-rack receiver.



Shure GLXD24R+SM58-Z3 Features

  • Rack-mount GLXD+ Dual Band receiver plus lavalier microphone
  • Dual Frequency operation (2.4GHz and 5.8GHz)
  • Removable antennas
  • Compatible with GLX-D+FM Dual Band Frequency Manager
  • Battery lasts 12 hours with smart rechargeability via SB904 battery (compared to 11 in prior version)
  • Exceptional, Digital Wireless Audio
  • Rock-Solid RF Performance for Multiple System Installations
  • License-Free Frequency Range



System Specifications

Compatibility

  • With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions
  • Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions
  • System Operating Range
  • Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions
  • Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions
  • Transmit Mode: Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz)
  • Audio Frequency Response: 20 Hz – 20 kHz Note: Dependent on microphone type
  • Dynamic Range: 120 dB, A-weighted
  • RF Sensitivity: -88 dBm, typical
  • Total Harmonic Distortion: 0.07%, typical
  • RF Output Power: 10 mW E.I.R.P. max
  • Operating Temperature Range: -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range.
  • Storage Temperature Range: -29°C (-20°F) to 74°C (165°F)

Polarity

  • Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low-impedance output) and the tip of the high impedance 6,35 mm output.
  • Battery Life: Up to 12 hours

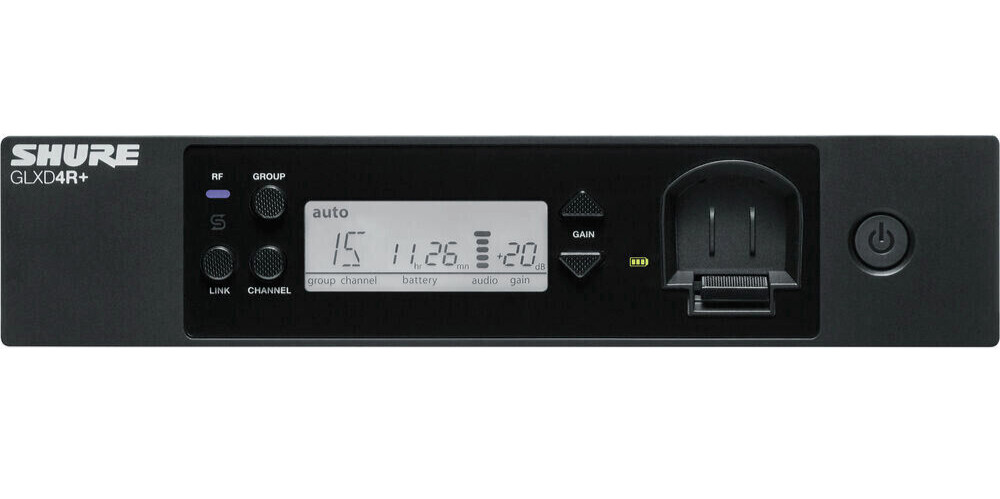

GLXD4R+ Dual Band Rack Receiver

  • Dimensions: 7.7 x 6.4 x 1.6 in. (196.8 x 162.97 x 41.8 mm), without antenna
  • Weight: 30.5 oz (866 g) without batteries
  • Housing: Steel
  • Power Requirements: 14.5 V - 17 V, 600mA
  • Spurious Rejection: >35 dB, typical
  • Gain Adjustment Range: −18 to 42 dB in 1 dB steps
  • Phantom Power Protection: Yes
  • AUDIO OUTPUT
  • Configuration
  • XLR Output: Balanced
  • 35 mm (1/4") output: Impedance balanced
  • Impedance
  • XLR Output: 100 Ω
  • 35 mm (1/4") output: 100 Ω (50 Ω, Unbalanced)
  • Full-Scale Output
  • XLR: LINE setting= +18 dBV, MIC setting= −12 dBV
  • 35 mm (1/4"): +12 dBV
  • Pin Assignments
  • XLR Output: 1=ground, 2=hot, 3=cold
  • 35 mm (1/4") connector: Tip=audio, Ring=no audio, Sleeve=ground
  • Mic/Line Switch: 30 dB Pad
  • RECEIVER ANTENNA INPUT
  • Impedance: 50 Ω
  • Antenna Type: Dual Band 1/2 WaveSleeve Dipole
  • Maximum Input Level: −20 dBm

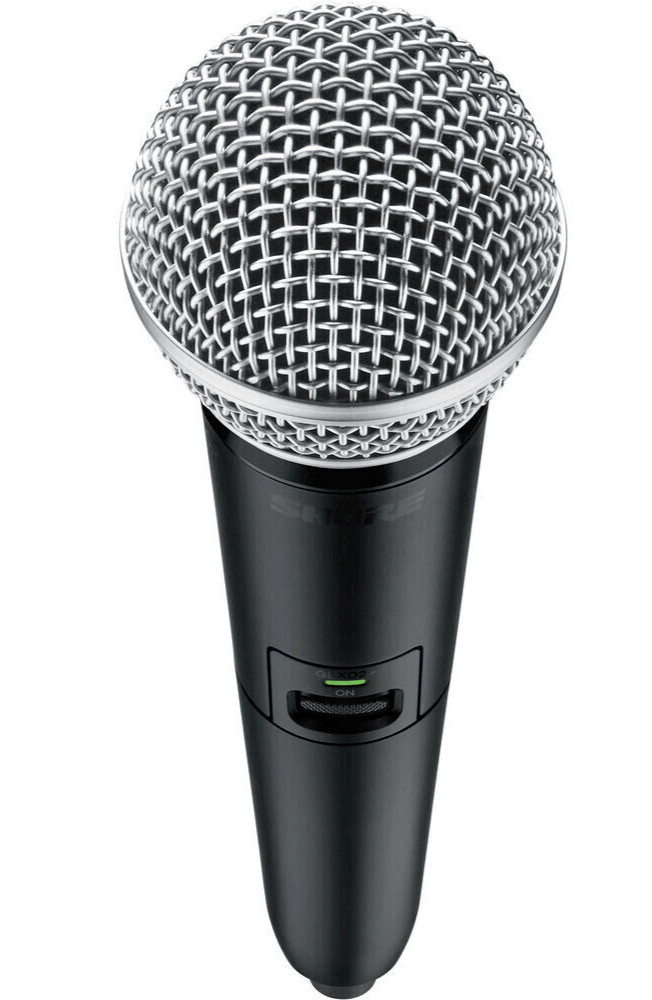

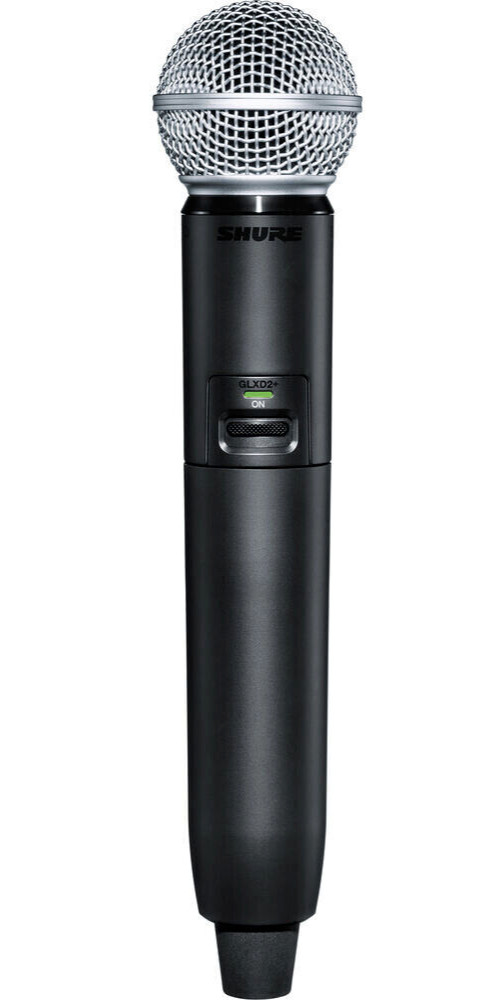

SM58

  • Wireless Technology: Digital UHF
  • Polar Pattern: Cardioid
  • Sound Field: Mono
  • Capsule: Dynamic
  • Frequency Range: 50hz - 15kHz
  • Sensitivity: -54.5 dBV/Pa
