ModuleMe Electronic

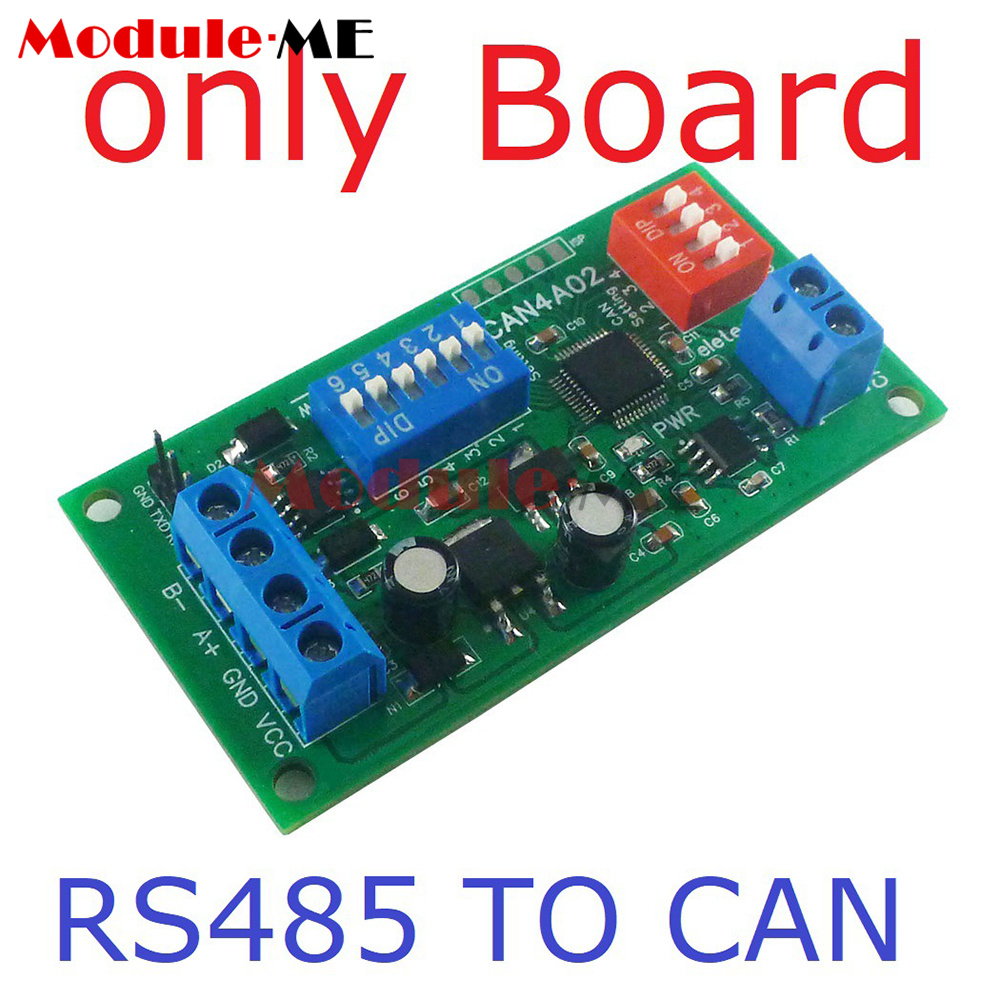

CAN to RS485 RS232 RS422 CANBUS serial protocol data transmission Module DC12V
Product features:
1. Use of high quality materials, quality assurance
2.CAN bus to RS485 bus TTL232
3. Exquisite and compact appearance, with or without Din rail box freely selectable
4. All parameters are set via DIP switches, no need for any software/command settings, more convenient to use
5. Wide range of applications: smart home, home automation, smart home, security monitoring, identification system, IP camera, LED light driver, automatic curtain control, etc.
1. Use of high quality materials, quality assurance
2.CAN bus to RS485 bus TTL232
3. Exquisite and compact appearance, with or without Din rail box freely selectable
4. All parameters are set via DIP switches, no need for any software/command settings, more convenient to use
5. Wide range of applications: smart home, home automation, smart home, security monitoring, identification system, IP camera, LED light driver, automatic curtain control, etc.
Parameters:
Working voltage: DC12V (DC 6.5-25V)
Operating current: 15-17mA

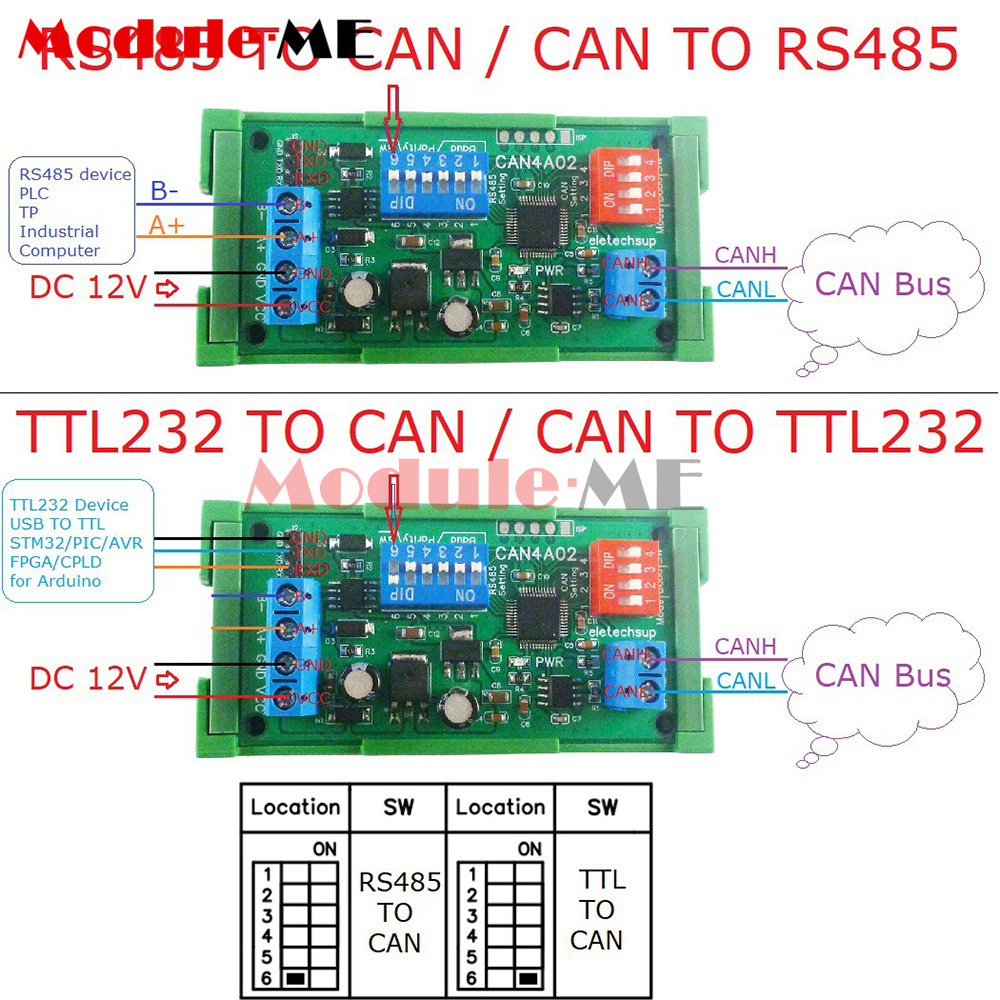

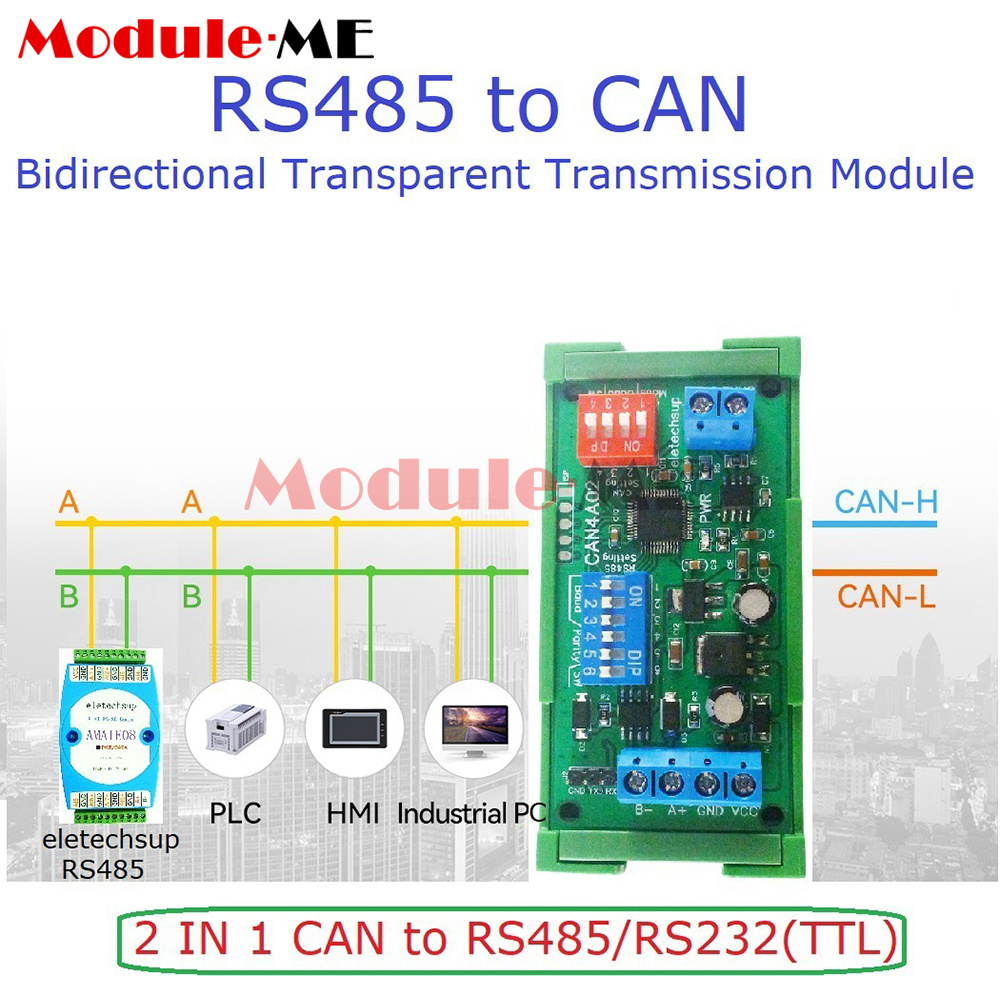

Operating mode: RS485 to CAN bi-directional converter, RS232 (TTL) to CAN bi-directional converter
Fully compatible with the "ISO 11898-2:2016" standard

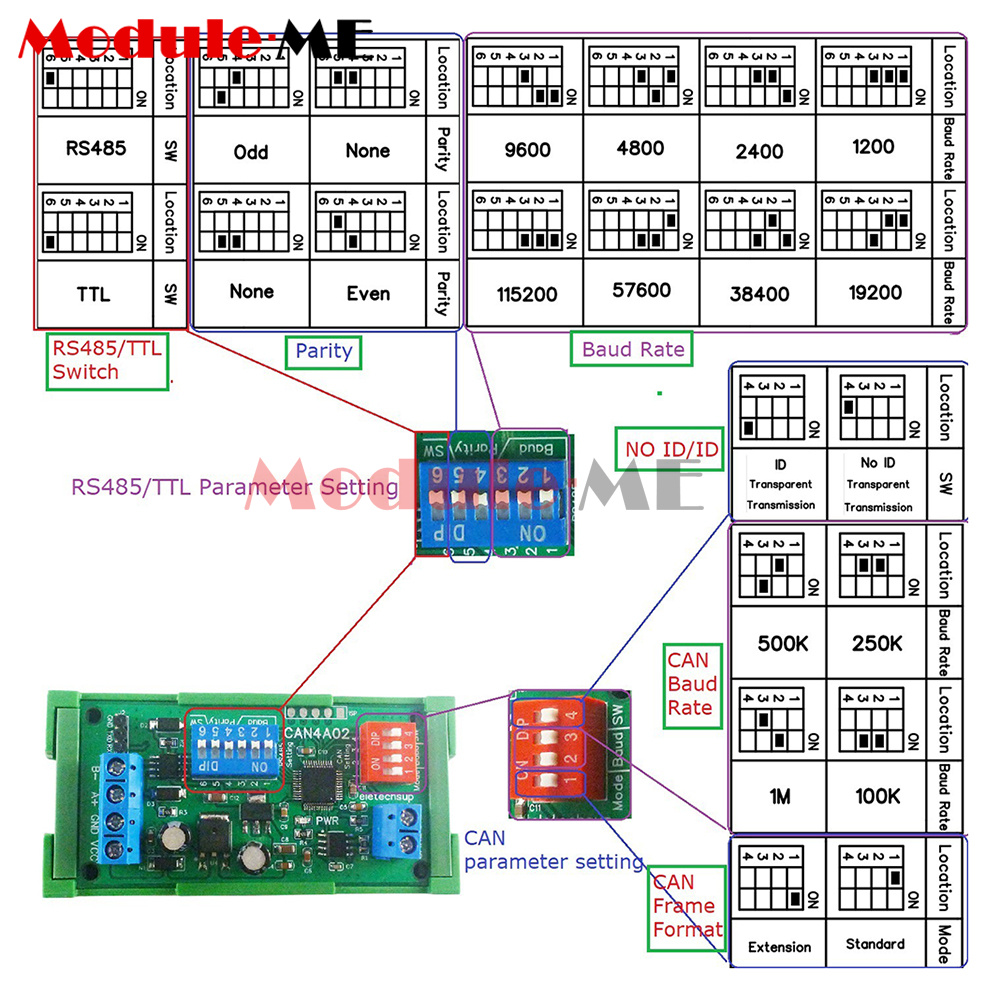

All parameters are set via DIP switches, no software/commands required
RS485/RS232 (TTL) parameters: baud rate (1200 2400 4800 9600 19200 38400 57600 115200BPS), parity (non-parity)
CAN parameters: transparent mode (ID/NO ID), CAN baud rate (100K/250K/500K/1M), CAN frame format (standard/extended)
Support for data transmission and reception and transmission of CAN IDs

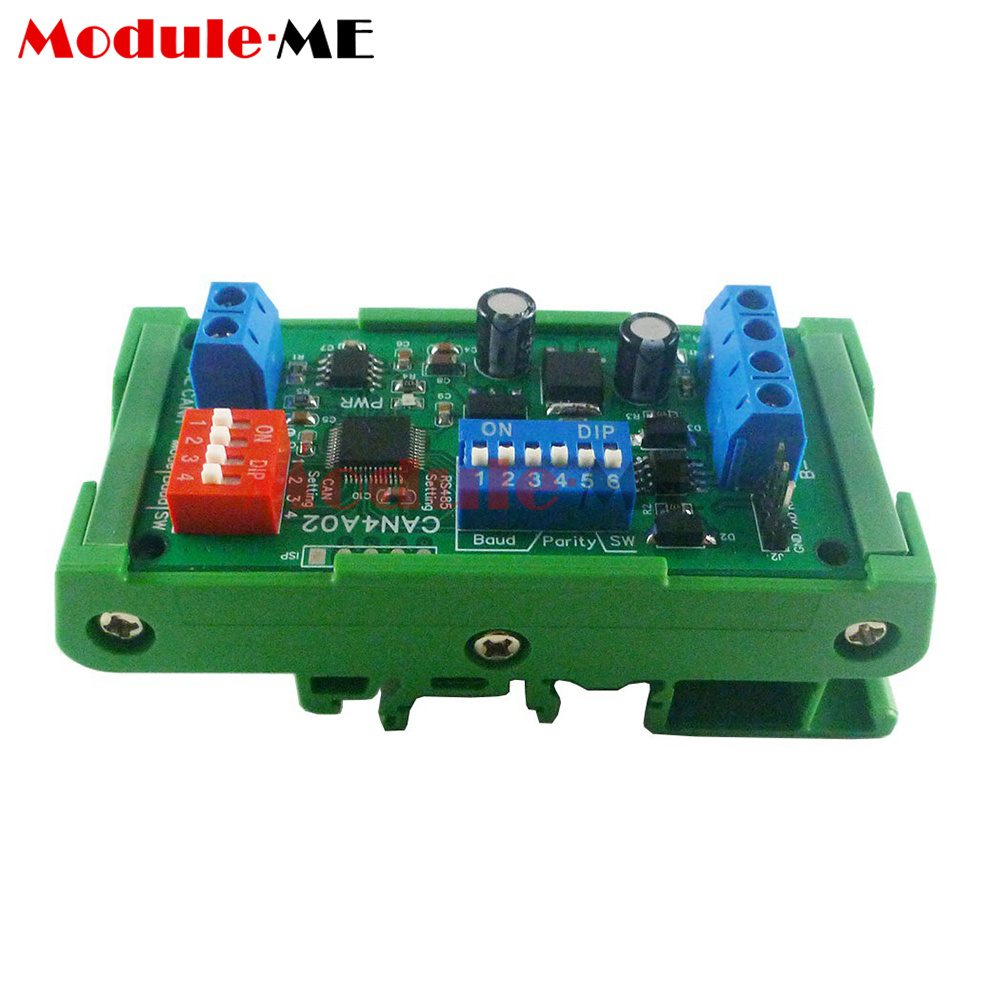

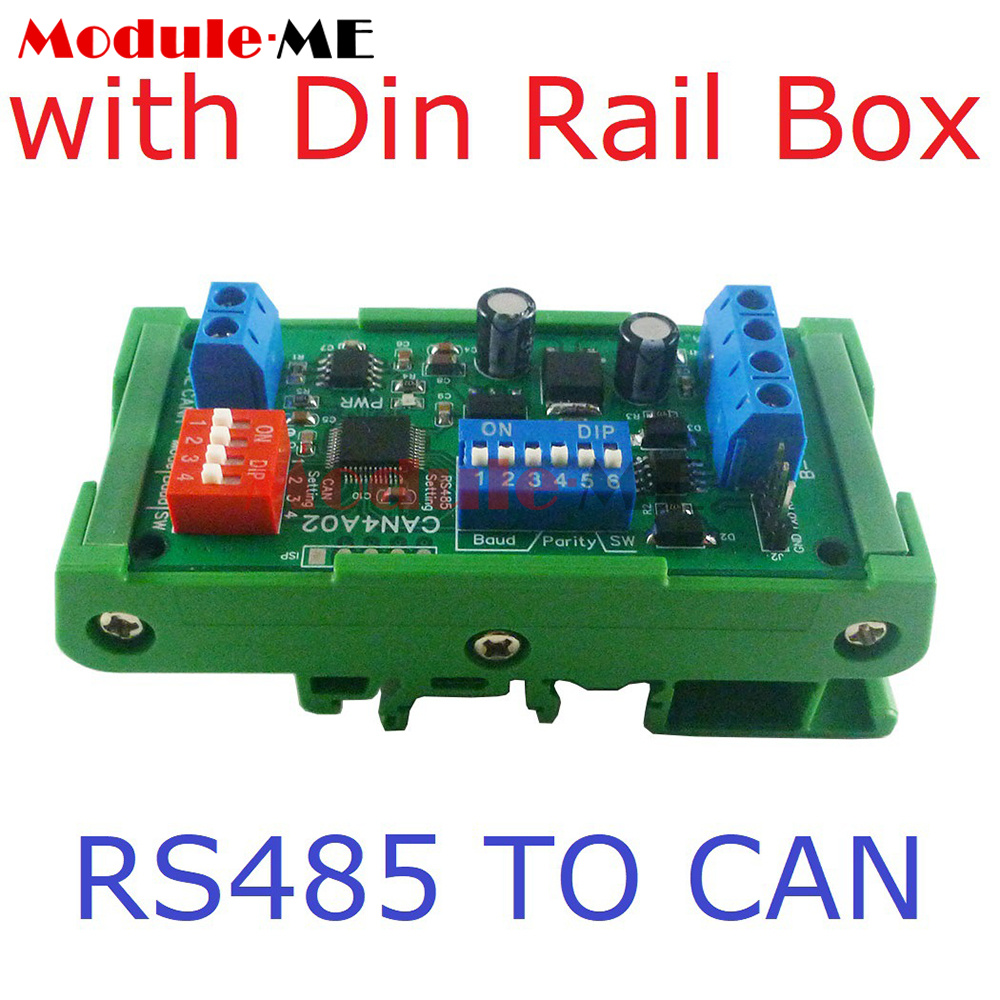

DIN rail box parameters:
Product type: UM72
Colour: Green
Width: Suitable for PCB width UM72 (72mm)
Insulation class: Flame retardant VO class
Mounting: DIN35 and C45 rails
Product type: UM72
Colour: Green
Width: Suitable for PCB width UM72 (72mm)
Insulation class: Flame retardant VO class
Mounting: DIN35 and C45 rails

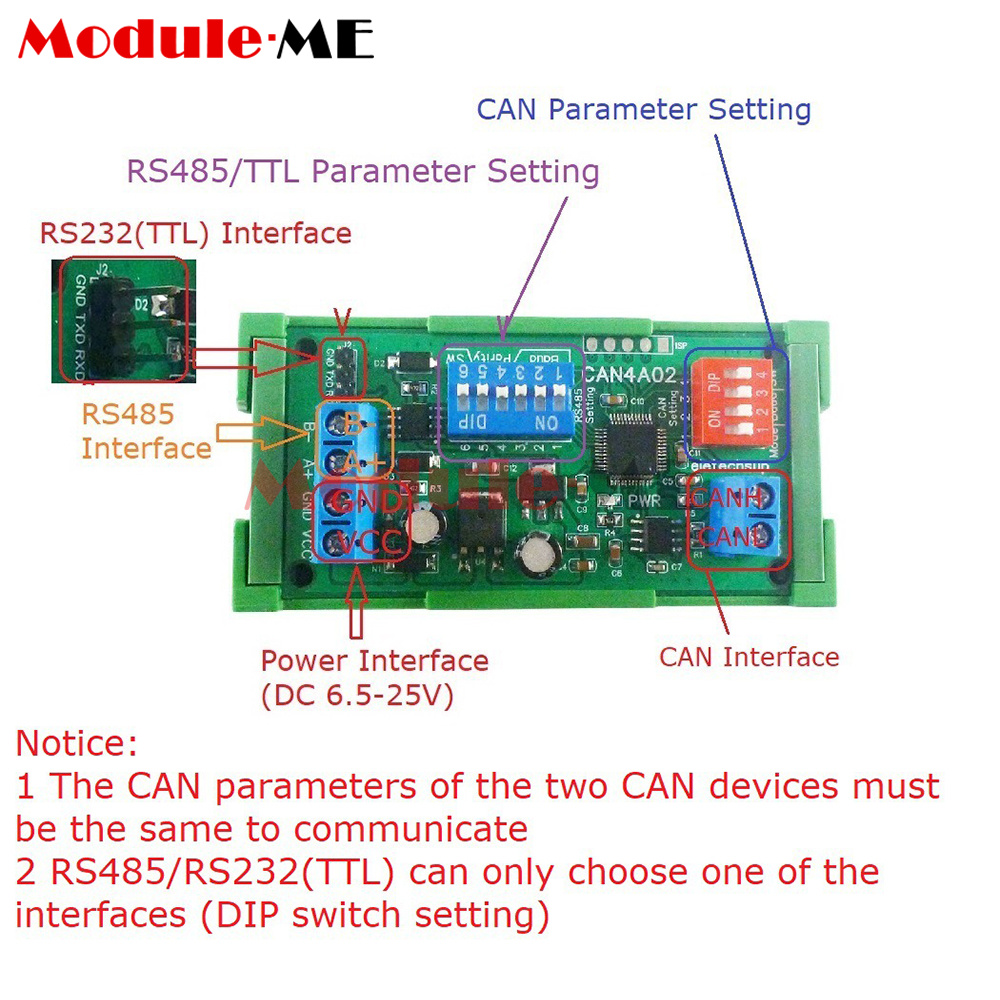

Caution:
1 CAN parameters of both CAN devices must be identical for communication
2RS485/RS232 (TTL) only one of the interfaces can be selected (DIP switch setting)
Package list:
Data transmission module* 1
