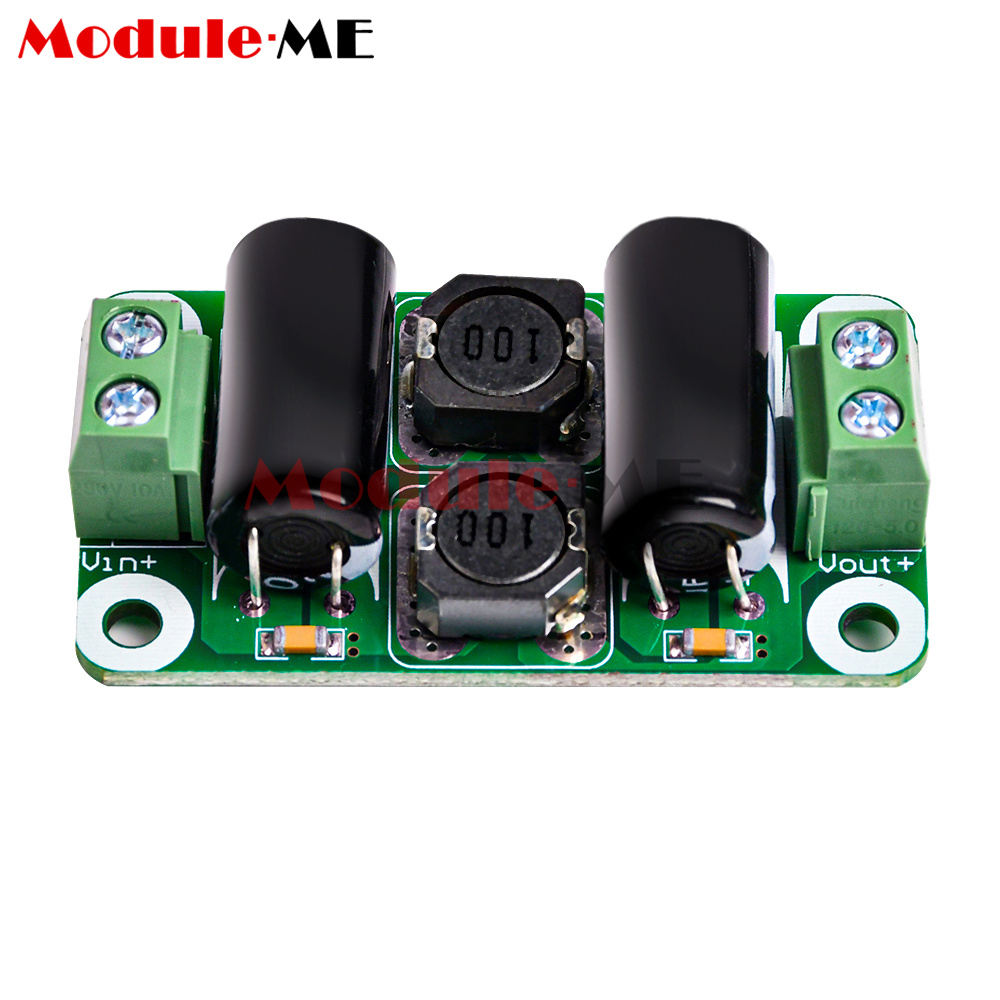

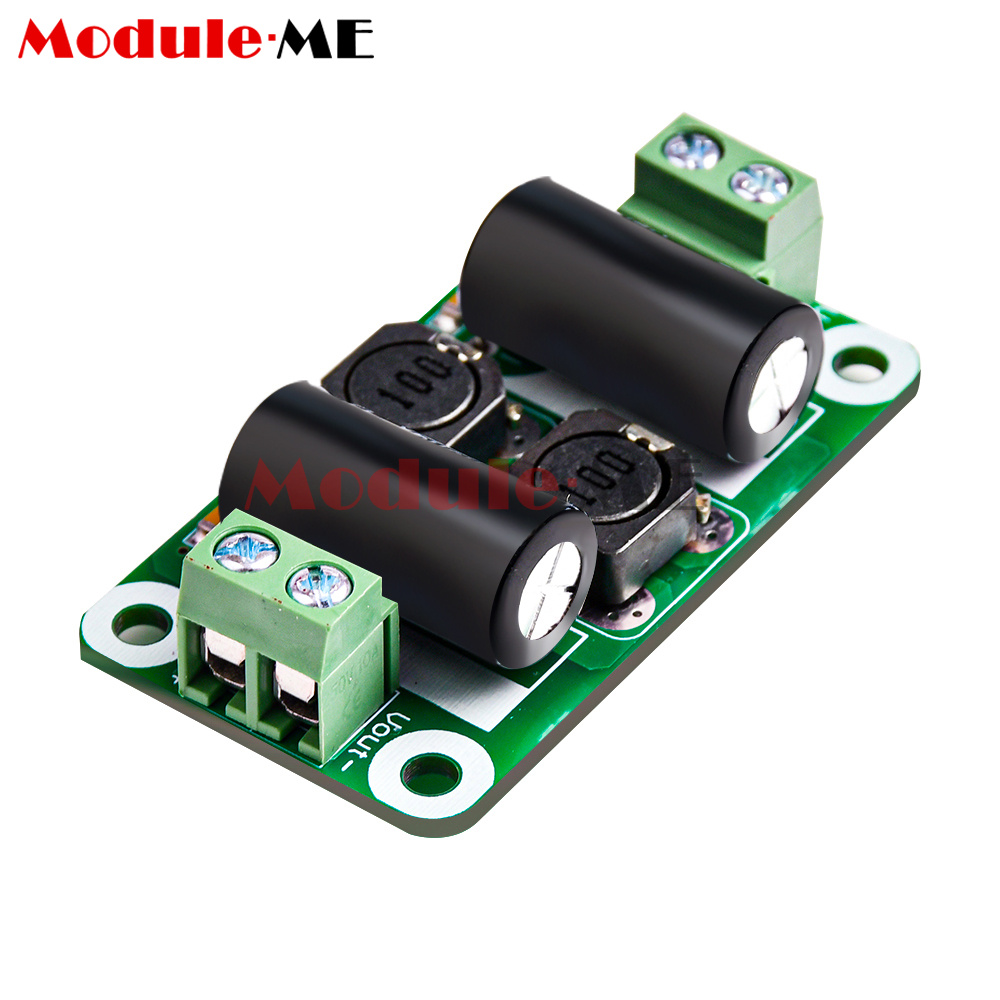

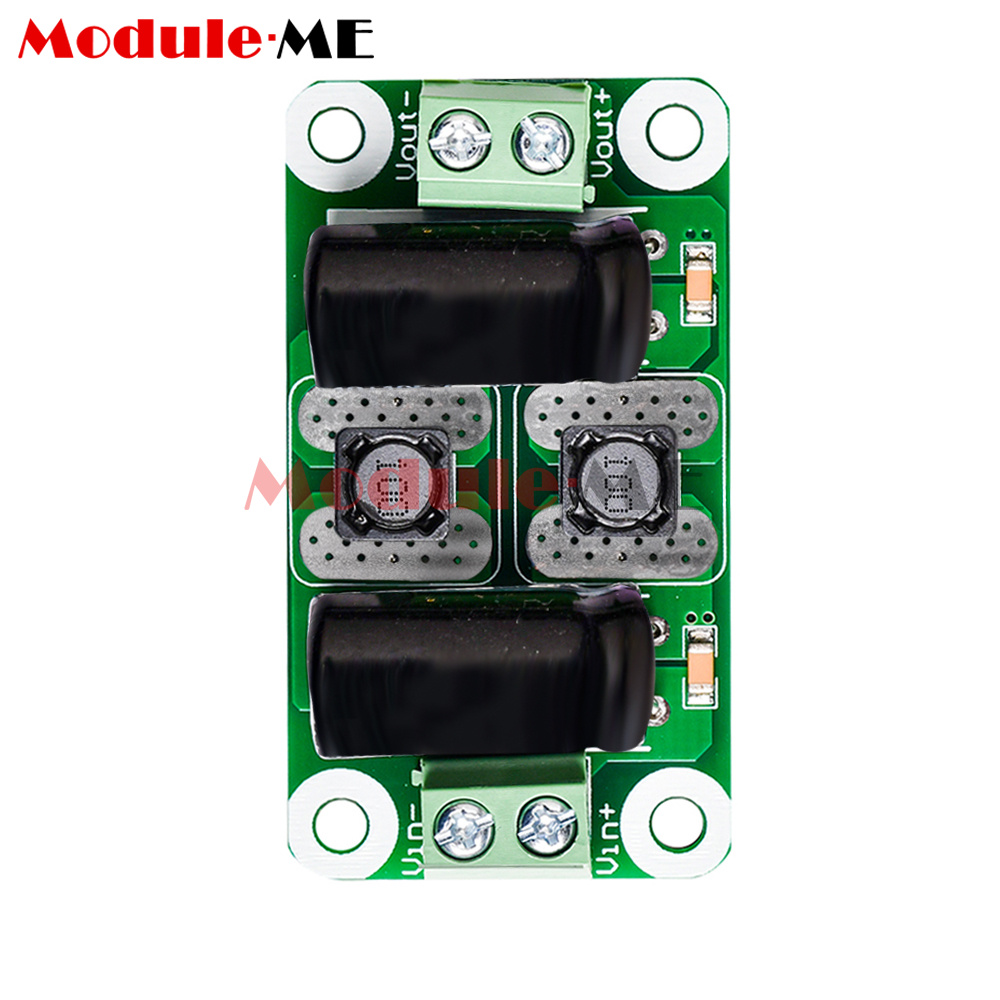

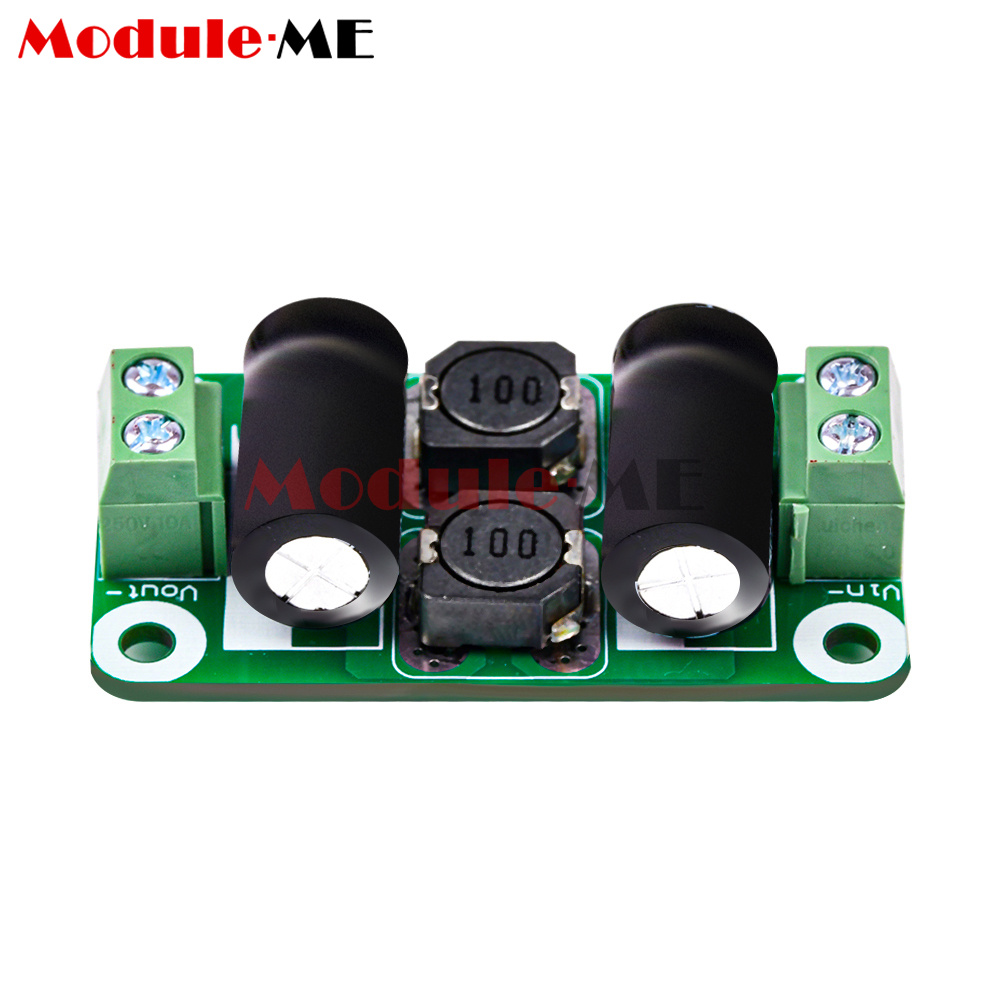

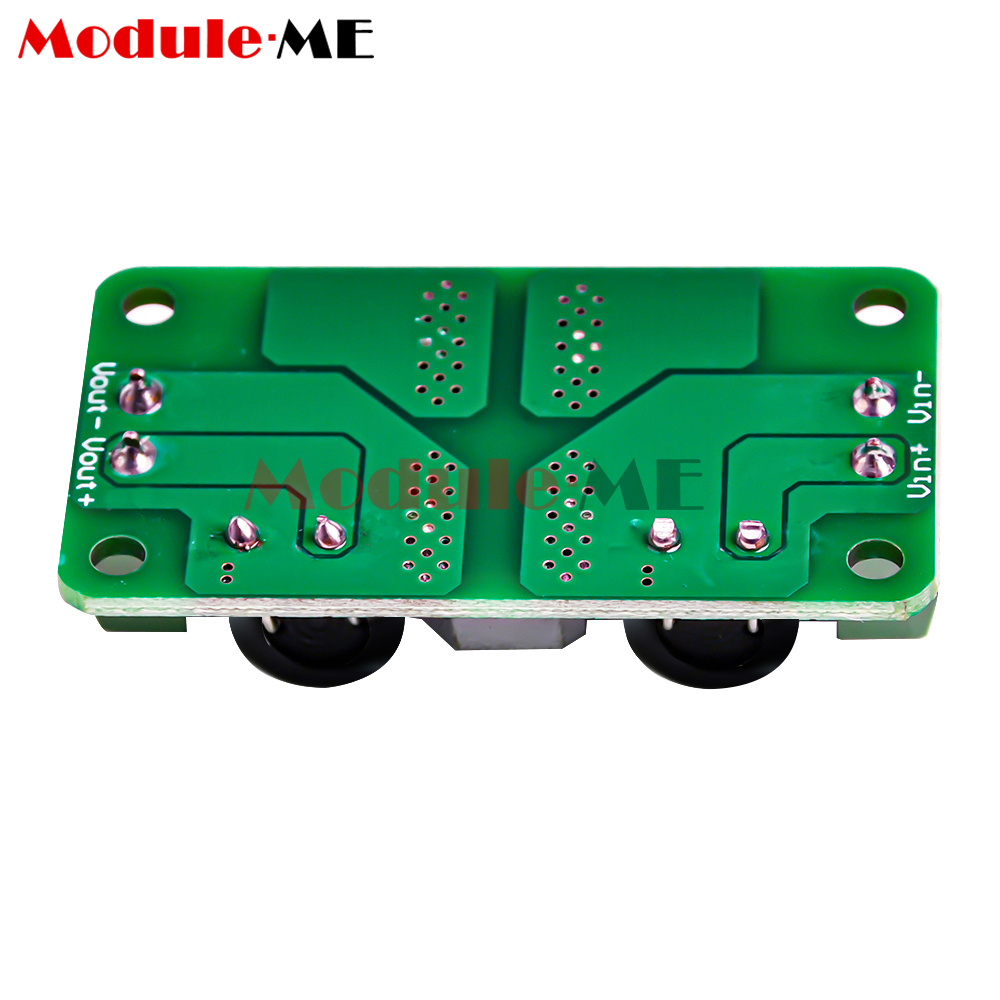

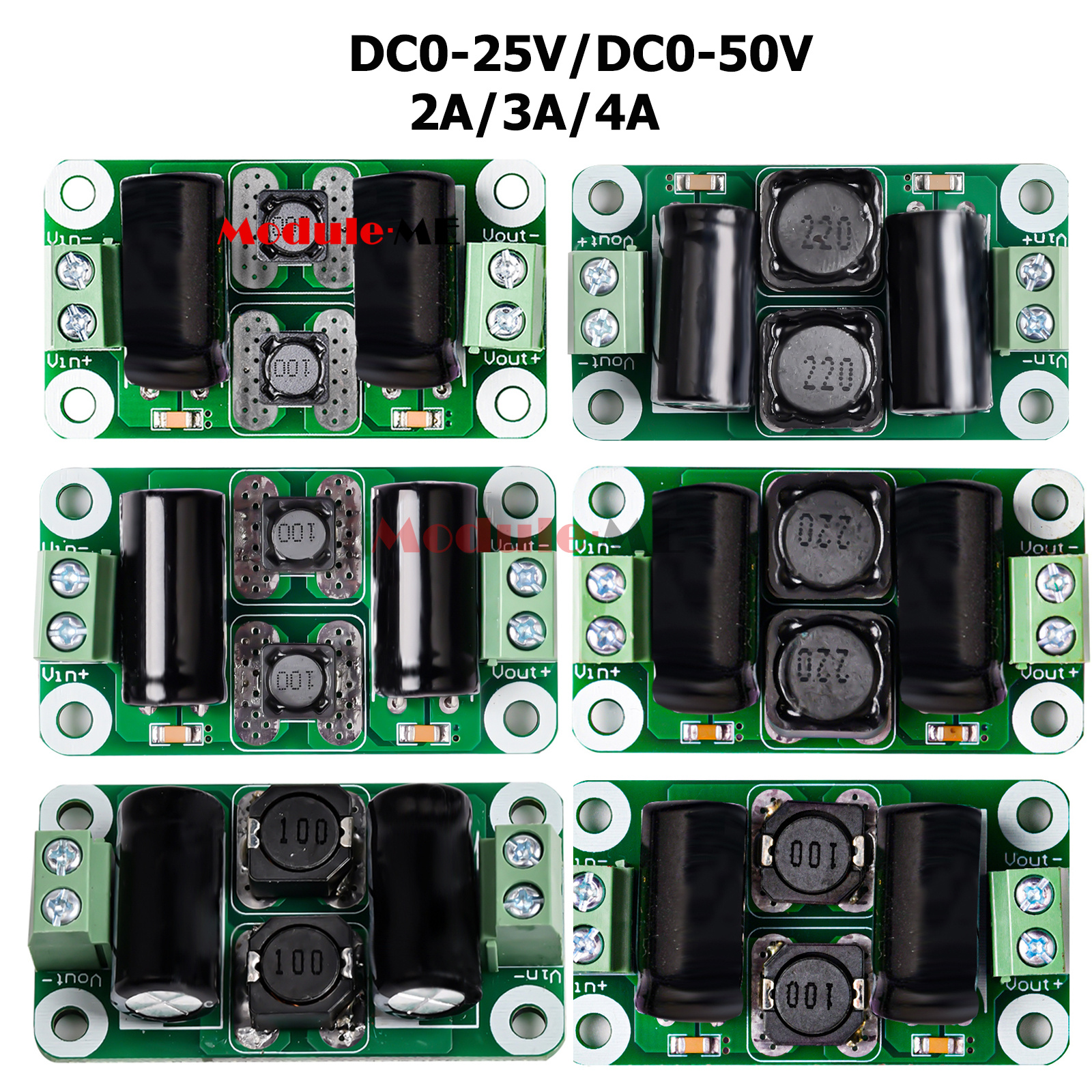

DC Power Filter Board Digital Amplifier Interference Suppression Board 2A/3A/4A
Product features:
1. Using the LC differential common-mode working principle, it can suppress the interference in switching power supplies or other DC power supplies, reduce the ripple of the power supply and reduce the interference caused by the power supply
2. Can be used in low-voltage DC (0V~50V) power supply circuits, such as amplifier boards, automotive equipment, industrial control boards, DC appliances, etc.
3. Flexible in use, when the suppression effect does not meet the requirements, can be multi-stage series connection to enhance the suppression ability.
4. When the working current does not meet the requirements, it can be connected in parallel to increase the output current, for the use of positive and negative power supply circuit boards can be stacked two pieces to form a positive and negative power supply interference suppression board

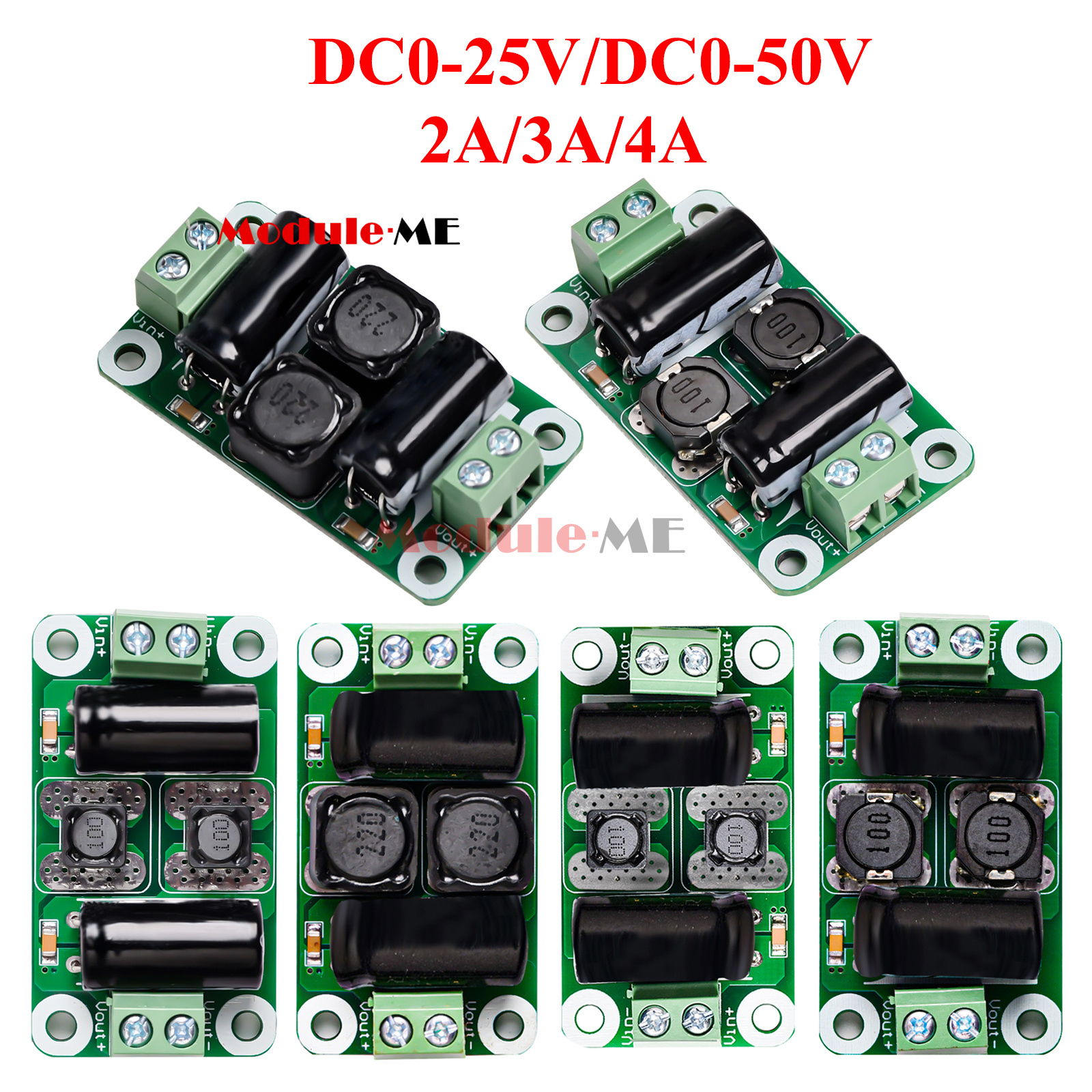

5. Two voltage specifications, 0~25V, 0~50V, according to the use of the working voltage range to choose the matching filter board
1. Using the LC differential common-mode working principle, it can suppress the interference in switching power supplies or other DC power supplies, reduce the ripple of the power supply and reduce the interference caused by the power supply
2. Can be used in low-voltage DC (0V~50V) power supply circuits, such as amplifier boards, automotive equipment, industrial control boards, DC appliances, etc.
3. Flexible in use, when the suppression effect does not meet the requirements, can be multi-stage series connection to enhance the suppression ability.
4. When the working current does not meet the requirements, it can be connected in parallel to increase the output current, for the use of positive and negative power supply circuit boards can be stacked two pieces to form a positive and negative power supply interference suppression board
5. Two voltage specifications, 0~25V, 0~50V, according to the use of the working voltage range to choose the matching filter board
Product parameters:

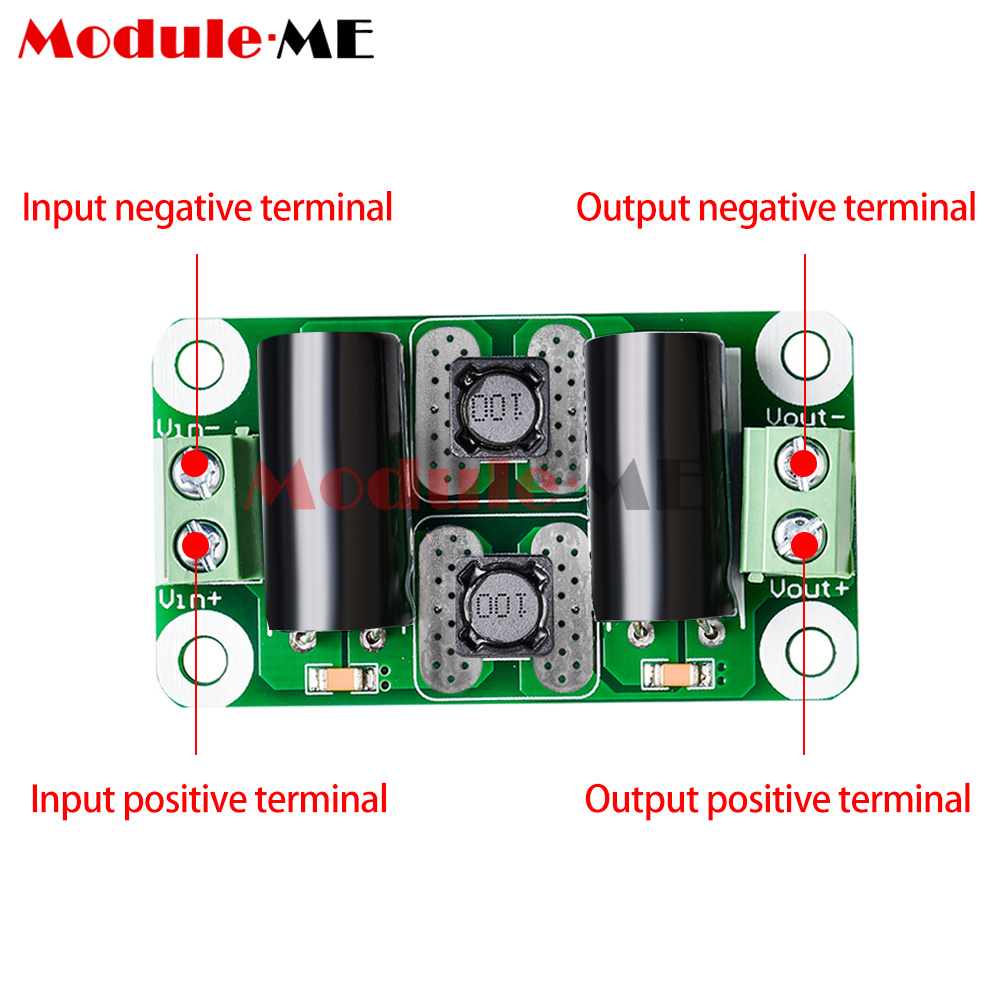

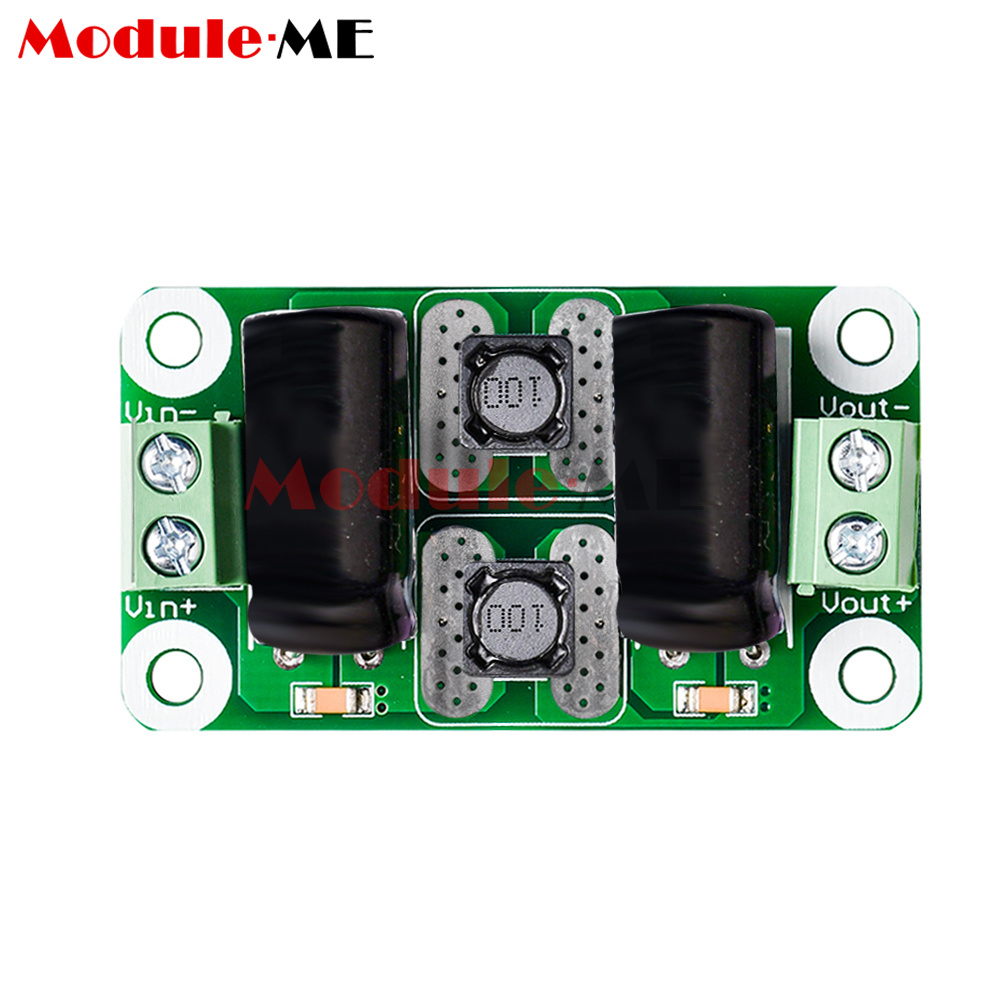

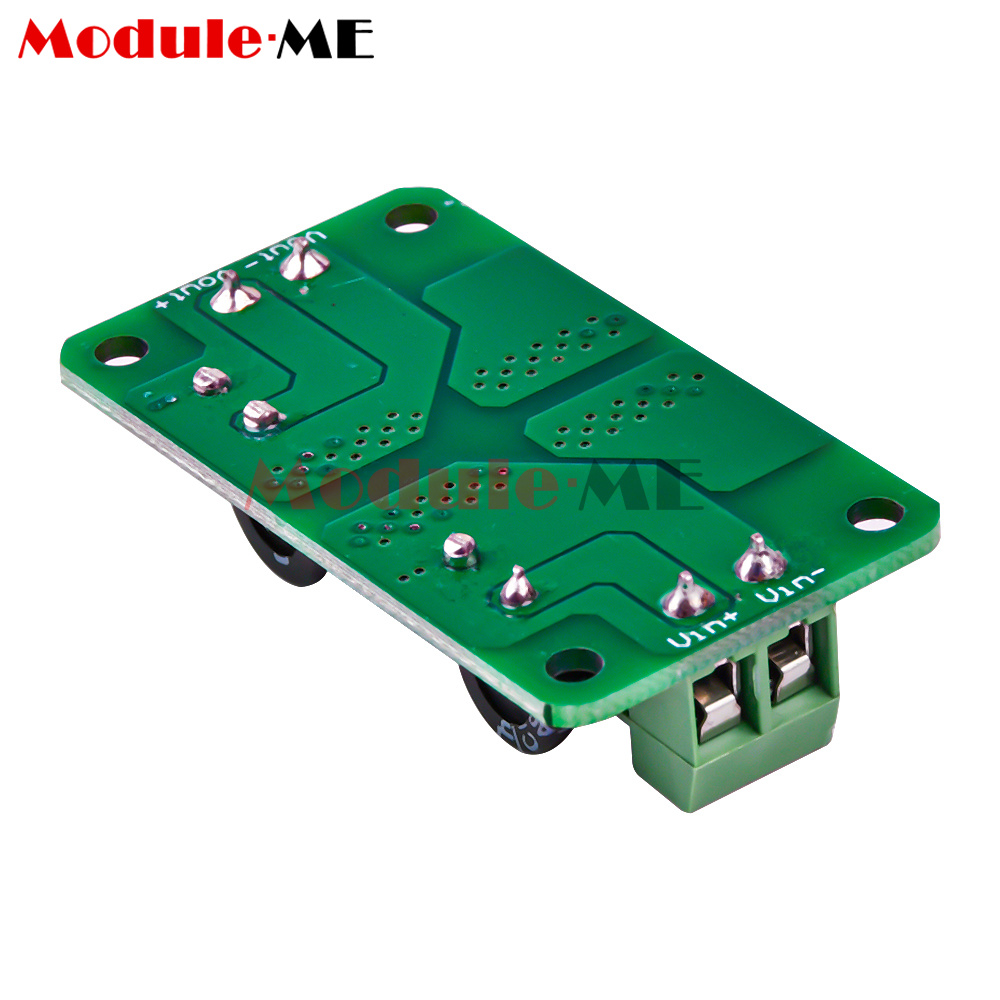

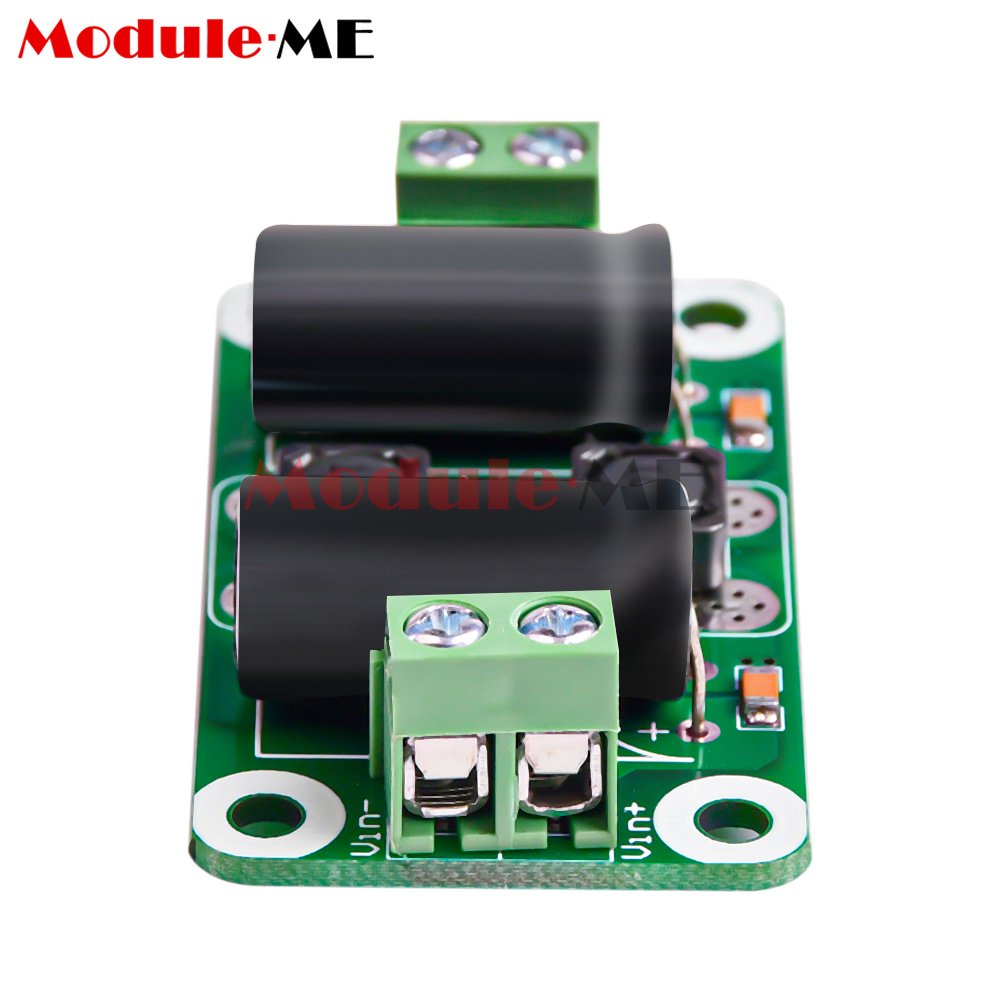

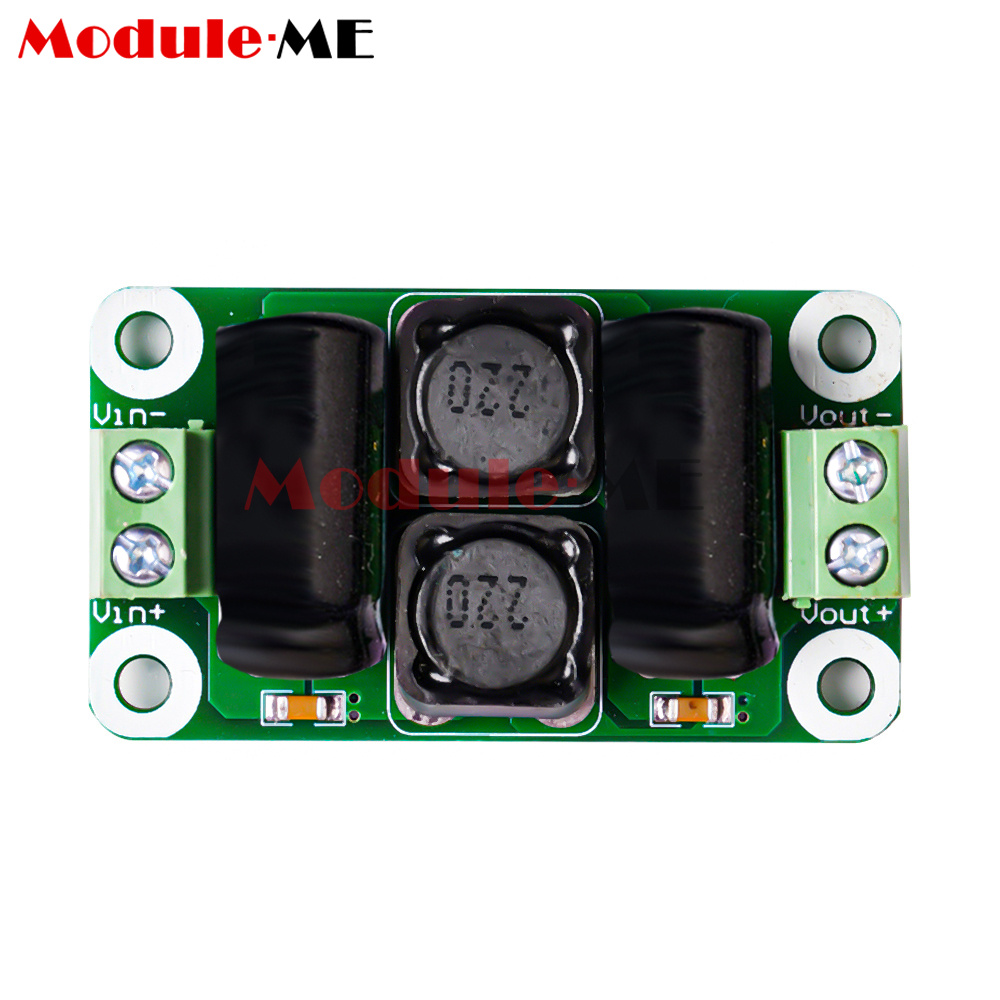

Wiring terminals description:
Vin+: input positive
Vin-: input negative
Vout+: output positive
Vout-: output negative
Wiring terminals description:
Vin+: input positive
Vin-: input negative
Vout+: output positive
Vout-: output negative
Shipping list:
Filter board *1
Filter board *1
