Vanda Trading - New AT 400W PSU

New AT 400W PSU replacing SPI-200G, SPI-250G, SPI-300G, FS200 S40G, PP-300TA, AG-230T, GP-4150PB - Picture 1 of 14
New AT 400W PSU replacing SPI-200G, SPI-250G, SPI-300G, FS200 S40G, PP-300TA, AG-230T, GP-4150PB - Picture 14 of 14

Swipe or use the arrows to see all pictures

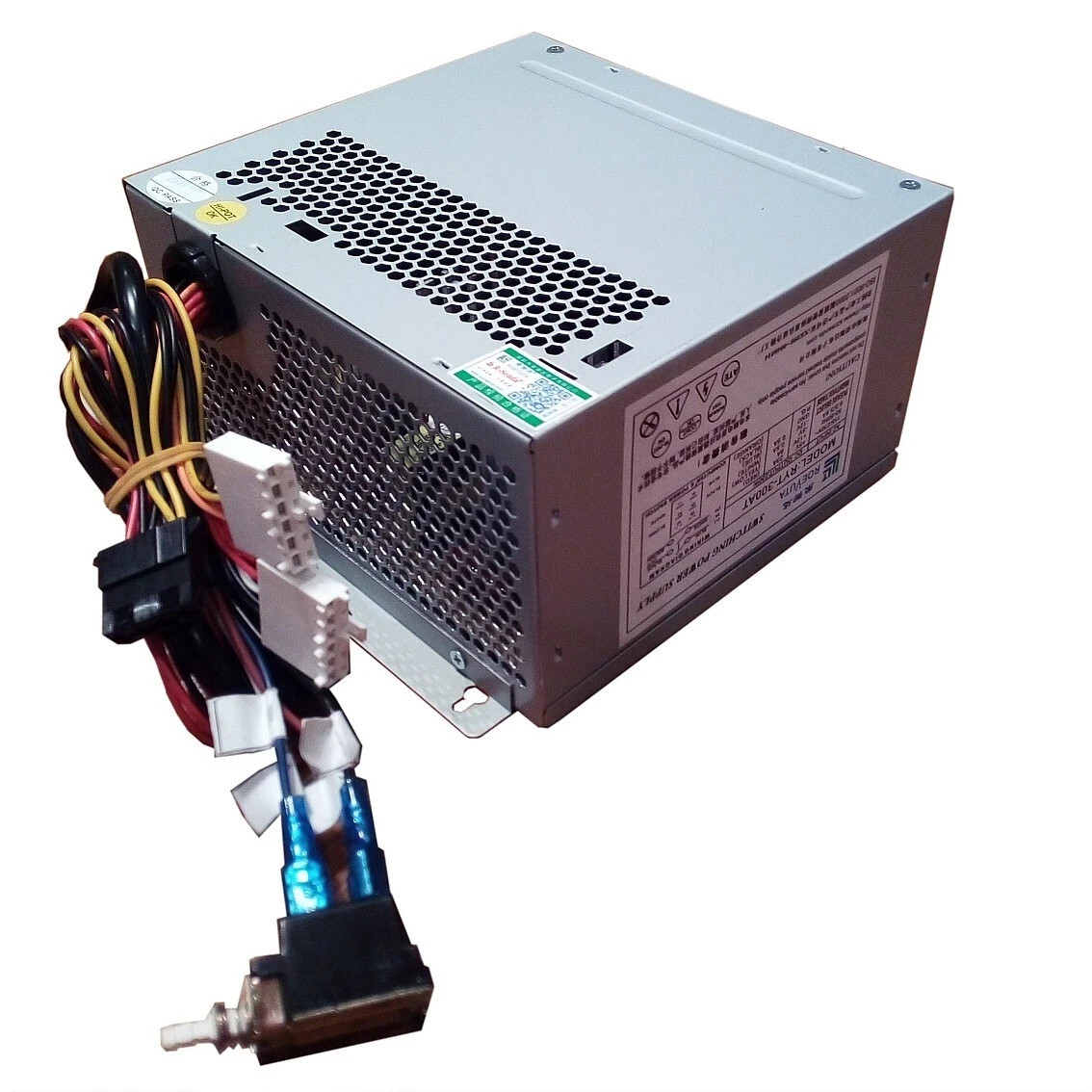

New AT 400W PSU for SPI-200G, SPI-250G, SPI-300G, FS200 S40G, PP-300TA, AG-230T, GP-4150PB

Available
See ratings
  • Rare, genuine AT power supply, brand new
  • Replaces SPI-200G, SPI-250G, SPI-300G, FS200 S40G, PP-300TA, StarTech AG-230T, G-Power GP-4150PB and 115+ more
  • 400W output, standard 6-pin P8 & P9 motherboard connectors
  • 4x Molex, 2x SATA, 1x Floppy + remote ON/OFF latching switch
  • 115-230V input with manual voltage selector, 80mm fan
  • Optional P10 connector (+3.3V orange wires)

High Quality  /  Returns Accepted  /  2 year warranty on PSUs


Product Description

This rare, genuine AT power supply unit is a direct replacement for the SPI-200G, SPI-250G and SPI-300G (FSP / Sparkle), FS200 S40G, Mapower PP-300TA, StarTech AG-230T and G-Power GP-4150PB, plus the 115+ other AT models listed below. It delivers a reliable 400W for legacy systems built on AT technology: vintage PCs and workstations, kiosks and POS terminals, arcade and dart machines, and industrial control platforms.

Compatible Systems

  • Vintage home computers and workstations
  • Hard drive storage enclosures
  • Shopping mall kiosks and point-of-sale terminals
  • Arcade game machines and entertainment systems
  • Legacy industrial control platforms
  • Manufacturing plant control systems

Technical Specifications

Model numberAthena Power AT-40
Form factorAT
AC input115/230V, 7/3A, 60/50Hz, suitable worldwide. Manual voltage switch: select the correct voltage BEFORE using the PSU to prevent damage.
Power output400W
ColourGrey
Ventilation1x 80mm fan
Size (HxWxD)85 x 150 x 140mm (3.3 x 5.9 x 5.5 inch)
Weight1.4kg
Package size & weight100 x 250 x 200mm, 1.7kg
ConditionBrand new
Warranty2 years (1 year standard + 1 year free extended)
ReturnsReturn within 30 days if unsuitable or unwanted

Connectors

6-pin P8 & P9Standard AT wiring. Some PSUs have slightly different wire colours even though the voltages are the same.
Molex4
SATA2
Floppy (Berg)1
ON/OFF switchRemote, detachable, self-latching
6-pin P10Not fitted as standard. Available as an option (see below).

DC Output

+5V38A
+12V18A
-5V0.5A
-12V0.5A

Optional Extras

  • P10 connector (+3.3V orange wires)
  • Molex to SATA adaptor
  • AT I/O shield for your AT chassis
  • Ask us for any additional connectors

Important Remarks

Please read before installation:

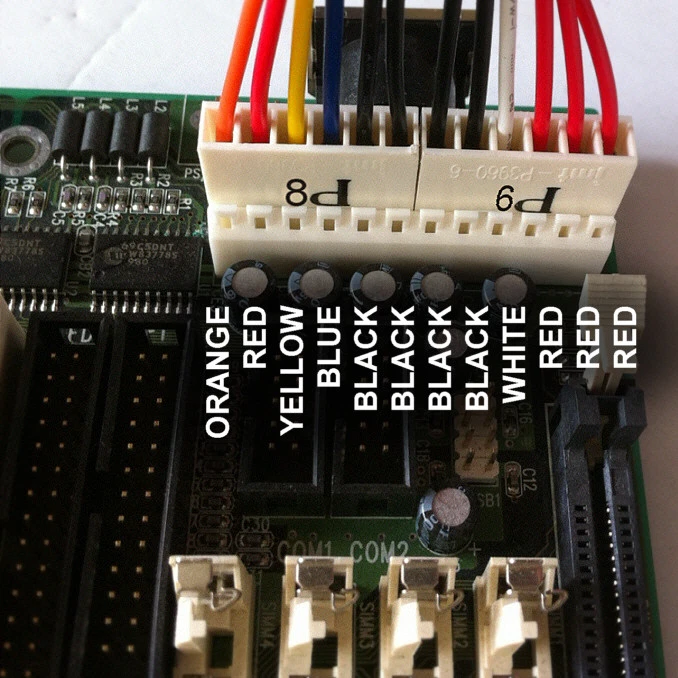

  • P8 and P9 connectors must be plugged in so the black wires sit side by side, together in the centre.
  • Set the voltage switch to your mains voltage before switching on.
  • Some systems without motherboards do not require the P8 & P9 connectors, which can be left unused.
  • Some systems do not require the ON/OFF switch. It can be left switched ON and tied up safely inside the machine.
  • Supplied with a large latching switch suitable for most AT systems. It is detachable and can be replaced (terminal block size: 9x0.6mm). Check the diagram on the PSU for the correct wiring. A wrong connection will damage the PSU.

Optional P10 Connector

Some AT systems need a third 6-pin connector, called P10, in addition to P8 & P9. The P10 option offered in this listing is the standard version with 3 black wires (ground) and 3 orange wires (+3.3V), which is the one most AT systems with a P10 connector use.

Check your original PSU before ordering:
  • Look at the wire colours on your old PSU's P10 connector: orange = +3.3V, red = +5V.
  • The two versions plug into the same socket but supply different voltages. Fitting the wrong one can damage your motherboard or system.
  • If your original P10 has red wires (+5V), this rare version is available on request. Please contact us before ordering.
  • If your old PSU only has P8 & P9 (no third 6-pin connector), you do not need the P10 option.

Compatibility List

This AT PSU replaces the power supply models below and is compatible with the listed systems.

Tip: press Ctrl+F (or Cmd+F on Mac) and type your model number to find it quickly.

Compatible power supplies (119):

  • Ace-940AP
  • Acer Aspire 5133LK
  • ADT-925C
  • AGI BPS-2001-4U
  • AGI BPS-2504-4U
  • AGI PS-250W
  • Arbor ZKS-250AE
  • Astec 190170-01
  • Astec 213-00013
  • Astec 628699-001
  • Astec 73-610-001
  • Astec 73-610-016
  • Astec PSE5-115-CI-001
  • Astec PSE5-115-CI-016
  • Astec SA145-3408
  • Astec SA145-3430
  • Astec SA145-3490
  • Astec SA201-3438
  • Astec SA201-3439
  • Astec SA201-3440
  • Astec SA201-3455
  • Astec SA301-3405
  • Astec SA302-3505
  • Astec VL201-3400
  • Athena Power AP-AT30
  • Athena Power AP-AT35
  • Athena Power AP-AT40
  • Athena Power AT-30
  • Bestec BPS-2504-4TU
  • Bestec BPS-2994-4U
  • Compaq 213928-001
  • Compaq 213929-001
  • Compaq 213976-021
  • Compaq 214969-001
  • Compaq 214978-001
  • Compaq 334540-001
  • Compaq 334543-001
  • Compaq Presario 5695
  • Compaq PS-5151-4A
  • Compaq PS-5151-4C
  • Compaq PS2021
  • Deer DR-230C
  • Delta DPS-145PB-38 A
  • Delta DPS-145PB-38 A Rev: 01
  • Delta DPS-200PB-8
  • DVE DSP-1454C
  • DVE DSP-1454P
  • DVE DSP-1514P
  • Emacs HG2-6300P (AT)
  • Emacs SP2-4250F
  • Emacs SP2-4300FB 6SP2-300B054
  • Enermax E251P-V
  • FS200 S40G
  • FSP 9PP2500201
  • FSP 9PP2500203
  • FSP SPI-250G
  • FSP SPI-300G
  • G-Power 190308-01
  • G-Power GP-4150PB
  • G-Power GP-4200PB
  • Gateway 6500010
  • GT-230W
  • Hipro HP-200 PPGN
  • Hipro HP-230PPFN
  • IBM 52G7955
  • IBM 92F0411
  • Kingspao KP-220TUL
  • Kingspao MPS-6220T
  • KP-230WN
  • Liteon PA-4151-9B1
  • Liteon PA-4221-3A1
  • Liteon PS-5151-4A
  • Liteon PS-5151-4C
  • Macase MG-250EP
  • Mapower PP-300TA (no P8&P9)
  • Max Power KP-220TUL
  • Max Power MPS-6220T
  • NEC 158-050684-002
  • NEC 190170-01
  • NEC 213-00007
  • NEC SA302-3505-1276
  • Overland 973027-102
  • Packard Bell 190050
  • Packard Bell DSP-1454P
  • Packard Bell PB150C
  • Power Switch Corp PS-AT-200CC
  • Power Tronic PTA-4200CF
  • Power Tronic SK-4145DE
  • PowerMan HP-230PP3
  • PowerWin PW-200APSA
  • PowerWin PW-250APSA
  • PowerWin PW-300APSA
  • PP-300-TA (duplicator PSU)
  • PSA-2054C
  • RA-4022A
  • Ram Technologies PFC230PC
  • SB250PL
  • Sentomi SMP-200V
  • Seventeam ST-300WHT-P
  • Sparkle 9PP2500201
  • Sparkle 9PP2500203
  • Sparkle SPI-250G
  • Sparkle SPI-250G-B
  • Sparkle SPI-300G
  • Sparkle SPI-300G-B
  • SPI-200G
  • SPI-250G
  • SPI-300G
  • SPQ-4300
  • SPQ-4400
  • SQH-4204
  • ST-230WHF
  • StarTech AG-230T
  • StarTech PS2POWER230
  • Sunpower SAP-4230P
  • Topower TOP-250SS
  • Topower TOP-250SS-CE
  • Touch MU-250P
  • Zippy Emacs HG2-6300P

Compatible systems (13):

  • Amusement industry: gaming machines, video games, arcade games
  • Arachnid Black Widow
  • Benchmark Big Haul
  • HDD storage enclosures
  • Legacy industrial control platforms
  • Merit Maxx
  • Merit Megatouch XL (Gold, Platinum, and Titanium)
  • Merit Scorpion Dart
  • Older legacy computers using AT technology
  • Plant control systems
  • Shopping mall kiosks
  • Valley HB & IQ Dart
  • WMS Pin2000

Can't find your model? This list covers the most common compatible units but is not exhaustive. Contact us with your PSU model number and a photo and we will confirm compatibility for you.
