1: Wide range of applications
2: stable performance
3: Small size
4: Simple to use
5: Bluetooth protocol: BLE 5.2
1 Working voltage: DC 12V
2 Working current: standby 6MA, relay conduction 35MA
3 Bluetooth protocol: BLE 5.2
4 2.4GHz-2.48GHz unlicensed ISM frequency band
5 Send commands through the Bluetooth APP to control the on/off of the relay (we provide Android Bluetooth APP, you can also use your own APP to control the relay, send simple commands to control the relay), or you can control the relay by pressing the button.
6 commands: On, Off, Delay. ON and OFF commands can be modified
7 Size: 60*29*19MM
8 Weight: 20 grams

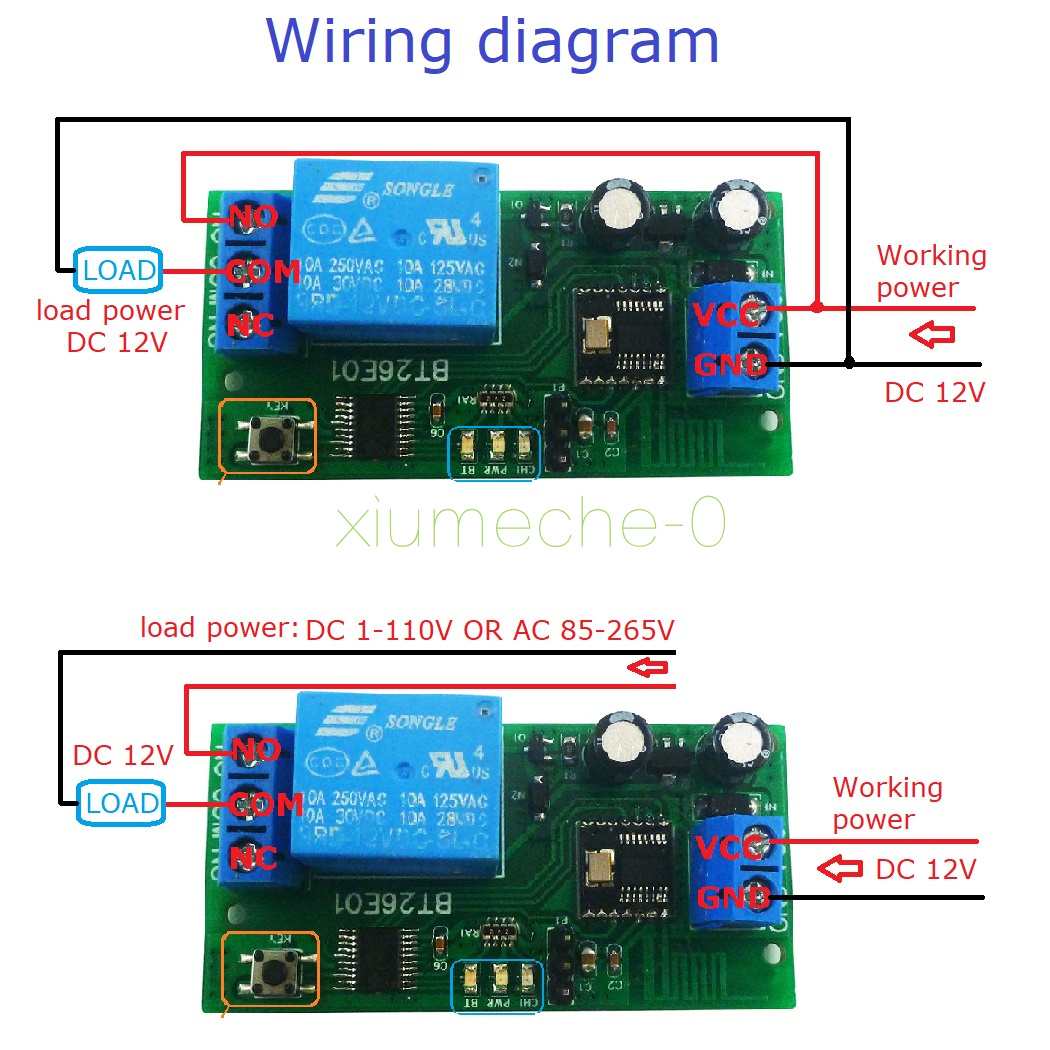

9 Maximum load: 10A/250VAC, 10A/125VAC, 10A/30VDC, 10A/28VDC, 10A/12VDC

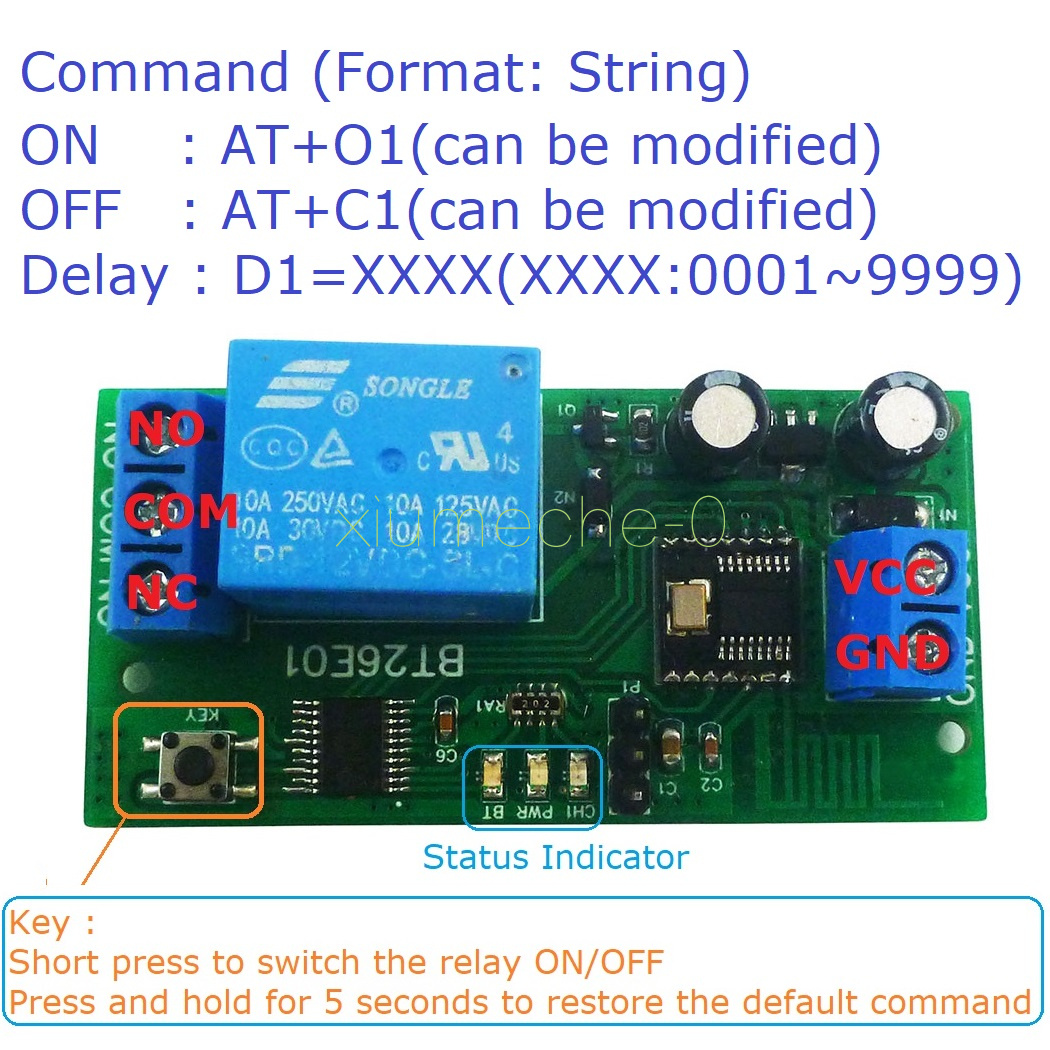

ON : AT+O1 (modifiable)
OFF : AT+C1 (modifiable)
Delay: D1=XXXX(XXXX:0001~9999)

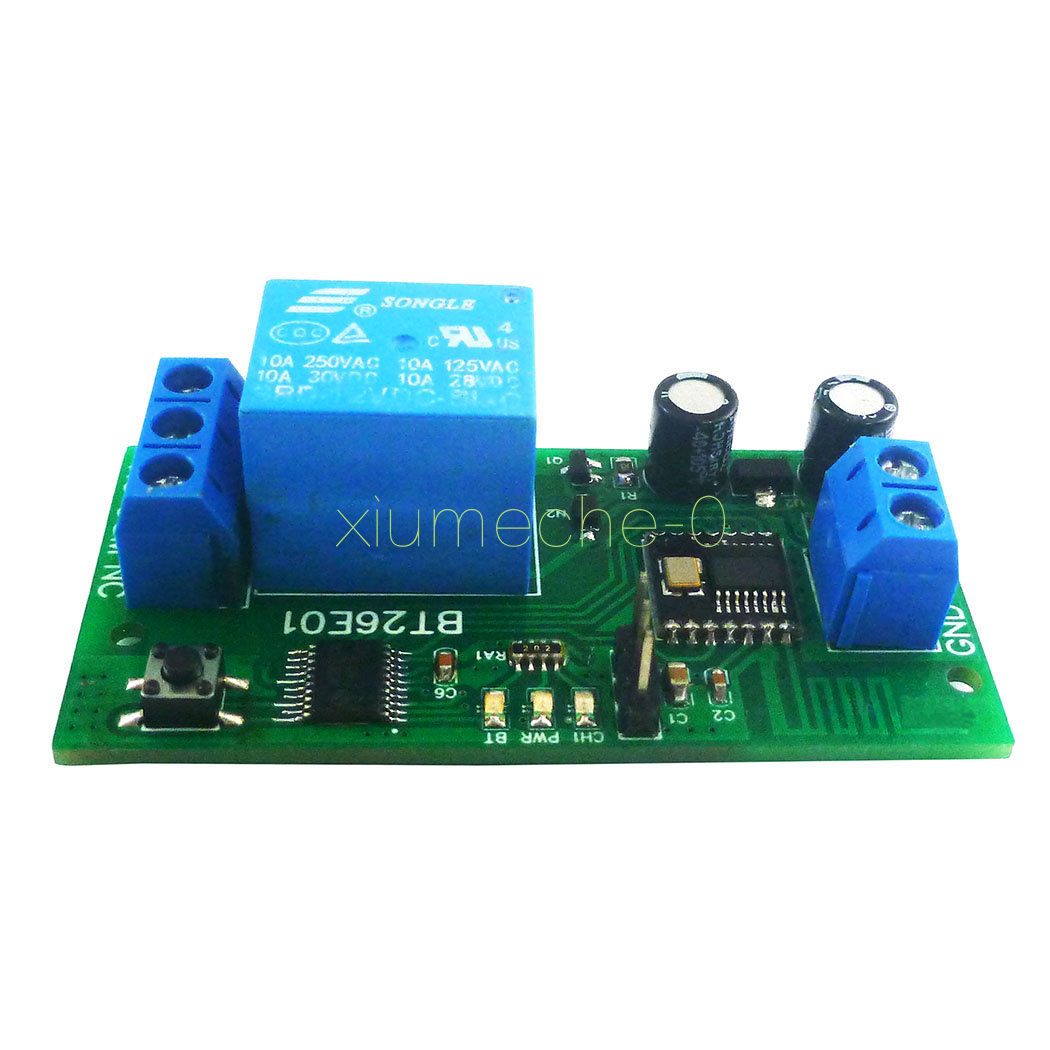

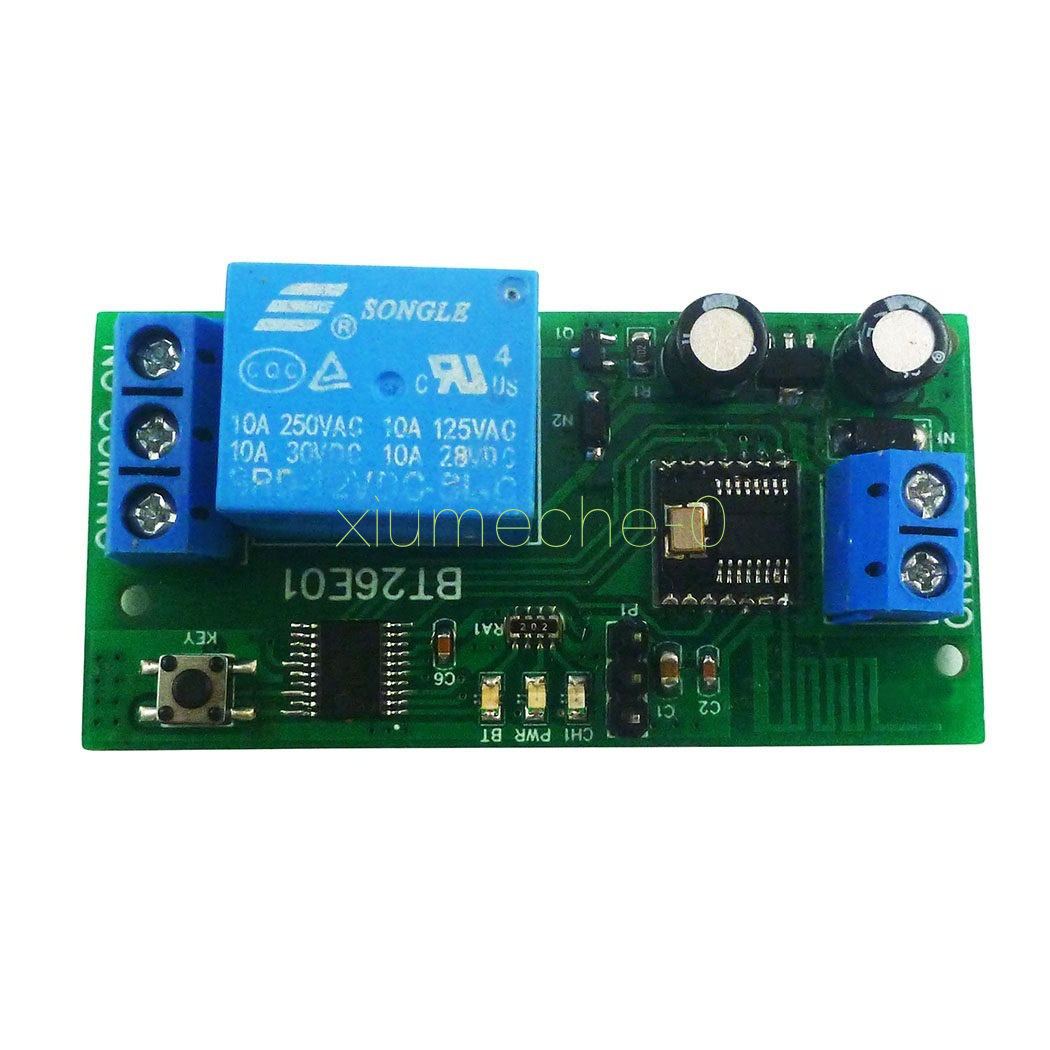

1x 1 channel DC12V Bluetooth BLE electrical module
