1.28 inch TFT LCD Display Module RGB IPS HD 240x240 SPI GC9A01 Driver PCB Round
Features:
1. Compact size
2. Widely used, can be used in smart wear and round products
3. Using GC9A01 driver chip
4.HD IPS LCD material
5.1.28" 240*240 full colour screen
1. Compact size
2. Widely used, can be used in smart wear and round products
3. Using GC9A01 driver chip
4.HD IPS LCD material
5.1.28" 240*240 full colour screen

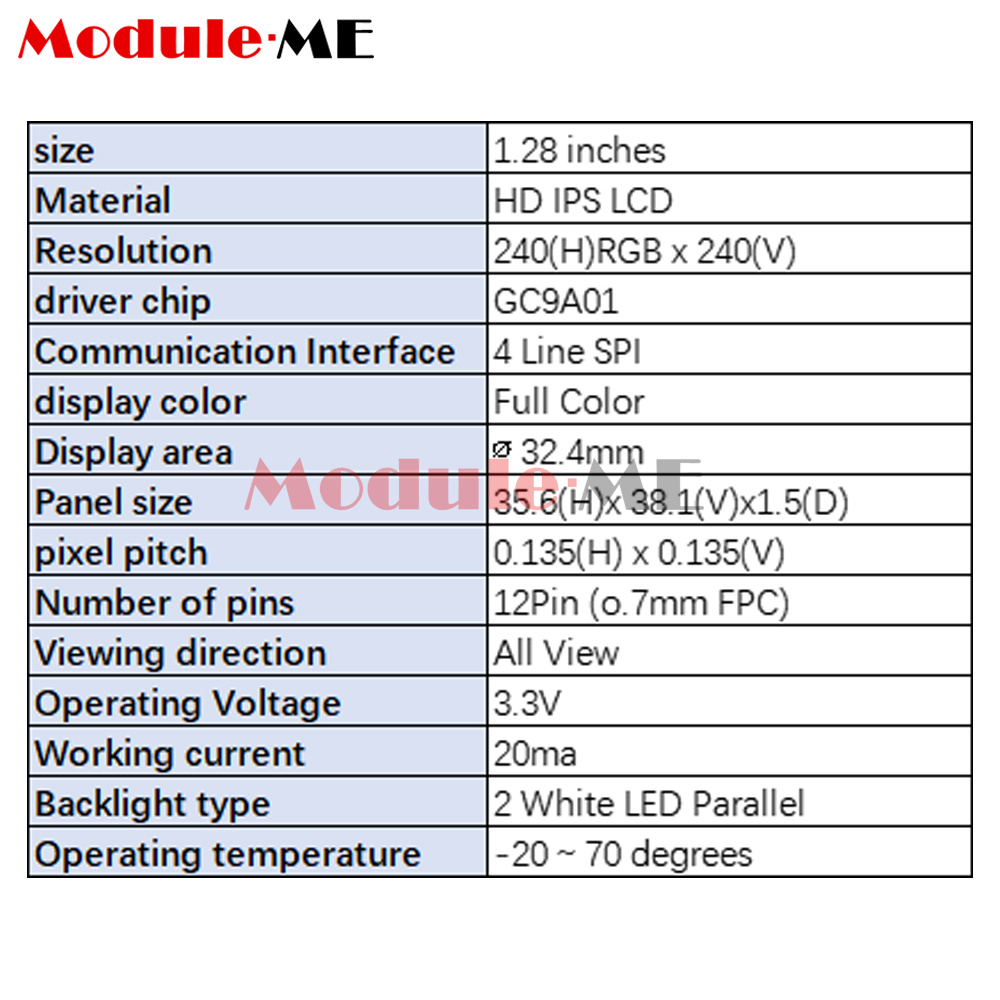

Specification：
Size: 1.28 inches
Material: HD IPS LCD
Resolution: 240 RGB*240
Driver chip: GC9A01
Communication interface: 4 Line SPI
Display colour: Full colour
Display area: φ32.4mm

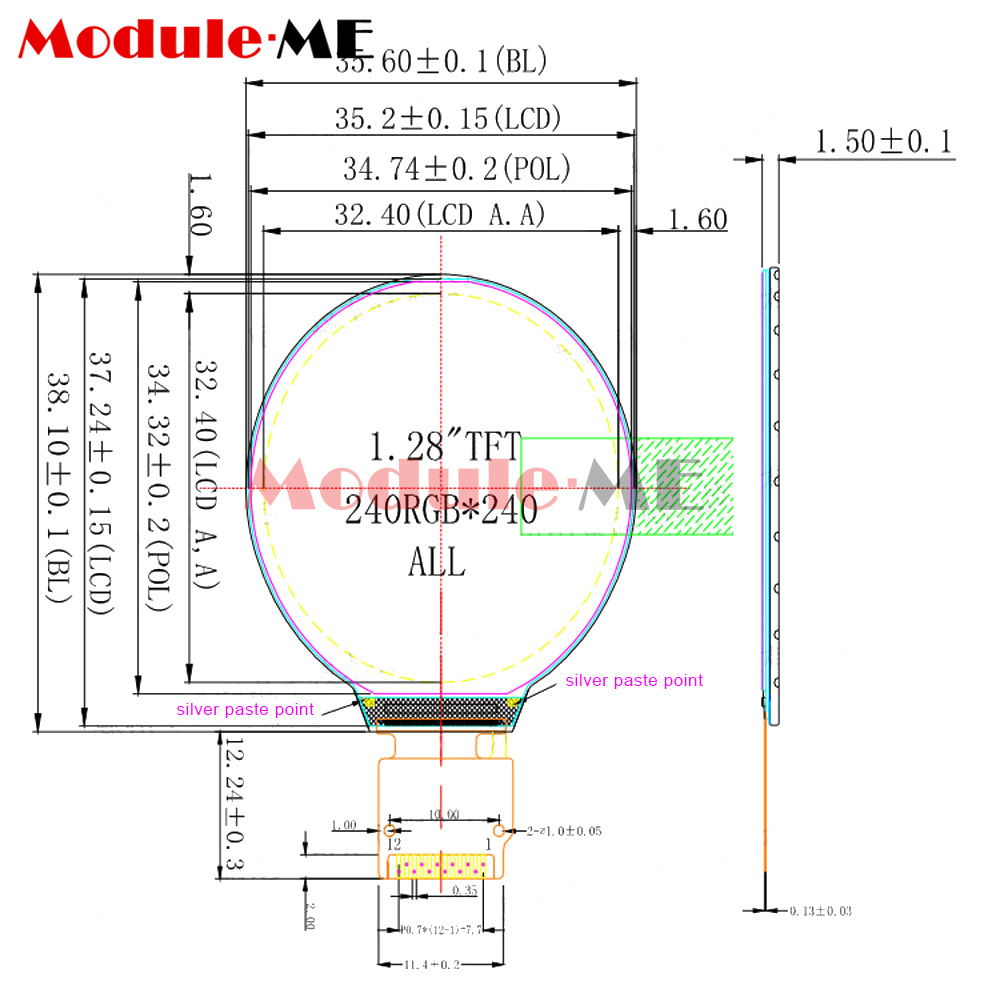

Panel size: 35.6*38.1*1.5
Pixel pitch：0.135*0.135

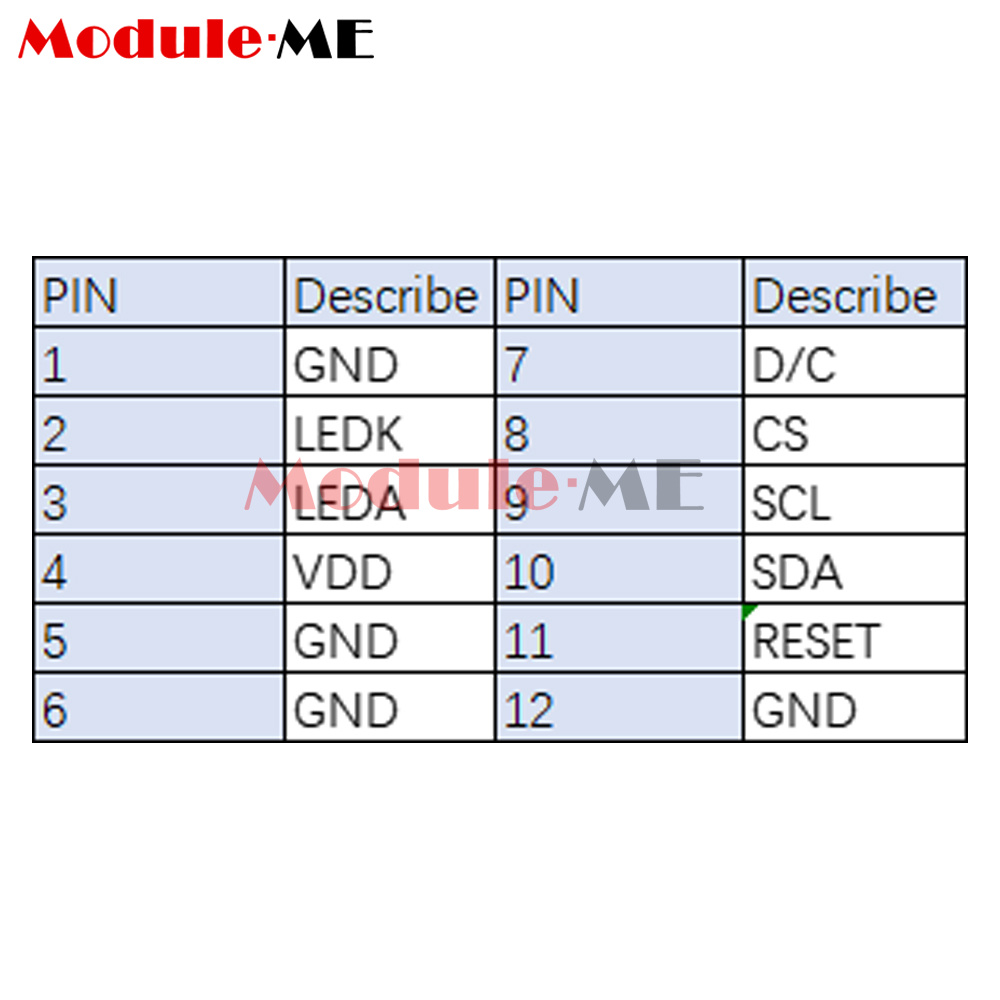

Number of pins: 12pin bare screen (0.7mm pitch solder type FPC), 8pin display module (2.54mm pitch single row of pins, no soldering by default)
Operating voltage: 3.3V
Operating current: 20ma
Operating temperature: -20~70°
Size: 1.28 inches
Material: HD IPS LCD
Resolution: 240 RGB*240
Driver chip: GC9A01
Communication interface: 4 Line SPI
Display colour: Full colour
Display area: φ32.4mm
Panel size: 35.6*38.1*1.5
Pixel pitch：0.135*0.135
Number of pins: 12pin bare screen (0.7mm pitch solder type FPC), 8pin display module (2.54mm pitch single row of pins, no soldering by default)
Operating voltage: 3.3V
Operating current: 20ma
Operating temperature: -20~70°

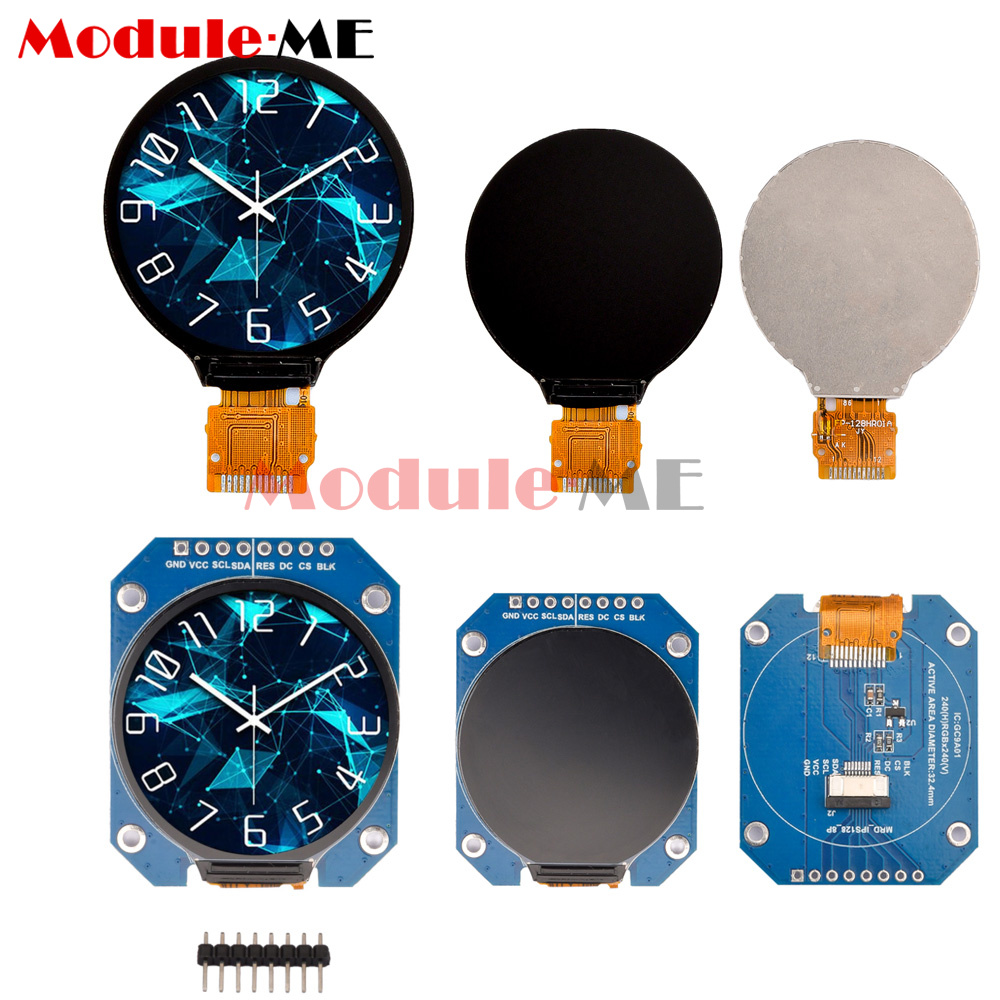

Packing list:

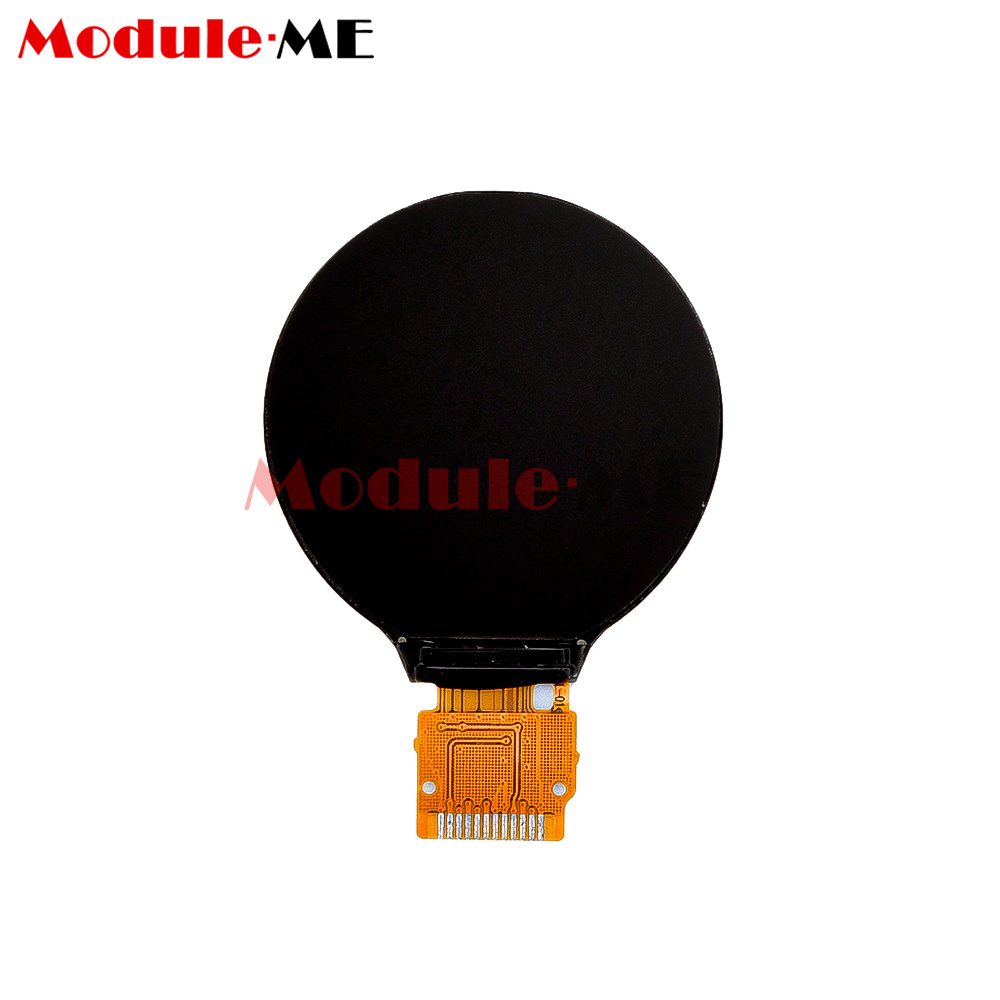

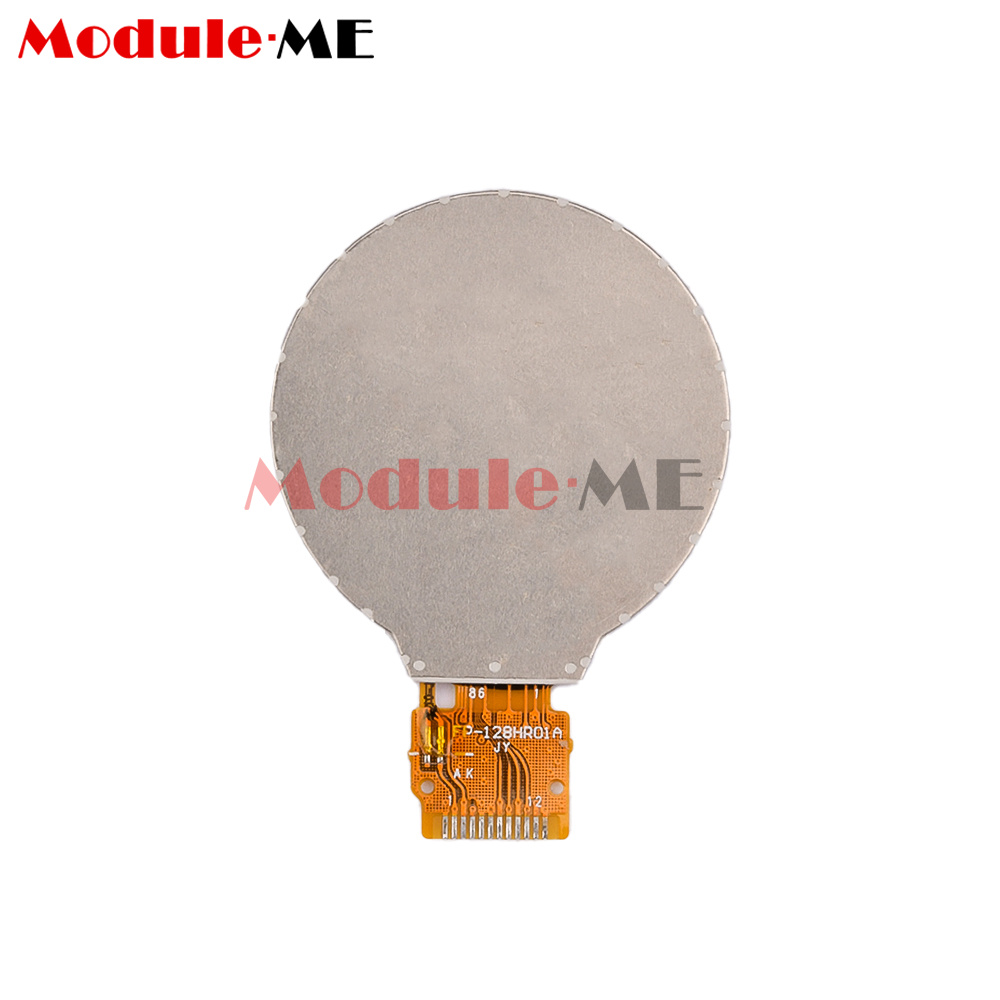

A: 1.28" 1.28" TFT full colour bare screen*1

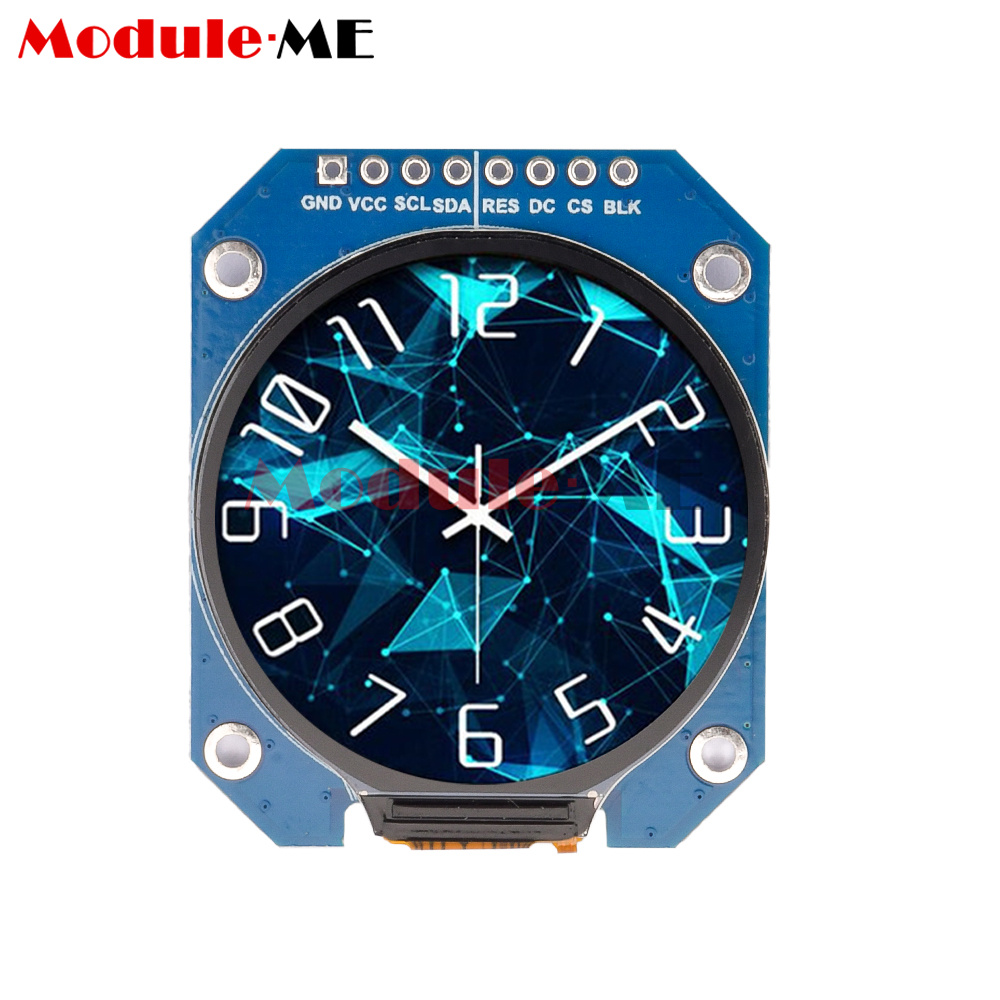

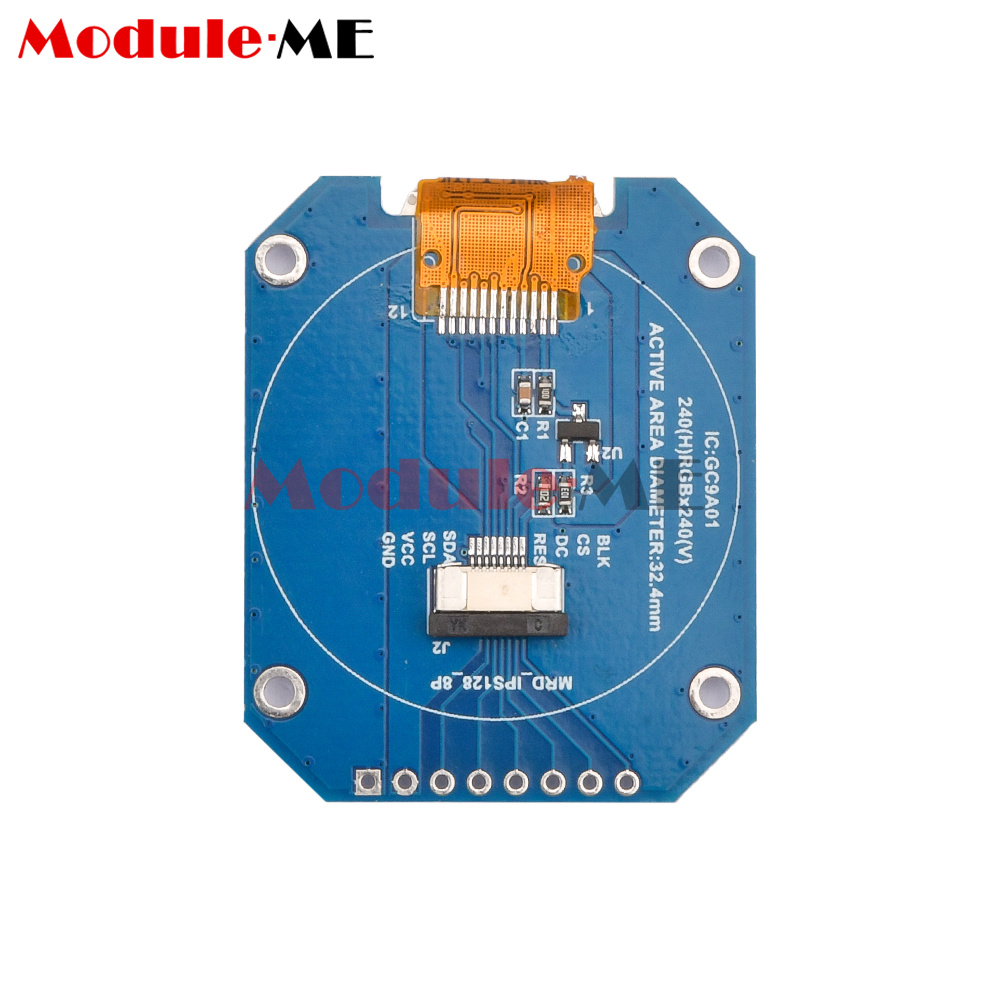

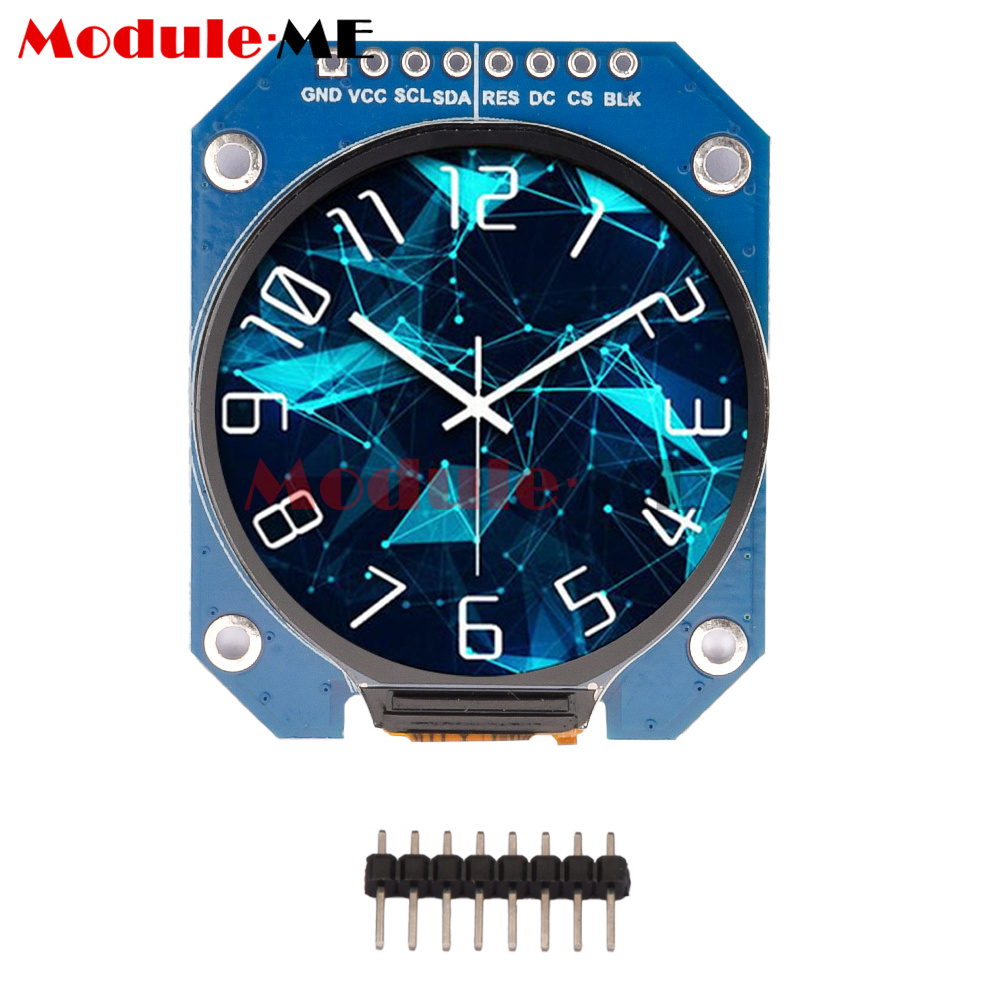

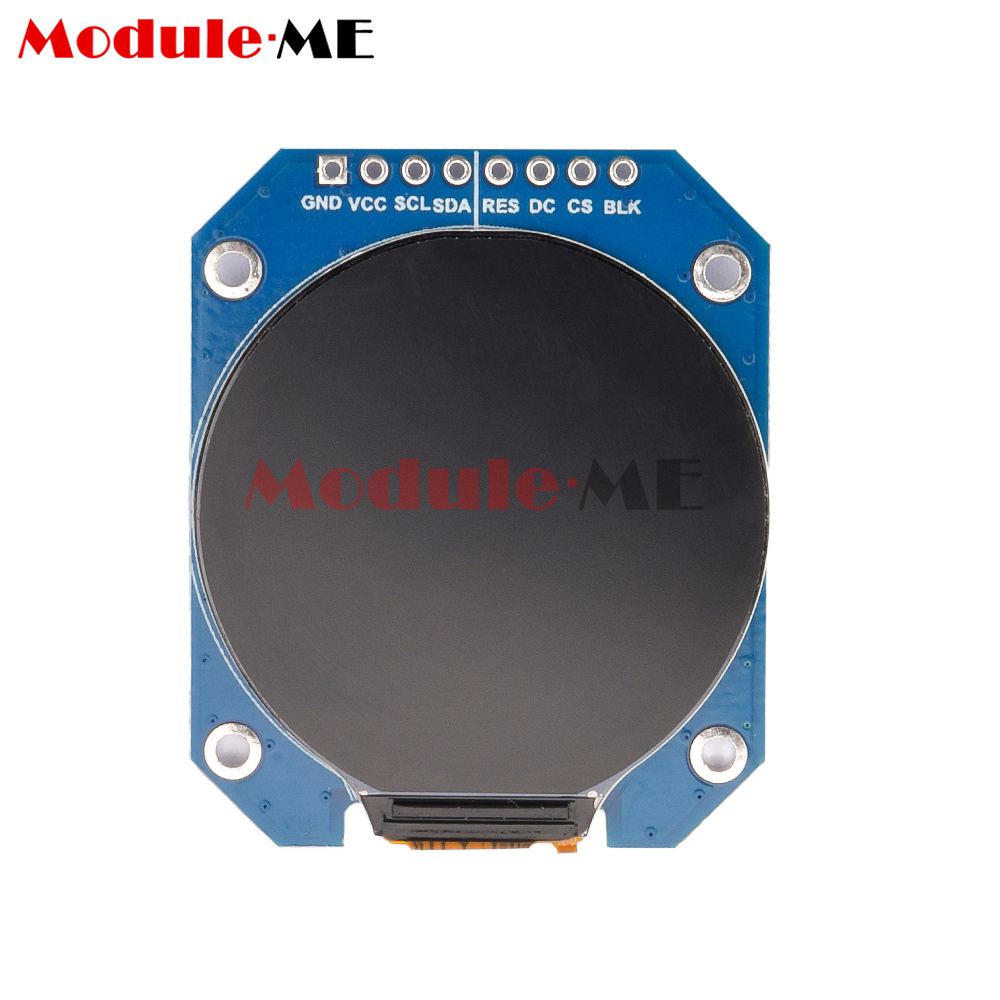

B：1.28 inch 1.28 inch TFT full color display module*1+row pin*1
A: 1.28" 1.28" TFT full colour bare screen*1
B：1.28 inch 1.28 inch TFT full color display module*1+row pin*1
