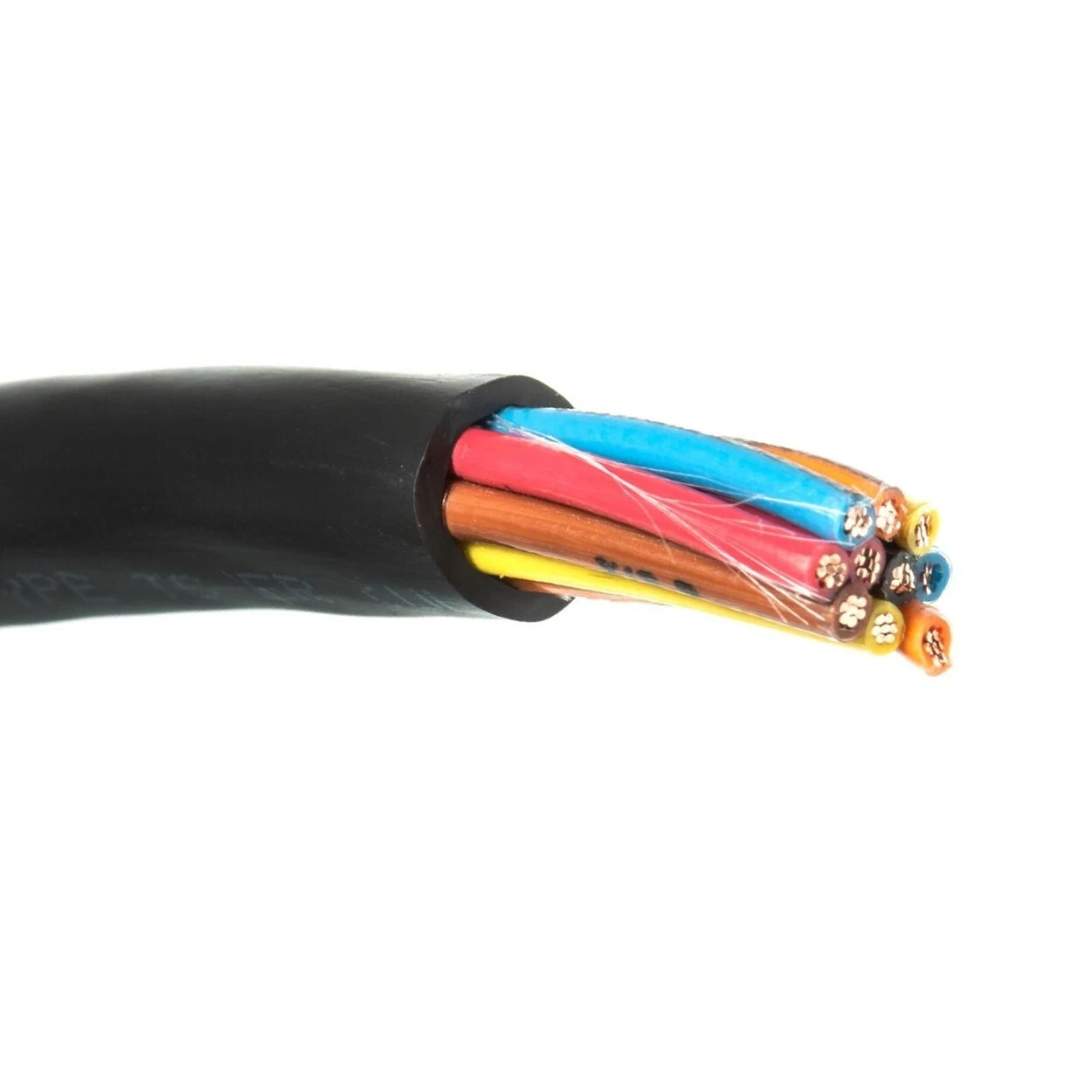

PER FOOT 14/10 VNTC Tray Cable Type TC-ER Power Control Wire PVC Jacket 600V
Click Thumbnails to Enlarge
APPLICATION
• 14/10 Tray Cable Primarily used for power, control, signal, communication and lighting circuits in commercial and industrial environments. Suitable for installation in cable trays, supported by messenger wire in open air, raceways, channels, conduits and ducts, direct burial or joist pull applications not exceeding 600 volts and outdoors in cable trays where sunlight resistant is required.
CONDUCTOR
• Fully annealed bare copper Class B compressed strand per ASTM B-3 and ASTM B-8
INSULATION
• Heat and moisture resistant Polyvinylchloride (PVC) with a Nylon jacket
JACKET
• Sunlight resistant PVC rated 90°C per UL 1277. Ripcord provided for jackets with thickness of 60 mils or less.
COLOR CODE
• Black, Red, Blue, Orange, Yellow, Brown, Red with Black Tracer, Blue with Black Tracer, Orange with Black Tracer & Yellow with Black Tracer
STANDARDS
• UL 66, UL 83, UL 1277
• UL 1685 Vertical-Tray Fire-Propagation and Smoke-Release Test
• Approved as Type TC or TC-ER-JP, Sunlight Resistant, Direct Burial
• ASTM B3, ASTM B8
• NEC Article 336, Article 501, Article 725 for class 1 circuits
PRODUCT SPECIFICATIONS
| Size AWG | 14 |
|---|---|
| Number of Conductors | 10 |
| Number of Strands | 7 |
| Insulation Thickness (inches) | 0.015 |
| Nylon Thickness (inches) | 0.004 |
| Jacket Thickness (inches) | 0.060 |
| Overall Diameter (inches) | 0.595 |
| Weight (Lbs/1000ft) | 230 |
