Wheel Tire Combination Measuring Fitment Tool Gauge for 21 - 33 inches 5x4.5

Size	5-Lug Pattern
Bolt Pattern	5x4.5, 5x4.75, 5x5
Wheel Diameter	21" – 33"
Tire Width	8" – 14"
Fitment	for GMC, for Ford ,for Chrysler 5x4.5, 5x4.75 and 5x5 hubs
Material	Q235

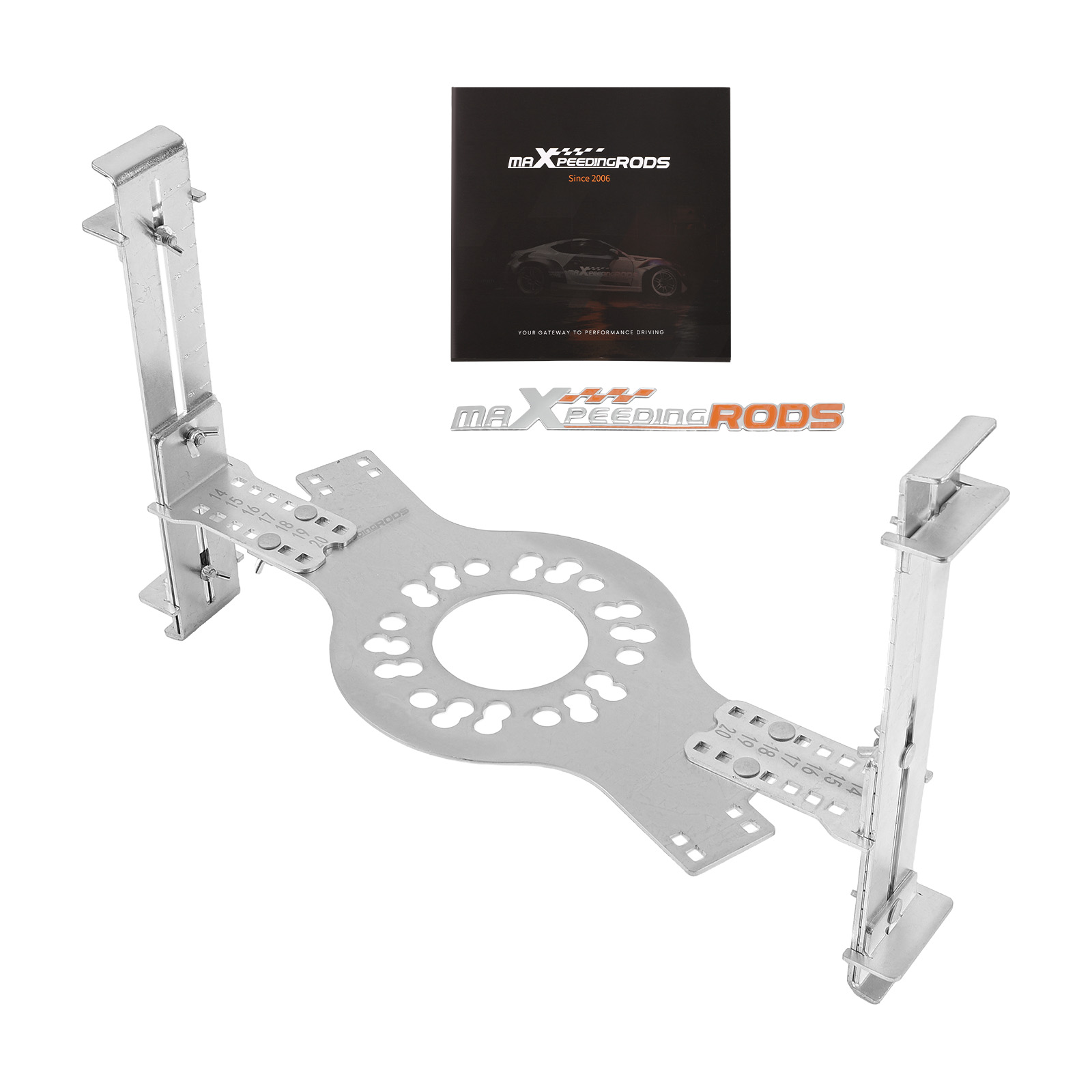

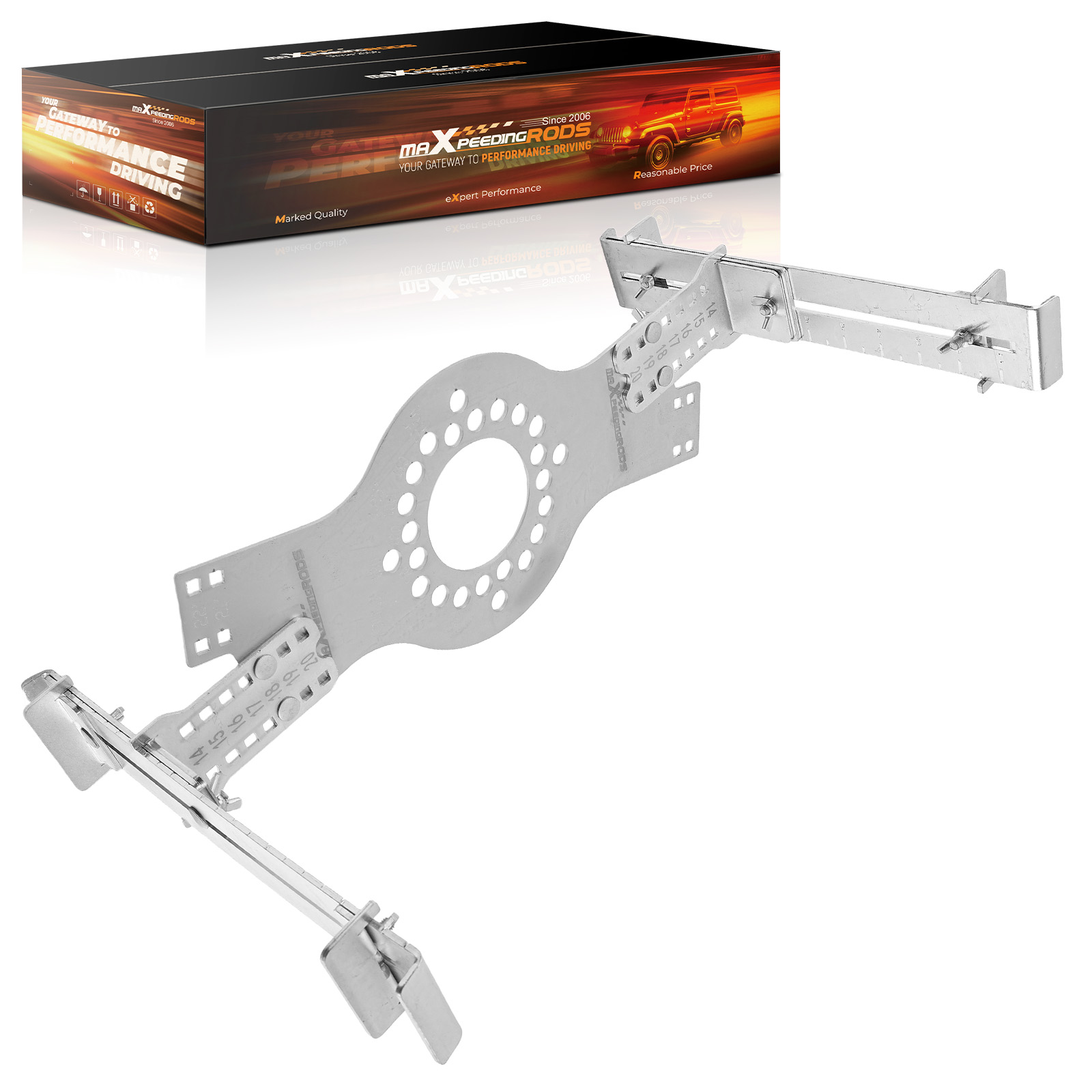

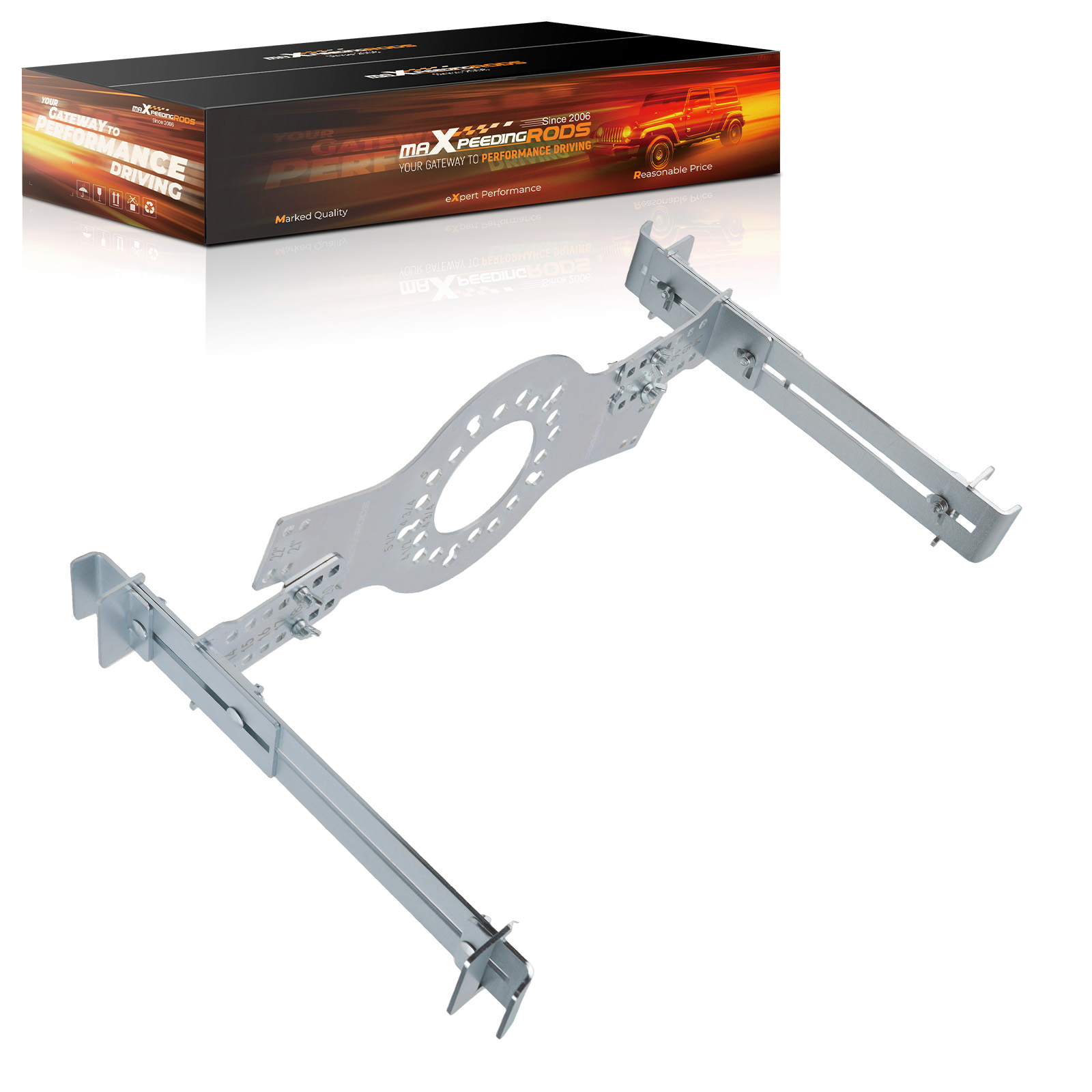

	Wheel Fitment Simulator Tool See Details	Wheel Fitment Simulator Tool See Details	Wheel Fitment Simulator Tool See Details	Wheel Fitment Simulator Tool See Details
Size	6-Lug	5-Lug	5-Lug	4-Lug
Bolt Pattern	6x114 (6x4.5), 6x120, 6x127 (6x5), 6x135, and 6x140 (6x5.5)	5x4.5, 5x4.75, 5x5, 5x5.5	5x4.5, 5x4.75 5x5	4x98, 4x100, 4x108 (4x4.25), 4x110, 4x114.3 (4x4.5), 4x130
Wheel Diameter	14" – 22"	14" – 22"	21" – 33"	14" – 22"
Tire Width	7" – 17"	7" – 17"	8" – 14"	7" – 17"

Feature

Wheel / Tire Combination Measurement Gauge allows for accurate measurements enabling you to order the correct size wheel and tires the first time

Item Specific:

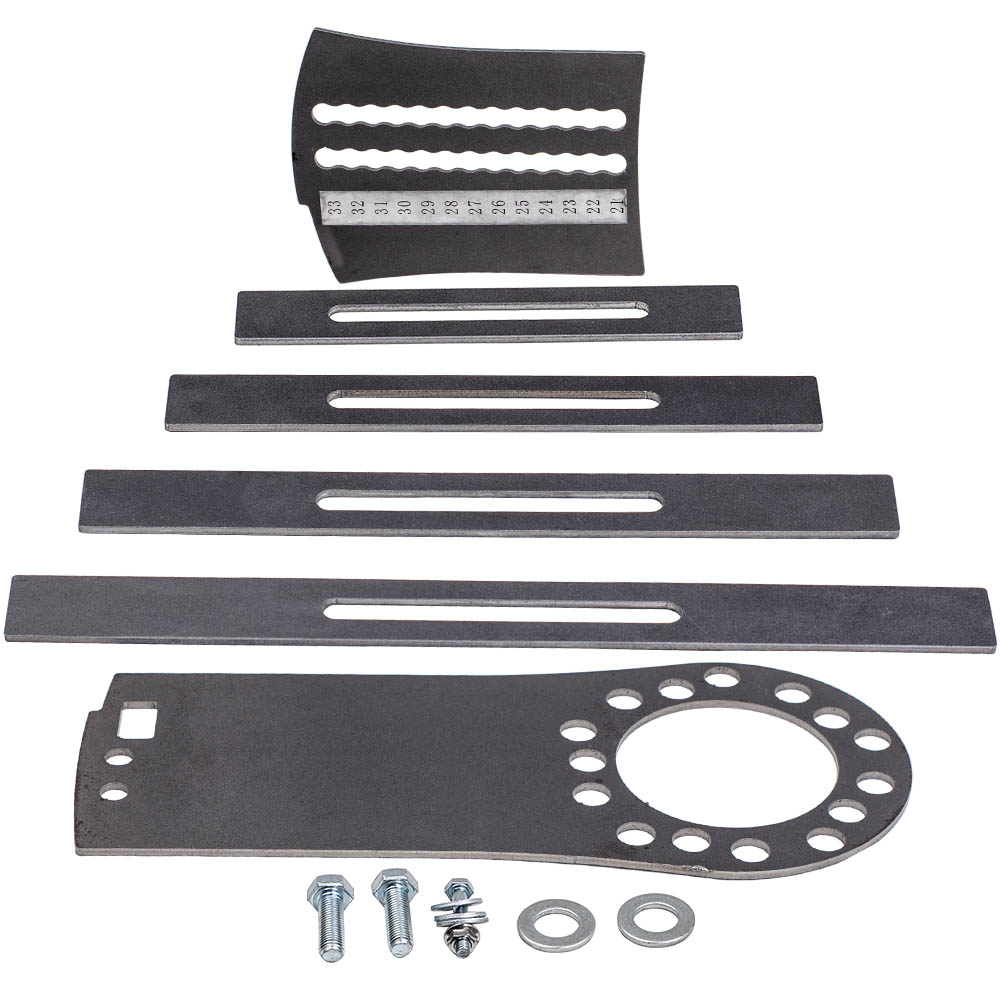

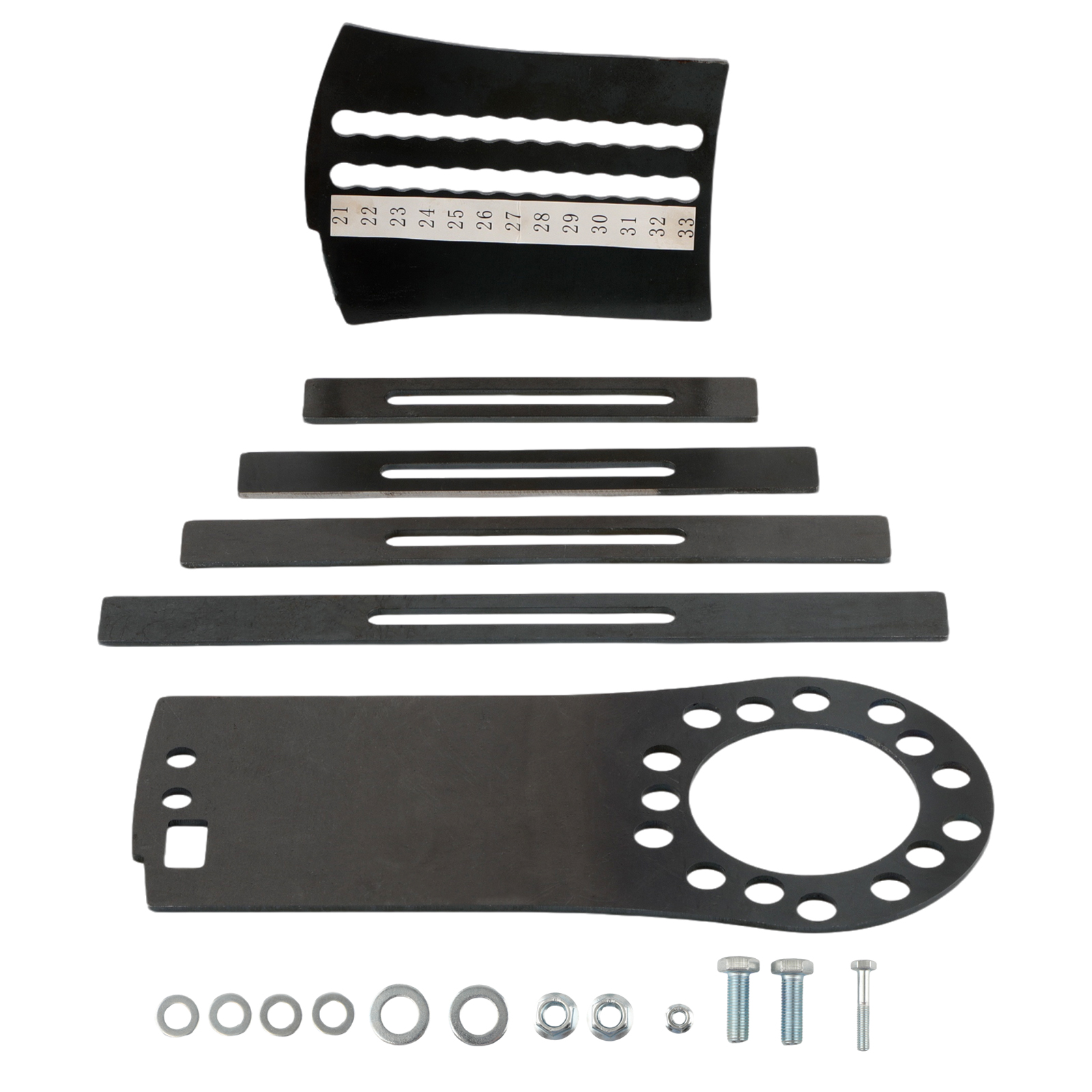

1.This new tool will measure overall tire height from 21 inches to 33 inches.

2.Included are 4 separate pieces that attach to the top representing rim width ( they are 8,10,12 and 14 inch bars to cover all your needs).

3.This tool will fit 5x4.5, 5x4.75 and 5x5 hubs ( for GMC, for Ford ,for Chrysler and numerous other models that utilize these same wheel patterns).

4.You can measure Backspacing, Front spacing, and wheel well clearance ( height and width ).

5.Constructed entirely of high quality Q235, easy to install and hands free.

Fitment:
This tool will fit for GMC, for Ford ,for Chrysler 5x4.5, 5x4.75 and 5x5 hubs

Condition: New

Warranty: 2 Year
