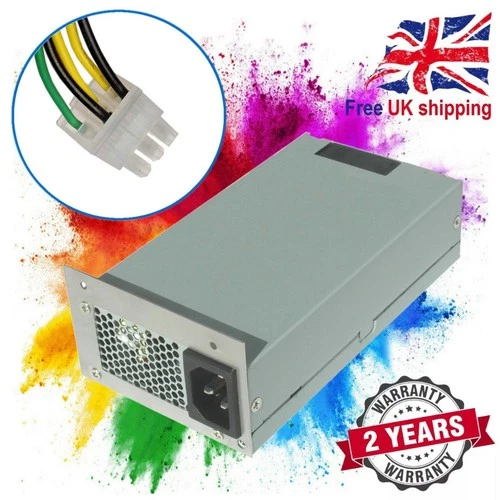

Lenovo PowerSupply PCH018 DPS-180AB-22 A DPS-180AB-22 B PA-1181-7 14137-001 - Picture 1 of 13

Replacement psu for pch018, dps-180ab-22 a...

Available

  • High quality branded Power Supply Unit with 4pin and proprietary 6pin connectors.


High Quality / Returns Accepted / 2 year warranty on PSUs


Product Description

Specifications:

·       Model Number: FSP270-60LE(AB)

·       Brand: FSP

·       Voltage Input: 110-230V. Full Range. Suitable worldwide. The PSU selects the suitable voltage automatically.

·       Form Factor: Micro ATX

·       Power Output: 270watts

·       Ventilation: 1x 40mm quite Fan

·       Safety standard: All

·       Measurements HxWxD: 53x85x150mm.

·       Weight (Net / Gross): 0.8kg

·       Single Packing: 250x150x50mm

·       Warranty: 2Years

·       Return: Return this item intact within 30 days if unsuitable or unwanted.

·       Item Condition: Brand new



Connectors supplied:

(connectors not required for your system can simply be ignored)

·       Main connector: Special 6 Pin

·       Molex: 5

·       SATA: 1

·       Floppy (berg): 1

·       4Pin 12V P4: 1



Output Voltage and Current Rating:

·       +3.3V         16.0A

·       +5V            18.0A

·       +12V1        16.0A

·       +12V2        10.0A

·       -12V             N/A

·       +5Vsb          2.5A



Replaces the following PSUs:

·       14137-001

·       00PC772

·       00PC780

·       510S-07ICB

·       854142-001

·       854142-003

·       900702-001

·       906189-001

·       906189-003

·       906189-004

·       914137-001

·       DPS-180AB-20 A

·       DPS-180AB-22 A

·       DPS-180AB-22 B

·       FCF011

·       PA-1181-7

·       PCH018

·       SP50H29553

·       SP50H29554

·       SP50H29568

·       And more…



Compatible with the following Lenovo computers:

·       HP 280G2 SFF

·       HP 400G4

·       Lenovo 510S-07ICB

·       Lenovo 700-24AGR

·       Lenovo M420

·       And more…



Important Remarks:

-This PSU replaces the discontinued PSU showing in the list. It is smaller than the original but comes with a metal adapter bracket.

-This is not the original PSU but a high quality suitable replacement.

-This PSU comes with a 4pin (2 yellow + 2 black wires) and a 6pin (2 yellow + 2 black + 1 green wires + 1 empty pin) connectors. Please check compatibility as some similar PSU with similar model number come with different connectors. ask / send pictures for assistance.

-The original PSU has a "dent" to allow fitting around a rivet on some particular  chassis. Our replacement PSU does not fit this type of chassis. Please check compatibility. (see 5th picture). The rivet can however be very easily removed with a 3mm metal drill bit (see picture).
