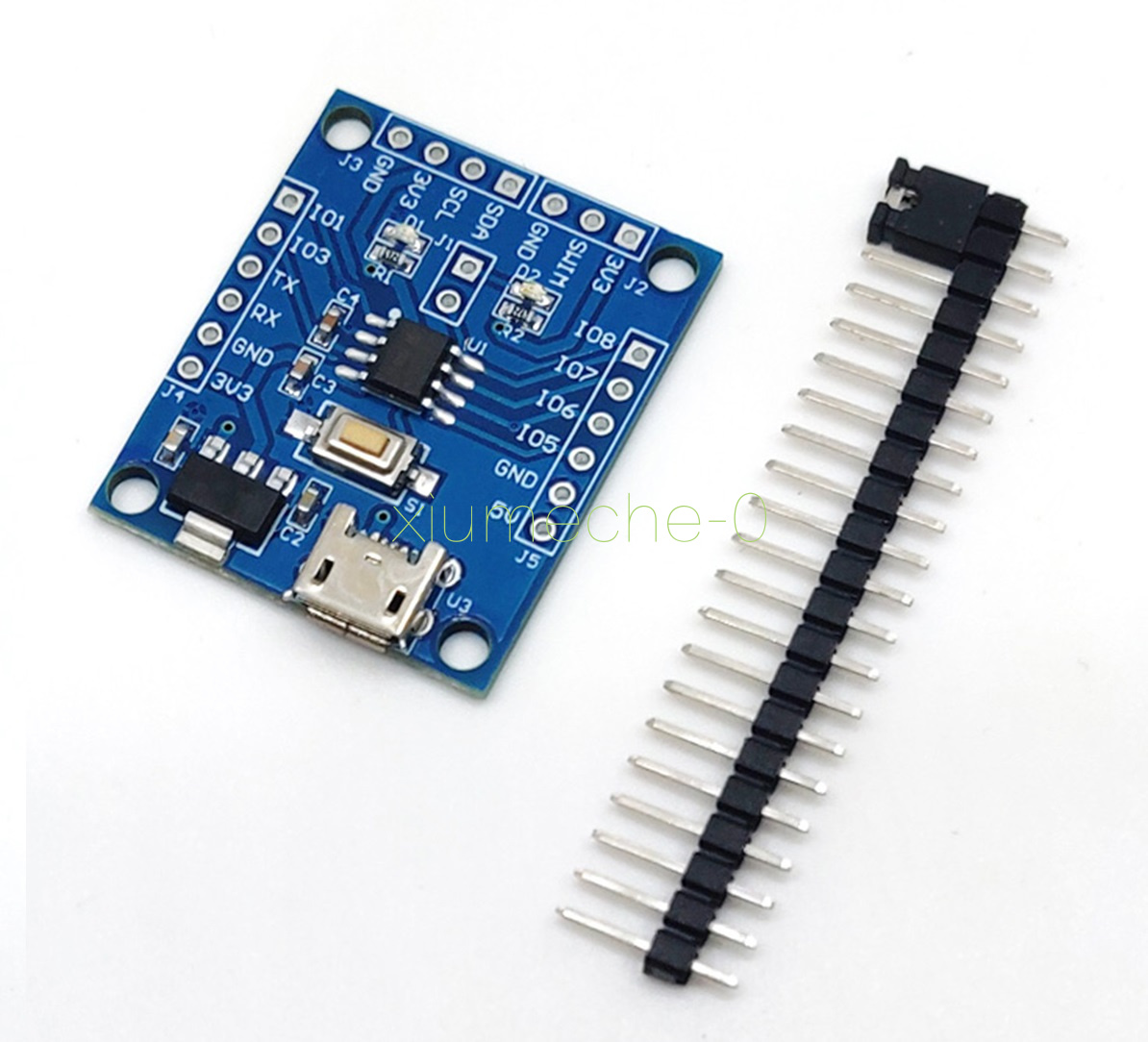

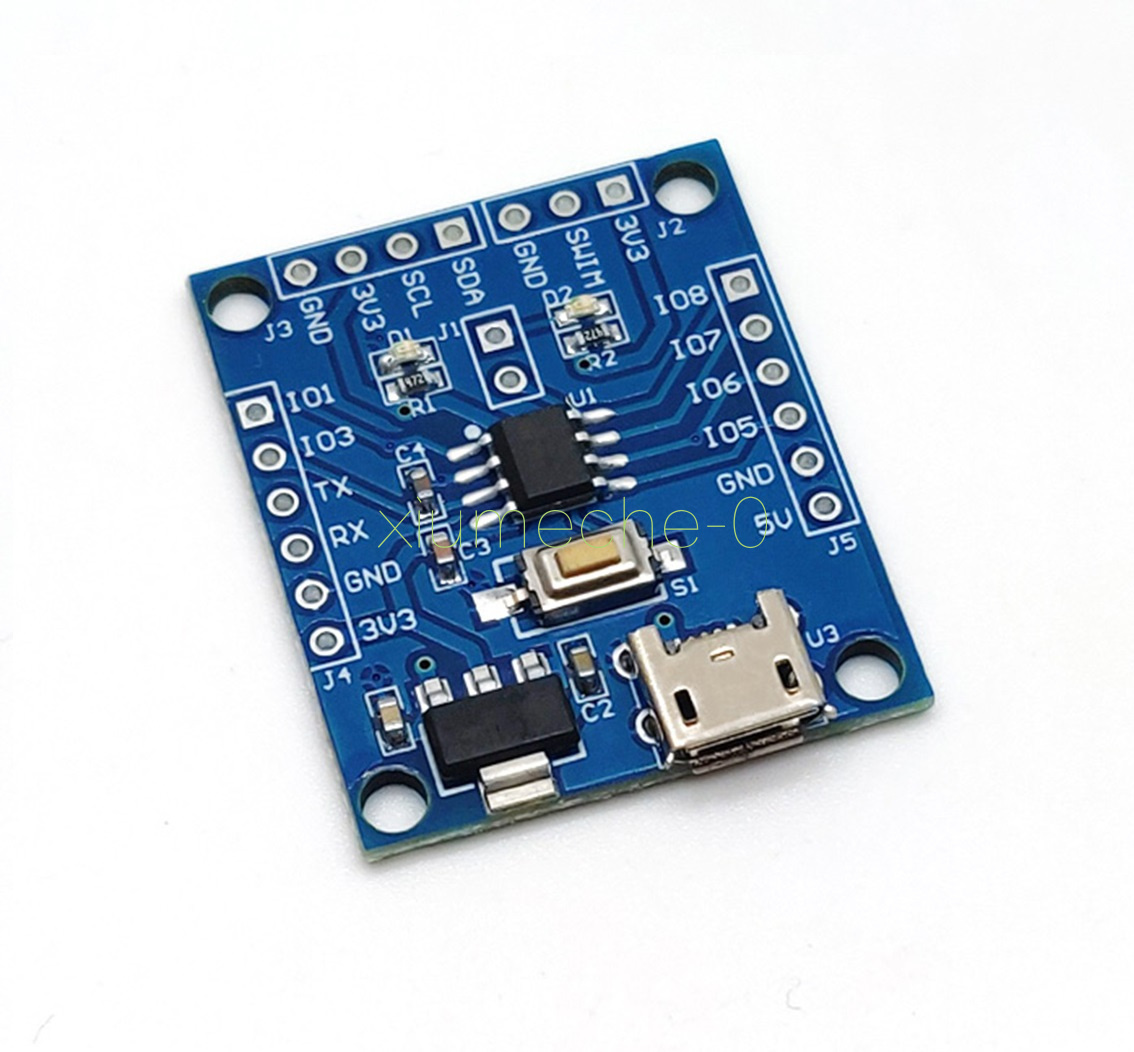

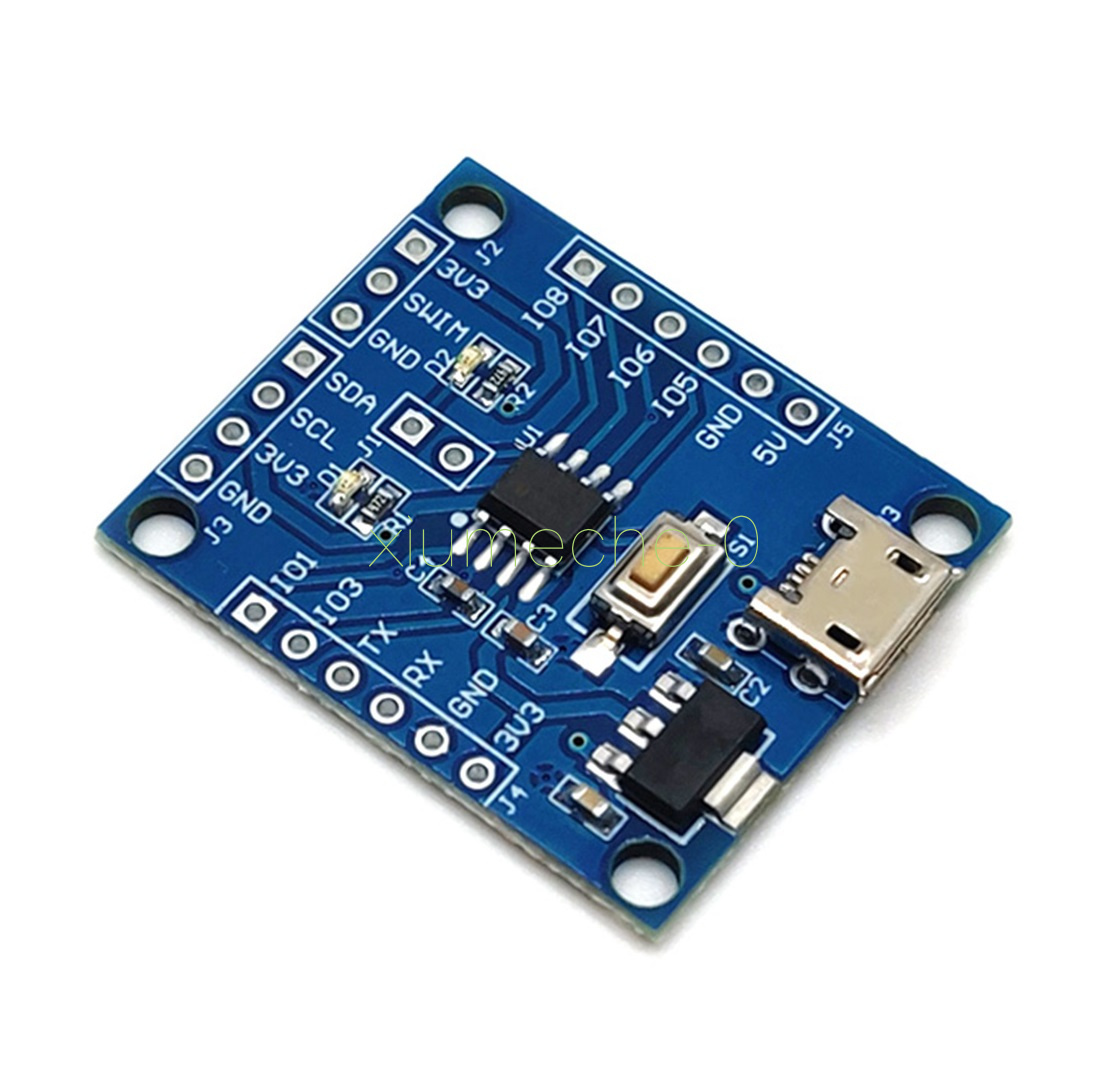

STM8S001 development board, the chip STM8S001J3 used is an 8-bit microcontroller, and the core board leads to all IO ports.

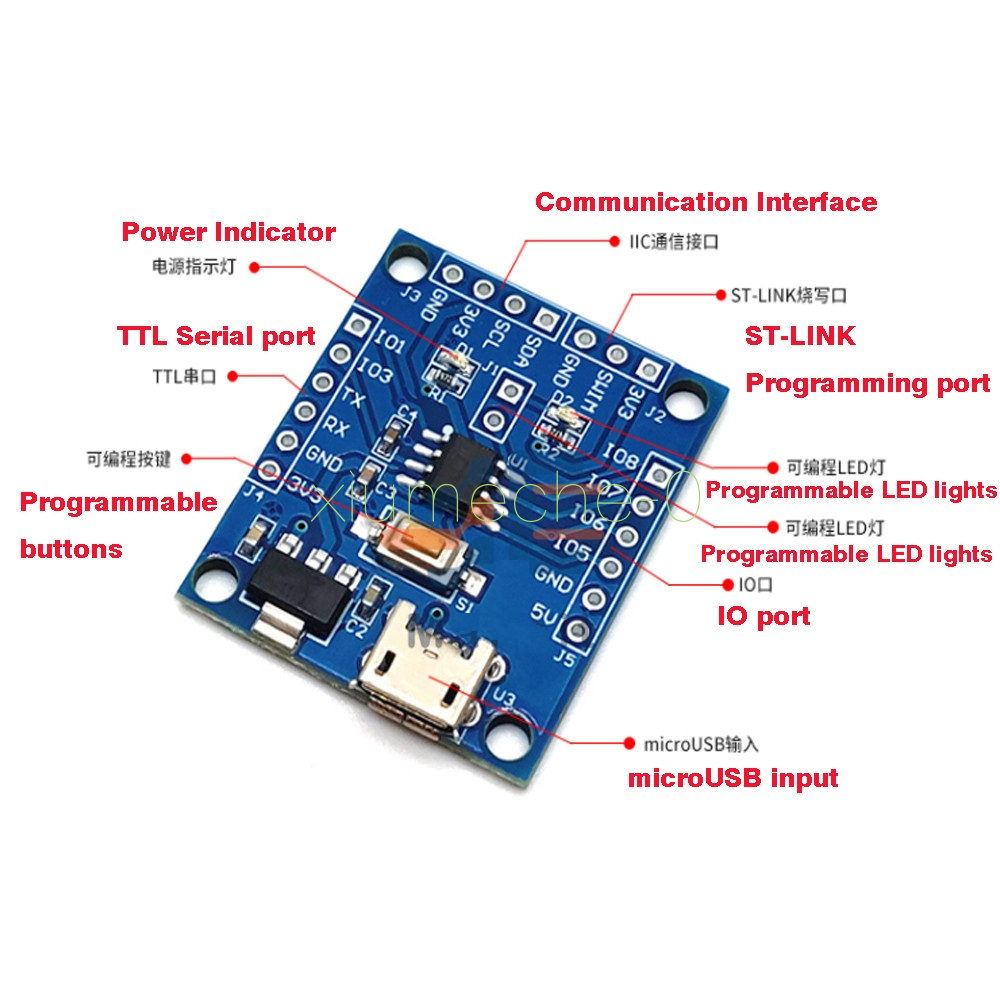

With an LED indicator and power indicator, you can choose whether to use the LED through the jumper cap. OLED interface with KEY button, SWIM download interface, I2C.
The core board can be powered by MICROUSB 5V.
1. High-performance STM8 core, three-stage instruction pipeline, main frequency up to 16M
2. 8K FLASH, 1K RAM, 128BYTE real EEPROM
3. Three main clock sources can be selected: HSE, HSI, LSI
4. Low power consumption modes: WAIT, ACTIVE-HALT, HALT
5. Peripheral clock can be turned off independently, power-on & power-down reset
6. Embedded 32 mid-range vectors, up to 5 external interrupts
7. Two 16-bit timers, one 8-bit basic timer
8. SPI single-wire interface (up to 8MBIT/S), IIC (up to 400KBIT/S)
9. UART (SMARTCARD, LRDA, LIN master mode)
10. 3-channel 10-bit ADC, single/continuous/buffered working mode
11. 5 general IO ports, embedded single-line download & simulation interface SWIM
