Ceramic Vibration Sensor Piezo Micro-Controller Develope For Arduino
Description

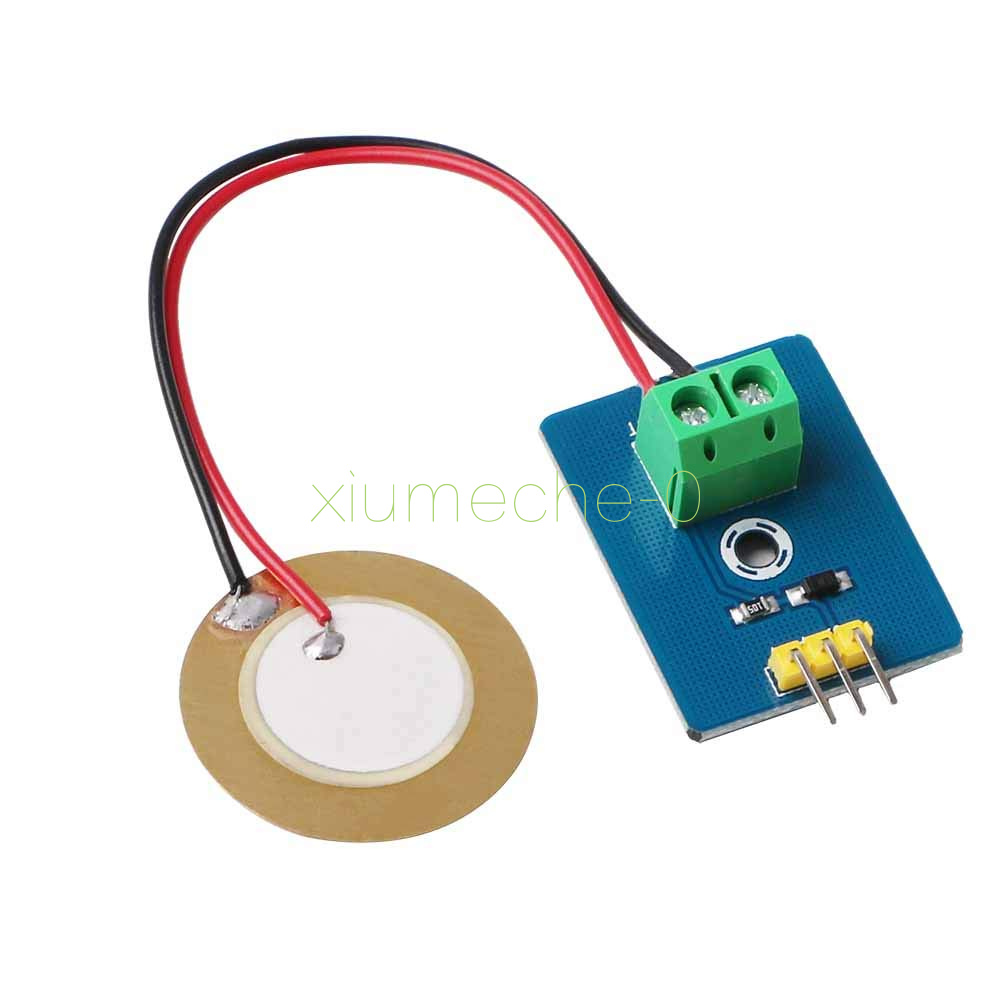

Ceramic Piezo Vibration Piece Sensor buffers a piezoelectric transducer that responds to strain changes by generating a measurable output voltage change which is propotional with the strength of vibration.So you can know the extent of vibration. Different from digital vibration sensor that only accounts times, this analog one can tell extent of vibration.
When the piezoelectric ceramic shocking will generate an electrical signal, Arduino Controller analog port can be perceived slight vibration signals, Also can be realized with vibration interactions related works, such as electronic drums.
Details of Carduino Vibration Piezo Sensor

Specification:
Working Voltage: 3.3V or 5V
Working Current: <1mA
Operating Temperature Range: -10 ~ + 70
Interface Type: Analog Output
Item Size: 30mm x 23mm
Item Weight: 5g
GPIO: S; signal output, +; power supply (VCC), -; ground (GND)

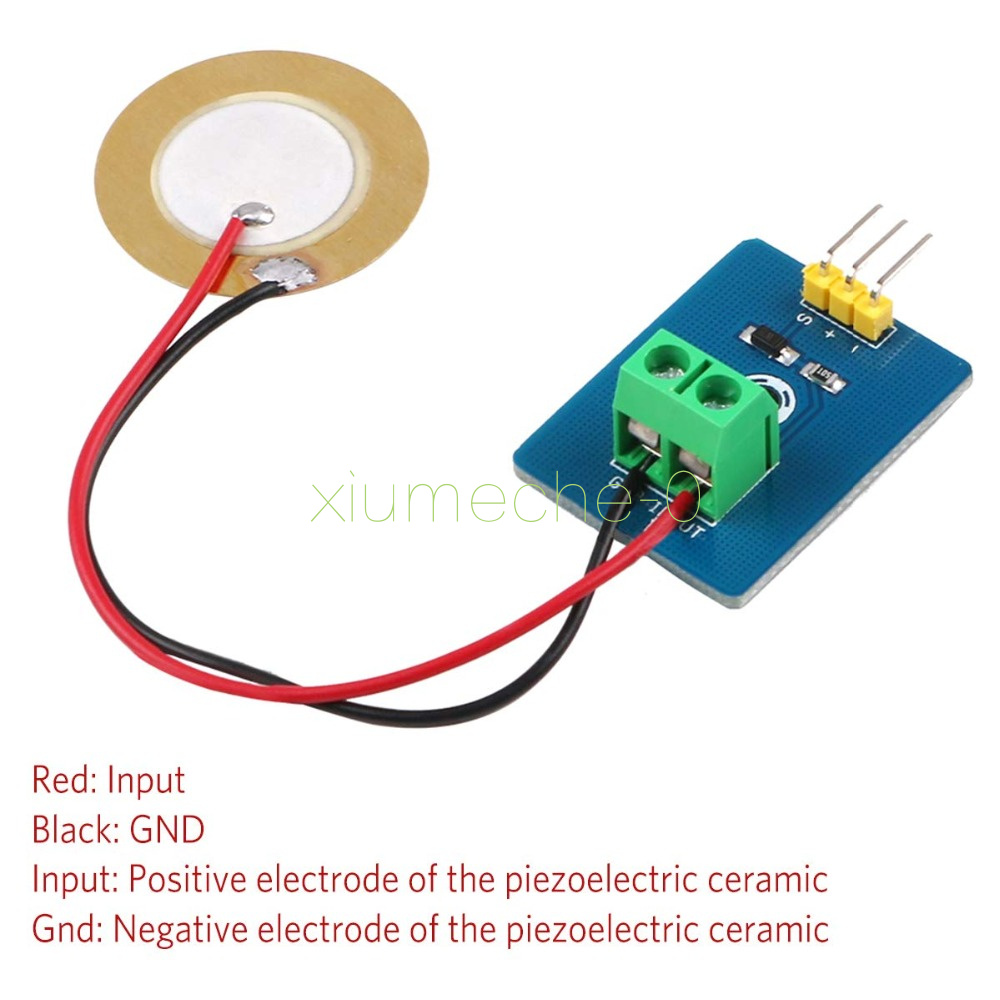

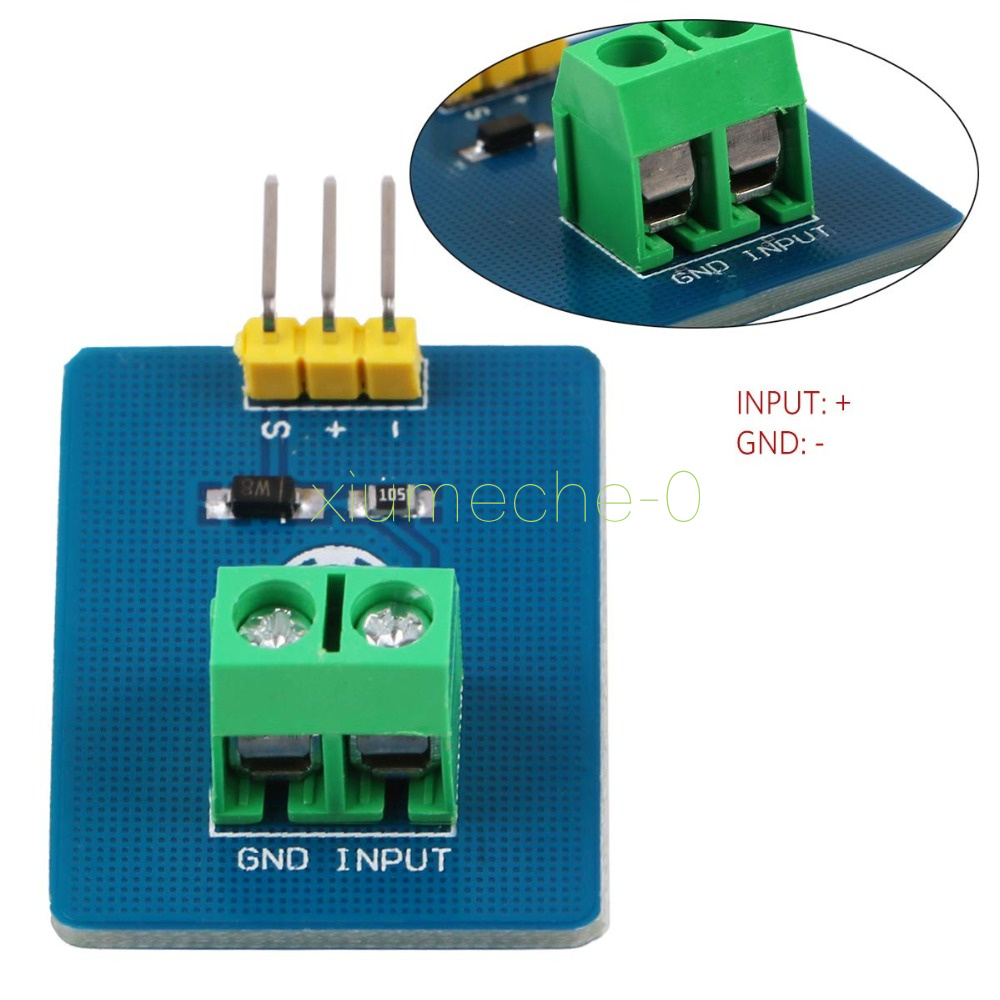

Input: Positive electrode of the piezoelectric ceramic
Gnd: Negative electrode of the piezoelectric ceramic

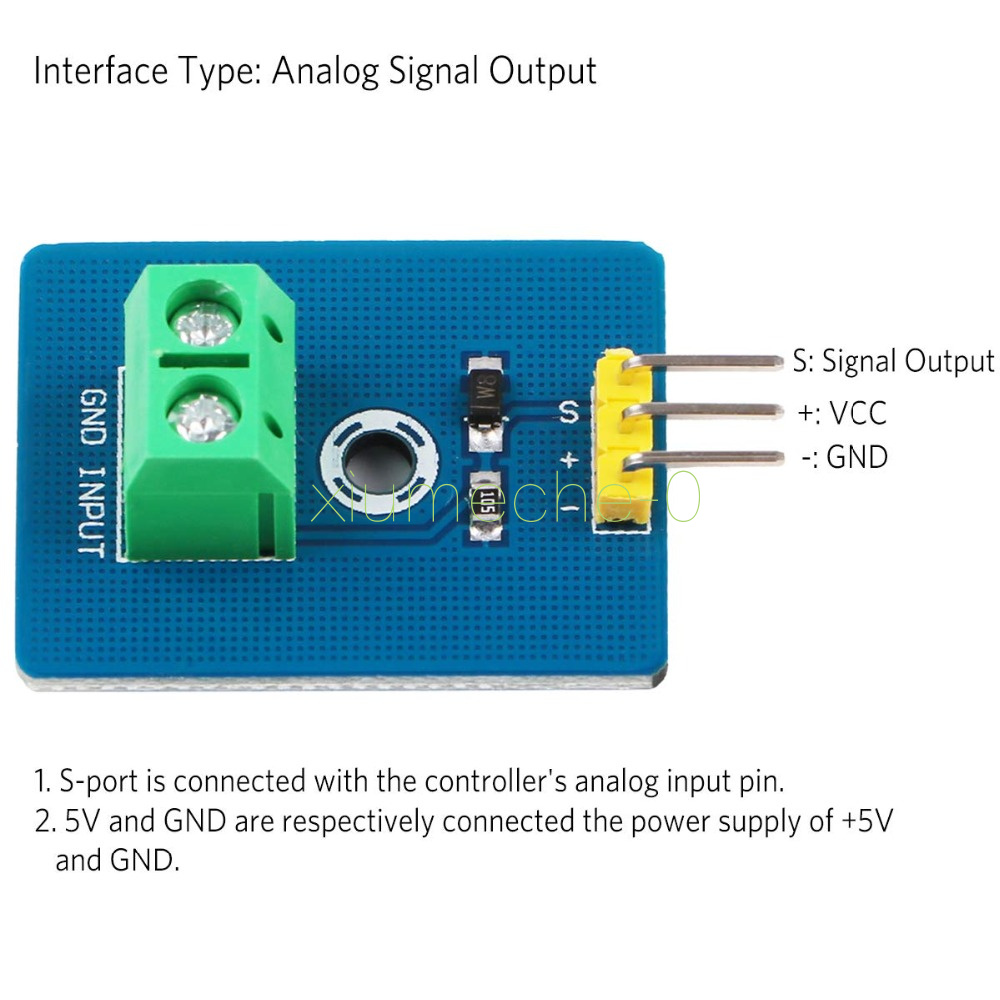

S-port is connected with the controller's analog input pin
5V and GND are respectively connected the power supply of + 5V and GND
Input and Gnd are already connected with the piezoelectric ceramics' positive and negative



Package Include:
1PCS Ceramic Piezo Vibration Sensor for Arduino  Rev3 Micro-controller
