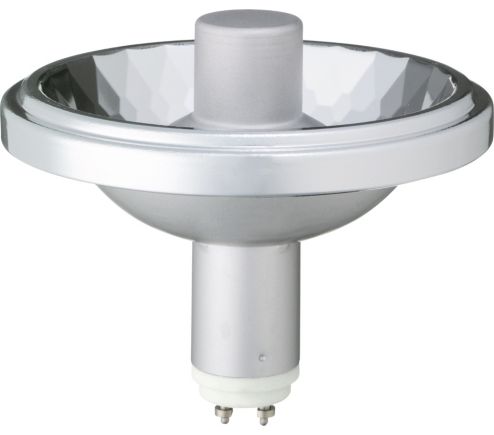

MASTERColour CDM-R111 70W/942 GX8.5 40D 1CT/6

Specifications

General Information

Cap-Base	GX8.5  [ GX8.5]
Operating Position	UNIVERSAL  [ Any or Universal (U)]
Life to 5% Failures (Nom)	7500 h
Life To 10% Failures (Nom)	8500 h

Life to 20% Failures (Nom)	9500 h
Life to 50% Failures (Nom)	11000 h
ANSI Code HID	M139/O
Switching Cycle	1000X

Light Technical

Color Code	830  [ CCT of 3200K]
Beam Angle (Nom)	40 °
Beam Angle Technical (Nom)	36 °
Beam Angle Technical (Max)	45 °
Beam Angle Technical (Min)	27 °
Luminous Flux (Rated) (Nom)	2850 lm
Luminous Intensity (Min)	6000 cd
Luminous Intensity (Nom)	8000 cd
Beam Description	Flood

Color Designation	warm White (CW)
Chromaticity Coordinate X (Nom)	0.381
Chromaticity Coordinate Y (Nom)	0.370
Correlated Color Temperature (Nom)	4200 K
Color Rendering Index (Nom)	96
LLMF At End Of Nominal Lifetime (Nom)	60 %
Luminous Flux in 90° Cone (Rated)	2800 lm

Operating and Electrical

Power (Nom)	73.2 W
Ignition Supply Voltage (Max)	198 V
Ignition Supply Voltage (Min)	198 V
Re-Ignition Time (Min) (Max)	15 min
Warm Up Time to 60% Light (Nom)	120 s

Ignition Time (Max)	30 s
Voltage (Max)	114 V
Voltage (Min)	79 V
Voltage (Nom)	92 V

Controls and Dimming

Dimmable	No
Run-Up Time 90% (Max)	3 min

Mechanical and Housing

Bulb Finish

Reflector

Approval and Application

Energy Efficiency Label (EEL)	B
Mercury (Hg) Content (Nom)	6.3 mg

Energy Consumption kWh/1000 h

80 kWh

UV

Pet (Niosh) (Min)	8 h/500lx
Damage Factor D/fc (Max)	0.3

Product Data

Full product code	871150021395210
Order product name	MASTERColour CDM-R111 70W/830 GX8.5 40D 1CT/6
EAN/UPC - Product	8711500213952
Order code	928098105330
Numerator - Quantity Per Pack	1

Numerator - Packs per outer box	6
Material Nr. (12NC)	928098105330
Net Weight (Piece)	0.095 kg
ILCOS Code	MRS/UB-70/942-H-GX8.5-111/88/40
