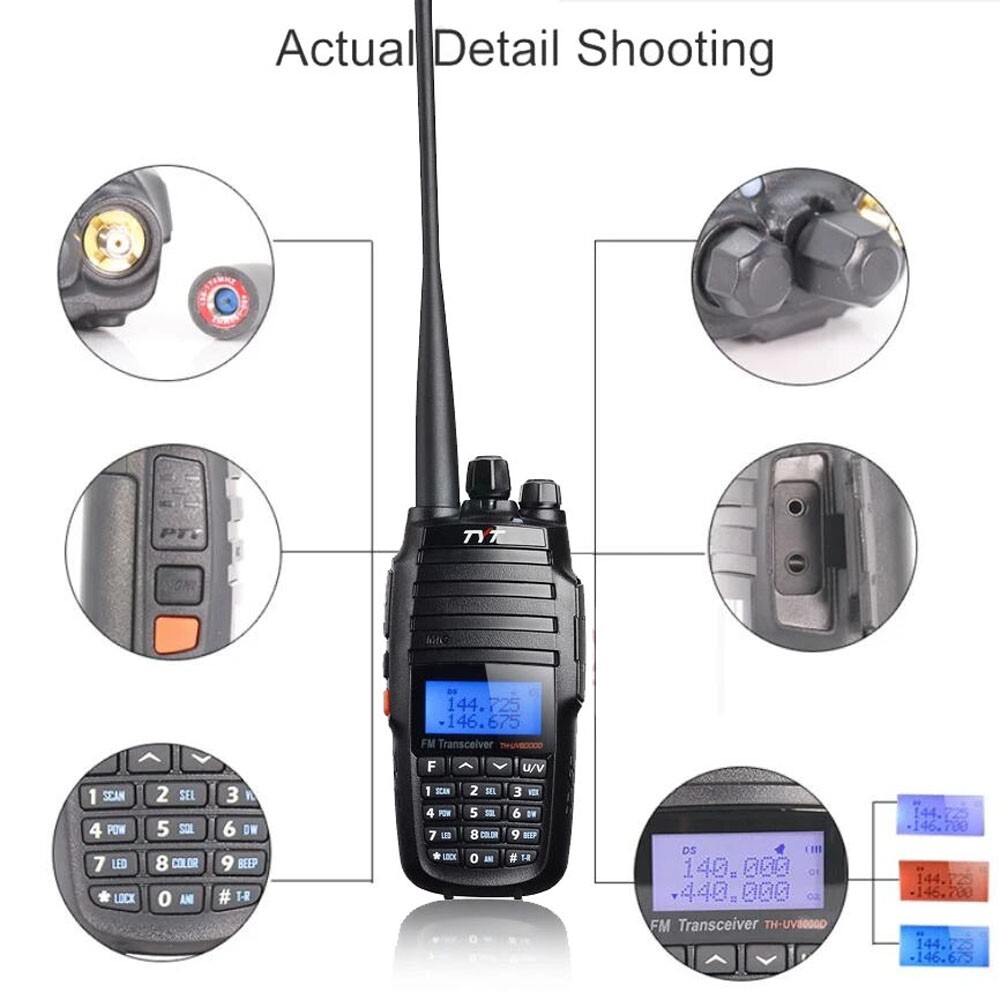

TYT TH-UV8000D 10Watts UV Dual Band Walkie Talkie Two Way Amateur Radio 3600mAh 136-174MHz/400-520MHz
Features:
1. New released by TYT,featuring ultra high output power UP to 10W

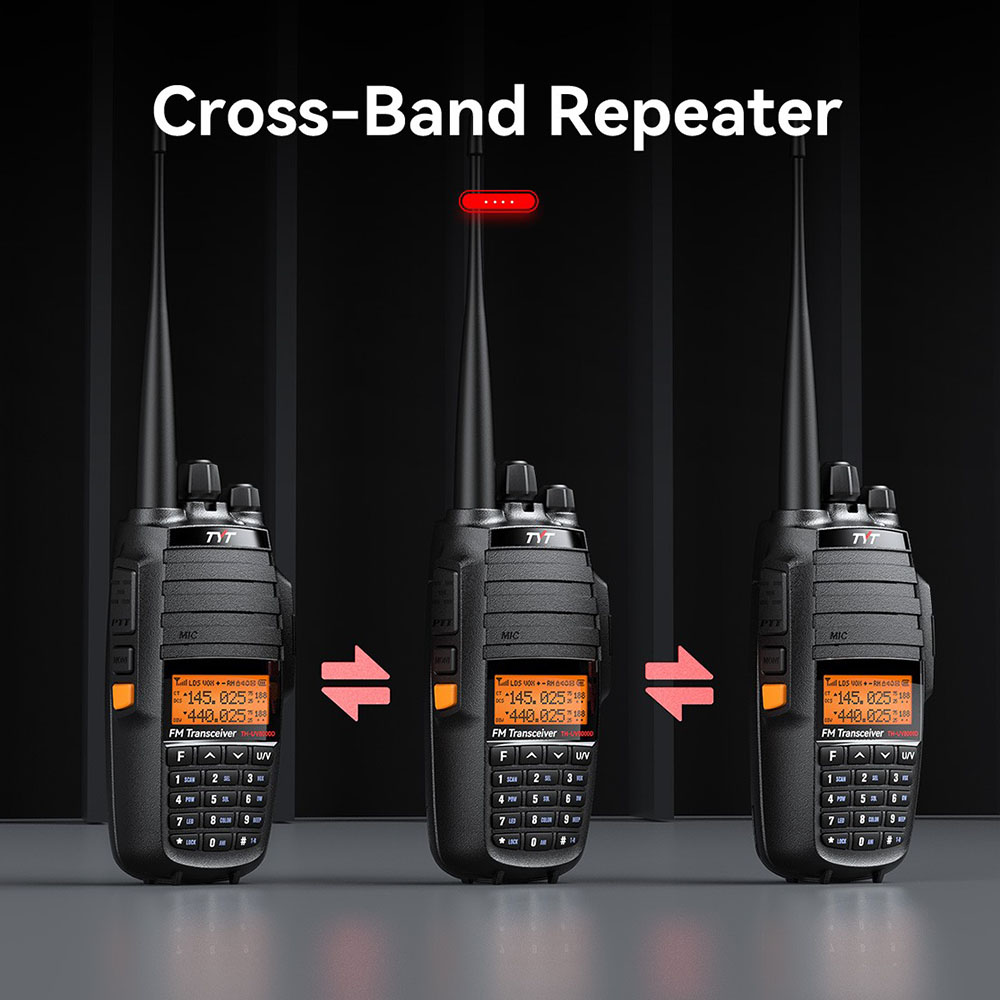

2. Cross band repeater function to guatantee a farther and stable communication distance.
3.comes with High Gain Antenna and large capacity of 3600mAh,quite suitable for outdoor activities.
4. Dual Band ,Dual standby/display/watch are avaliable and you get up to 128*2 Channels to store.

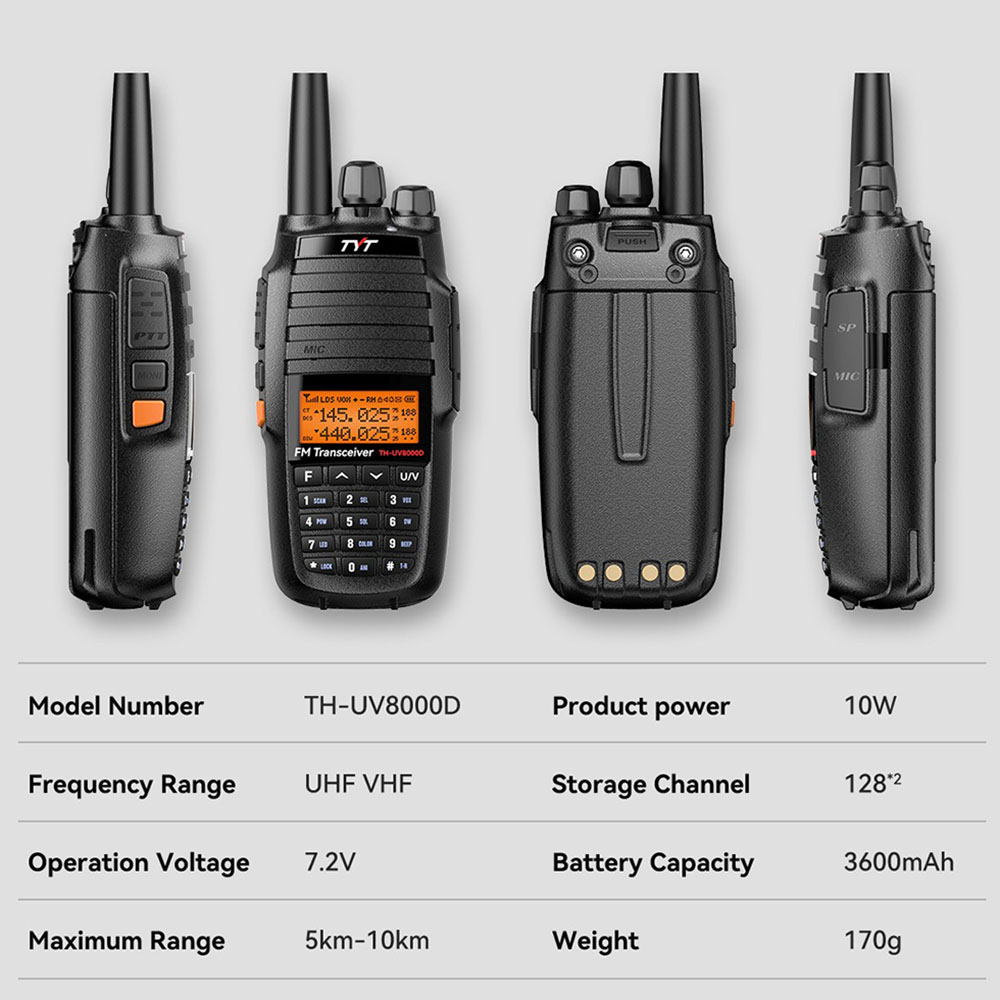

Specification:
| Frequency range | VHF 136-174MHz / UHF 400-470MHz |
| Colour | Black |
| Output power | 10W |
| Frequency stability | ±2.5PPm |
| Operating voltage | DC 7.2V(Rechargeable Li-ion battery) |
| Memory channel capacity | 128 channels |
| Antenna impedance | 50Ohm |
| Mode of operation | Simplex or semi-duplex |
| Battery capacity | Li-ion 3600mAh |
| Weight of two way radio(Include battery and antenna) | 284g |
| Dimension(Exclude antenna) | 130x60x35mm |
| Transmitter | |
| Output power | <=10w, >=5W |
| Pre-emphasis characteristics | 6dB |
| Max deviation | <5KHz/<2.5KHz |
| Spurious radiation | <=7µW |
| Modulation mode | F3E |
| Current | <=2.8A(10W),<=1.8A(5W) |
| CTCSS/DCS deviation | 0.55KHz±20.15KHz, 0.4KHz±20.1KHz |
| Distortion | <5% |
| Receiver | |
| RF Sensitivity | -122dBm(12dB SINAD) |
| Audio power | >0.5W |
| Audio distortion | <10% |
| Intermodulation | >=60dB, >=55dB |
| Selectivity | >=65dB >=60dB |
| Spurious rejection | >=65dB |
| Block | >=85dB |
Package Included:
1 x TH-UV8000D Portable Radio
2 x Antennas
1 x Li-ion battery pack
1 x Charger
1 x Belt clip
1 x Lanyard
1 x Adapter(We will send US/EU/UK Plug According your country.)
1 x User manual
