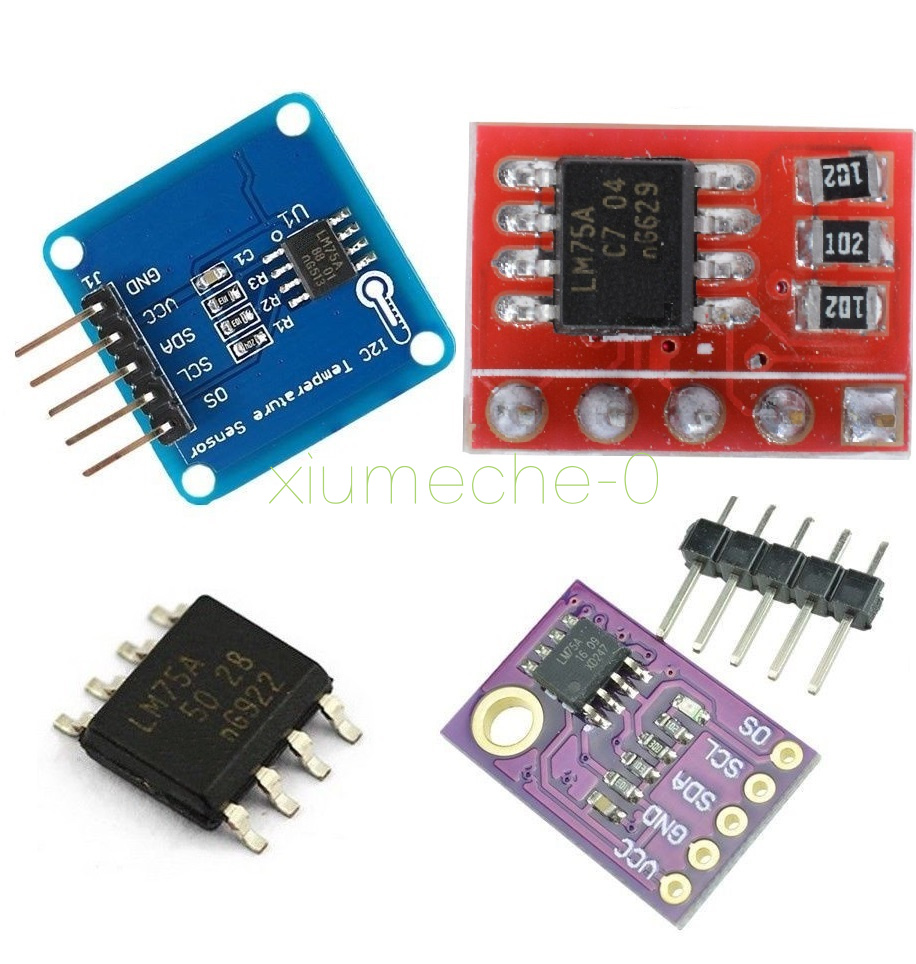

LM75A Temperature Sensor High-speed I2C Interface Development Board for Arduino
LM75A Purple:
Features:
LM75A is a high-speed I2C interface, temperature sensor,
in the temperature range -55 ℃ ~ + 125 ℃ The temperature was directly converted to digital signals,
and to achieve the accuracy of 0.125 ℃.
MCU can be read directly via I2C bus data in its internal registers,
and through I2C to four data registers operates to set different operating modes.
LM75A has three selectable logic address pins,
making it possible to connect eight devices without address conflict on the same bus.
I2C bus interface, the device address 7 slave address 1001xxx,
can expand outside eight devices on the same bus;
Power range: 2.8V ~ 5.5V, temperature range: -55 ℃ ~ + 125 ℃;
11 ADC provides a temperature resolution of 0.125 ℃.
LM75A is a high-speed I2C interface, temperature sensor,
in the temperature range -55 ℃ ~ + 125 ℃ The temperature was directly converted to digital signals,
and to achieve the accuracy of 0.125 ℃.
MCU can be read directly via I2C bus data in its internal registers,
and through I2C to four data registers operates to set different operating modes.
LM75A has three selectable logic address pins,
making it possible to connect eight devices without address conflict on the same bus.
I2C bus interface, the device address 7 slave address 1001xxx,
can expand outside eight devices on the same bus;
Power range: 2.8V ~ 5.5V, temperature range: -55 ℃ ~ + 125 ℃;
11 ADC provides a temperature resolution of 0.125 ℃.
Temperature accuracy:
± 2 ℃ (-25 ℃ ~ 100 ℃)
± 3 ℃ (-55 ℃ ~ 125 ℃)
Programmable temperature threshold and hysteresis set points;
In order to reduce power consumption, the current consumption in shutdown mode is only 1.0μA;
On power-up the device can be used as a stand-alone temperature controllers.
± 2 ℃ (-25 ℃ ~ 100 ℃)
± 3 ℃ (-55 ℃ ~ 125 ℃)
Programmable temperature threshold and hysteresis set points;
In order to reduce power consumption, the current consumption in shutdown mode is only 1.0μA;
On power-up the device can be used as a stand-alone temperature controllers.
protection:
In JESD22A114 standard, it can be 2000V HBM mode;
In JESD22A115 standard, can 200V MM mode;
In JESD22-C101 standard, it can be 1000V CDM model;
In JEDEC Standard (JESD78) latch-up testing done up to 100mA;
Small 8-pin package: SO8, TSSOP8 and ultra-small package XSON8U.
Package Include:
1 x LM75A Temperature Sensor High-speed I2C Interface Development Board Module
In JESD22A114 standard, it can be 2000V HBM mode;
In JESD22A115 standard, can 200V MM mode;
In JESD22-C101 standard, it can be 1000V CDM model;
In JEDEC Standard (JESD78) latch-up testing done up to 100mA;
Small 8-pin package: SO8, TSSOP8 and ultra-small package XSON8U.
Package Include:
1 x LM75A Temperature Sensor High-speed I2C Interface Development Board Module
LM75A Blue:
Product Description：
Based on LM75A, this is digital temperature sensor module.
LM75A is a high-speed I2C interface temperature sensor and it can converted the temperature into a digital signal directly in the temperature range of -55 ℃ ~ + 125 ℃.
MCU can read data from its internal registers directly through the I2C bus, and operate the 4 data registers to set different operation modes.
In the bottom of the module, you can select the I2C address, so that the same bus can connect eight devices without address conflict.
The module can not only measure the temperature but you can set the over-temperature protection temperature.
Features:
Compatibility: Compatible with Arduino UNO R3 / Arduino Mega2560
Operating voltage: 2.8 - 5.5VDC
Operating Current: 2mA (max)
Interface: standard I2C interface
Resolution: 0.125'C
Scale: -55 ~ 125'C
Accuracy: ± 2'C @ -25 ~ + 100'C; ± 3'C @ -55 ~ + 125'C
Note: Lighting, display and other factors may cause color shading, please comprehensive pictures and text descriptions to determine!
Based on LM75A, this is digital temperature sensor module.
LM75A is a high-speed I2C interface temperature sensor and it can converted the temperature into a digital signal directly in the temperature range of -55 ℃ ~ + 125 ℃.
MCU can read data from its internal registers directly through the I2C bus, and operate the 4 data registers to set different operation modes.
In the bottom of the module, you can select the I2C address, so that the same bus can connect eight devices without address conflict.
The module can not only measure the temperature but you can set the over-temperature protection temperature.
Features:
Compatibility: Compatible with Arduino UNO R3 / Arduino Mega2560
Operating voltage: 2.8 - 5.5VDC
Operating Current: 2mA (max)
Interface: standard I2C interface
Resolution: 0.125'C
Scale: -55 ~ 125'C
Accuracy: ± 2'C @ -25 ~ + 100'C; ± 3'C @ -55 ~ + 125'C
Note: Lighting, display and other factors may cause color shading, please comprehensive pictures and text descriptions to determine!
Package Include：
1X High Accuracy LM75A I2C Digital Temperature Sensor Board Module for Arduino
LM75A Red:
Features:
1．CRange in -25°C~100°C
2．Smaller
3．Work in 3.3V and 5V
4．Supported Raspberry Pi and Arduino
5．LM75 IC
6．I2C port
Package Include:
1．CRange in -25°C~100°C
2．Smaller
3．Work in 3.3V and 5V
4．Supported Raspberry Pi and Arduino
5．LM75 IC
6．I2C port
Package Include:
1 x LM75 Temperature Senso I2C Interface Development Board Module Raspberry Pi
LM75 SOP-8:
Package Include:
5 x NEW LM75A LM75AD SOP-8 I2C IIC Digital Temperature Sensor IC
