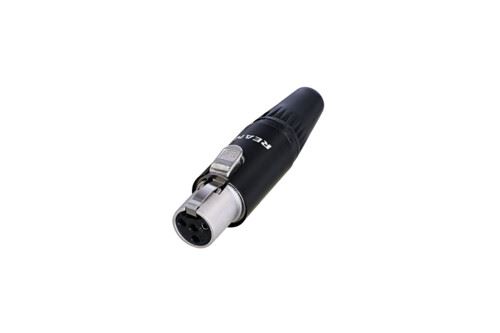

4 pole TINY xlr female cable connector, black metal shell, gold plated contacts

• Easy to assemble
• Robust metal housing with best flex relief
• Shielded system – high noise immunity and EMI protection
• Intuitive and rugged locking mechanism provides secure locking system
• Millionfond proven chuck type strain relief – up to 4.00 mm cable diameter
• Keyed insert and strain relief to avoid mispositioning / rotation of insert respectively cable

Electrical

Contact resistance - < 10 mΩ (inner)

Dielectric strength - > 0.5 kVdc

Insulation resistance - > 1 GΩ

Rated current per contact - < 5 A

Mechanical

Cable O.D. - 2.0 - 4.0 mm

Lifetime - > 5000 mating cycles

Wiresize - 0.22 mm²

Wiresize - 24 AWG

Wiring - Solder contacts

Material

Bushing - ABS / TPU

Contact plating - Au

Contacts - Bronze (CuSn6)

Insert - PA 6.6 30 % GF

Shell - Zinc diecast (ZnAl4Cu1)

Shell plating - Black

Strain relief - POM

Environmental

Solderability - Complies with IEC 68-2-20

Temperature range - -30 °C to +85 °C

Gold Plated 4 Pole Female (socket) REAN
