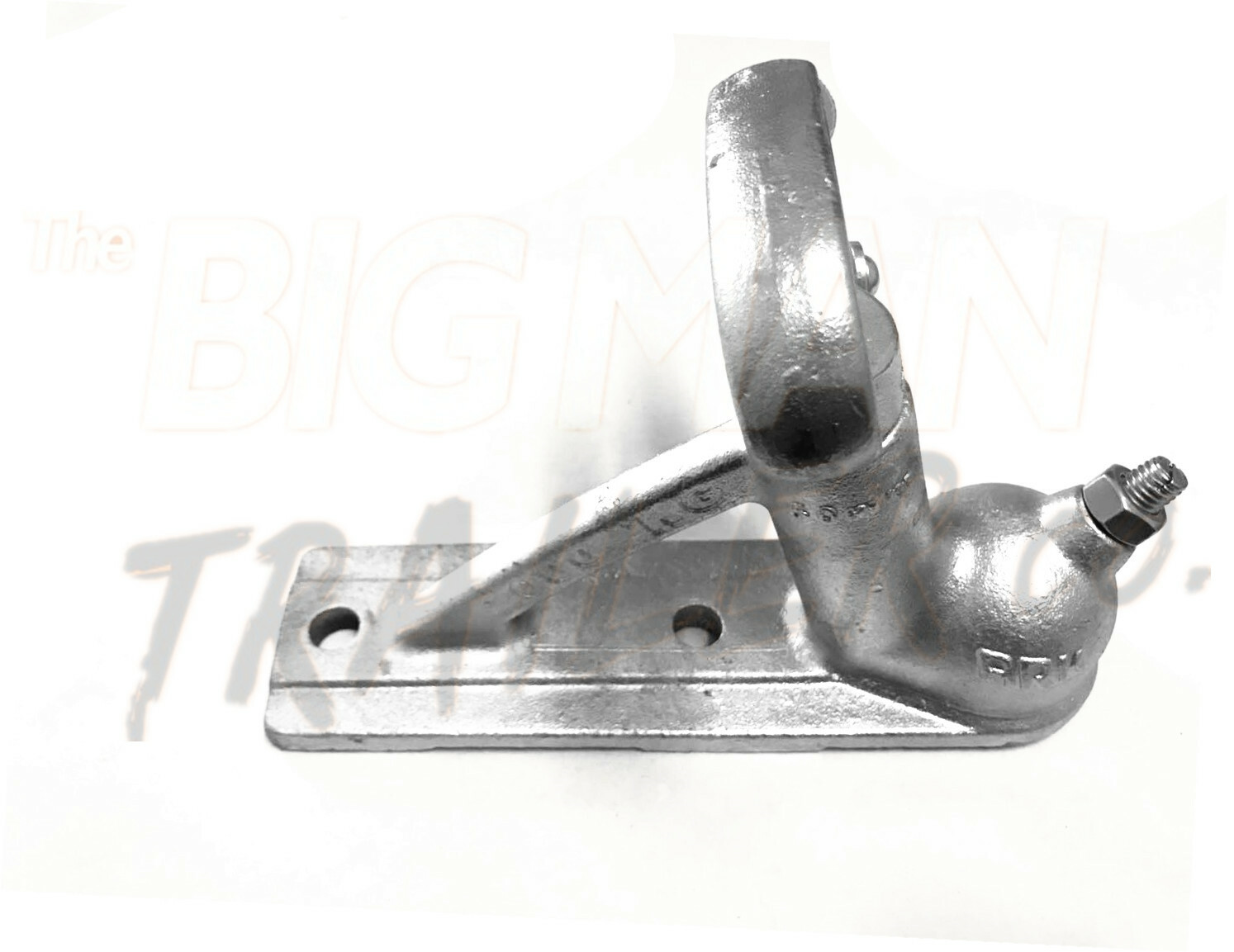

Trailer Coupling Galvanised 2Hole Quick Release Hitch 2000kg 50mm Tow ADR 4177.3

FOLLOW US HAVE A QUESTION?

PRODUCT DESCRIPTION



Trailers that do not exceed 3.5 tonnes ATM must have a quick release coupling which is designed to be engaged and disengaged without the use of tools. It must be of a positive locking type with provision for a second independent device. The locking must be readily verifiable by visual inspection.

Fixed none brake coupling normally suited to a 50mm Australian Standard tow ball, where either no brakes fitted or the brake system does not require activation from a sliding or overrun coupling. They come in different mounting ways up to 2000kg capacity.

  • 2 Hole 101.6mm
  • Suit for 50mm Tow Ball
  • 2000kg Maximum Rating

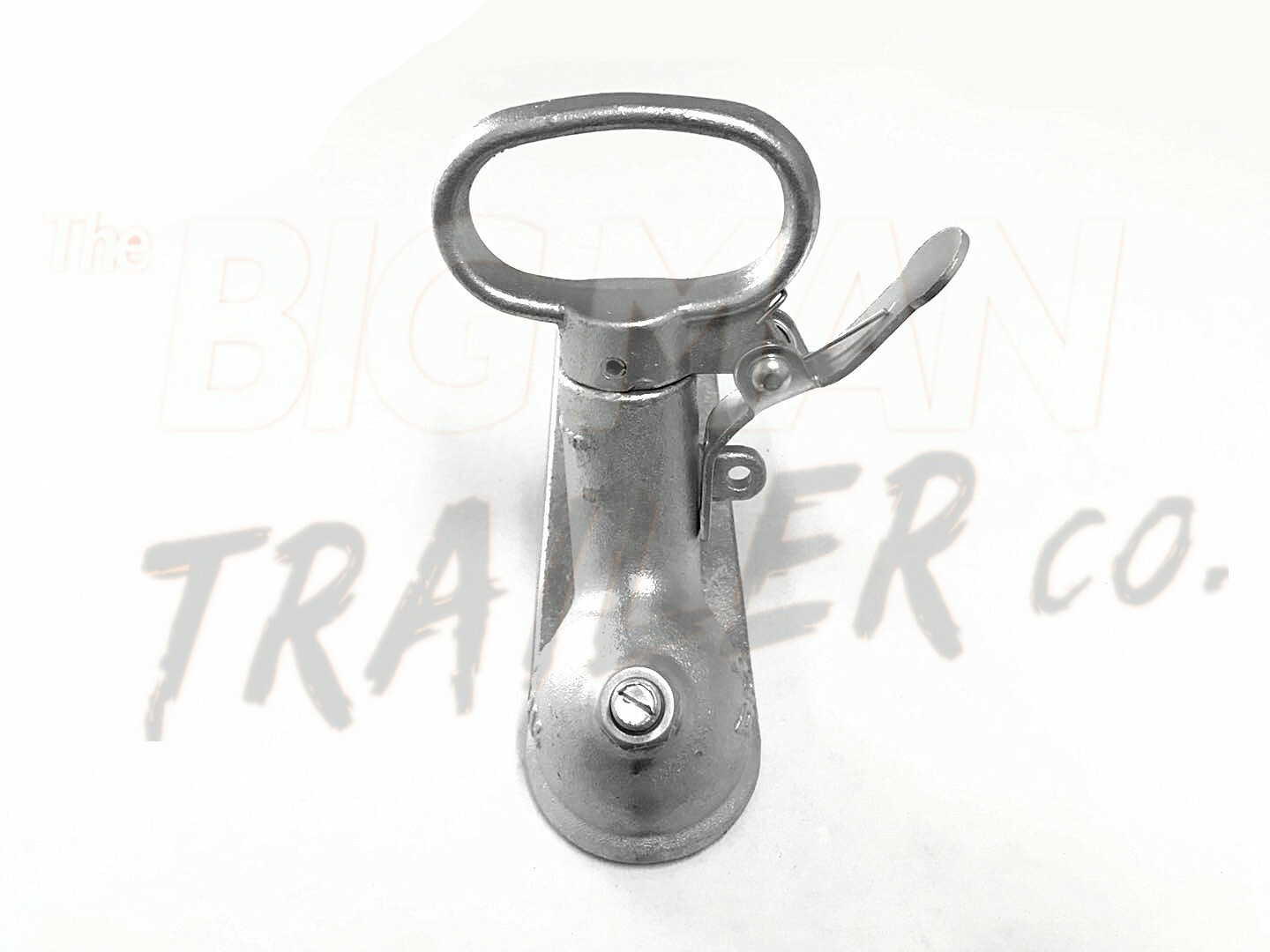

  • Adjustable Tow Ball Anti Rattle Screw

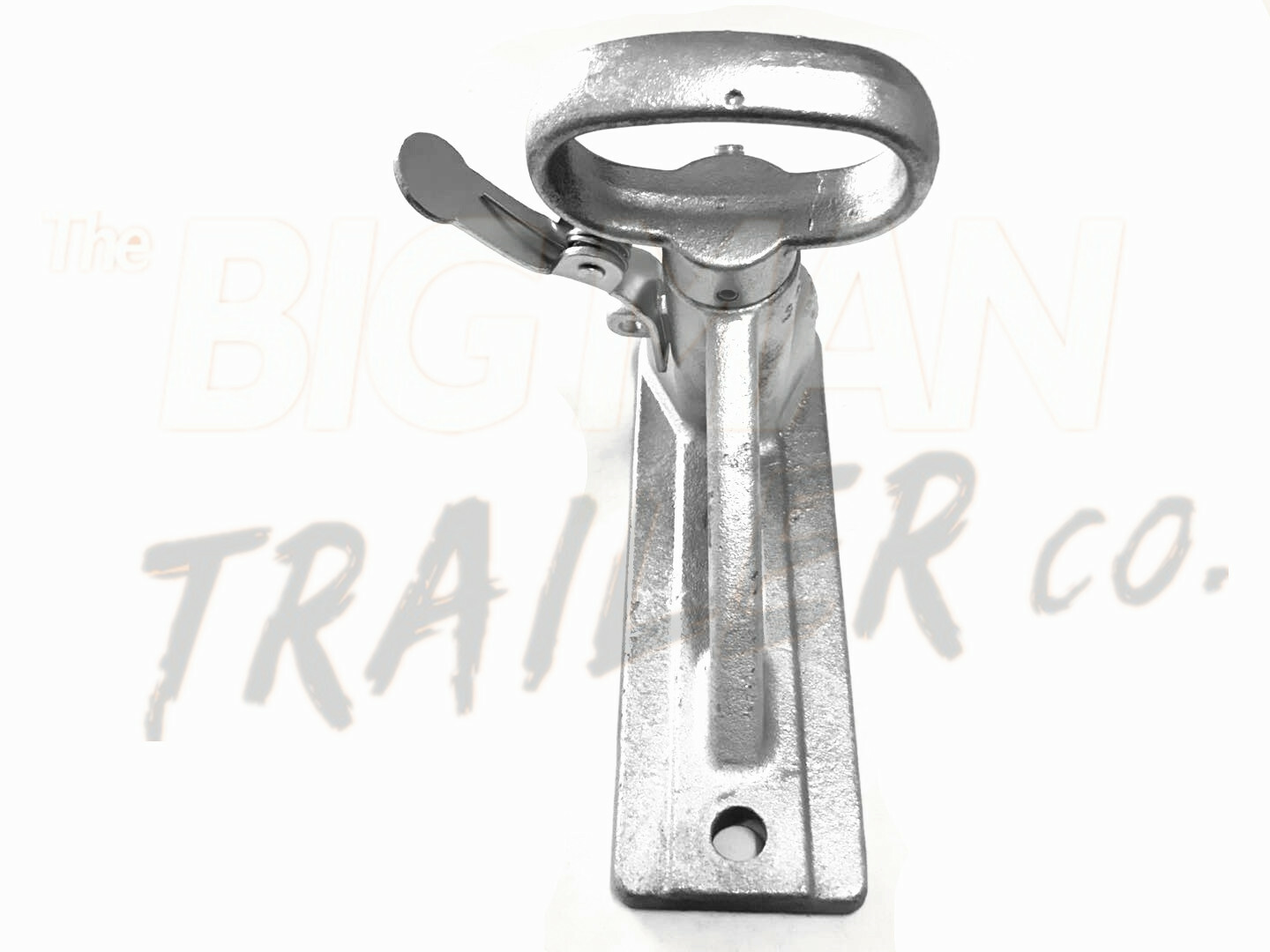

  • Quick Release Lockable Safety Trigger
  • Safety R Pin for Secure Lock
  • ADR Proof complying with AS 4177.3

Specification
  • Weldable: No

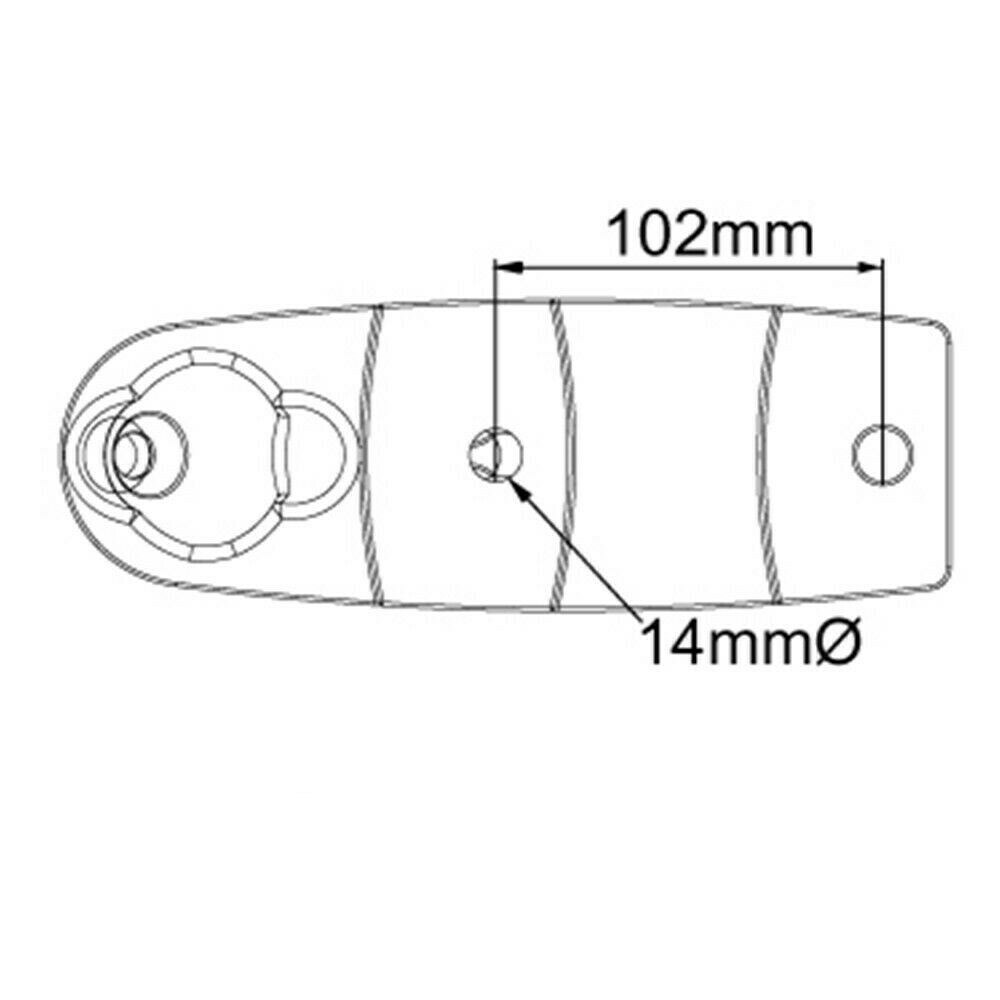

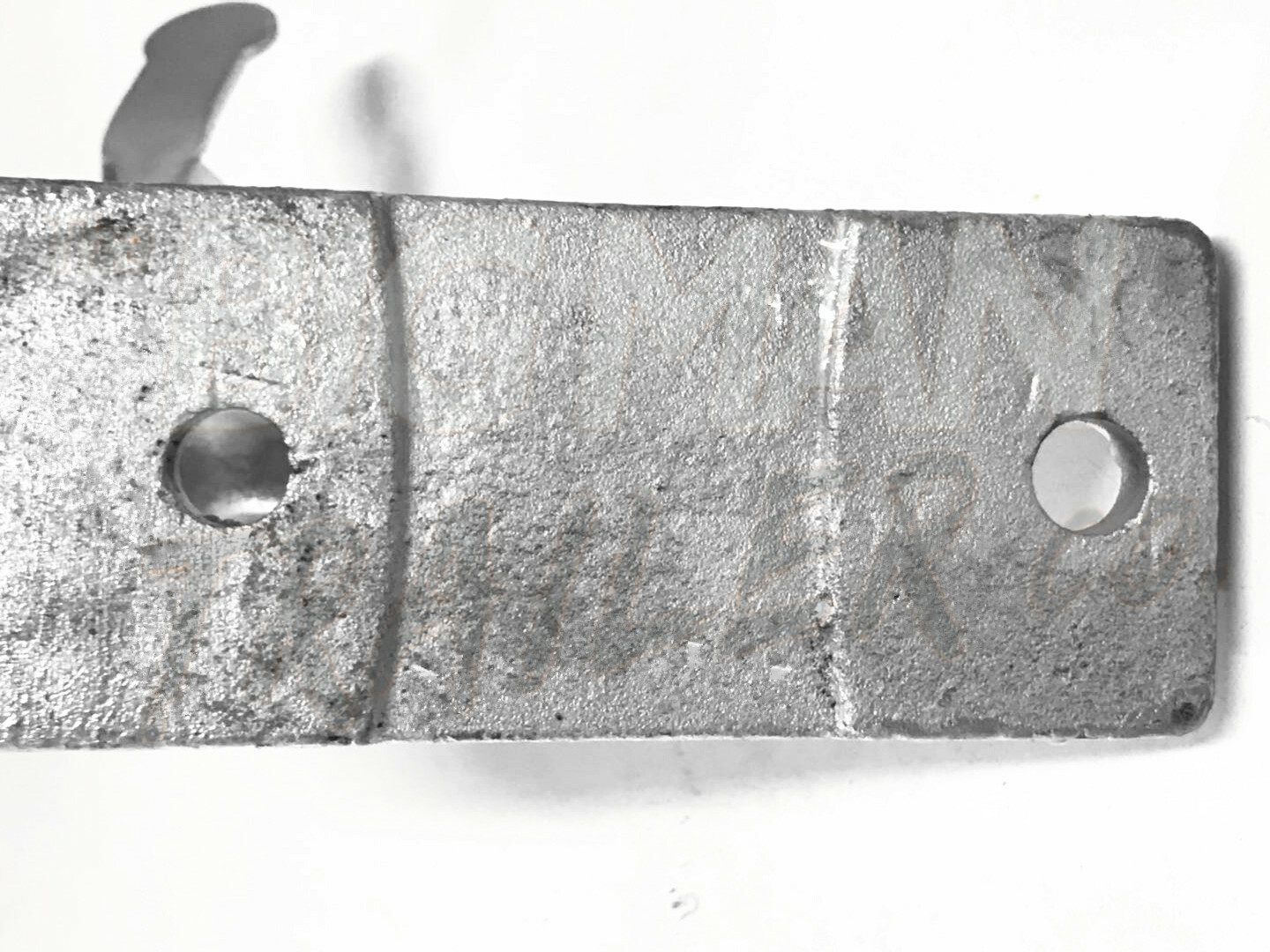

  • Mounting Holes: 2 Hole 13.5mm
  • Mounting Dimension: 101.6mm
  • Surface Finish: Zinc Plated
  • Suit Ball Size: 50mm
  • Colour: Sliver
  • Ball to First Hole: 77mm
  • Size: 25cm x 13cm x 18cm

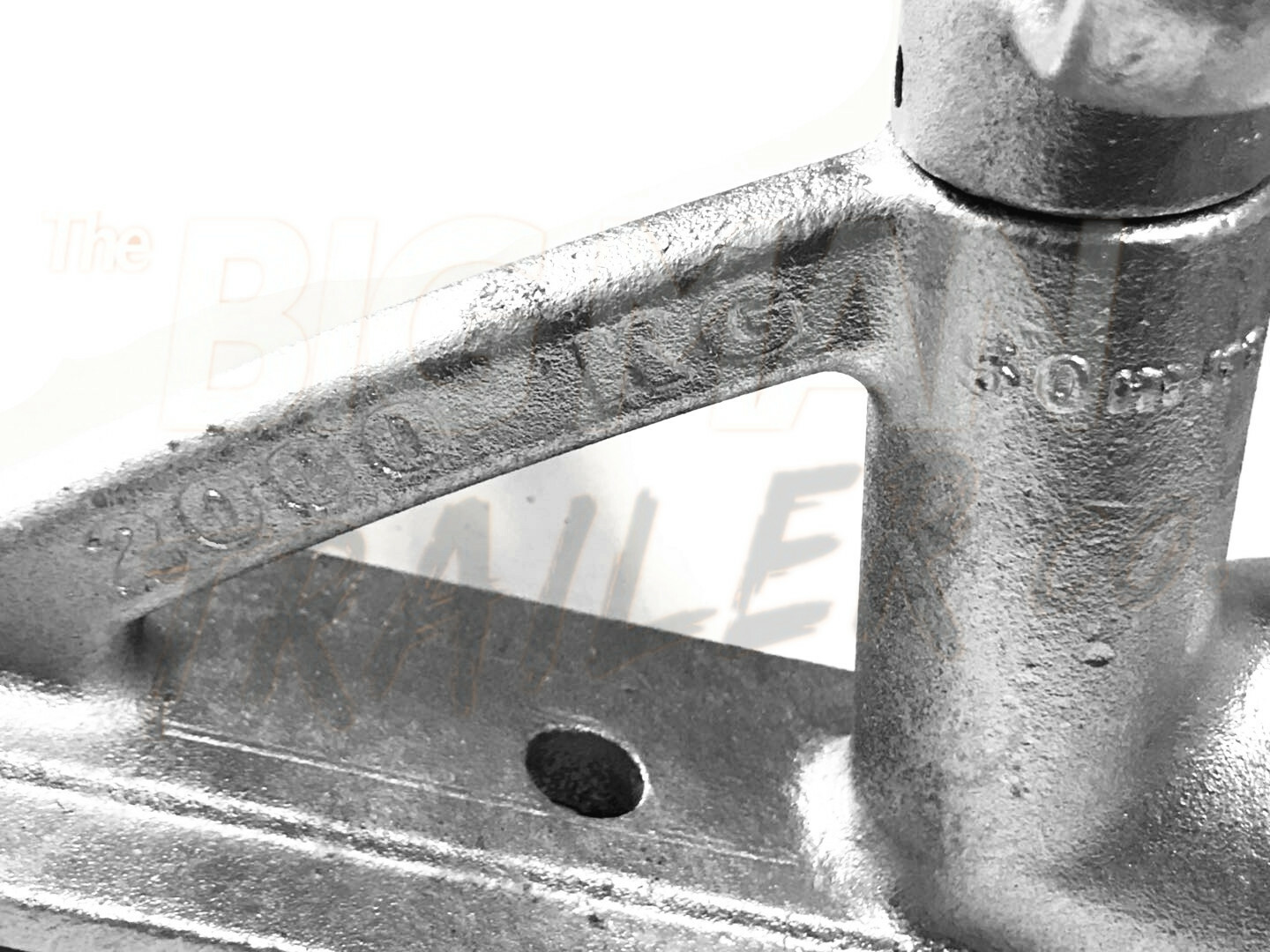

  • Capacity: 2000kg
  • Weight: 3 kg
  • Suit for: None Brake Trailer

Q & A

Q; What’s the size of my tow ball?

A: 50mm is the most common size which is 50m Diameter. 50mm ball couplings used on trailers with an ATM that does not exceed 3.5 tonnes must comply with Australian Standard AS 4177.3-2004. 70mm tow ball carry up to 6000kg.


Q: Can I weld the coupling?

A: Check the stamped on the coupling. The words ‘DO NOT WELD’ mean the coupling body is manufactured from non-weldable materials; the words ‘WELD ONLY’ mean the coupling body is specifically designed to be attached by welding only.


Q: How can I choose the right coupling

A: To select a suitable coupling, consider the following. What brakes are being used. Fixed none brake coupling, Overrider hydraulic brake coupling, Override mechanical brake coupling, Fixed electric brake coupling

What’s the maximum load

750kg, 1000kg, 2000kg, 3500kg, 4500kg, 6000kg

Do you need 50mm tow ball or Ring attachment.

50mm tow ball, 70mm tow ball, ring,

Any specific application? Off Road, Commercial, Anti-sway, Etc.


Q: What’s the difference on surface finished.

A: Painted--Paint is the most commonly used material to protect steel, suit for all painted trailer

Zinc--Plating is a surface covering in which a metal is deposited on a conductive surface. used to decorate objects, for corrosion inhibition, to improve solder ability, to harden, to improve wearability, to reduce friction, to improve paint adhesion, to alter conductivity, to improve IR reflectivity, for radiation shielding, and for other purposes.

Galvanised--It is the process of coating iron and steel with a layer of zinc by immersing the metal in a bath of molten zinc at a temperature of around 840 °F (449 °C). Galvanized steel is corrosion resistance is needed. Suit for all marine stuff.


Q: What’s the difference between fixed and override coupling

A: Override or overrun coupling use for a braking system that use an override principal. The coupling has a sliding shaft attached to the tow ball housing of the coupling. Fixed coupling with fixed body only.
