Ship to worldwide,you buy it and don't pay,I send freight to you,then you can payment.

This item includes:

  • 3 pcs Nema 23 stepper motor 287oz.in=1.45N.m,1A, bioplar，6leads
  • 1 pc 3 Axis Driver Board TB6560 3.5A,16 Micsteps
  • 1 pc Power Supply 200Watts( 24VDC/8.3A)
  • 1 pc parallel cable & CD( mach3) free offering when you bought above

Detailed information :

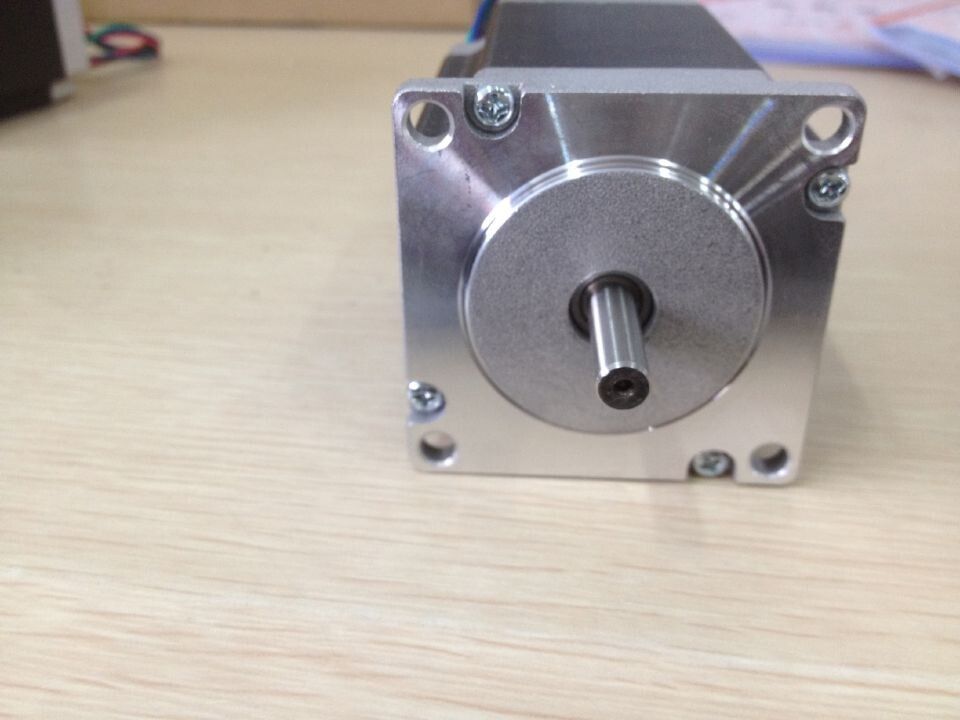

1. Nema 23 stepper motor:

Model
Step angel (°)Motor Length L(mm)Rate Voltage (V)Rate Current (A)
Phase
Resistance (Ω)

Phase Inductance (mH)		Holding Torque (oz.in)Lead Wire (NO.)Rotor Inertia (g.?)Detent Torque (kg.cm)Motor Weight (kg)
23HS86101.8788.618.61828764800.681



2. 3 Axis Driverbaord TB6560

    Description:

2:1-16 sub-setting, higher accuracy, smoother operation

3:Overload over-current over-temperature protection, full protection of your computer and peripheral equipment

4:4 files current settings can be set according to the user the actual current requirement

5:Full closed-type optical isolation to protect the user's computer and equipment

6:Professional design, two-stage signal processing, super anti-jamming
7: Bipolar constant current chopper drive motor low-speed non-creeping phenomenon, noise, non-resonant region.

8: Four input control, you can set limit, emergency stop, which is divided into pairs of knives.



Please note the following before the test items

1,             To determine the size of the supply voltage and current

2,             Determine the stepper motor power and current (model)

3,             Determine the stepper motor wiring

4,  Power Please take 12 ~ 36V 8A (stepper motor in accordance with the work of current matching) The above switching power supply, I received a map indicating the power input interface.



12V power output for a 12V cooling fan to pick up where.



Firstly,Motor wiring connection is right.
Second.the three axis driver card must be set up according to the requirements of our product manual.
           Especially motor outputs and output singnals settings according to our product manual is right.
Third,You must use the XP system desktop computers.You can only use the parallel conversion card
Four,it need use mach3 software.This is mach3 download links on our company website:[link removed by eBay]
If you want product manual,please send e-mail to me.If you have problem when setting,please send e-mail to me.

3.Power supply----200W-24VDC

The power is 200Watts, and output voltage is 24VDC, and the output current is 8.3A



Application:Our Stepper Motors are used on small to mid-sized CNC mills or milling machines, CNC lathes, Pick-n-place machines,Laser Engravers and Laser Cutters, Vinyl Sign Cutters, CNC Plasma Cutters, and CNC Foam Cutters. Carver machine ,Dispenser,Automazation,3D Printer,Stage lighting,instrument,laser equipment,scanner and so on.These motors have been used in precision telescope positioning systems and robots.
