| Size | 0805 SMD |
|---|---|
| Color | Cool / Clear White |
| Luminosity/Brightness | 450 mcd |
| Forward Voltage | 3.0-3.2v |
| Current | 20mA |
| Wavelength | N/A |
| Viewing Angle | 120 Degree |
| Mount Style | SMD (Surface Mount Diode) |
| Lens Color | Diffused |
| LED Brightness Class | Super/Ultra/Extreme |
Lighthouse LEDs has been providing top quality components for over 20 years and have become the go-to supplier for many industries through Ebay and our personal website, where there is more ordering flexibility and products offered. If you need resistors, wire, heatshrink, switches or LED drivers you can find them at those links. We have, perhaps, the best and widest selection of LEDs out there!
These 0805 SMD cool white LEDs run at 450 mcd with a diffused lens — bright enough to stand out, smooth enough to look clean — making them a natural fit for mechanical keyboard backlighting, scale model interiors, and instrument cluster repairs where pure white illumination matters.
Each LED operates at 3.0–3.2V forward voltage at 20mA, with a 120° viewing angle and a diffused lens for wide, even light spread. The 0805 package (2.0mm × 1.25mm) is the most forgiving SMD footprint for hand-soldering — larger pads than 0603, easy to work with under magnification. No wavelength designation applies to white LEDs; color is determined by phosphor conversion from the blue die.
Common applications
- Mechanical keyboard backlight repair and custom builds: Ducky Shine II/III/7 have well-documented LED failure issues repaired with 0805 whites; custom boards like the Corne, Lily58, and Sofle use this footprint for non-addressable per-key backlight.
- Scale modeling and dioramas: HO and N scale building window interiors, locomotive headlights, structure lighting. The diffused lens eliminates hot-spotting inside small spaces.
- Automotive instrument clusters: VW/Audi (Passat, Golf, Beetle, A4, A6) and GM truck clusters use 0805 LEDs for specific indicator positions — white works for general backlight replacement and turn-signal indicator upgrade.
- Arduino and custom PCB prototyping: KiCad's
LED_SMD:LED_0805_2012Metricfootprint is the standard beginner SMD footprint; these drop straight in for status indicators and pin-state visualizers. - Cosplay props and wearables: Pre-wire to 30AWG leads for helmet HUDs, lightsaber chassis indicators, and prop control panels where a cool white tone reads as "electronic" or futuristic.
- Guitar pedal builds: DIYStompboxes and PedalPCB builders use 0805 for power-on indicators; white makes bypass state obvious under stage lighting.

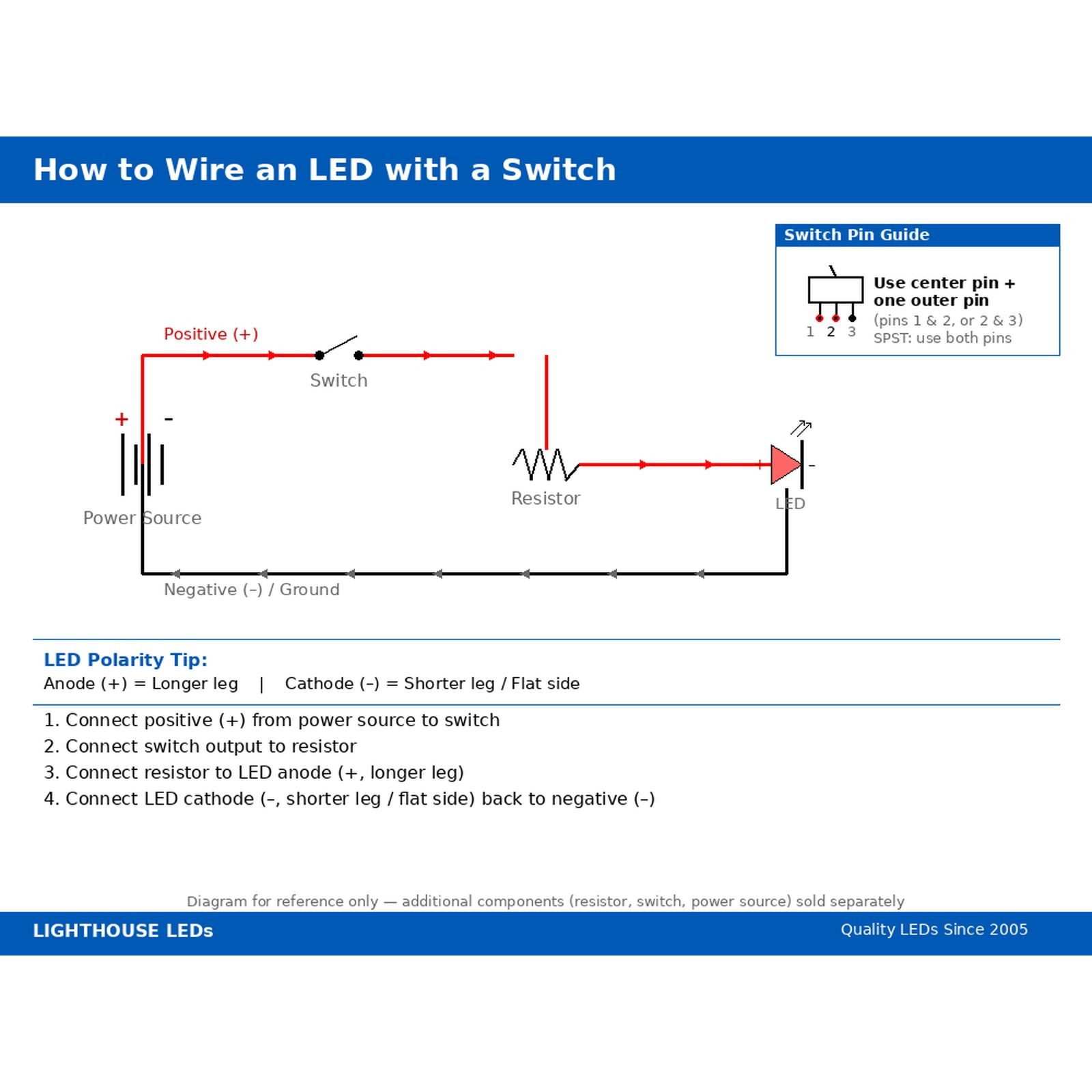

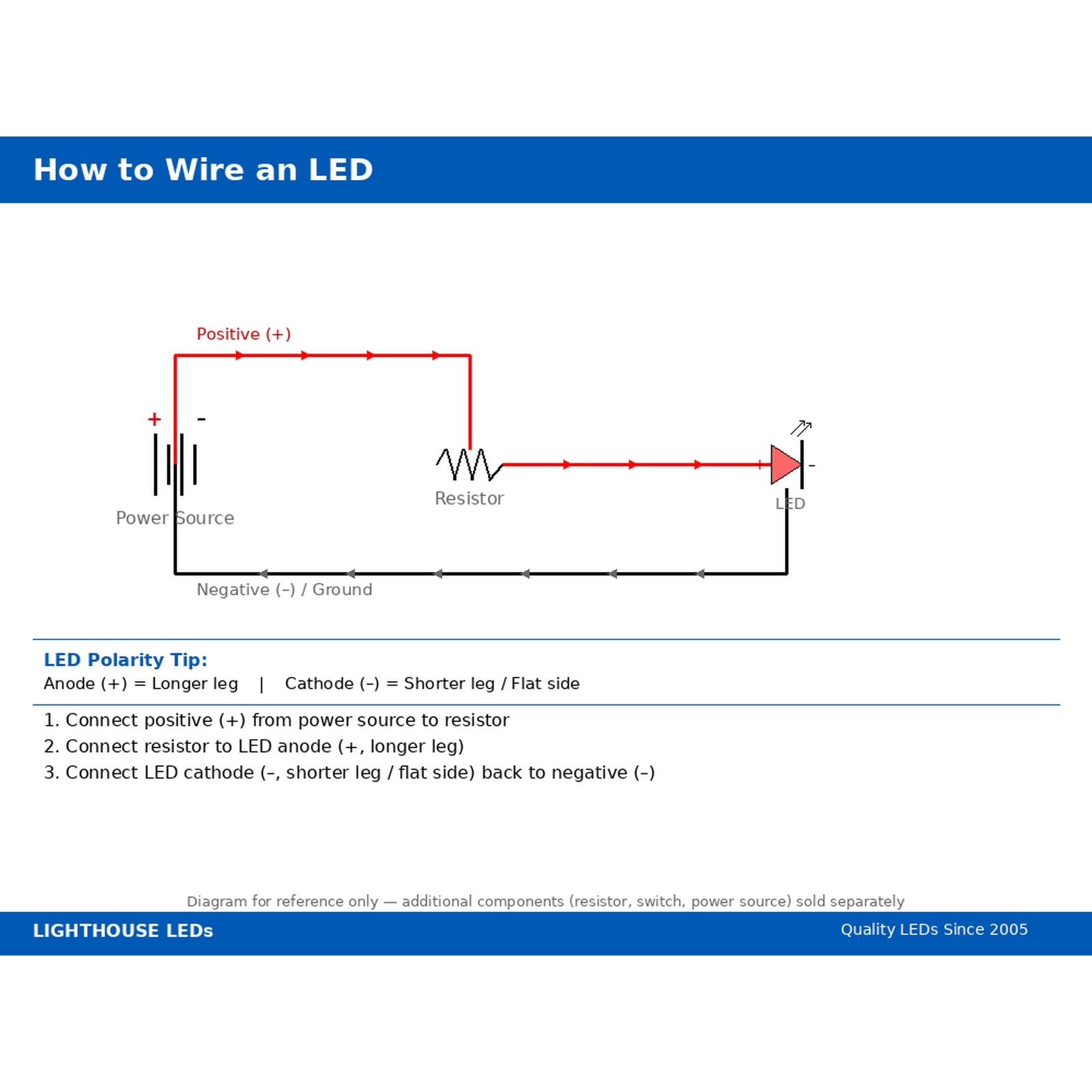

Wiring & power notes
DC power recommended: LEDs are designed for DC. Running on AC will cause flickering and reduce lifespan. If using a low-voltage AC source (model railroad transformer, DCC track voltage), convert it to DC with a MB1S bridge rectifier plus a 100µF 50V electrolytic capacitor for clean, ripple-free output.
Resistor quick reference — 3V LEDs (blue, green, white, UV) at 20mA:
| Supply Voltage | Resistor | Power Rating |
|---|---|---|
| 4V | 56Ω | 1/4W |
| 5V | 100Ω | 1/4W |
| 6V | 150Ω | 1/4W |
| 7V | 200Ω | 1/4W |
| 8V | 270Ω | 1/4W |
| 9V | 300Ω | 1/4W |
| 10V | 360Ω | 1/4W |
| 11V | 430Ω | 1/4W |
| 12V | 470Ω | 1/4W |
| 13V | 510Ω | 1/4W |
| 14V | 560Ω | 1/2W |
| 15V | 620Ω | 1/2W |
Prefer not to calculate resistor values? Our 20mA LED Current Limiter eliminates the math entirely. Active constant-current drive to 20mA across a 4–45V DC supply — ideal for automotive circuits where voltage fluctuates. Multiple LEDs in series share one driver.
Building with this LED
Need supporting components? We carry a few staples that pair directly with this LED:
- Thin magnet wire for SMD pads: 30 AWG Kynar wire — solid core, Teflon jacket, ideal for hand-soldering to 0402/0603/SMD pads without lifting them.
