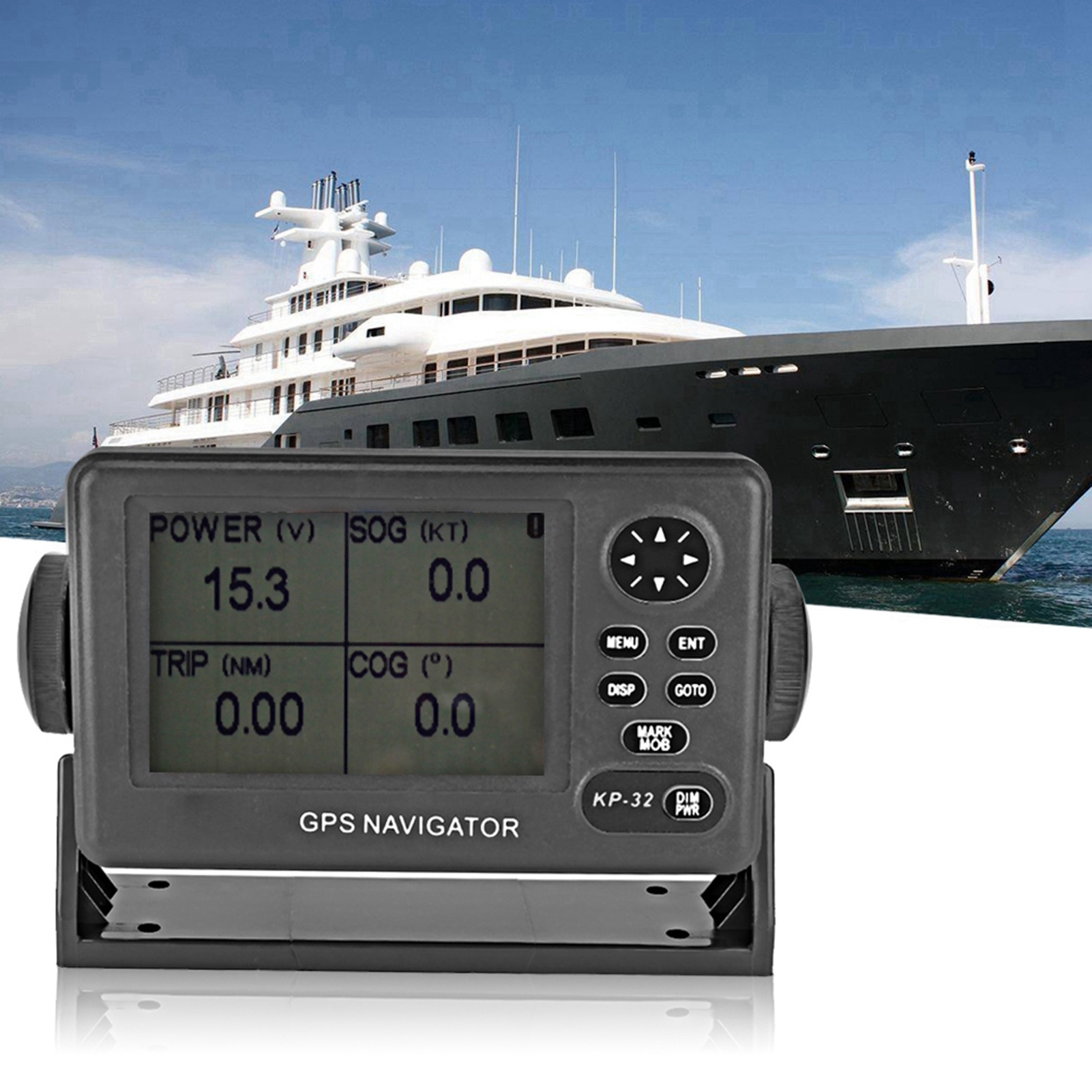

The KP-32 is an advanced GPS navigator with SBAS receiver designed for ships, fishing boats and leisure yachts. It is fully functional, fast positioning, and uses SBAS orientation. It stores up to 2,500 waypoints and is very convenient to use.



Features:

1. Built-in SBAS receiver to improve accuracy.

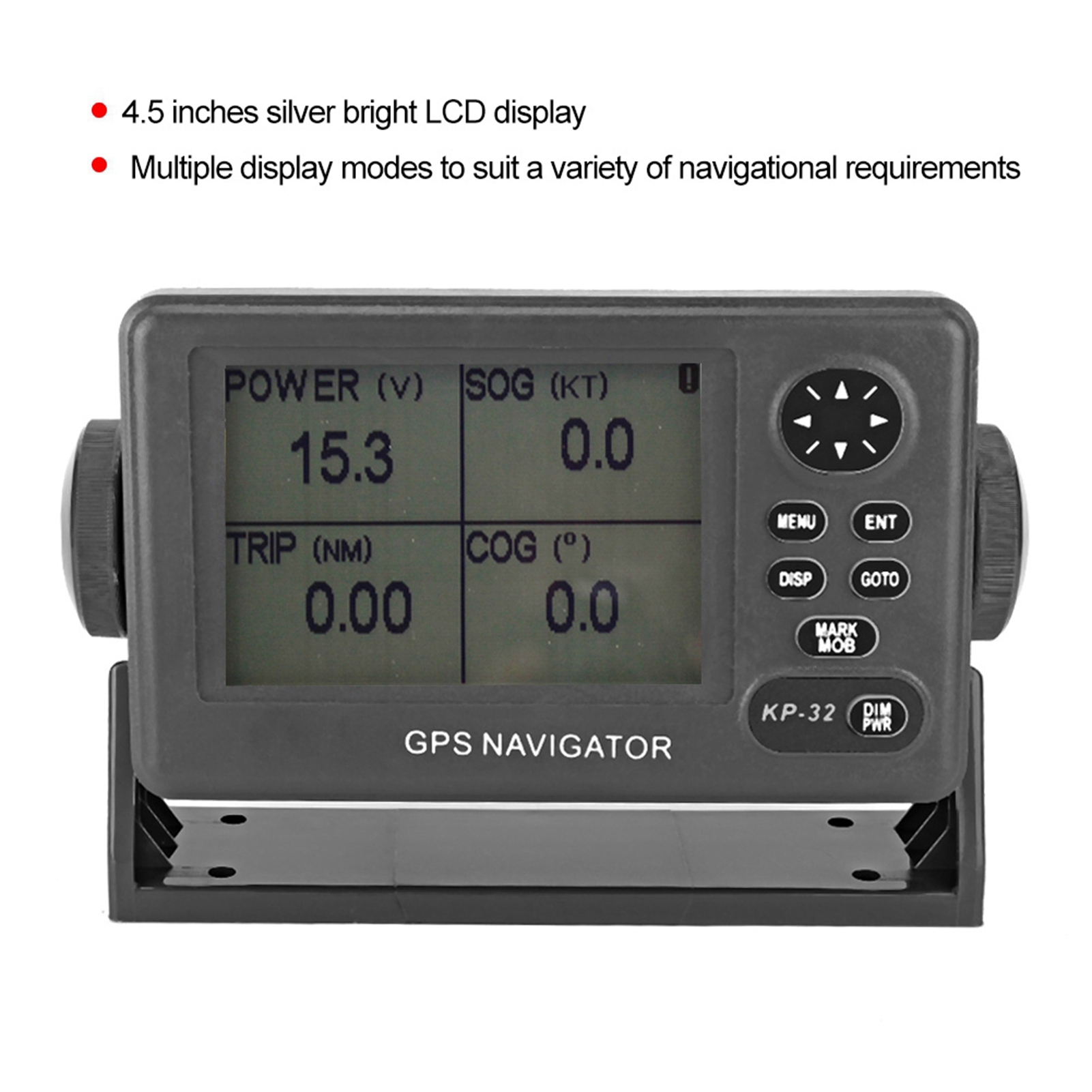

2. 4.5 inches silver bright LCD display.

3. Multiple display modes to suit a variety of navigational requirements.

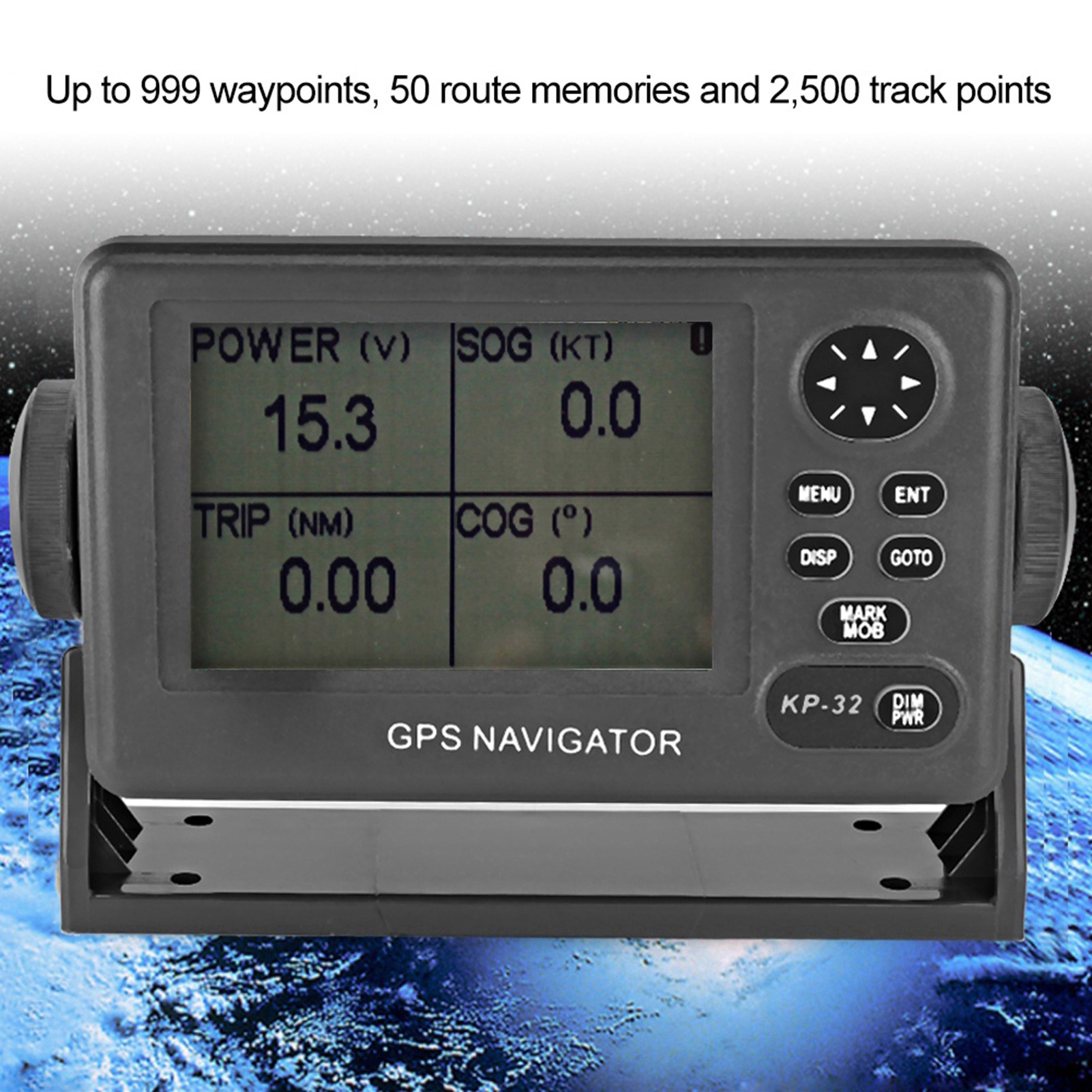

4. Up to 999 waypoints, 50 route memories and 2,500 track points.

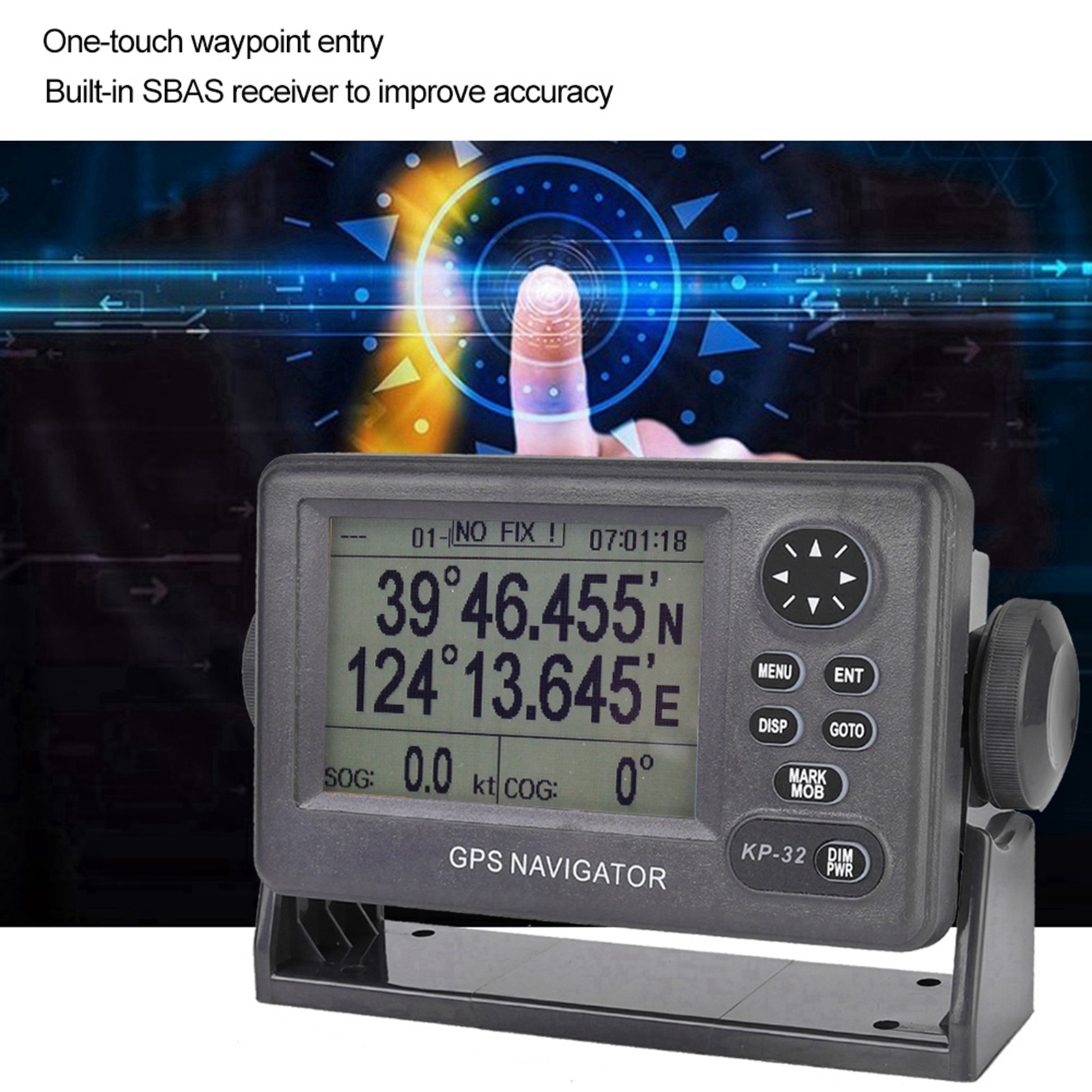

5. One-touch waypoint entry.

6. Customizable navigation data screens.

7. Track back feature stores waypoints at users defined intervals for early trace-back cruise.

8. Waypoint & Route upload and download through RS-232C interface.

9. Alarm arrival, zone, XTE, speed, time, odometer, dangerous route alarm.



Specification:

Item Type: Marine Navigator

Receiver GPS: 12 channels, C/A code, all-in-view. SBAS receiver.

Acceptance Frequency: L1 (1575.42 Mhz)

Positioning Time: Average 15 seconds (hot start)

Positioning Rate: 999 knots

Chart Basis: WGS-84

Accuracy:

GPS 15m (95%)

SBAS 3 meters (95%)

Display: 4.5 diagonal 95(W) x 63(H) mm LCD, 240 x 160 pixels

Display Mode: Chart, high speed, yaw, speedometer, satellite data and 2 pages of custom display

Memory Space: 2,500 tracks, 999 waypoints, 50 route memories, 30 route points per day

Languages: Chinese, English, Indonesian, Vietnamese, French

Interface:

Output (NMEA 0183 ver 2.0)

AAM, APB, BOD, BWC, GGA, GLL, RMB, RMC, VTG, XTE, ZDA

Ambient Temperature:

Display: -15°C to +55°C

Antenna Unit: -25°C to +70°C

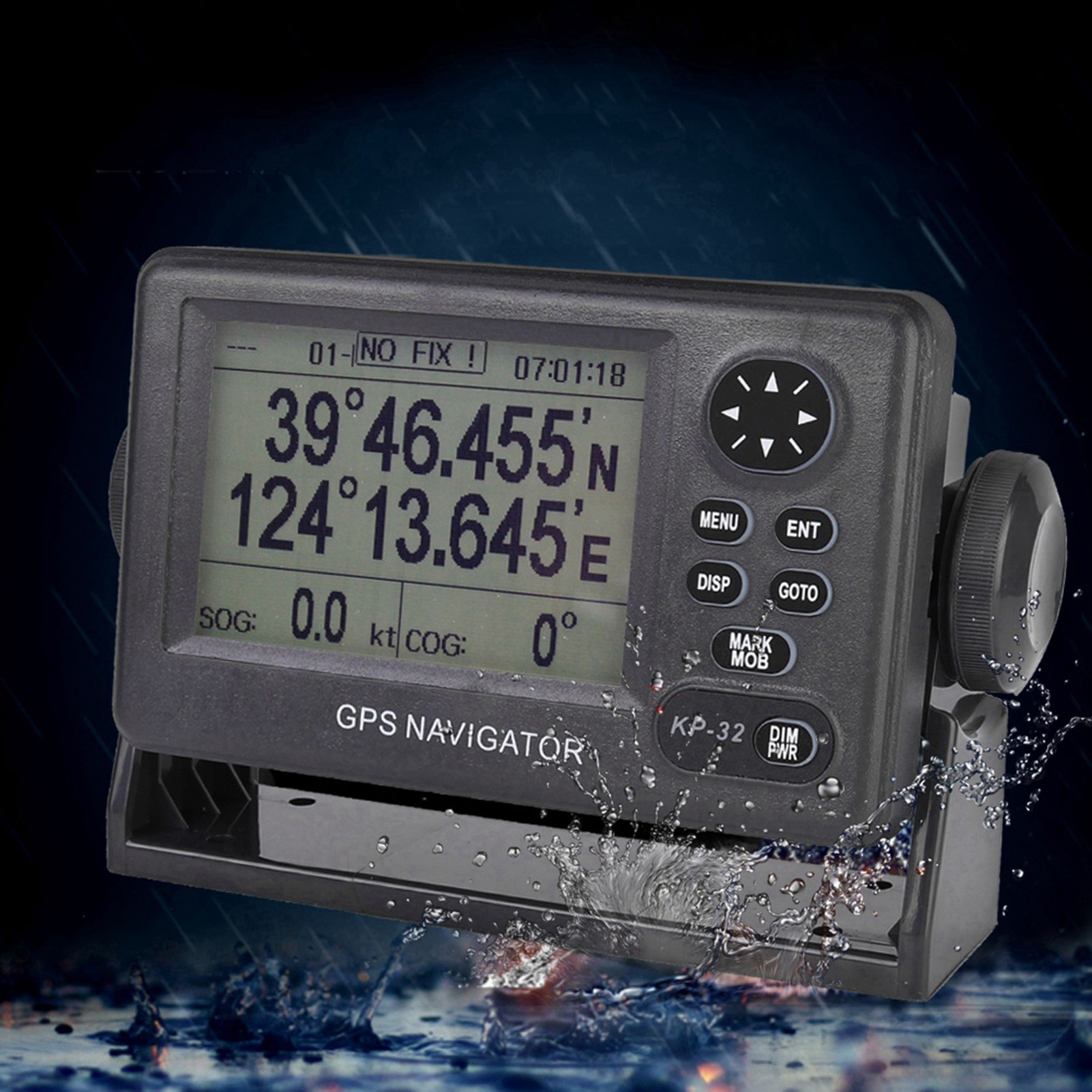

Water Proof:

Display: IPX5

Antenna: IPX6

Power Supply: 12-24 VDC, 240-120mA



Precautions:
1. For all marine equipment, the positive and negative poles of the electric power cannot be connected incorrectly.
2. The radar antenna must not be occluded. Can not be installed on a horizontal line with satellite phones.
3. Do not the radar without the antenna.

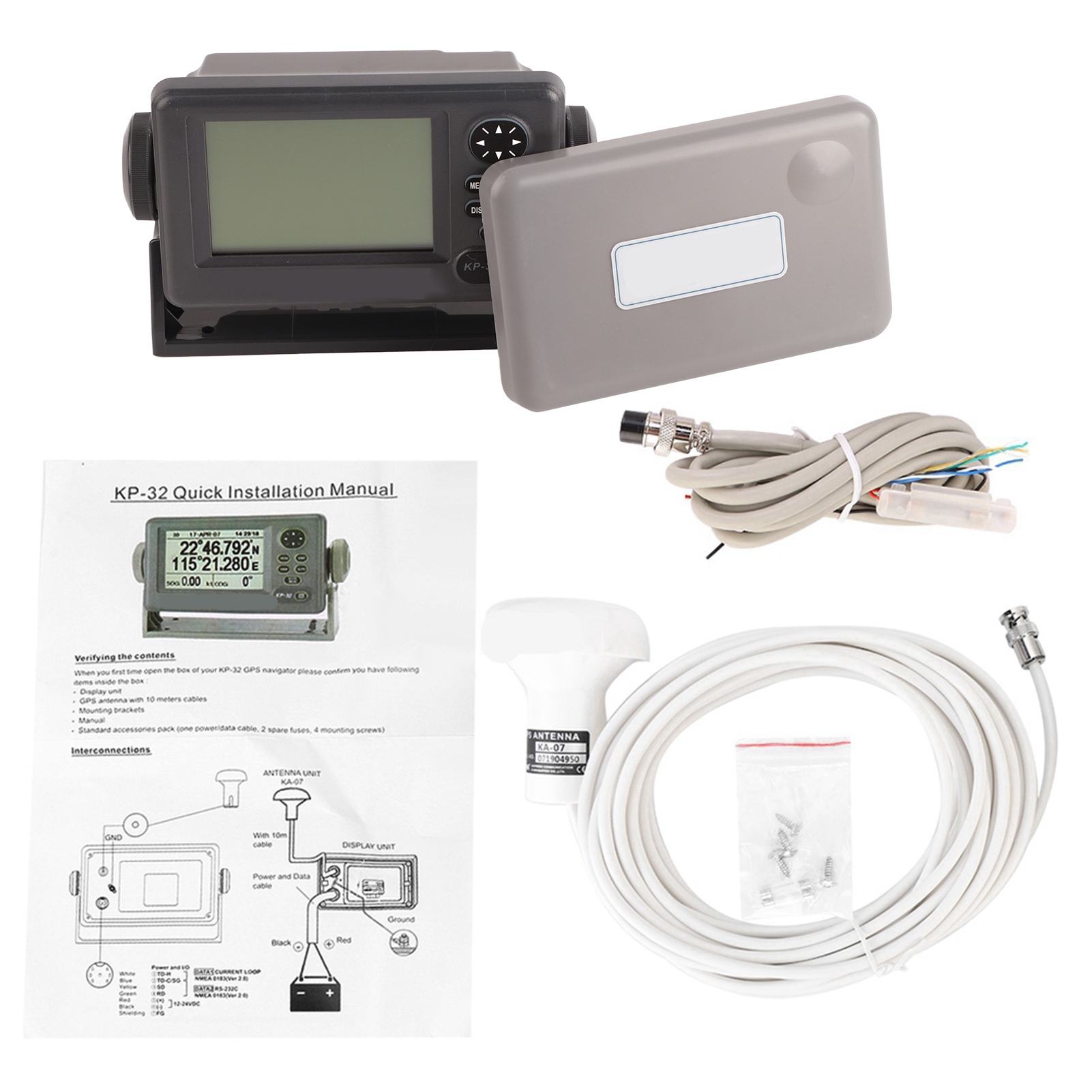

1 x GPS Navigator

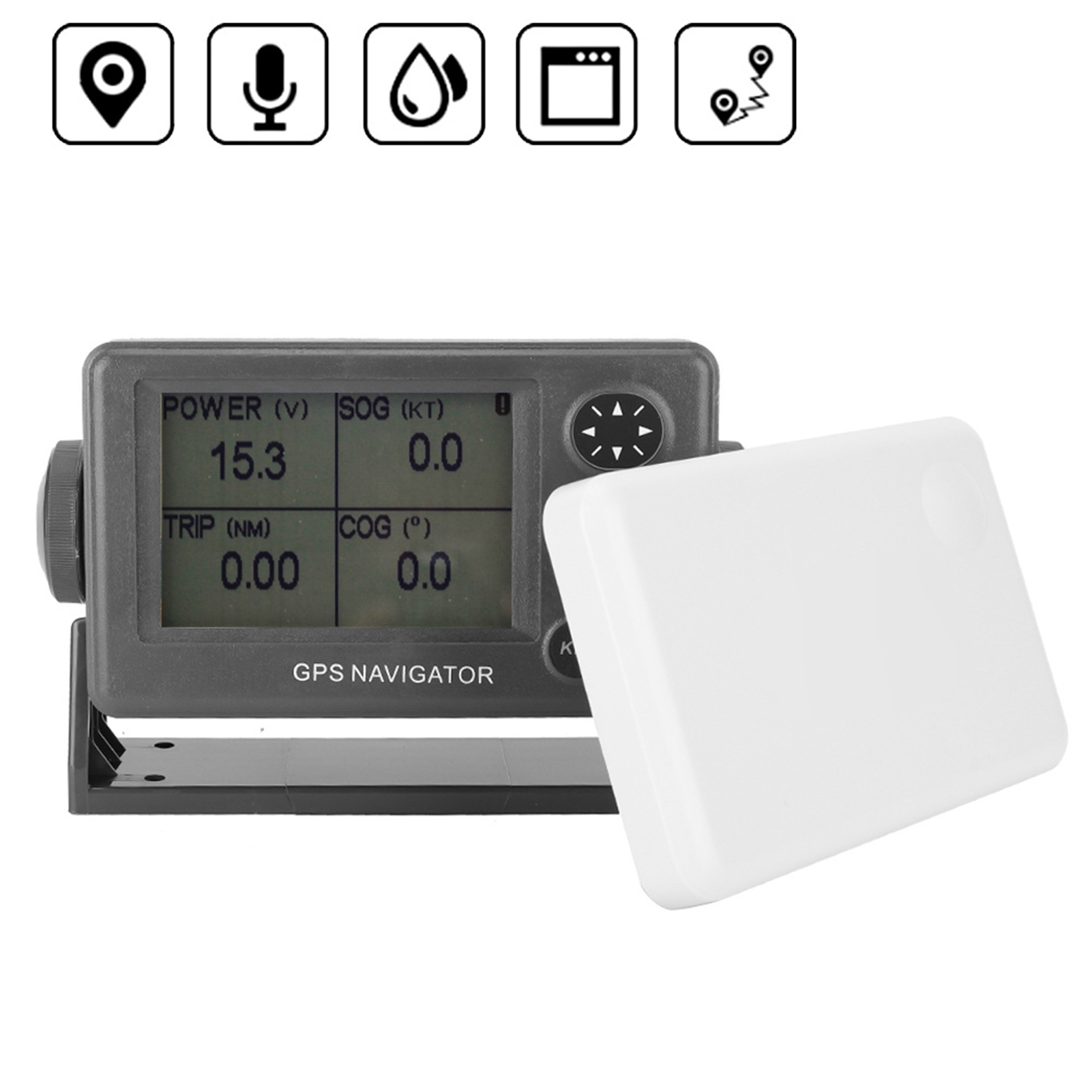

1 x GPS Antenna

1 x 7 Core Cable

1 x Navigator Protective Case

1 x Screw Kit
