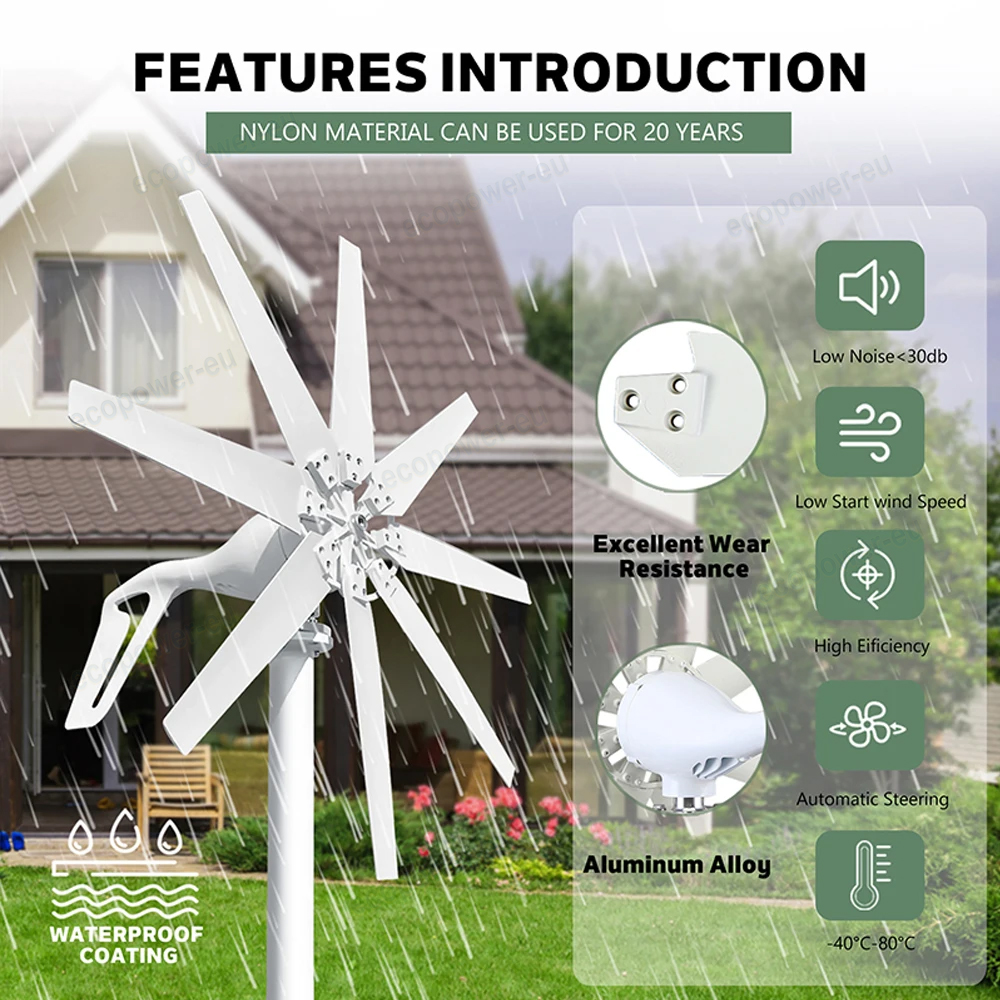

Key Features
Premium Material: The blades are made of Nylon fiber which is waterproof, corrosion-resistant, and lightweight, along with die-casting aluminum
alloy fuselage and stainless steel fittings, making this product durable and strong. Moreover, the wire is heat-resistant and moisture-resistant,
which is safe to use.
High Efficiency: Controlled by MPPT intelligent microprocessor, it can effectively regulate the current and voltage(12V, 24V, 48V ), and has a high
utilization rate of wind energy, which contributes to the annual power generation. MPPT charge is waterproof and dustproof and can be applied to
all environments and all seasons.
Stable Performance: The unique magnetic circuit design makes the starting torque very small, ensuring its breeze starting ability. Moreover,
the 3-phase AC permanent magnet generator and 3500W maximum power help this machine reach the maximum wind speed of 60m/s.
Modern Appearance: The round fuselage, fan-shaped blades, smooth lines, and timeless white color make this product look elegant and modern,
fitting any scene.
Low Vibration&Noise: The double-groove thickened ball bearing makes it more stable with low vibration. And the 40db low noise provides a more
comfortable environment.
Easy to Assemble&Disassemble: With complete accessories and an English manual, you can assemble this wind turbine easily.
And you can disassemble these blades for convenient storage when not in use.
Easy to Clean: Because of the smooth surface with plastic spraying, you can wipe the dirt from the machine and blades with a wet cloth.

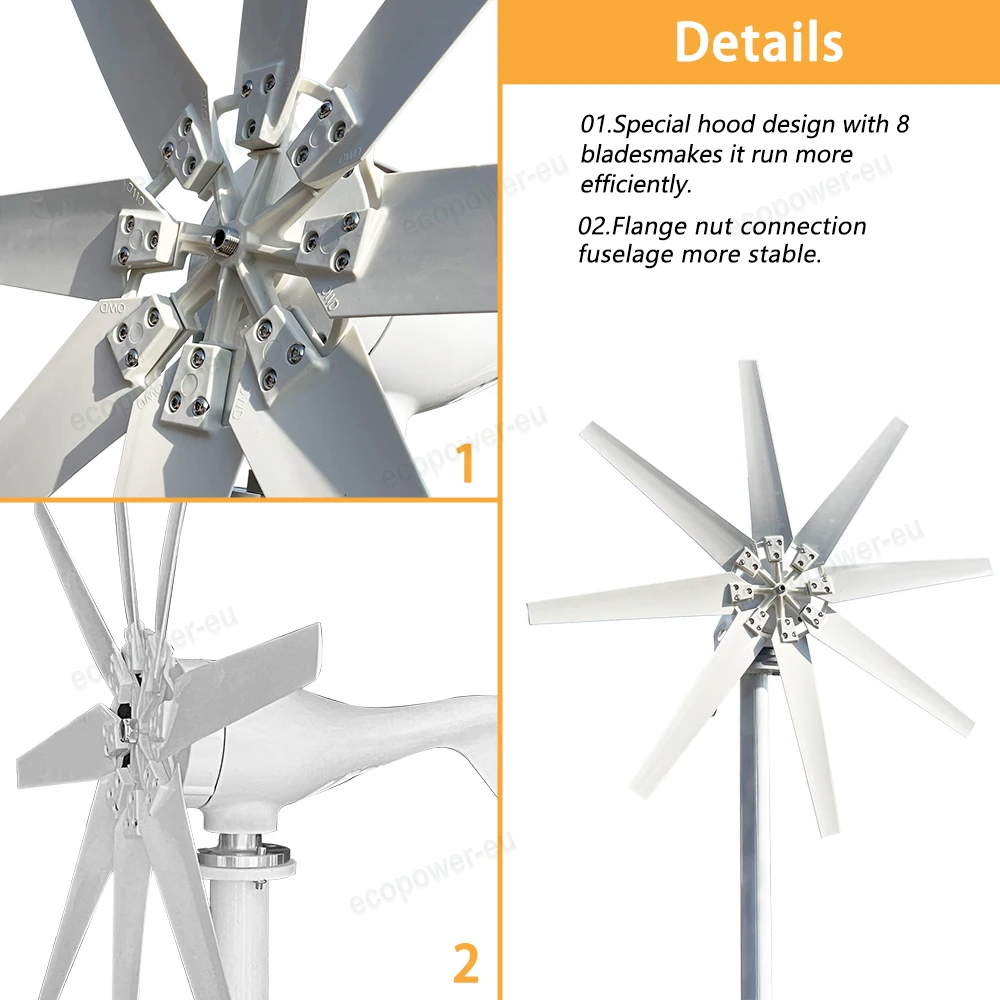

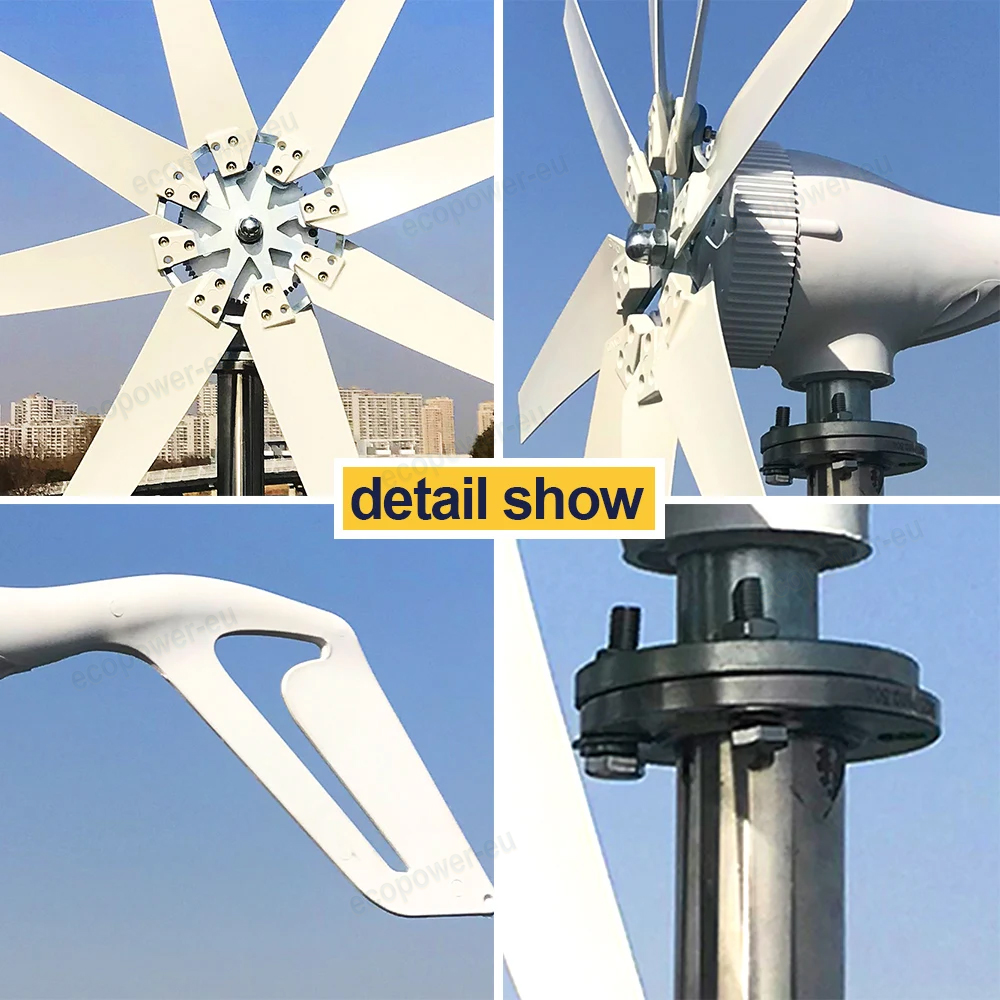

Details
1. Built-in Copper Insert: The copper insert won't damage the nylon fiber material when the bolt is tightened.
2. Flange Connection: The flange connection allows for a stable and firm connection between the wind turbine and the tower tube(excluded), making it safer to use.
3. Round Edge: The round edge of the blades and generator prevents your hands from scratching during installation.
Specifications
Color: White
Material: Nylon Fiber, Die-casting Aluminum Alloy, Neodymium Iron Boron
Process: Plastic Spraying, Die-casting
Shape: Fan-shape, Round
Style: Modern
Special Feature: Durable
Installation Method: Vertical Type
Wind Direction Adjustment: Automatically Adjust the Windward Angle
Generator Type: 3-Phase AC Permanent Magnet Generator
Braking Method: Electromagnetic
Number of Blades: 8 or 10 （for your choices）
Voltage: 12V/24V/48VAuto
Rated Power: 3000W
Max. Power: 3500W
Start-up Wind Speed: 3m/s
Rated Wind Speed: 13m/s
SafeWind Speed: 50m/s
Max. Wind Speed:60m/s
Working Temperature: -40 ~ 80 ℃/-40-176℉
Noise: 40db

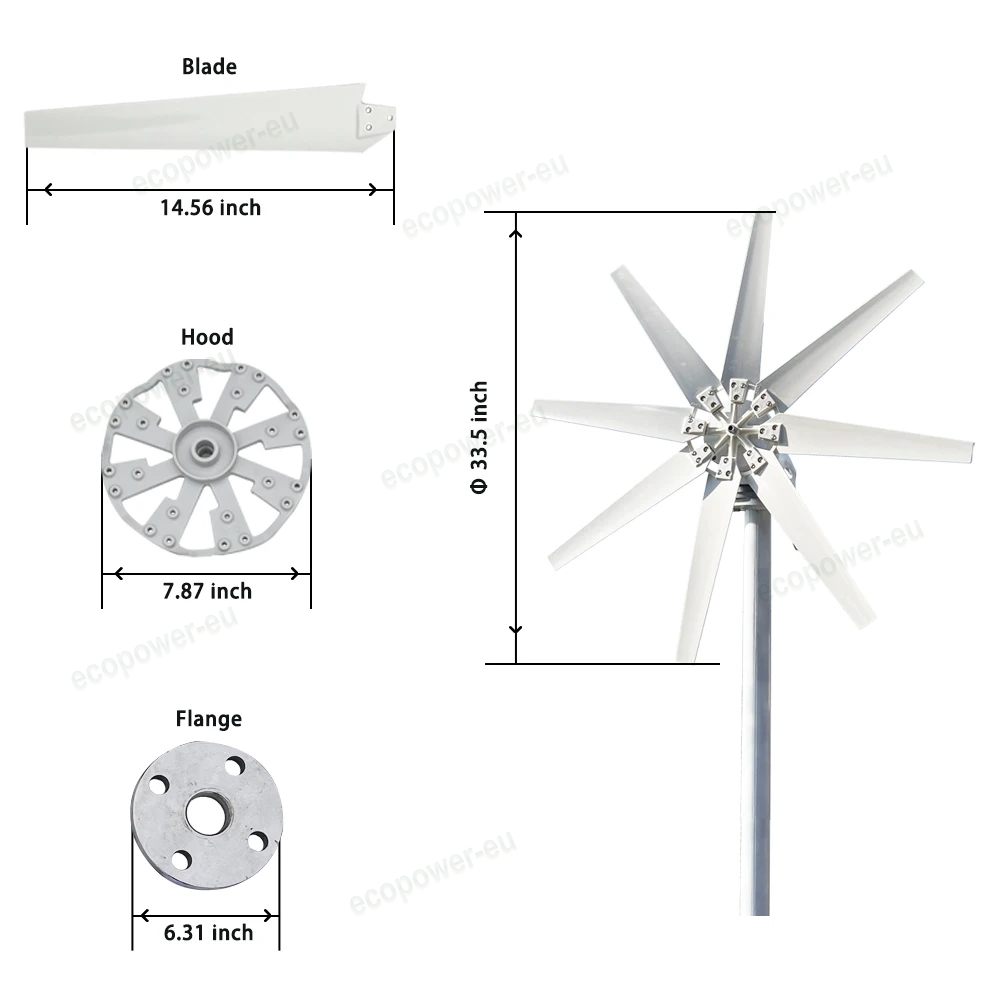

Blade Length(Each): 40cm/15.7inch
Blade Diameter(Wheel Included): 92cm/36.22inch
Tower Tube Diameter: 42-45mm/1.65-1.77inch(Not Included)
Gross Weight: 8.2kg/18.07lbs

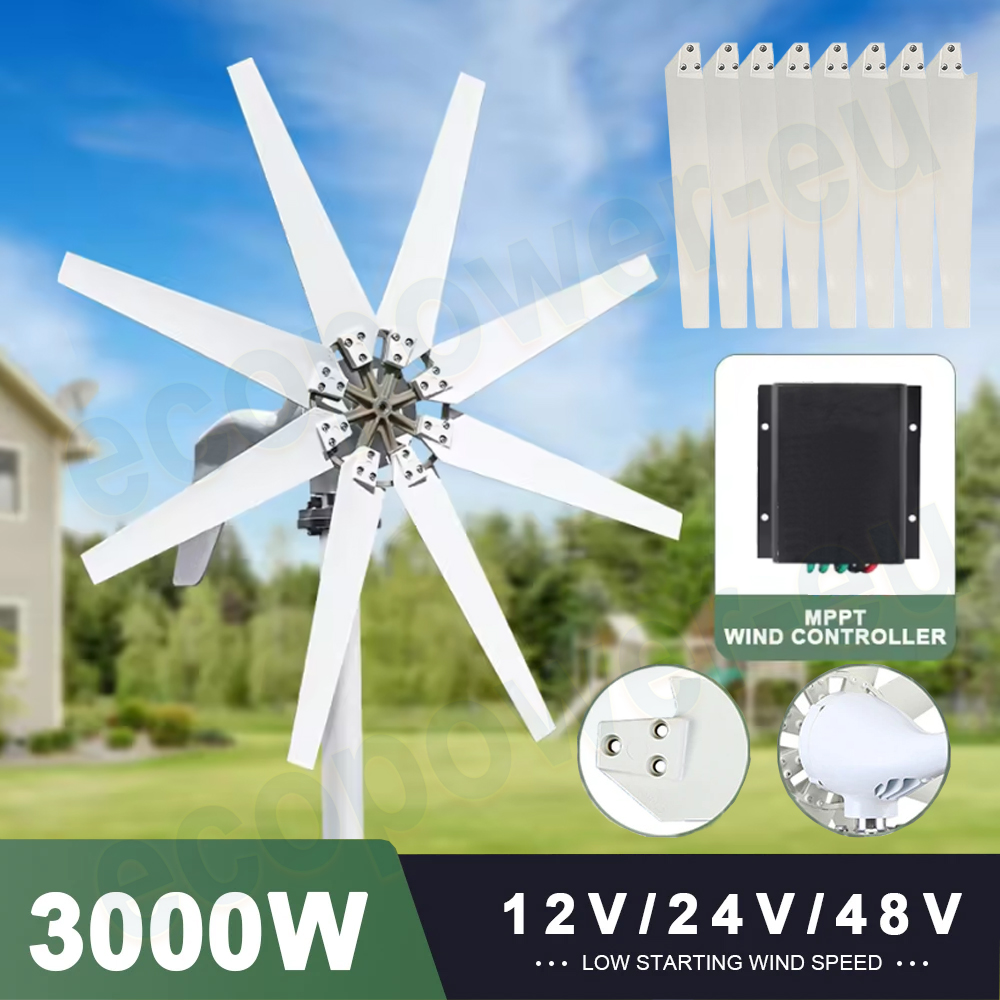

Package Included
1* Wind Turbine
8* Blades or 10 * Blades
1* Wind Wheel
1* Controller
1* Flange Plate
1* English Manual
Other Accessories for Assembly.

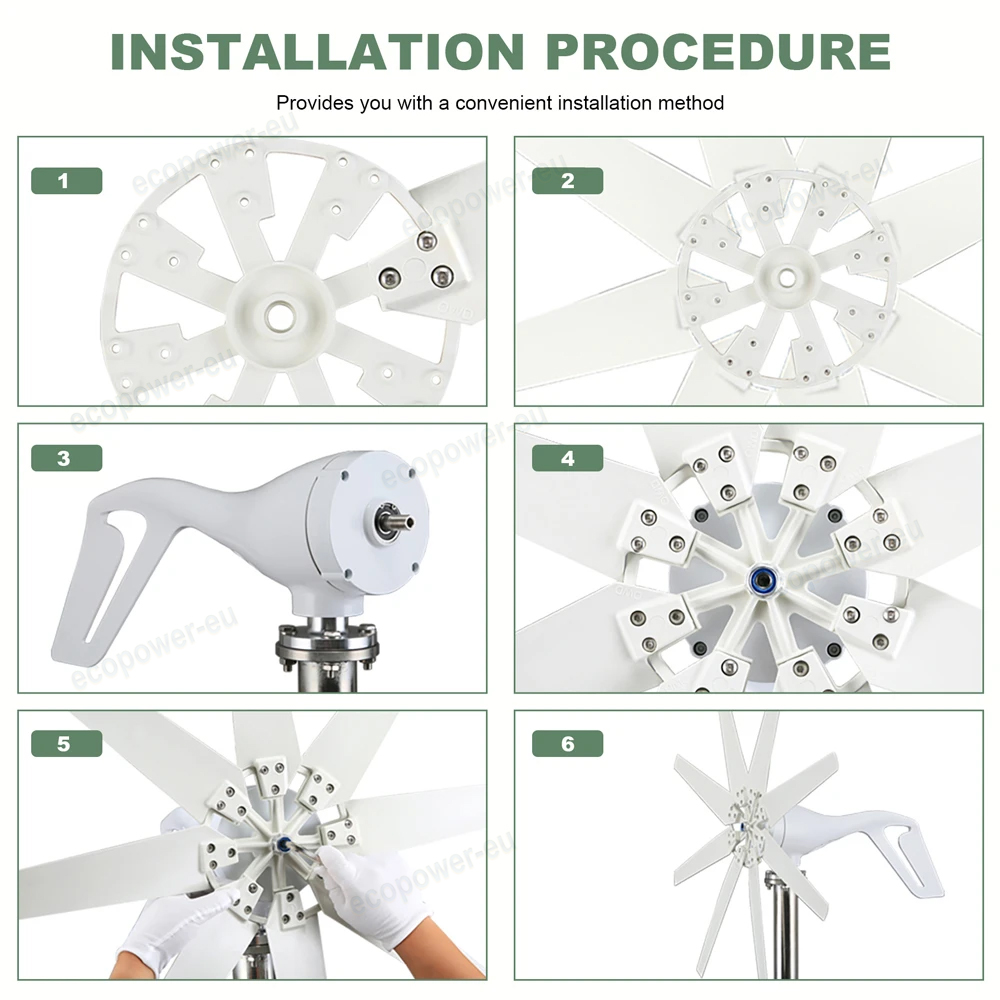

How to Install
Take out the wind turbine, put it on the tower, and align it with the flange holes. Install four flat washers on the four bolts, and then insert the
bolts into the corresponding holes of the flange. Tighten the screws with an Allen key.
The three wires of the wind turbine are connected with the transmission cable, each pair of wires is not less than 30mm, and the adhesive tape at the connection end is 100mm.

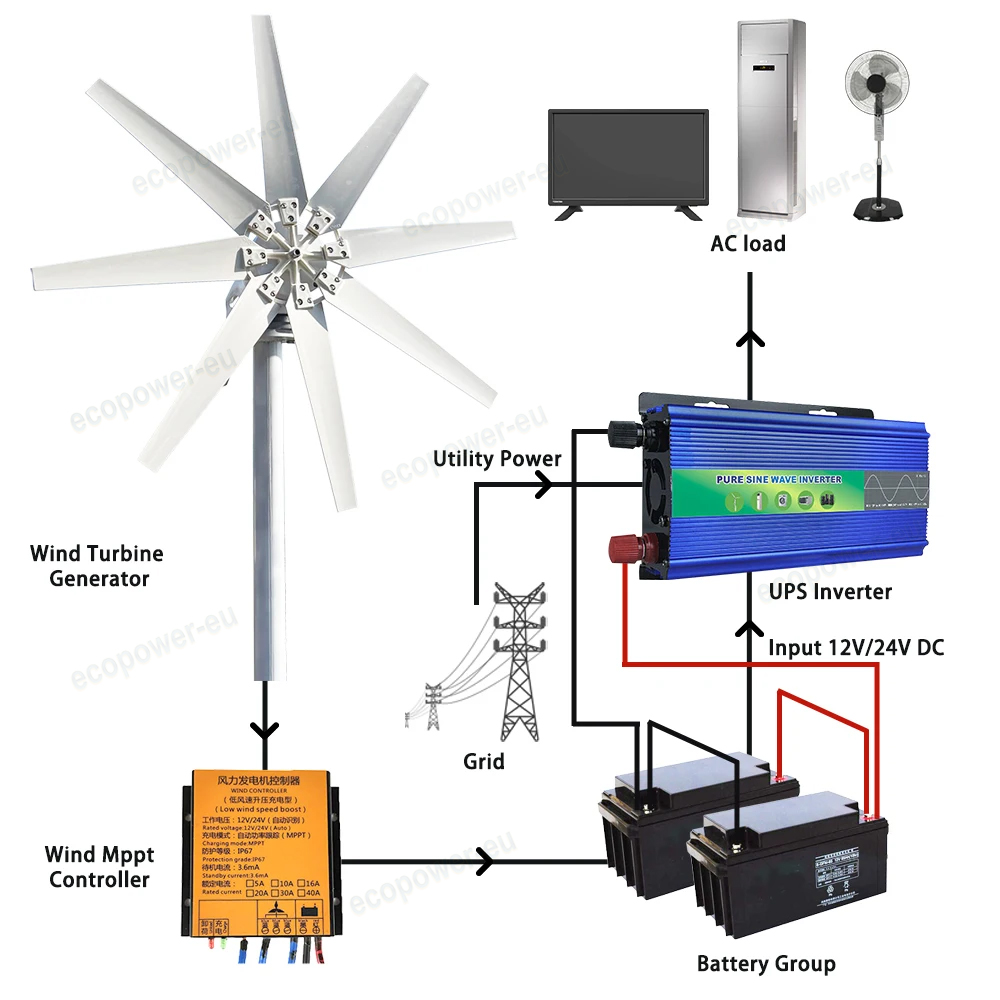

Connect the wind turbine cable to the controller. The battery must be connected to the controller before wiring.
Notes
1. This package does not include a tower tube, and we recommend using a steel pipe or iron pipe of 1.65-1.77" in diameter.

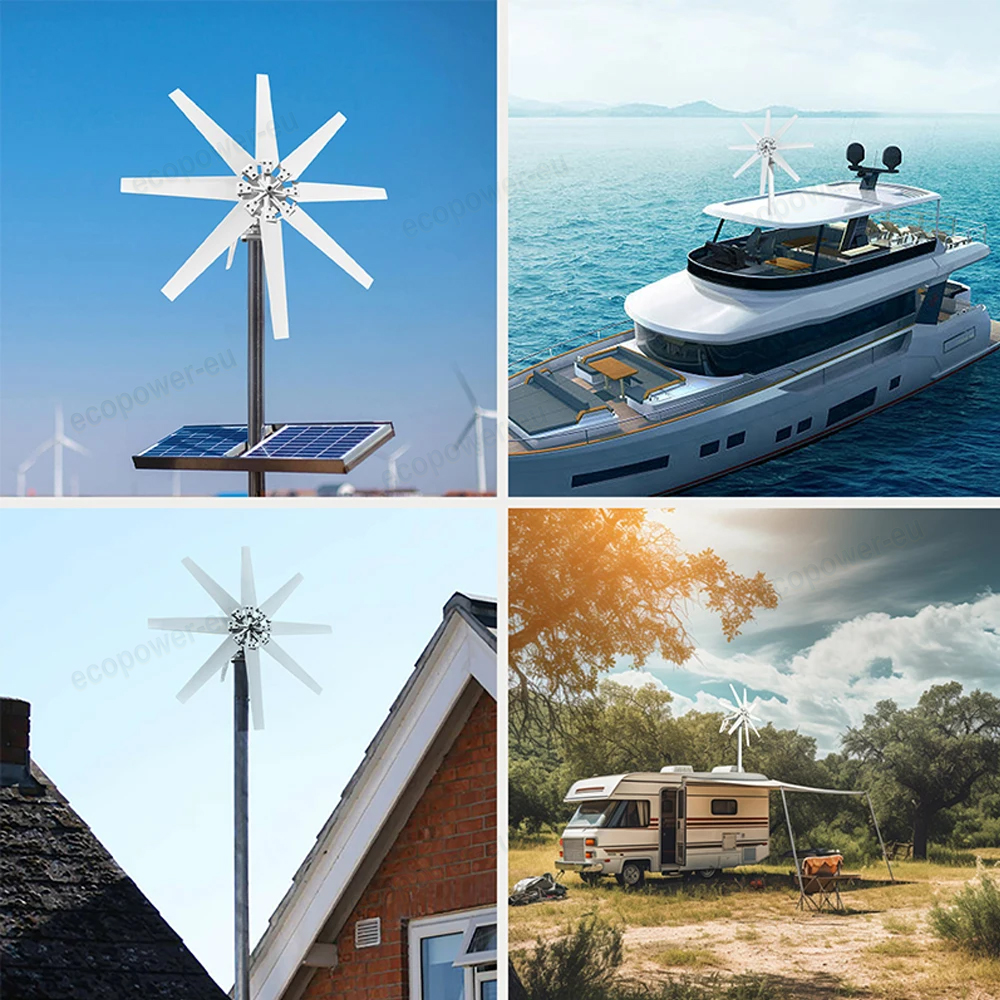

2. The wind turbine should be installed where there is strong wind or without tall buildings and obstacles. If installing it near the obstacles,
the position is better as far as possible from obstructions, or the installation height should be 20ft higher than the top of obstructions,
which can make full use of the wind power. It should avoid the cliff and the turbulent region.
3. The power of the wind turbine will increase with the wind speed. When the wind speed is very low, the wind wheel of the wind turbine will
remain stationary. When the cut-in wind speed is reached (usually 3m/s), the wind wheel starts to rotate and the generator starts to generate
electricity. As the wind becomes stronger, the output power will increase. When the wind speed reaches the rated wind speed, the wind turbine
will output its rated power. After that, the output power will remain roughly unchanged. When the wind speed increases further and reaches the
cut-out wind speed, the wind turbine will brake without power output to avoid damage.
4. Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do
not mind before you order.
