Rex-c series intelligent temperature control regulator adopts analog power supply and SMT patch technology, the instrument is delicate, compact and reliable performance, as well as the unique self-diagnosis function, self-setting function and intelligent control function and other advantages so that the operator can get good temperature control effect through simple operation.

Features:

• PID intelligent control, high accuracy, fast and great performance, practical function.
• The instrument is an intelligent double-row three-digit/four-digit display instrument, which displays the measured value and the set value respectively.
• Instrument allows a variety of signal input, the use of two - position, PID control.
• Instrument parameter setting is simple, input information is convenient, there are 12 kinds of alarm function
• Widely used in mechanical, chemical, ceramic, light industry, metallurgy, petrochemical, heat treatment and other industries automatic temperature control

Specification:

Measurement accuracy:±(0.5%FS+1 bit)

The cold end compensating error:±2℃( software correction within the 50-100℃)

Resolution: 14 bits

Sampling period: 0.5 Secretary

Power supply: ac100-240v 50Hz

Control mode: PID control, bit control

Insulation resistance: > 50M (500VDC)

Insulation strength: 1500VAC/ min

Power consumption: < 10VA

Environment: 0 to 50℃, 30 ~ 85% RH no corrosive gas

Overall : 72 * 72 * 110mm / 2.83 * 2.83 * 4.33in
Opening size :(67+1) * (67+1) *110

Weight: 245 g / 8.6 oz(approx.)

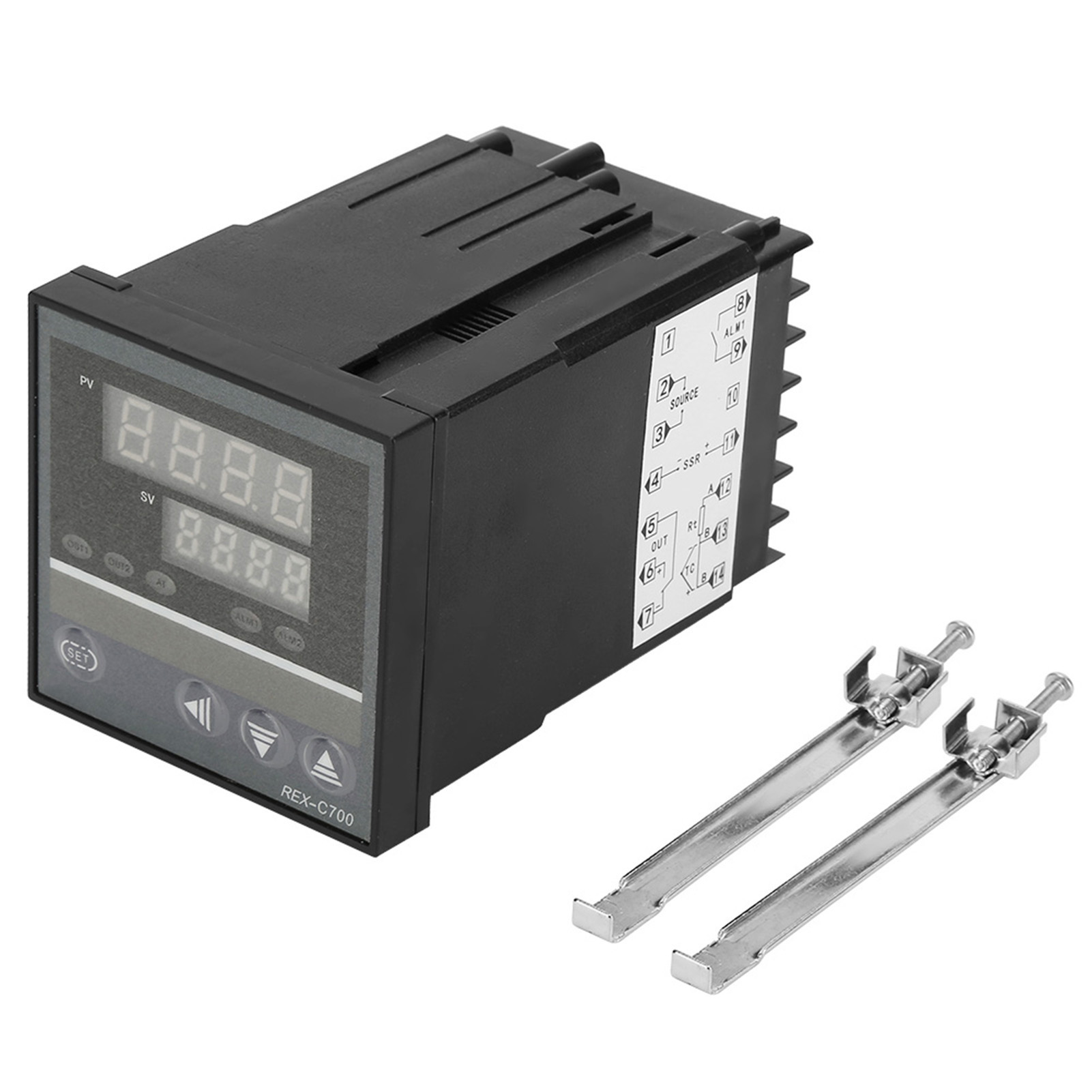

Package list:

1 x Digital Temperature Controller

1 x manual

2 x bracket

Note:
