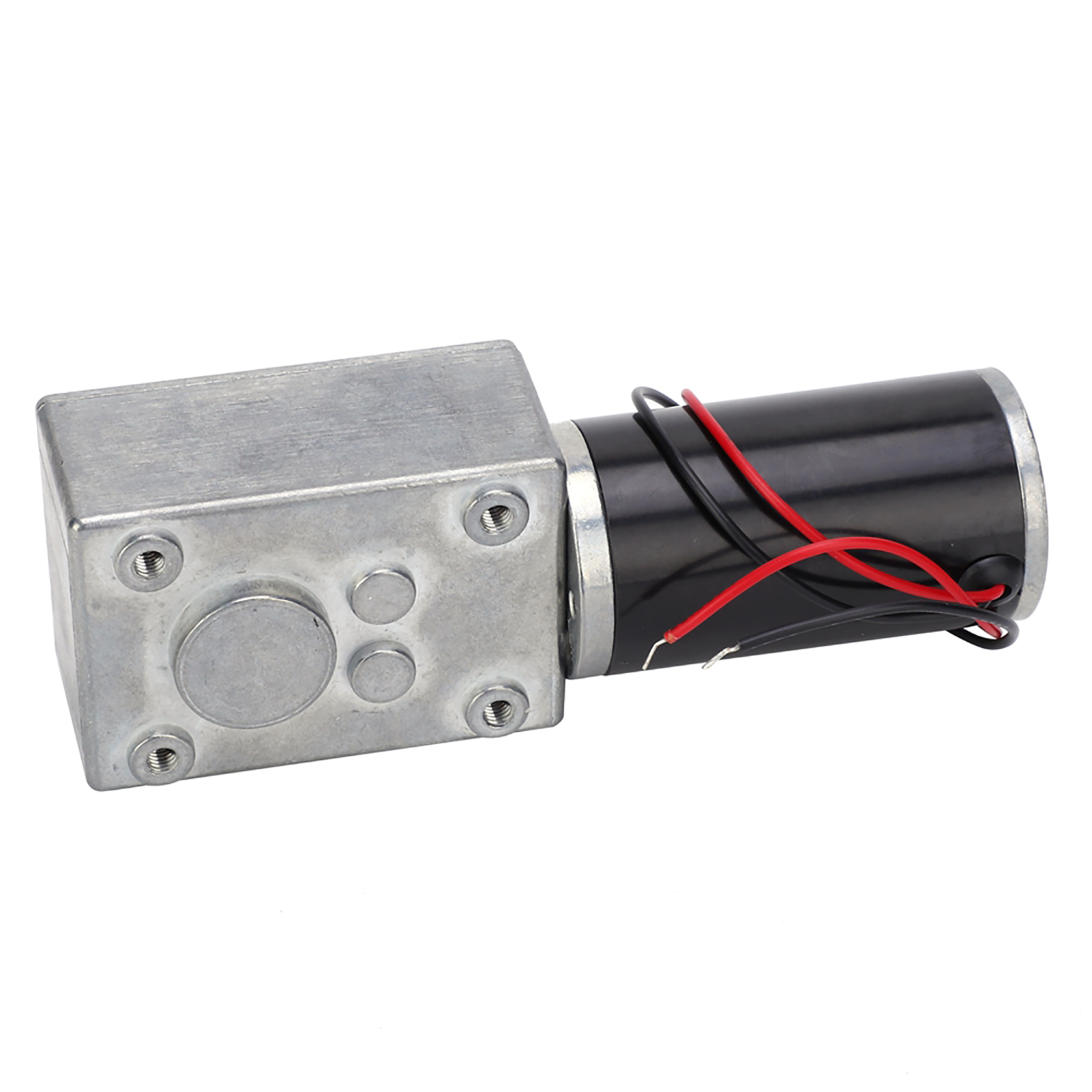

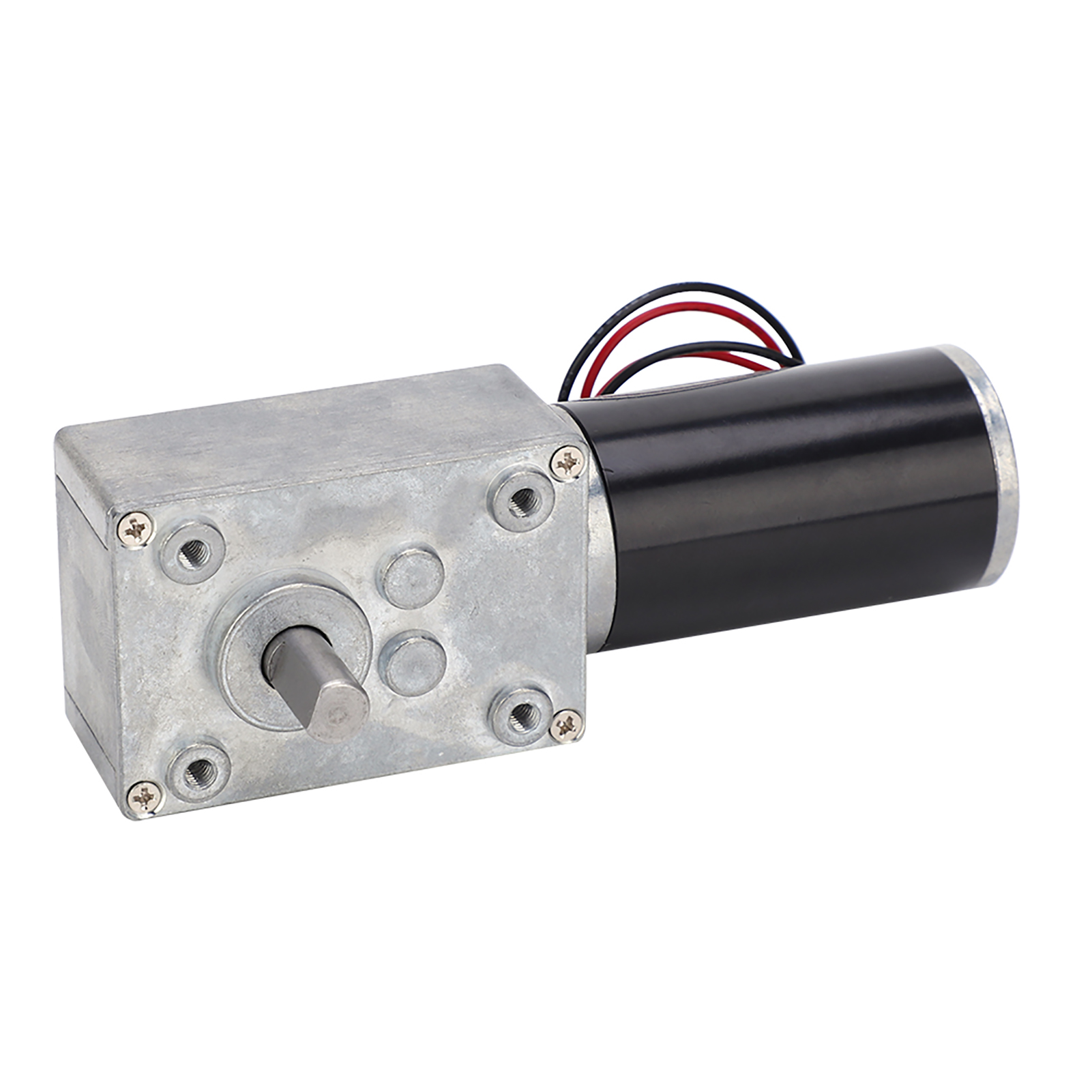

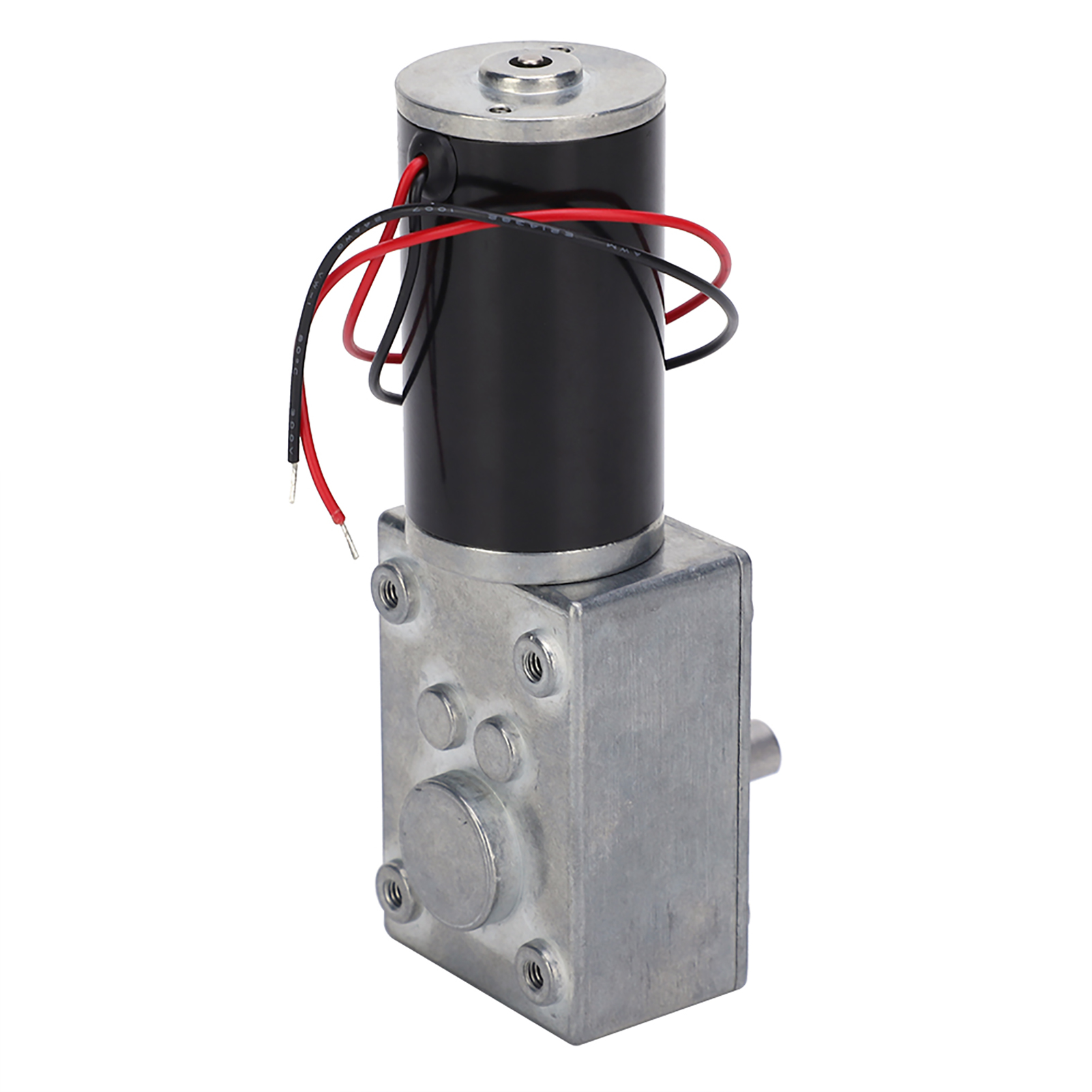

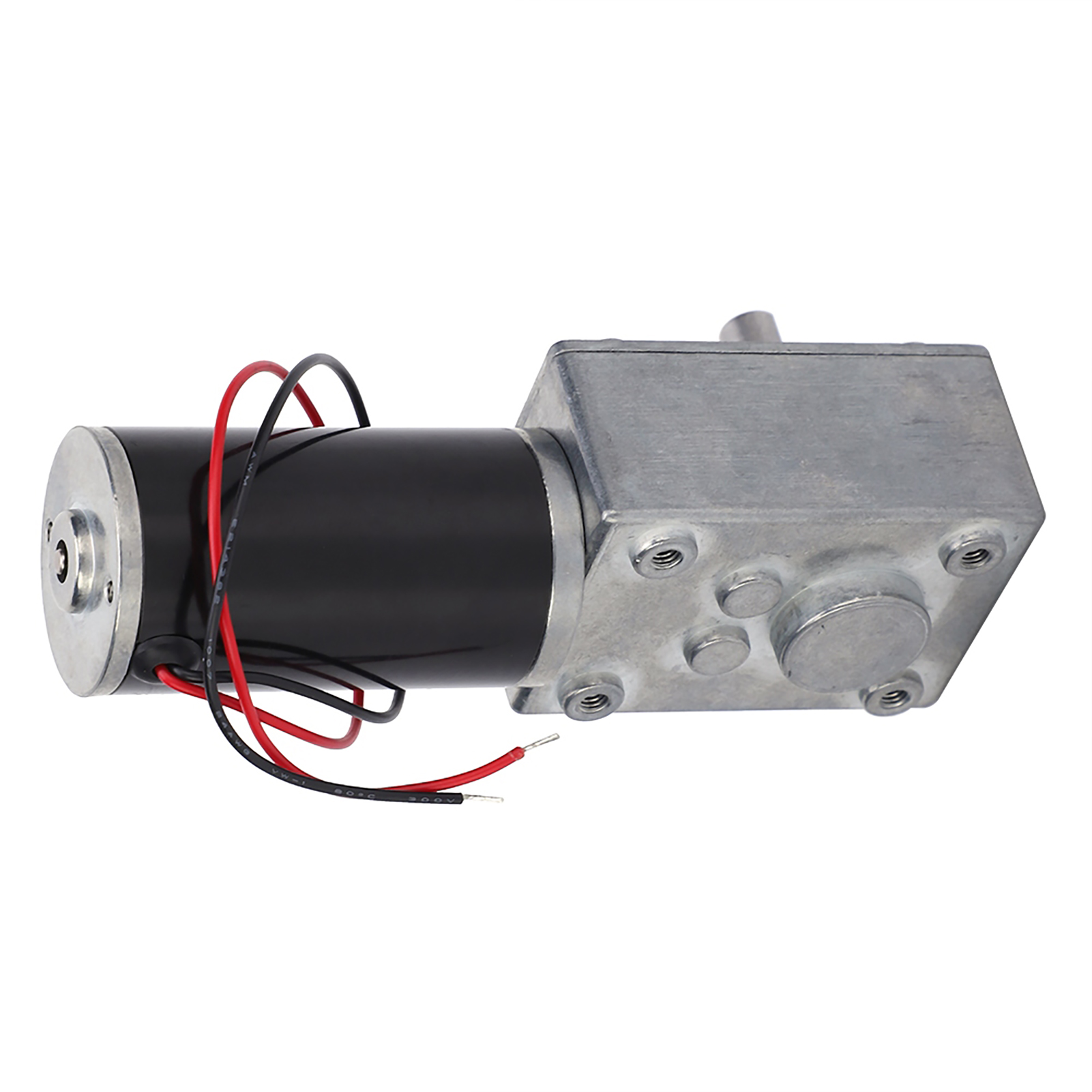

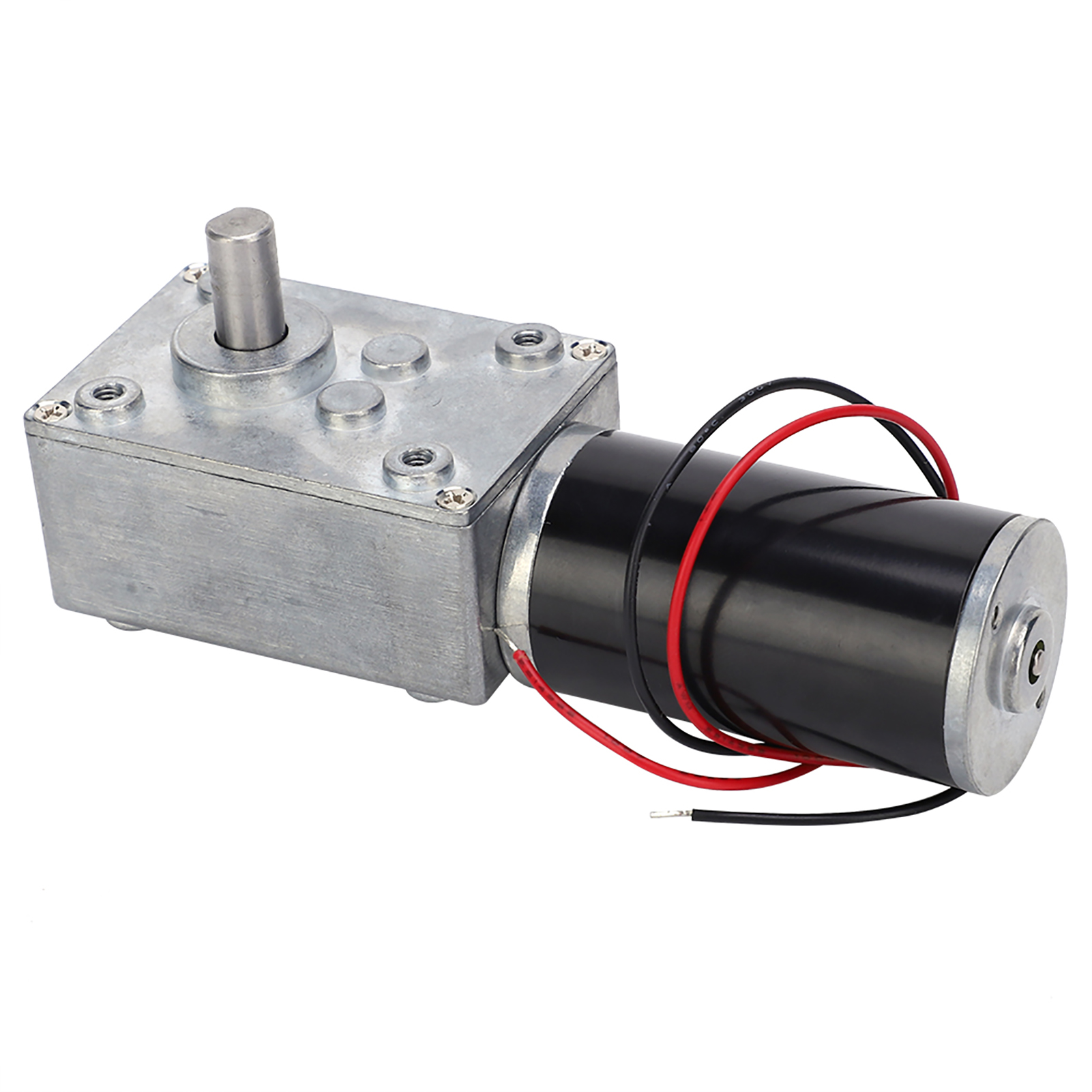

Feature:
1. Gear transmission is stable, shock‑resistant and wear‑resistant, and possess large transmission torsion
2. The brush DC motor have strong motor power output, which is powerful and practical
3. Worm gear is made of high quality brass materials, which is strong and shock resistant

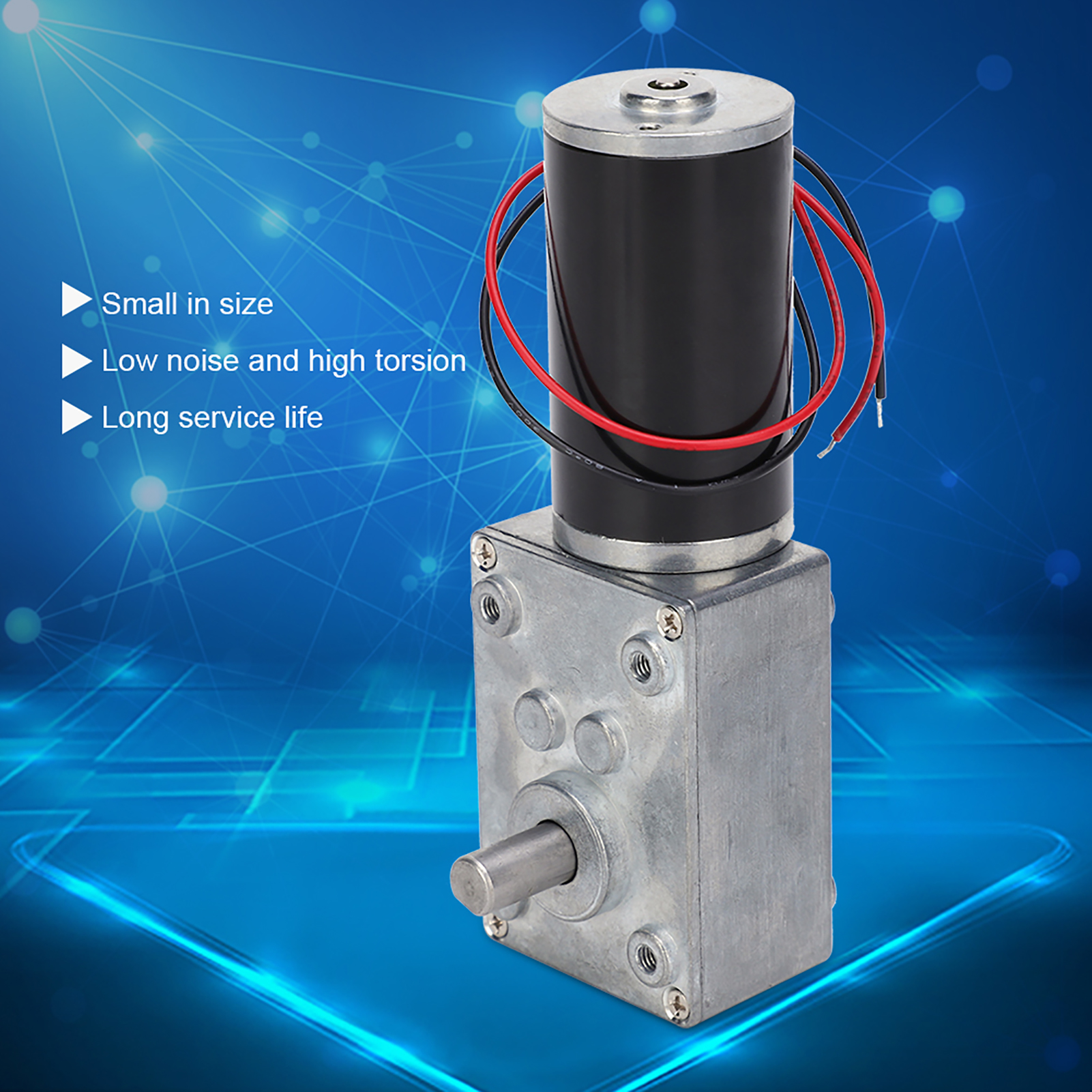

4. This 31mm gear motor is small in size, low noise and high torsion, and possess long service life

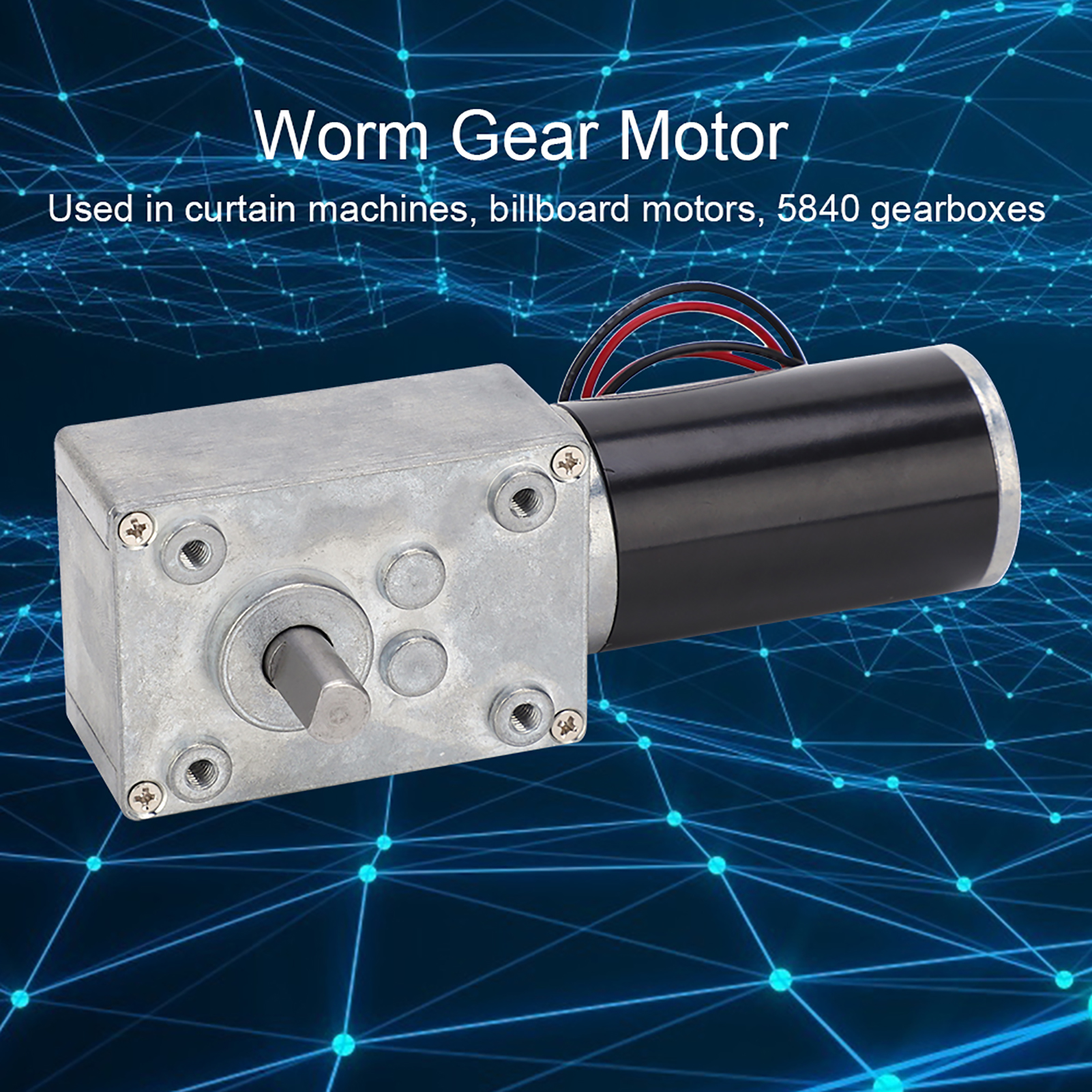

5. Permanent magnet product is mainly used in curtain machines, billboard motors, 5840 gearboxes, etc.
Specification:
Item Type: Gear Motor
Material: Copper, brass, zinc alloy
Model: 5840GW
Motor Type: Brush DC motor
Worm Length: Approx. 15mm / 0.6in
Motor: Approx. 31mm / 1.2in
Mainly used in curtain machines, billboard motors, 5840 gearboxes, etc.
Parameter:
| Model | Voltage | No-load speed（RPM） | Rated speed(RPM) | Rated torsion(KG.CM) | Rated current(MA) | Reduction ratio |
| 5840GW-12-6 | 12v | 6 | 5.5 | 18 | 850 | 500 |
| 5840GW-12-16 | 12v | 16 | 15 | 30 | 1020 | 500 |
| 5840GW-12-40 | 12v | 40 | 38 | 16 | 800 | 200 |
| 5840GW-12-80 | 12v | 80 | 75 | 10.5 | 1180 | 100 |
| 5840GW-12-160 | 12v | 160 | 151 | 4 | 1000 | 49 |
| 5840GW-24-6 | 24v | 6 | 5.6 | 20.7 | 380 | 500 |
| 5840GW-24-16 | 24v | 16 | 15 | 35 | 420 | 500 |
| 5840GW-24-40 | 24v | 40 | 38 | 18.5 | 450 | 200 |
| 5840GW-24-65 | 24v | 65 | 62 | 14.5 | 500 | 200 |
| 5840GW-24-80 | 24v | 80 | 72 | 12.5 | 480 | 100 |
| 5840GW-24-160 | 24v | 160 | 150 | 5.5 | 450 | 49 |

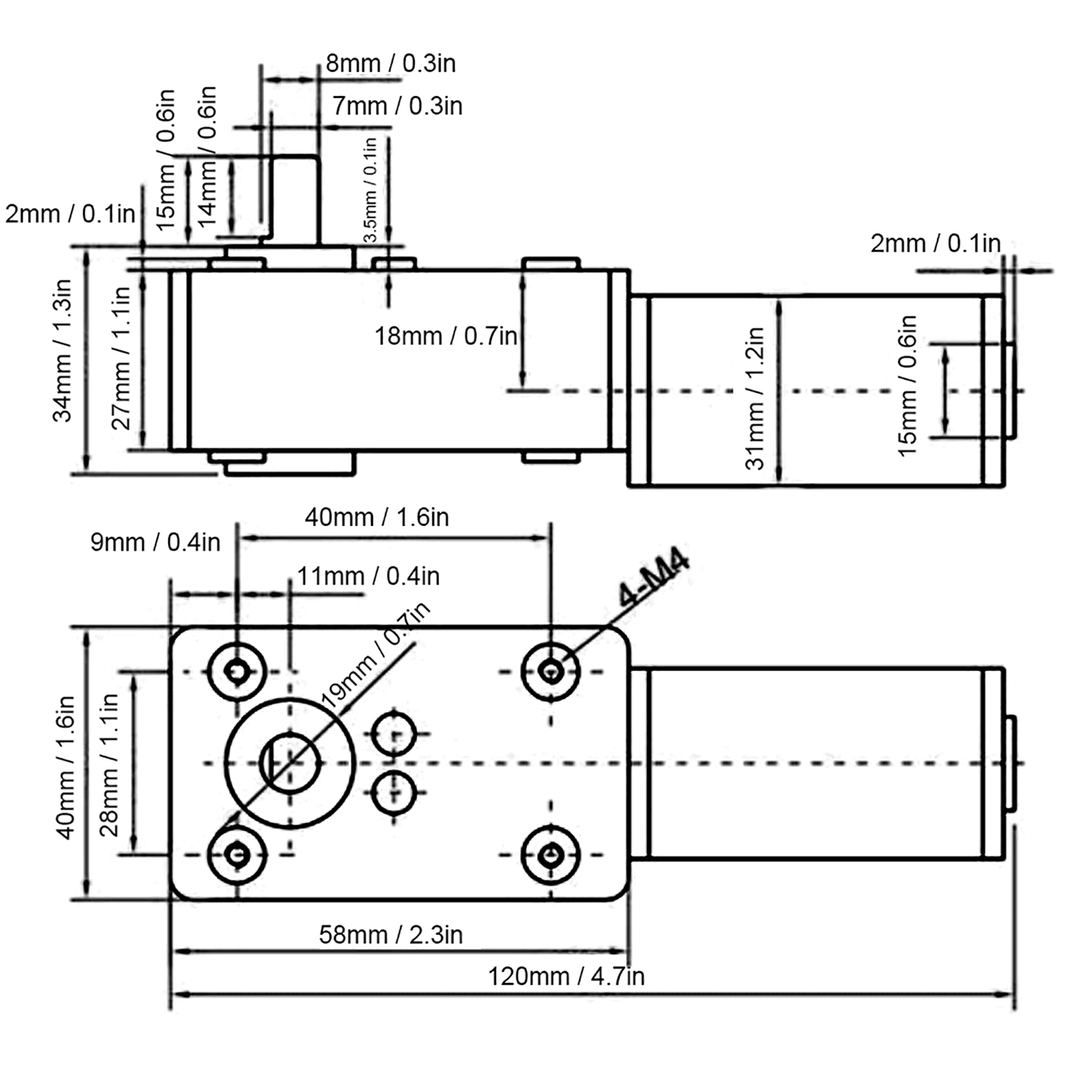

Size:
Approx. 34mm / 1.3in
Approx. 27mm / 1.1in
Approx. 2mm / 0.1in
Approx. 15mm / 0.6in
Approx. 14mm / 0.6in
Approx. 7mm / 0.3in
Approx. 3.5mm / 0.1in
Approx. 18mm / 0.7in
Approx. 2mm / 0.1in
Approx. 40mm / 1.6in
Approx. 28mm / 1.1in
Approx. 9mm / 0.4in
Approx. 40mm / 1.6in
Approx. 11mm / 0.4in
Approx. 58mm / 2.3in
Approx. 120mm / 4.7in
Diameter:
Approx. 8mm / 0.3in
Approx. 31mm / 1.2in
Approx. 15mm / 0.6in
Approx. 19mm / 0.7in
Package List:
1 x Gear Motor
