Feature:
1. High Subdivision Driver: The DM556 driver is suitable for high subdivision motors, adopts anti resonance design to maximize torsion, ensures smoother motion, lower motor heating, and lower noise.
2. 2 Phase Type: This is a professional digital two phase hybrid stepper motor driver, suitable for various brands of 4 wire, 6 wire, 8 wire two phase hybrid stepper motors, with an outer diameter of 57-86mm and a current of 5.6A or less.
3. Stepper Motor Specifications: The stepper motor features 6.35mm shaft diameter, 2.8A current phase, 1.8° step angle, 2 phase, 56mm step length, 126N.cm maintain torsion, 4 wire cable.

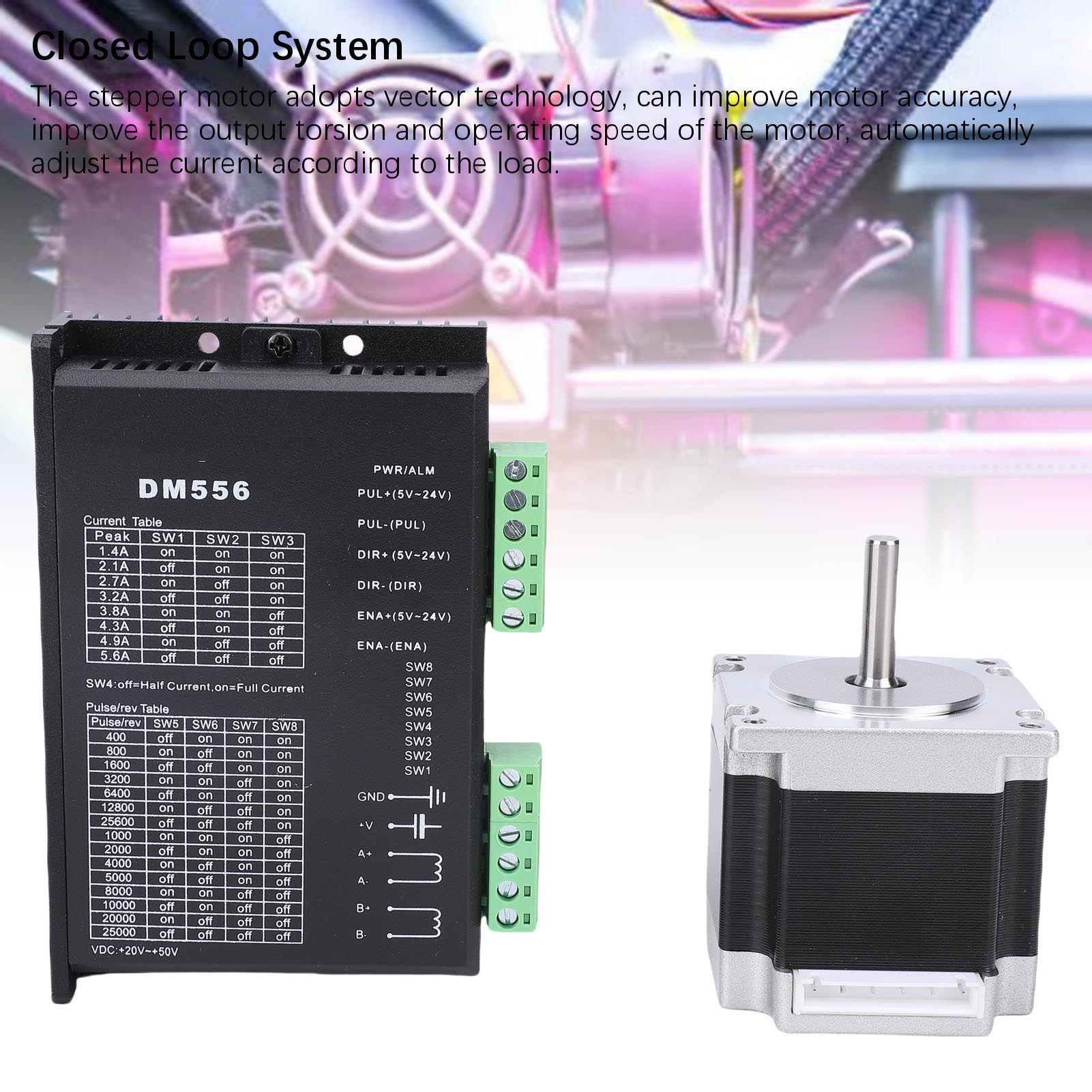

4. Closed Loop System: The stepper motor adopts vector technology, can improve motor accuracy, improve the output torsion and operating speed of the motor, automatically adjust the current according to the load.

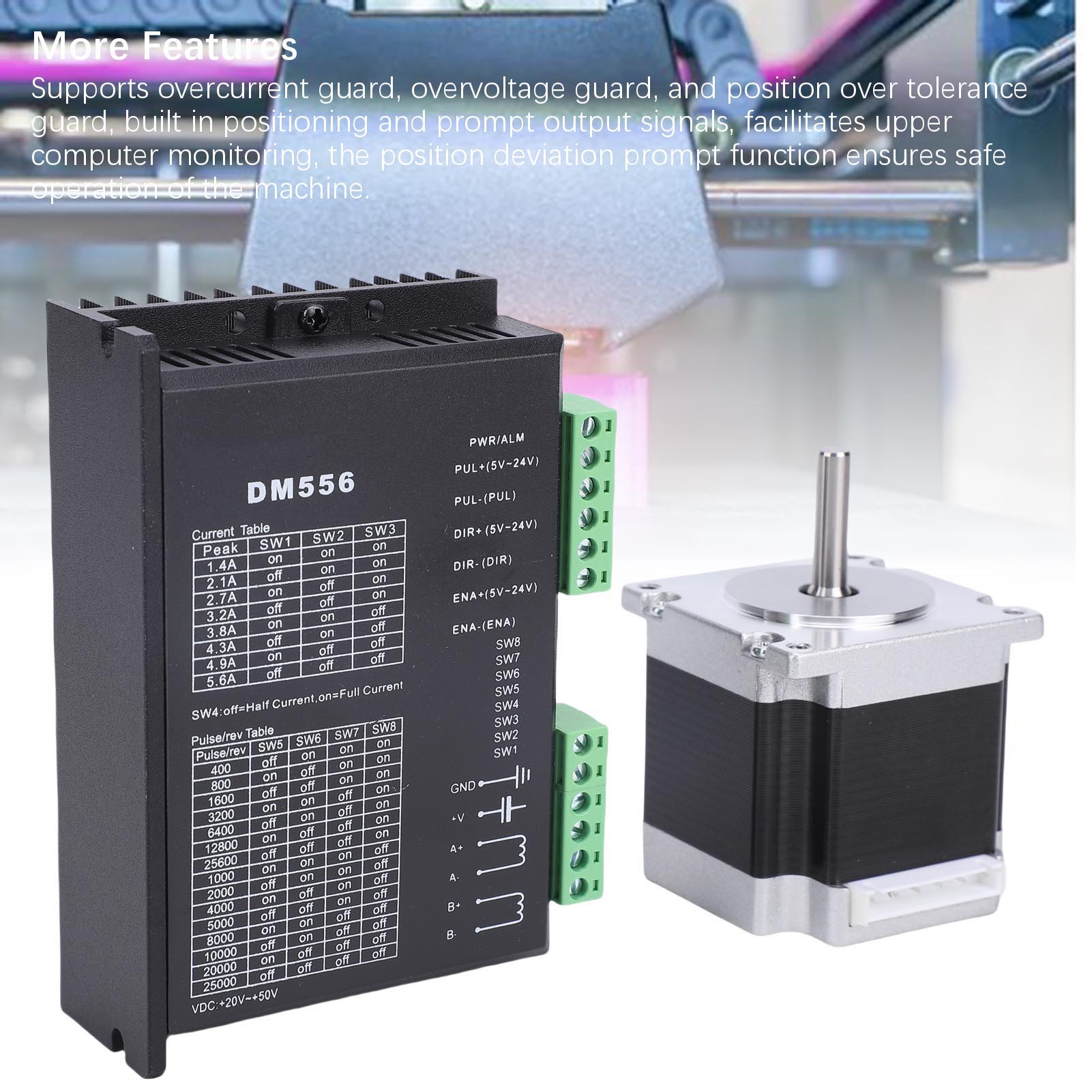

5. More Features: Supports overcurrent guard, overvoltage guard, and position over tolerance guard, built in positioning and prompt output signals, facilitates upper computer monitoring, the position deviation prompt function ensures safe operation of the machine.
6. Wide Application: This stepper motor and driver kit is suitable for any small to medium sized automation equipment with CNC controllers, such as X Y Z workbenches, labeling machines, engraving machines.
Specification:
Material: Alloy Steel, PCB, Aluminum Alloy, ABS

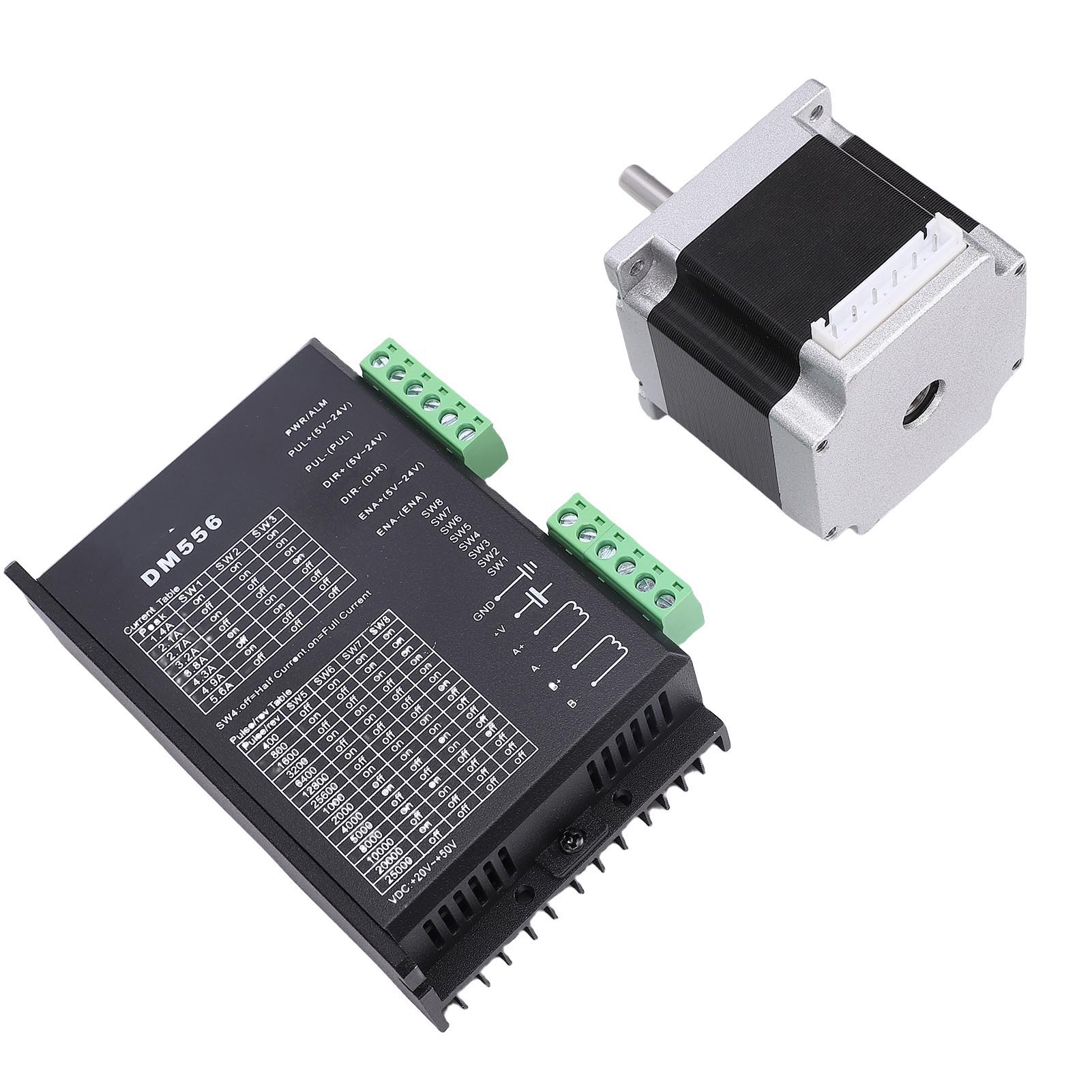

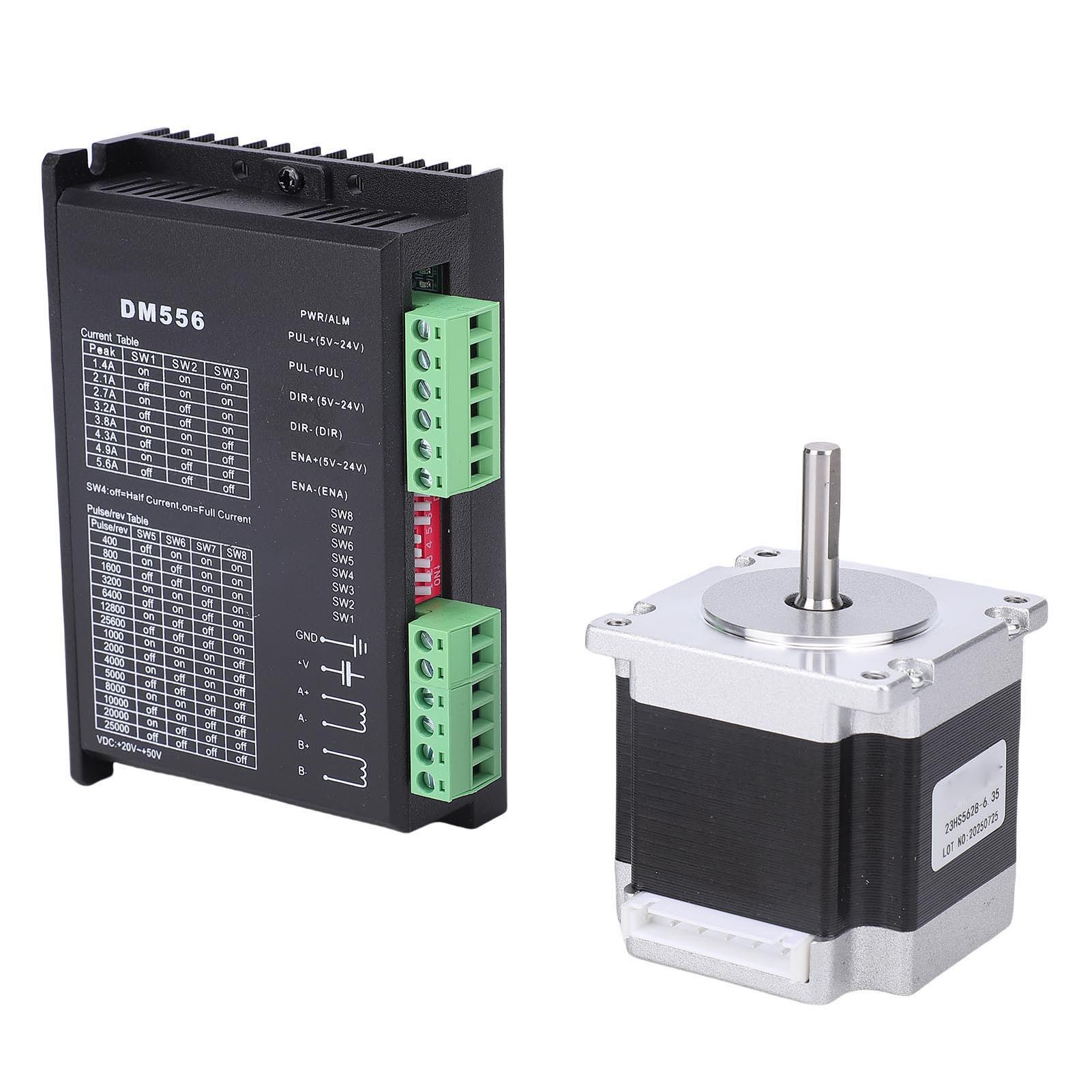

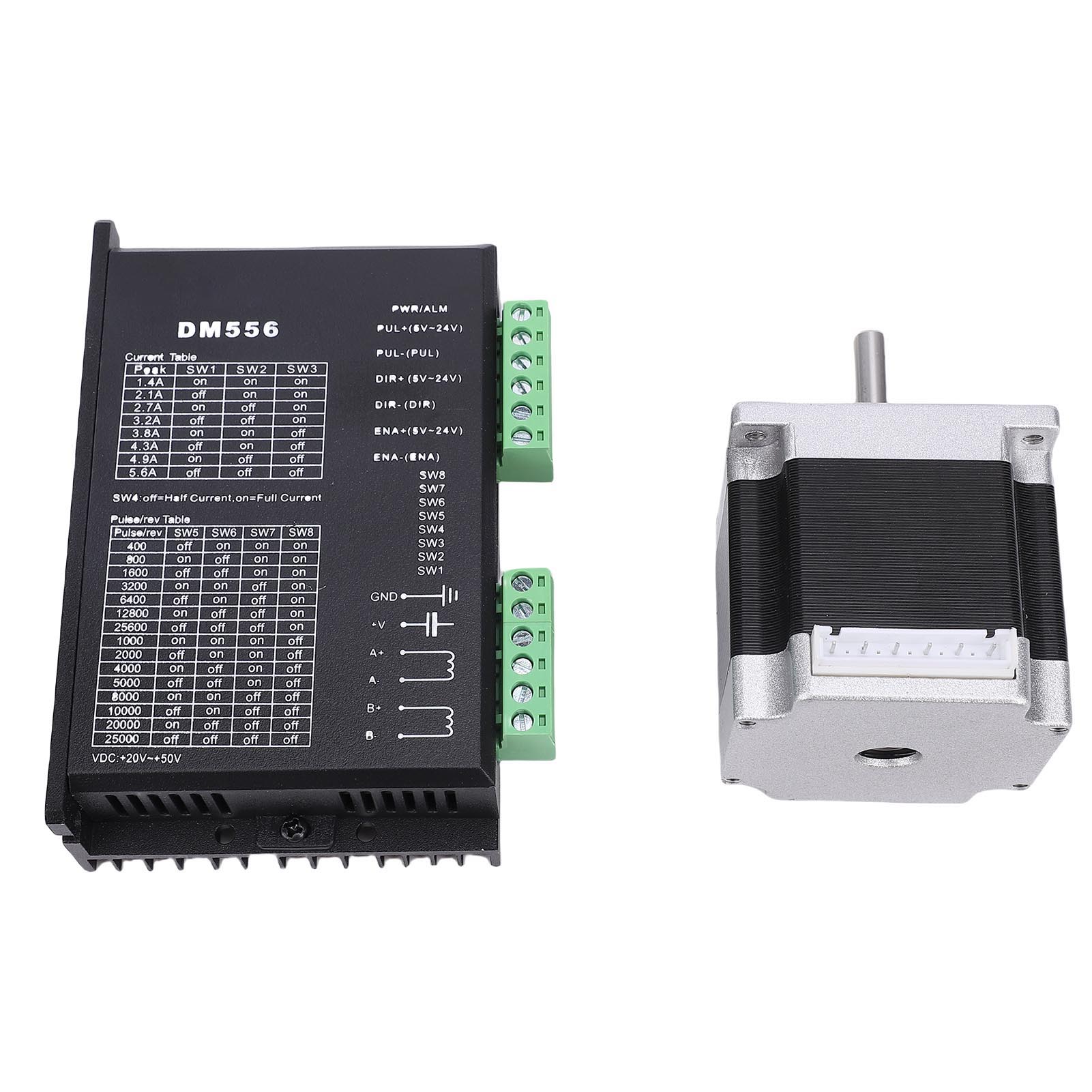

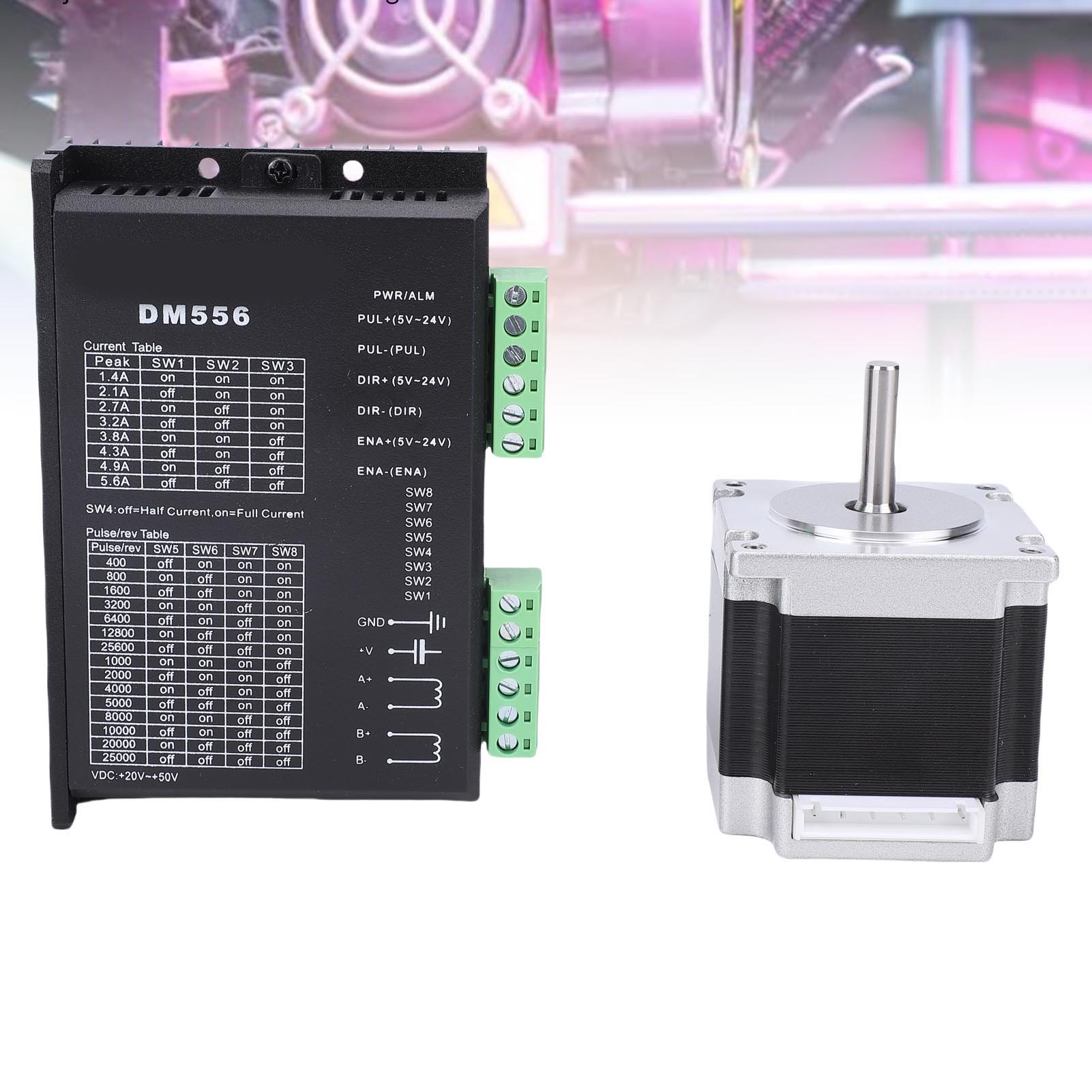

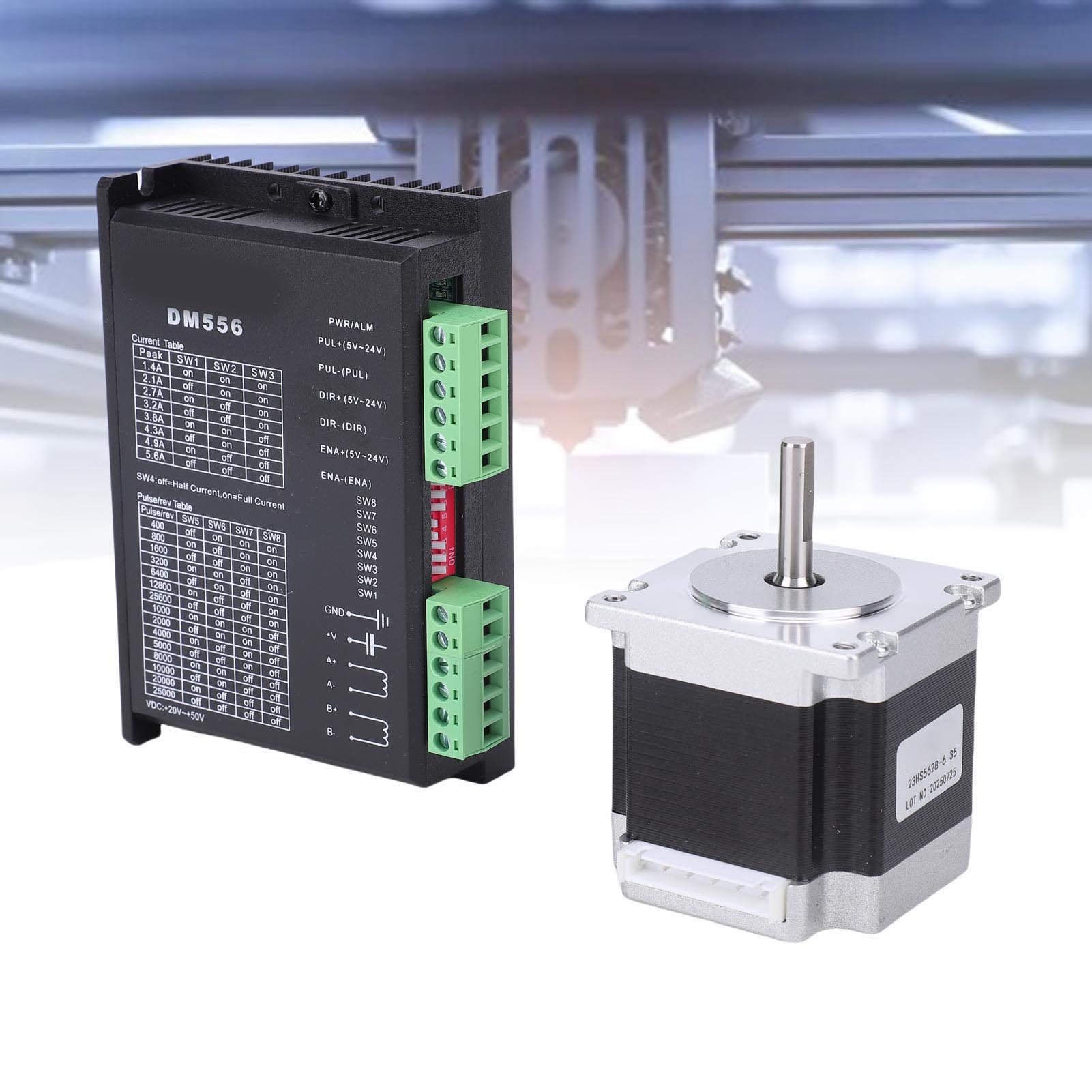

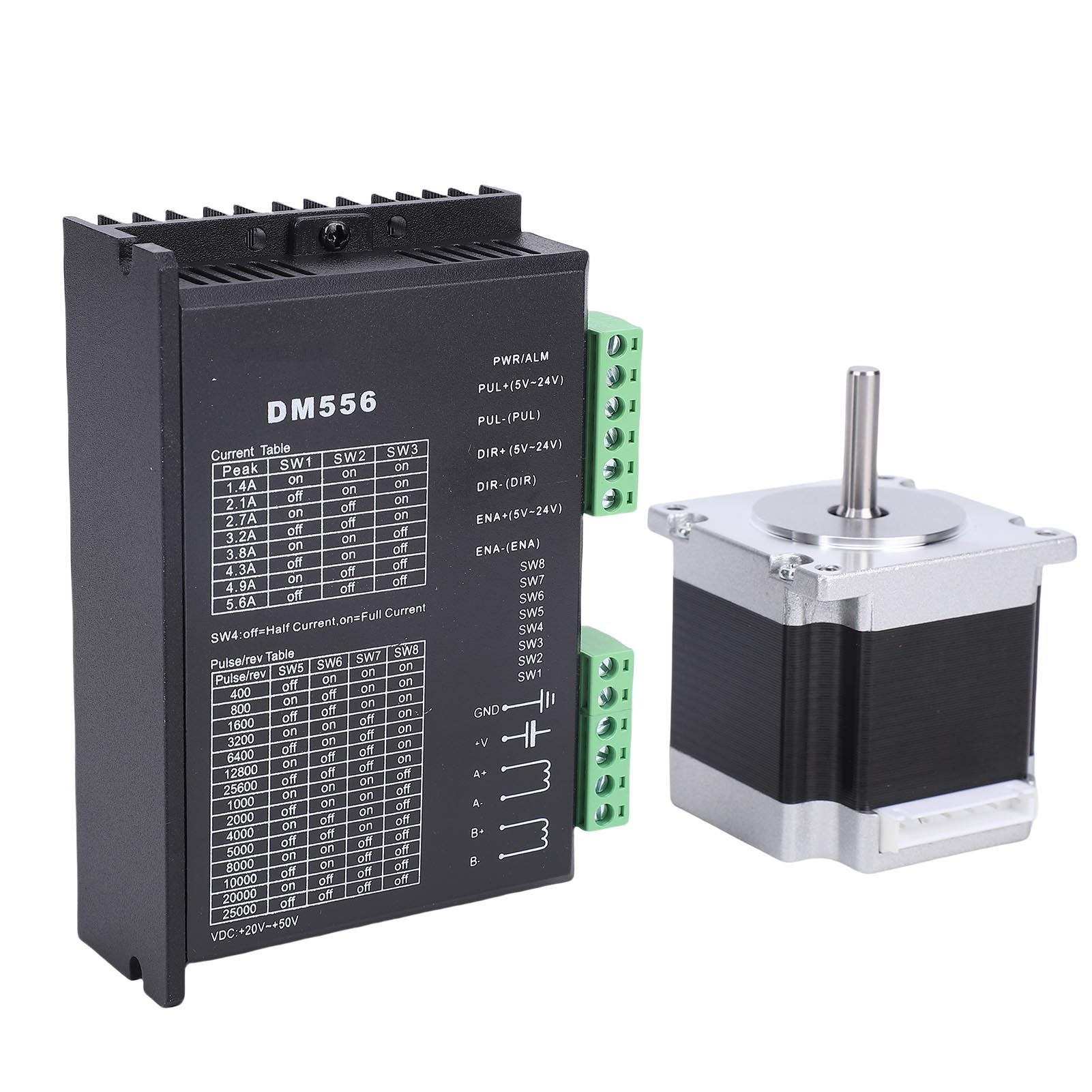

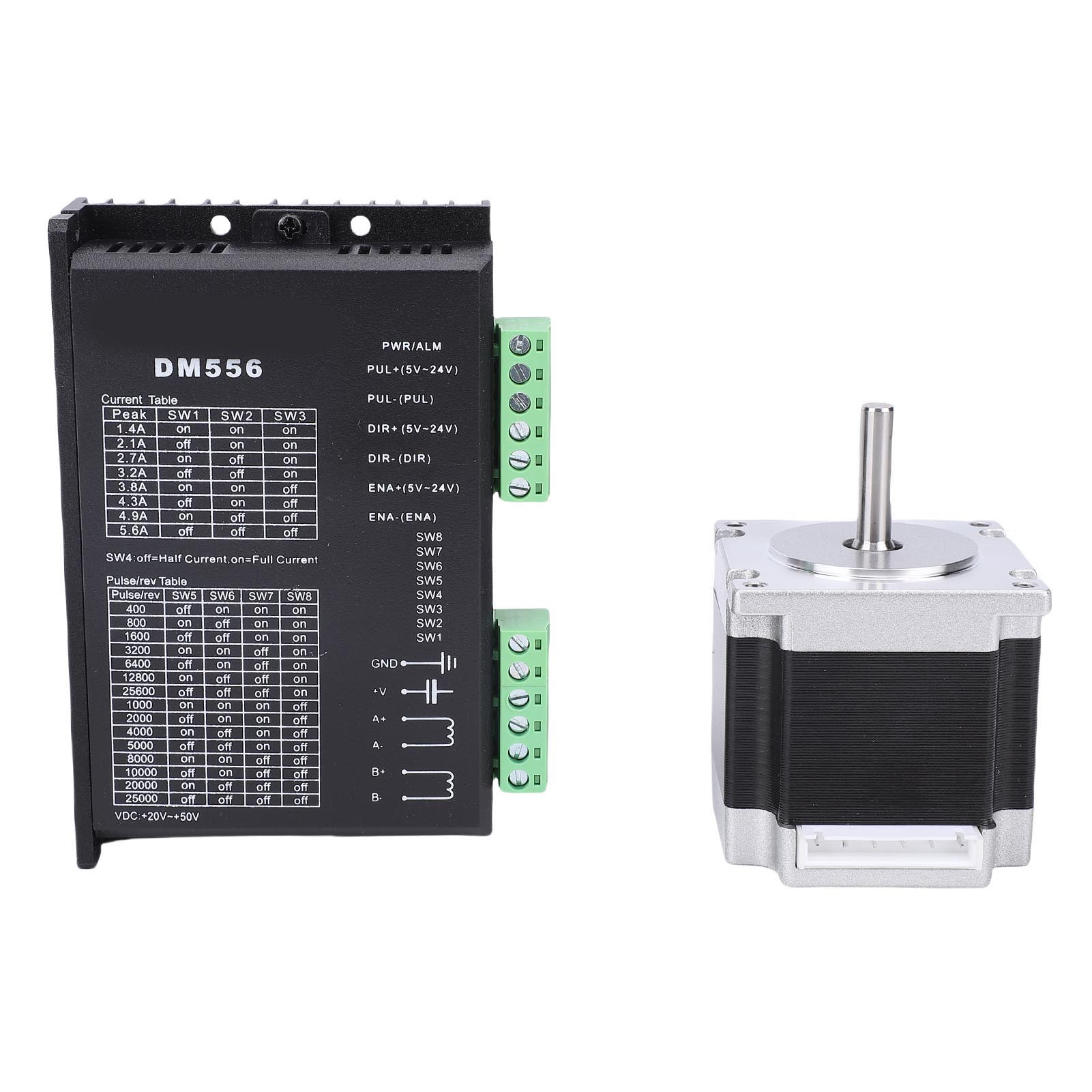

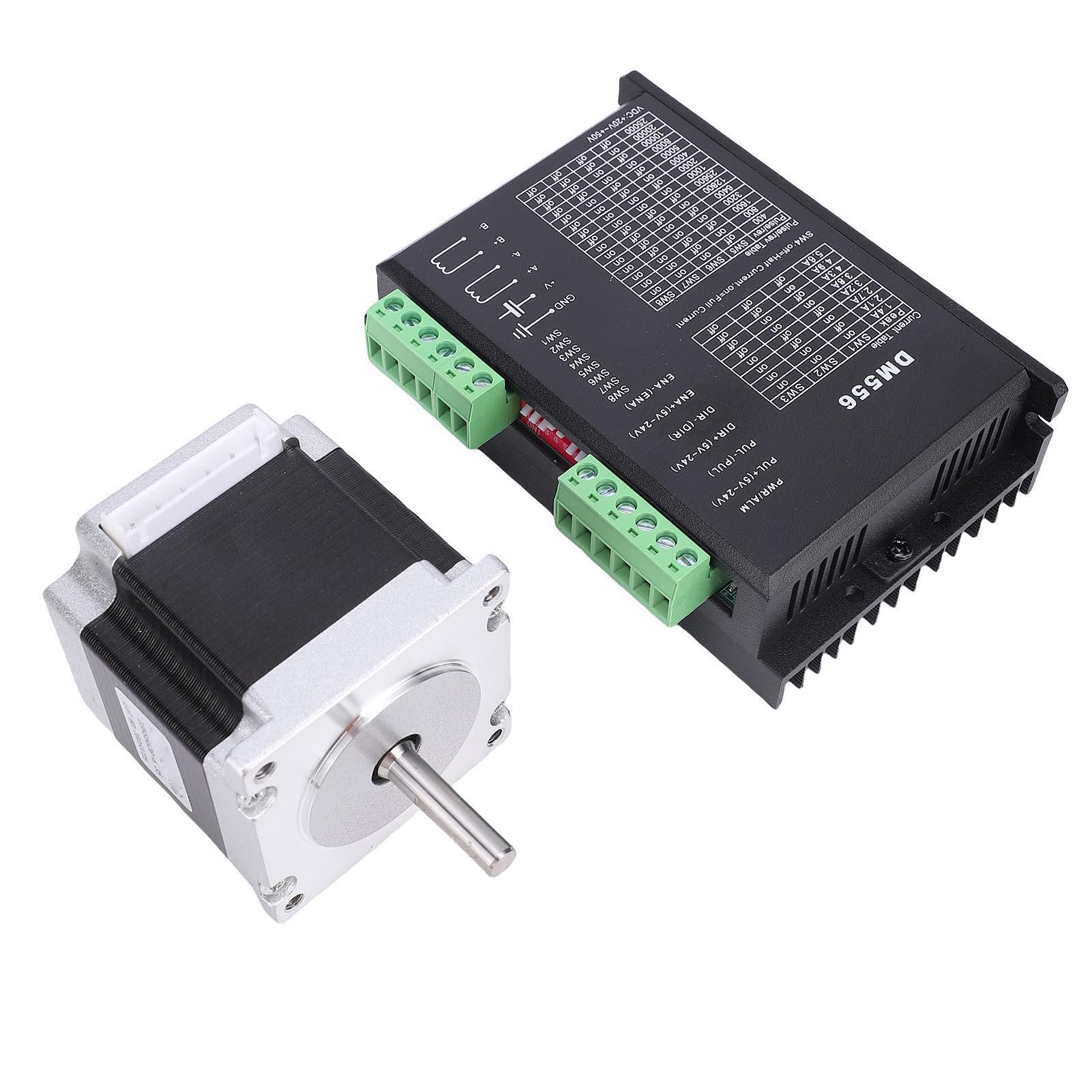

Driver Model: DM556
Maximum Driving Current: 5.6A
High Subdivision: 2, 4, 8, 16, 32, 64, 128, 5, 10, 20, 25, 40, 50, 100, 125
Cooling Method: Nature cooling or forced air cooling
Vibration: 10-55Hz/0.15mm
Outer Diameter: Approx. 57-86mm / 2.24-3.39in

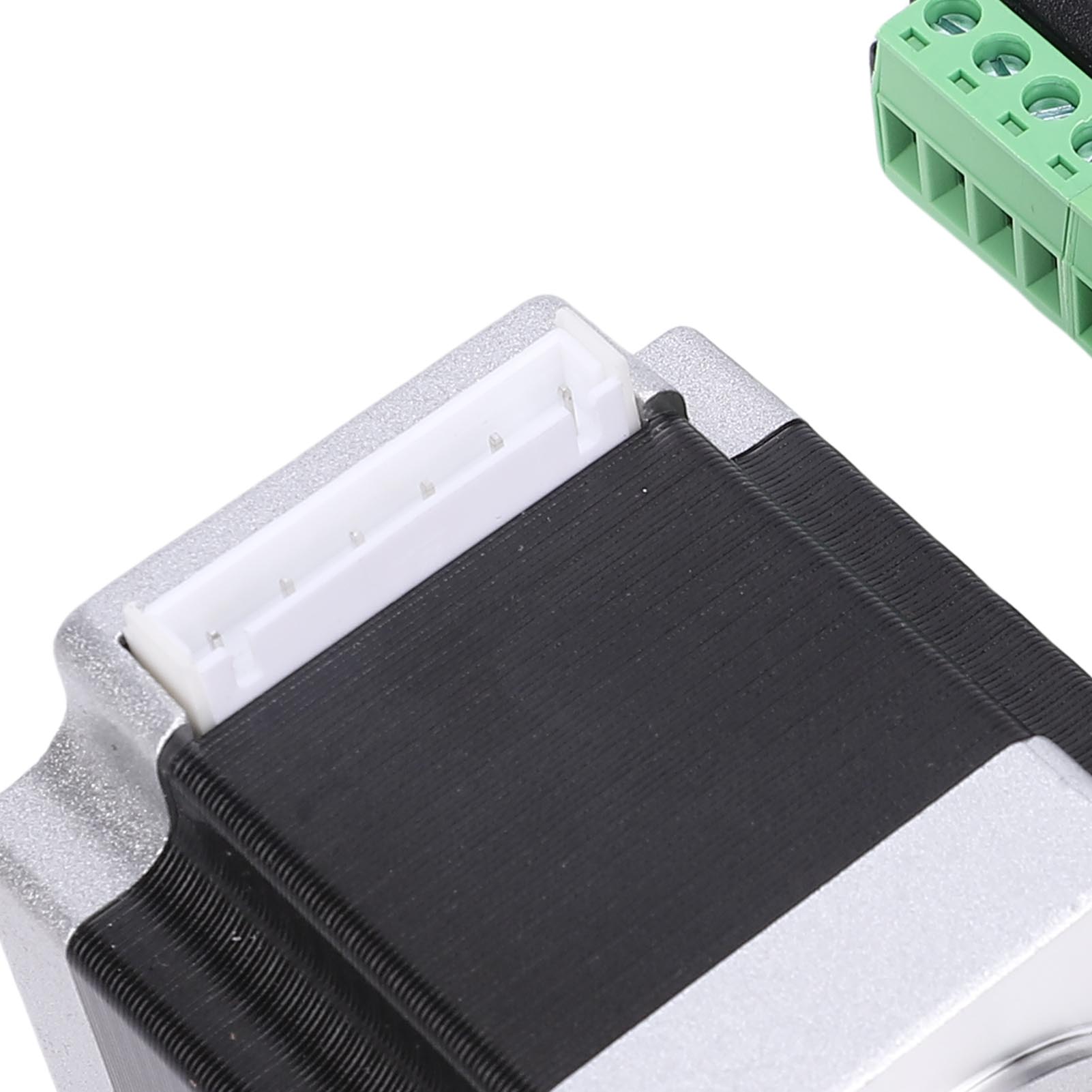

Motor Model: 23HS5628

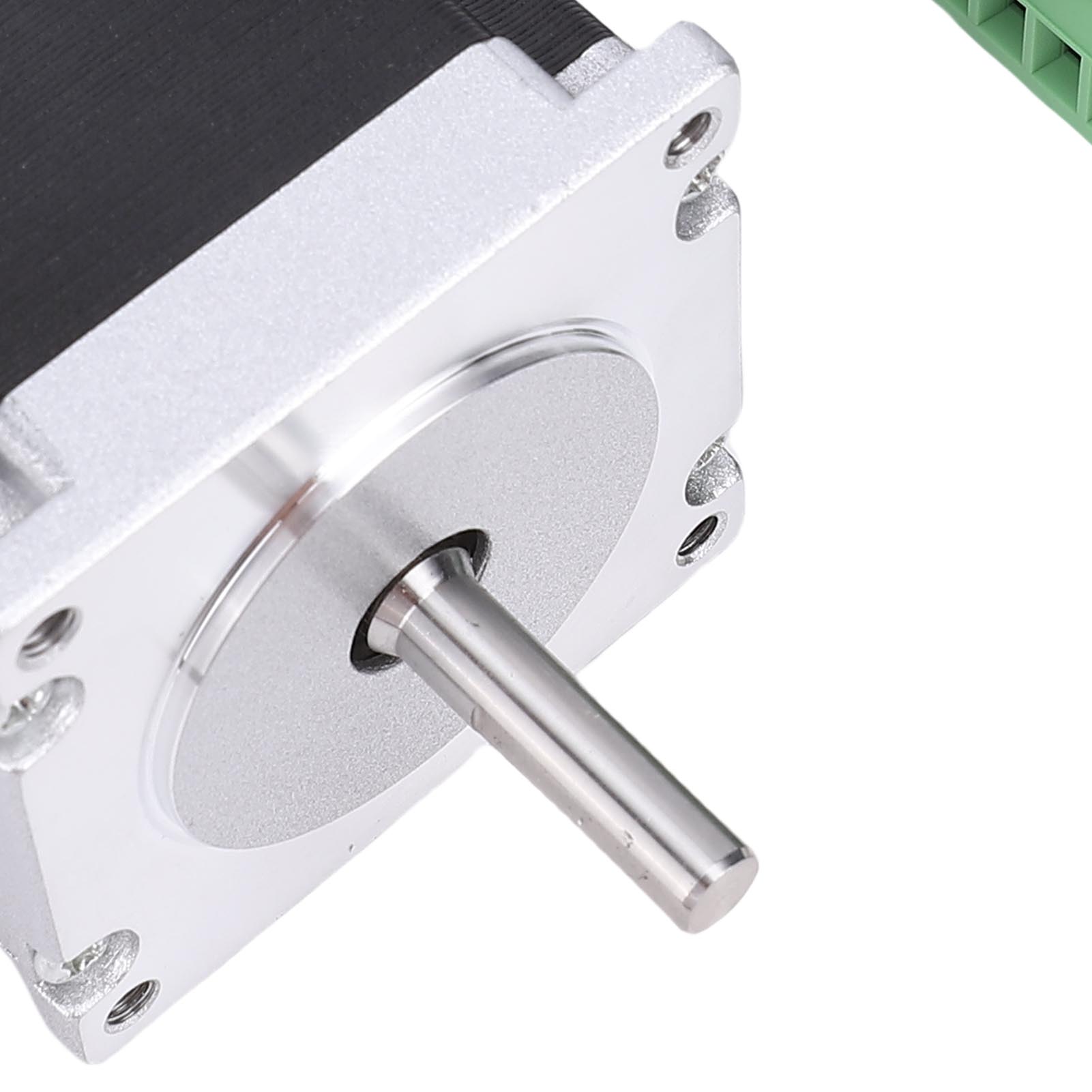

Motor Shaft Diameter: Approx. 6.35mm / 0.25in
Current/Number of Phases: 2.8A
Maintain Torsion: 12600g.cm
Step Angle (Degrees): 1.8°
Number of Phases: 2
Type: Mixed type
Step Length: Approx. 56mm / 2.20in
Phase Resistor: 0.9Ω
Phase Inductance: 2.5mH
Maintain Torsion: 126N.cm
Rotor Inertia: 300g.cm2
Wires: 4 pieces
Features:
1. Driver integrated overvoltage and overcurrent guard
2. Input signal photoelectric isolation
3. Bipolar constant current chopping method
4. DC power supply 20-50VDC (recommended for 24-48VDC operation)
5. Maximum driving current 5.6A
6. Adjustable output current dip switch
7. Low speed, zero vibration, low noise
8. Maximum Drive Detail Score: 128
9. Strong anti interference ability, able to achieve high precise positioning even in harsh environments of the power grid
10. High Reliability: The power components have sufficient margin, undergo strict testing before leaving the factory

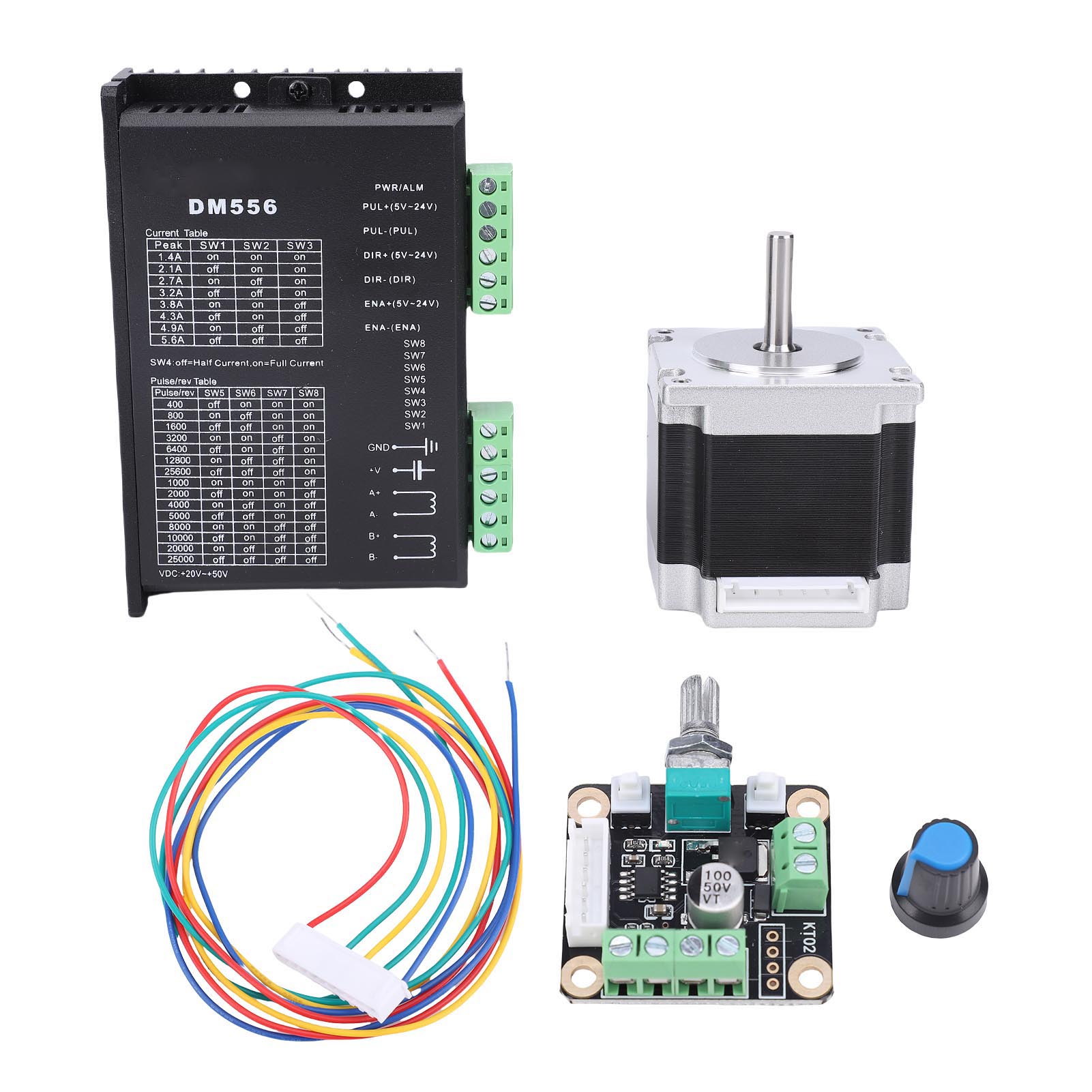

Package List:
1 x Motor
1 x Driver

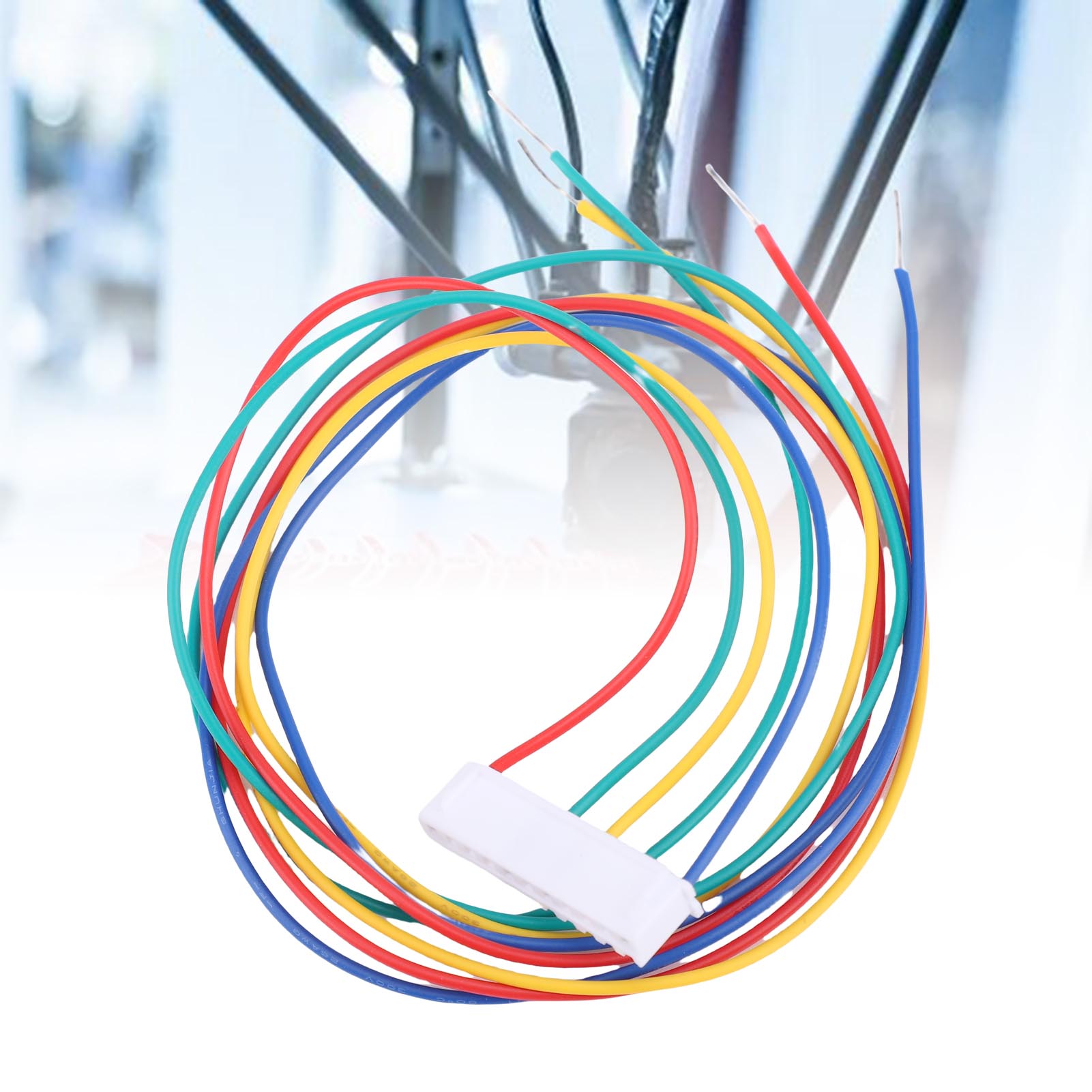

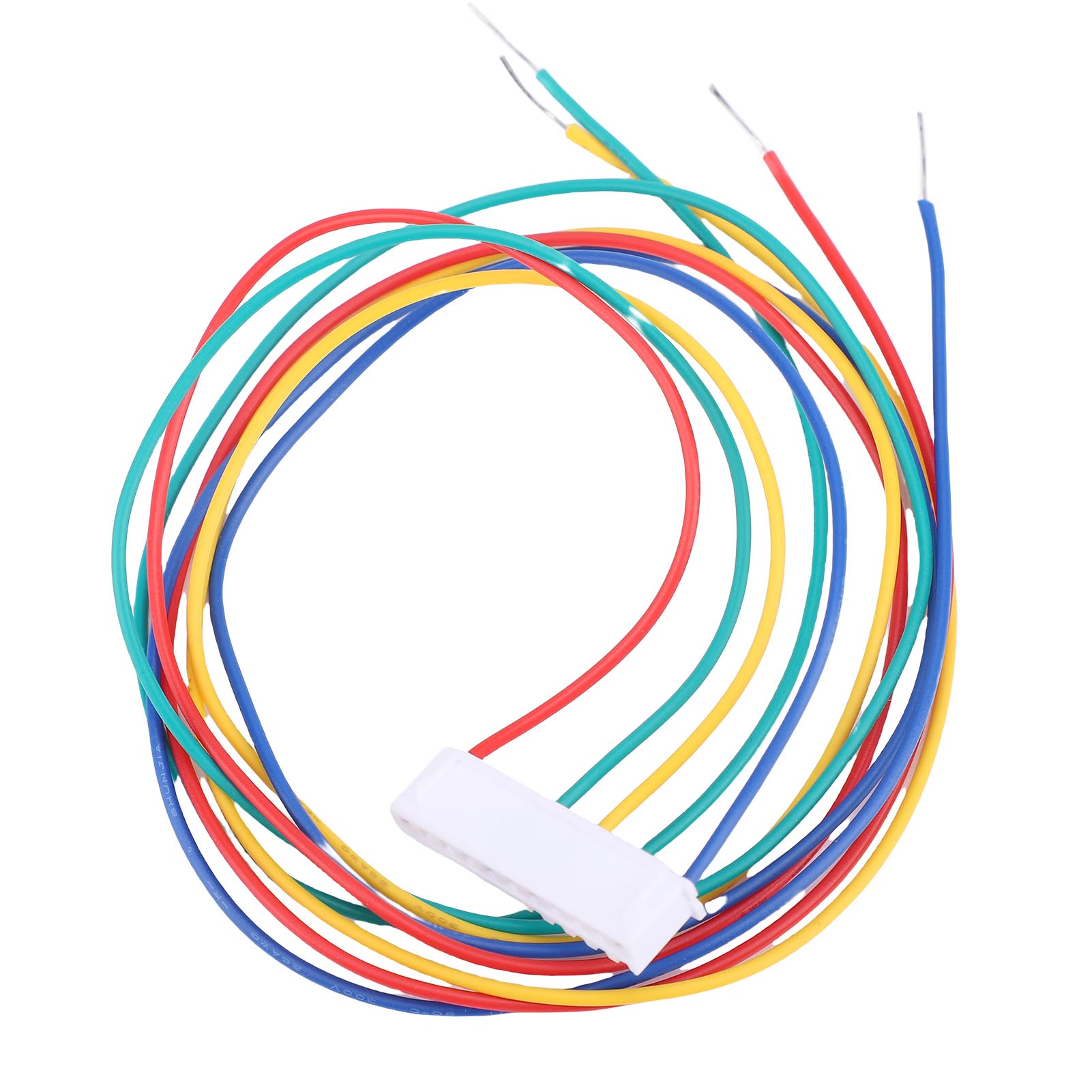

1 x Connection Cable

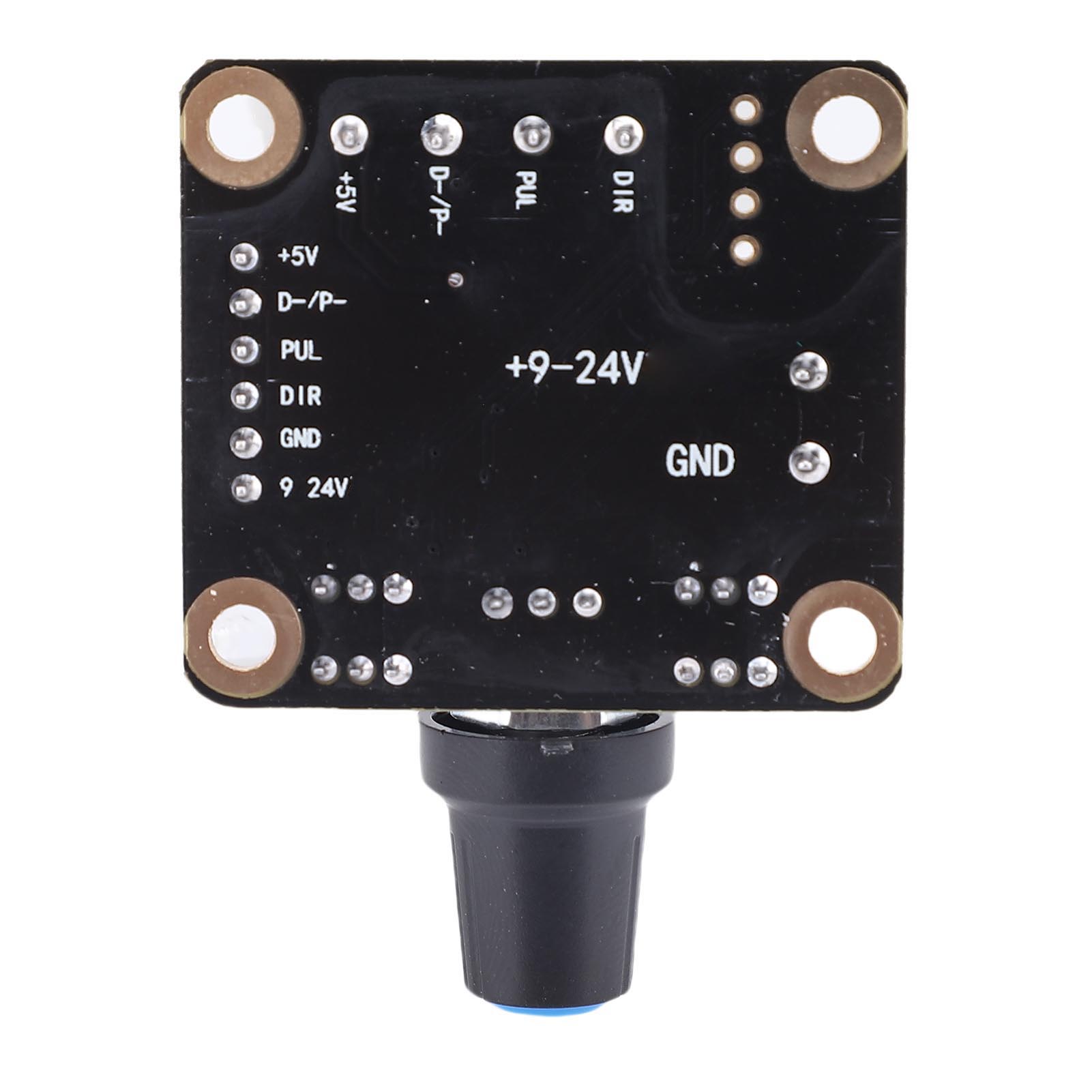

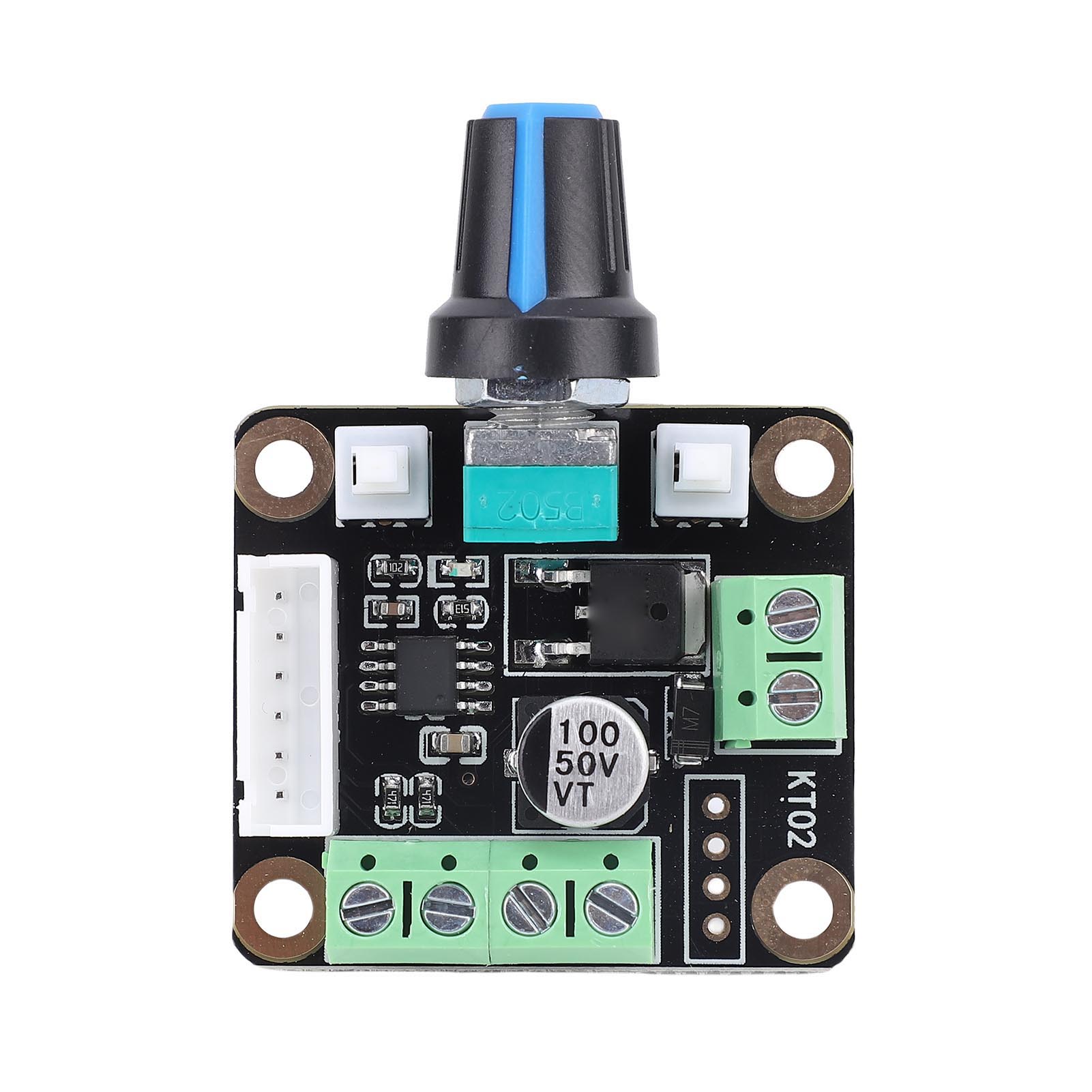

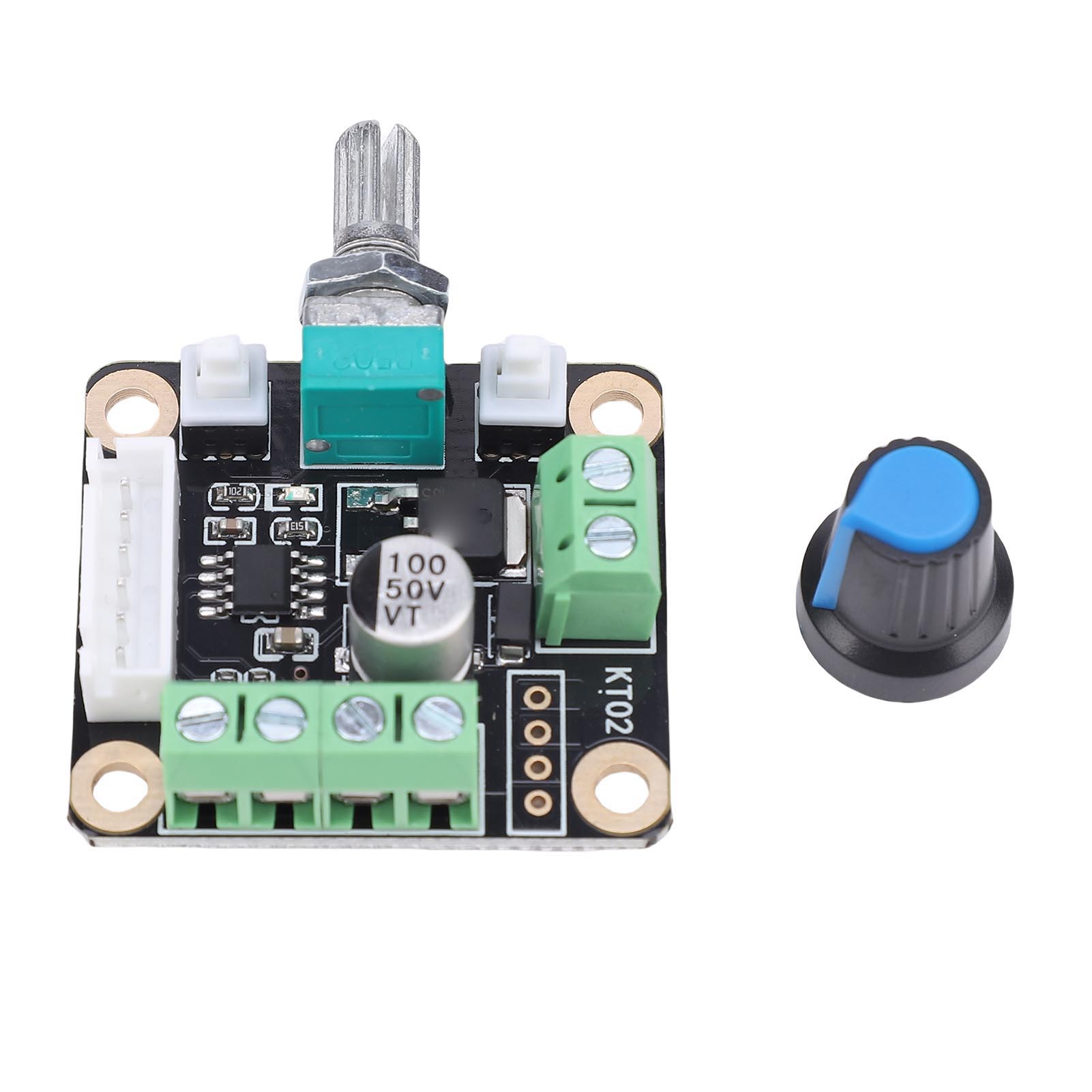

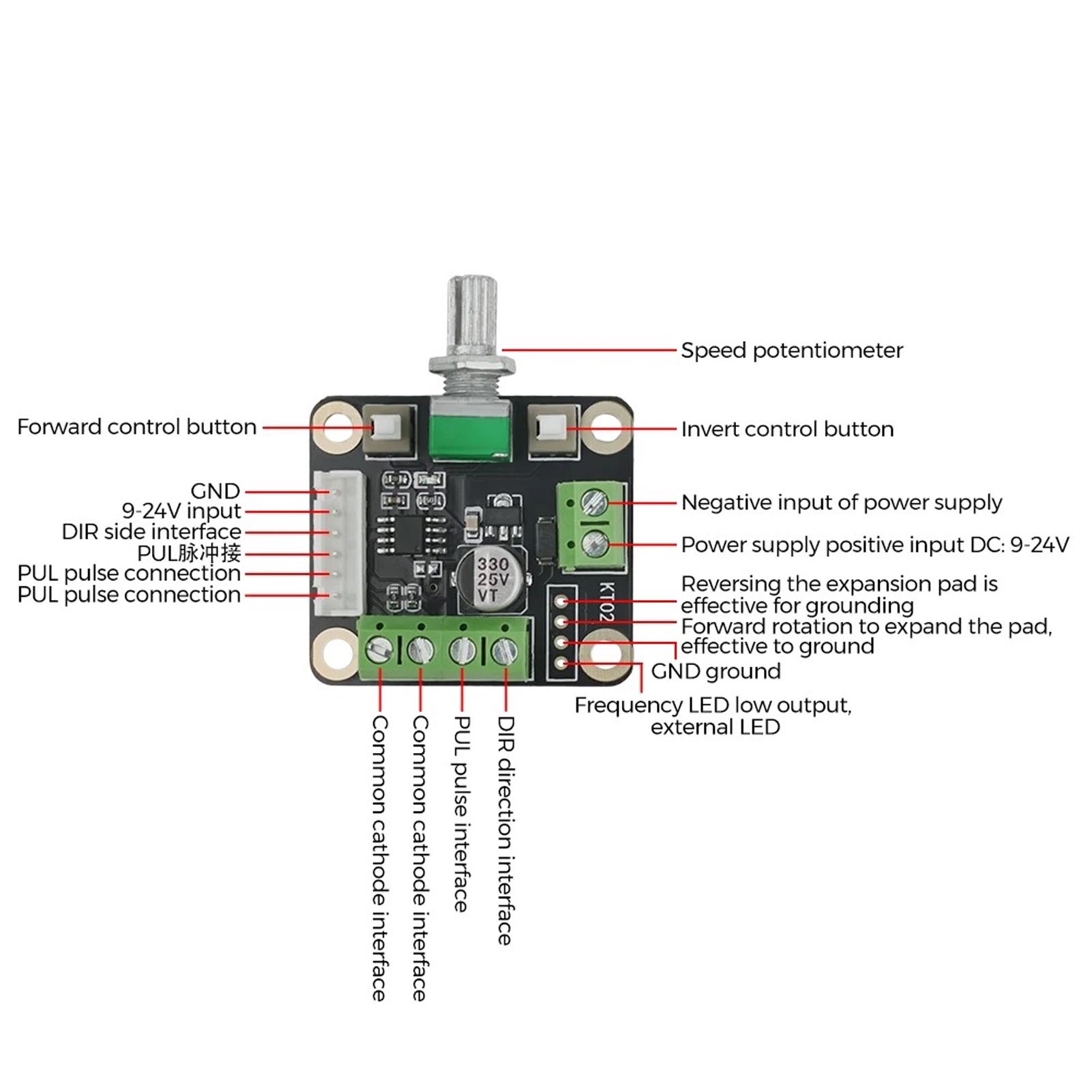

1 x Drive Controller
1 x Knob
