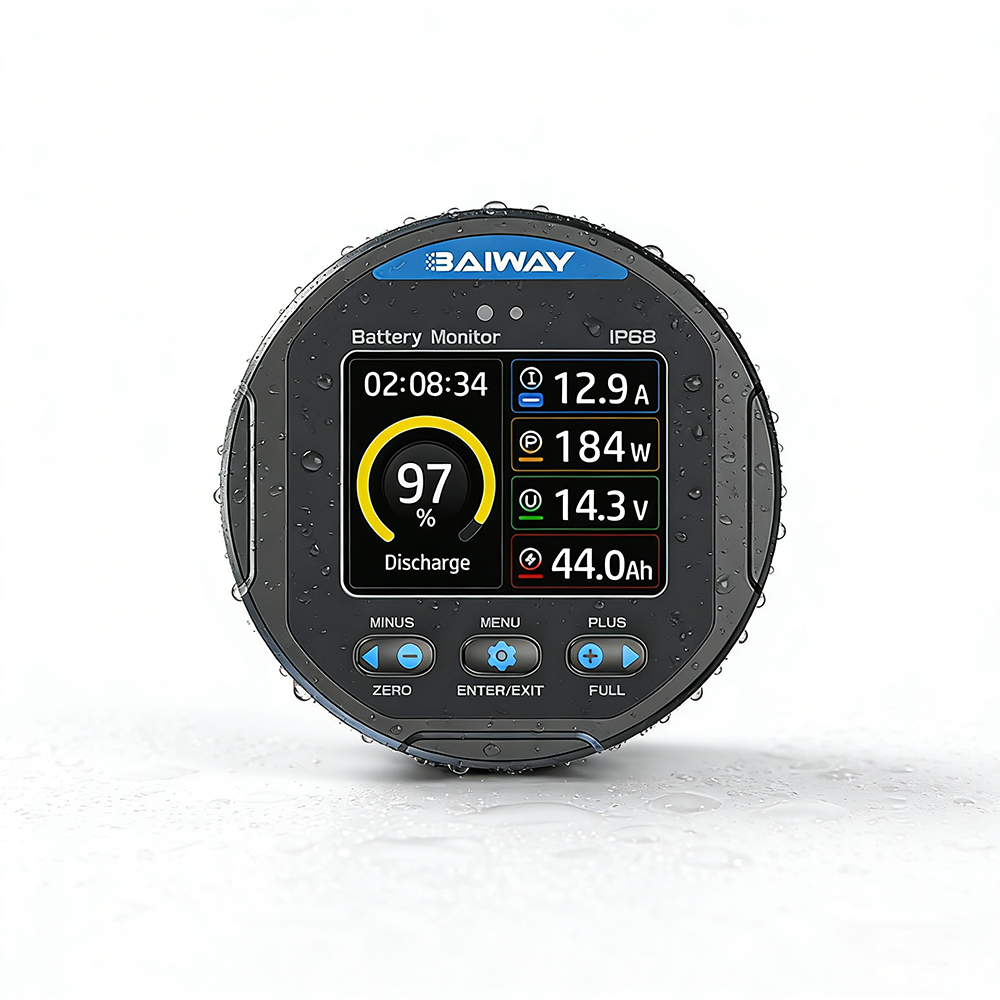

The TR24 Multifunctional Coulomb Meter is an intelligent battery management device that integrates voltage, current, and capacity monitoring. It provides a precise and real-time power management solution for various battery systems. With its IP68 waterproof and dustproof rating, wide battery compatibility, and flexible display modes, it is the ideal choice for applications in automobiles, RVs, solar systems, marine vessels, and industrial equipment.

Core Features & Advantages

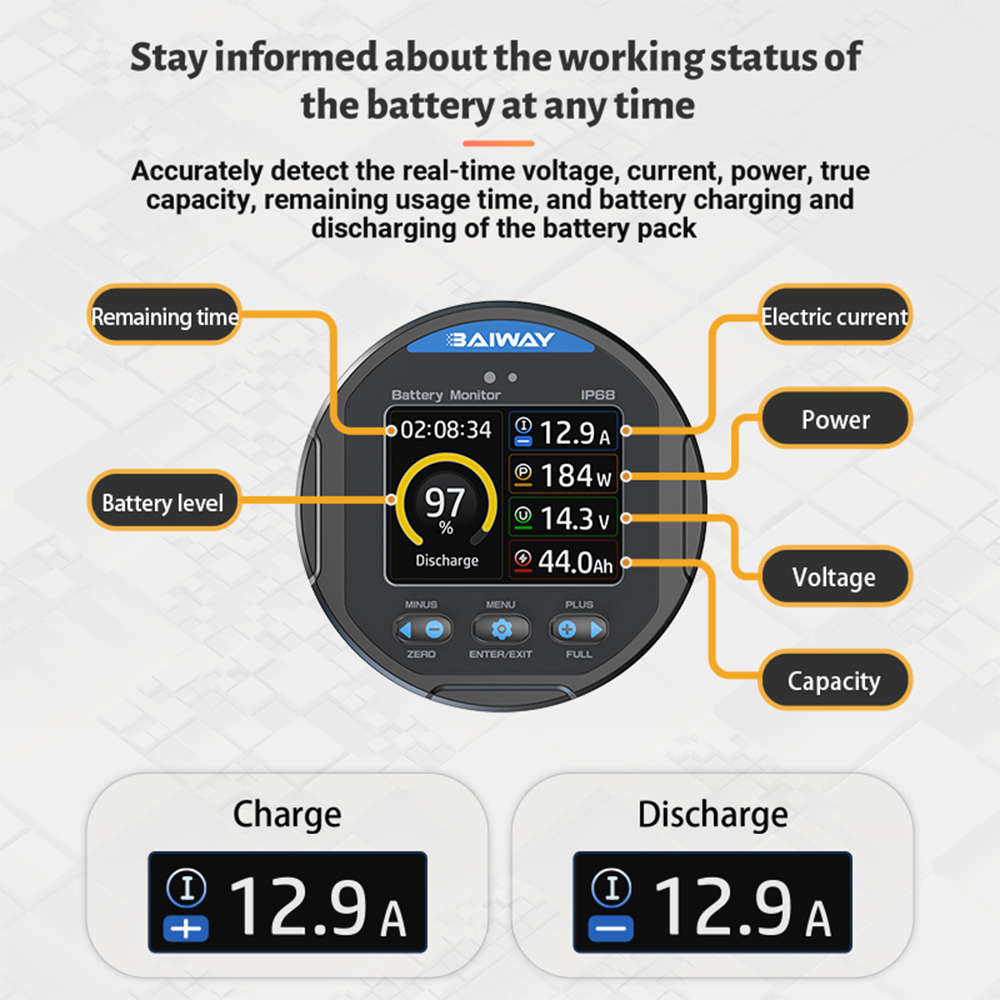

1. All-in-One Real-Time Monitoring
   • Accurately displays battery pack voltage (0-500V DC), current, power, remaining capacity, available runtime, and charge/discharge status.
   • Utilizes a high-precision current sensor to ensure data accuracy, with an error rate as low as ±0.5%.

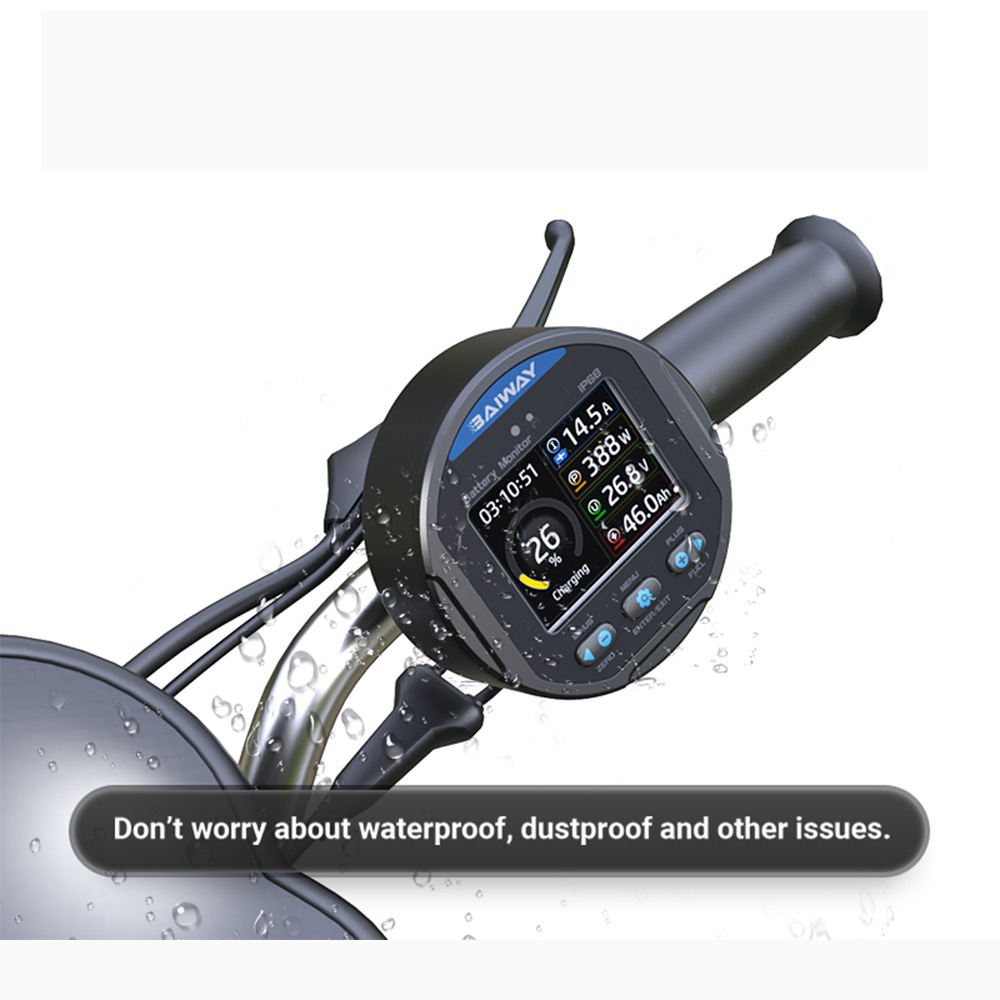

2. IP68 Waterproof & Dustproof
   • The robust ABS housing achieves an IP68 rating, providing exceptional protection against water immersion and dust ingress. This rugged design ensures reliable performance in harsh environments, suitable for outdoor, underwater, and high-dust scenarios.
3. Universal Battery Compatibility
   • Supports a wide range of battery types, including Lithium, LiFePO4, Lead-Acid, and NiMH batteries. It can be easily configured to adapt to different battery parameters.

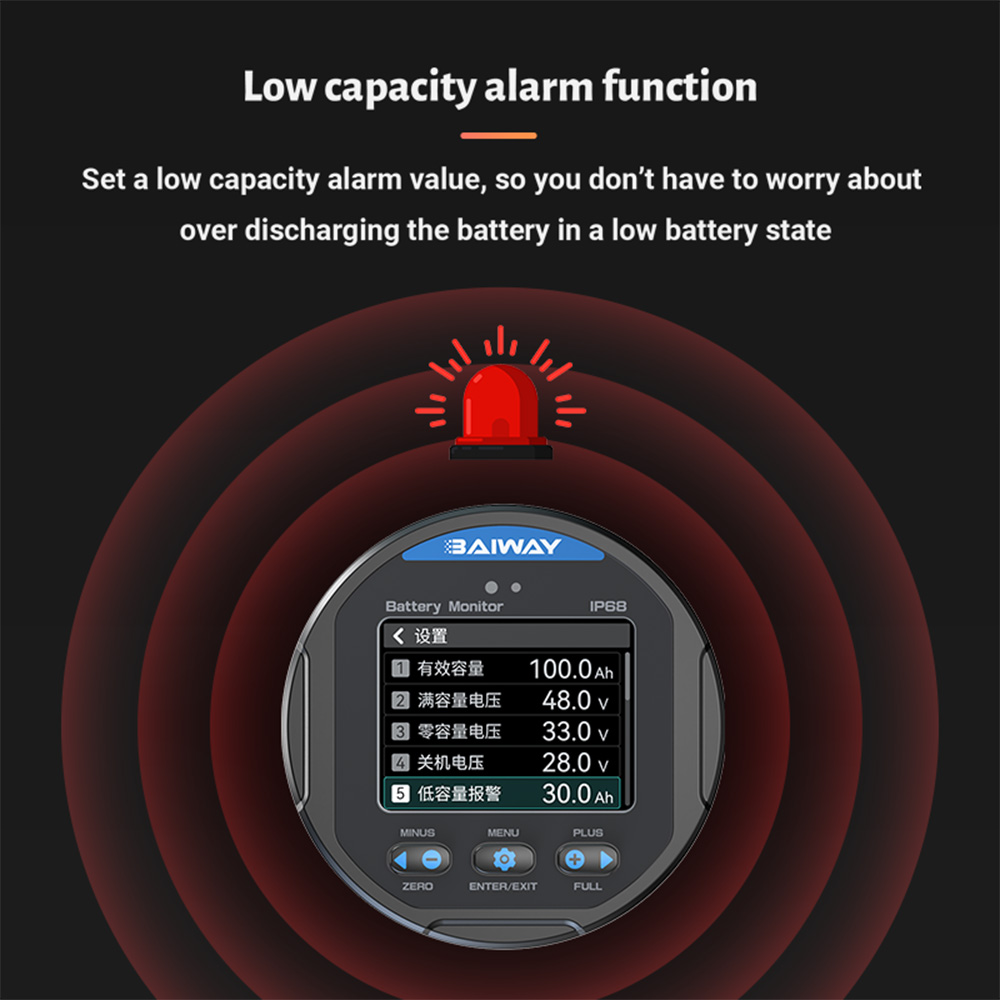

4. Smart Low-Capacity Alarm
   • Users can customize the low-capacity alarm threshold. The device automatically triggers an audible and visual alarm when the battery level falls below the set value, preventing damage from over-discharging.
5. Flexible Display & Operation

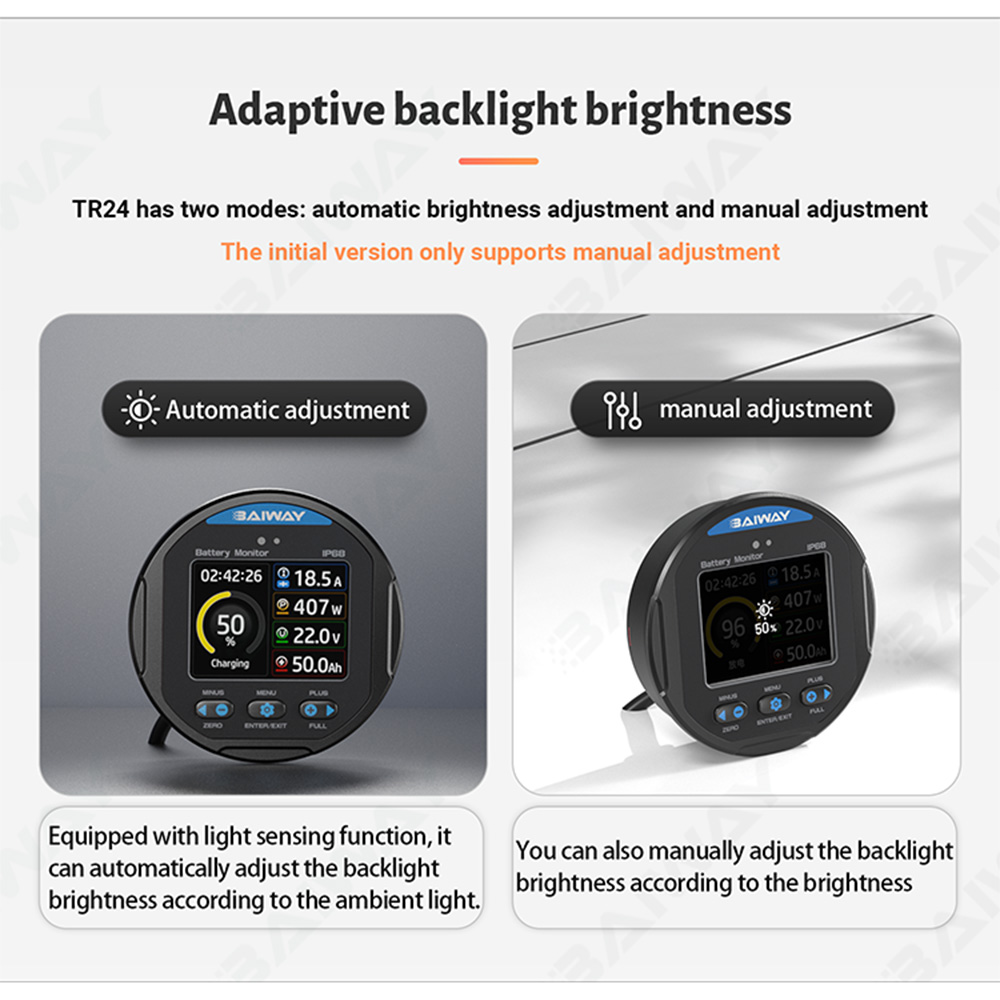

   • Equipped with a high-definition LCD screen that supports automatic/manual backlight adjustment for optimal visibility in varying lighting conditions.

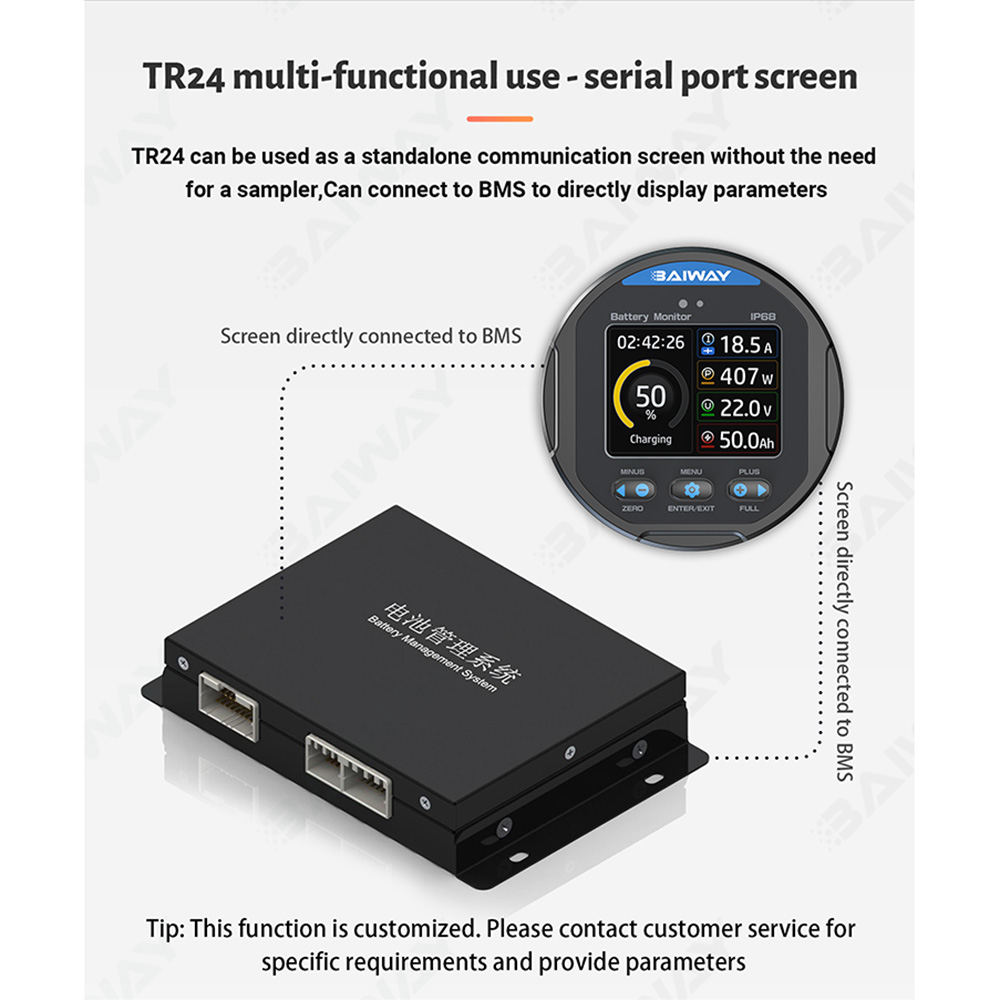

   • Can be used as a standalone serial port screen or connected directly to a BMS (Battery Management System) to display detailed parameters without the need for an additional sampler.

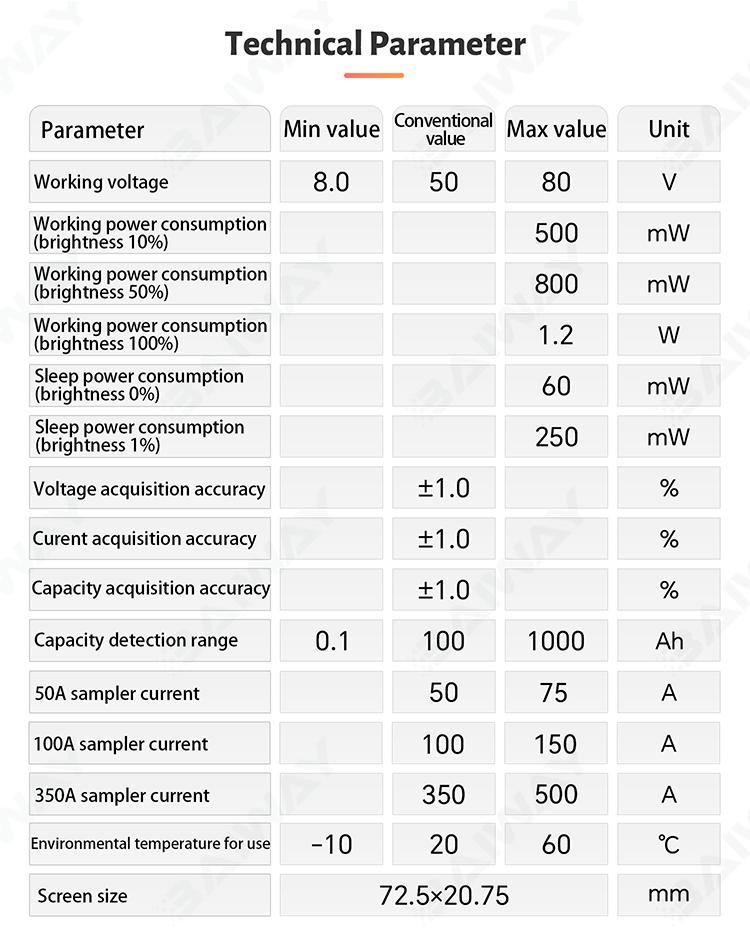

Technical Specifications

Item	Specification
Input Voltage Range	DC 0-500V

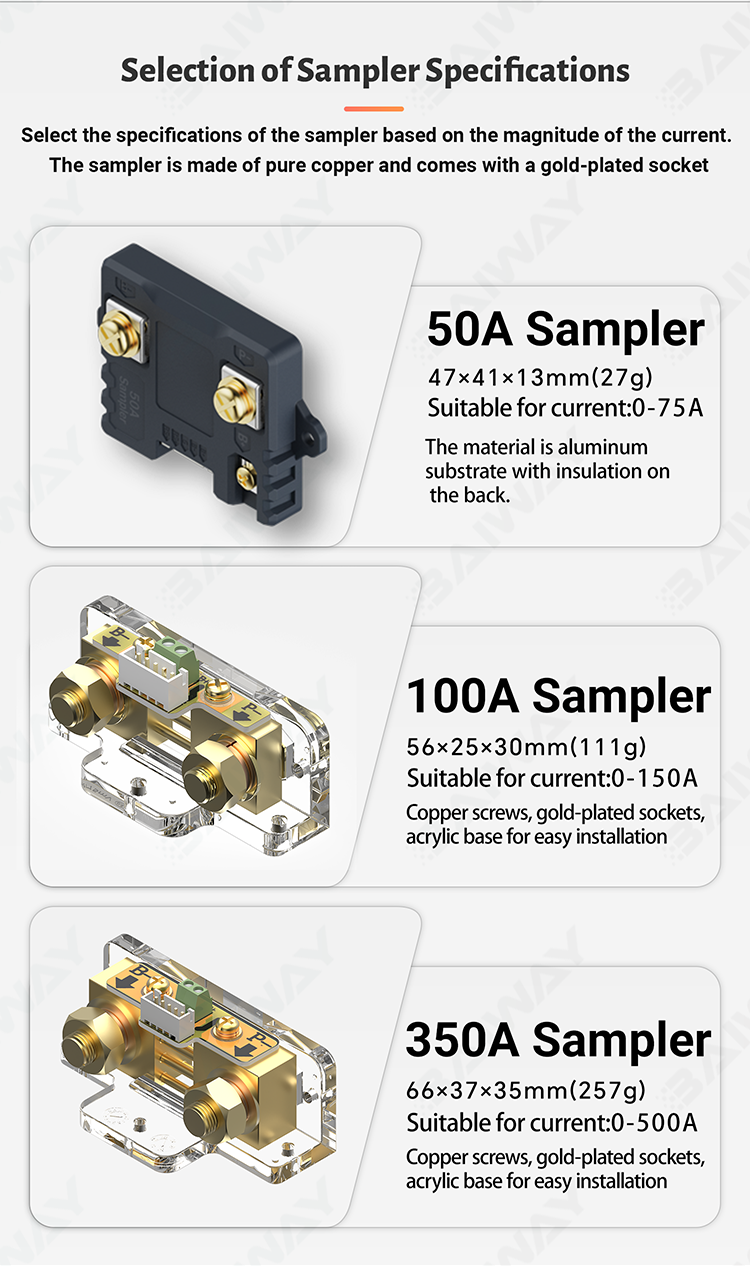

Current Measurement Range	0-500A (requires matching sensor)
Accuracy	±1.0 % (Voltage/Current)
Display Method	Blue Backlight LCD Screen
Waterproof Rating	IP68
Supported Battery Types	Lithium, Lead-Acid, NiMH, etc.
Operating Temperature	-20℃ ~ +60℃
Capacity detection range	100~1000 Ah

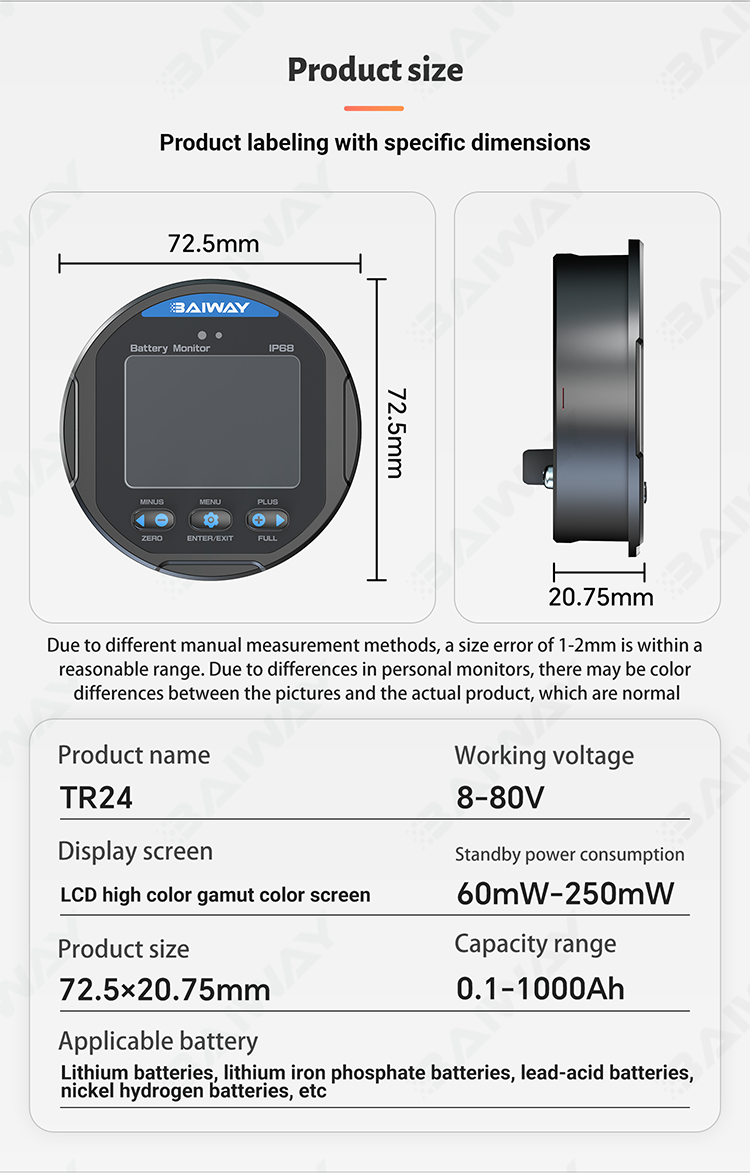

Screen Size	72.50mm ×20.75mm

Applications

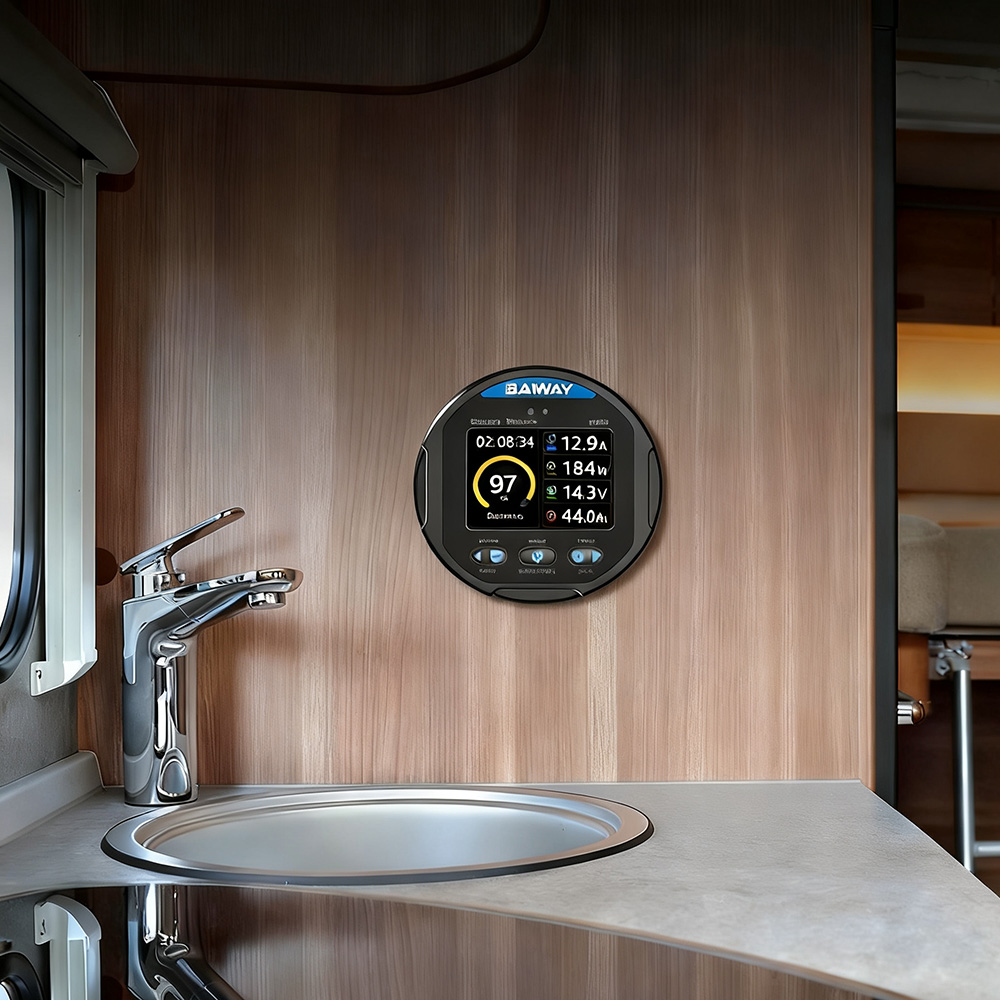

• Automotive/RVs: Monitor the status of vehicle batteries to avoid breakdowns due to power loss.
• Solar Systems: Keep track of photovoltaic battery charging and discharging in real-time to optimize energy usage.
• Marine/Yachts: Adapt to the high-humidity and high-salt marine environment to ensure stable power for equipment.
• Industrial Equipment: Provide reliable power management for UPS systems, energy storage systems, and more.

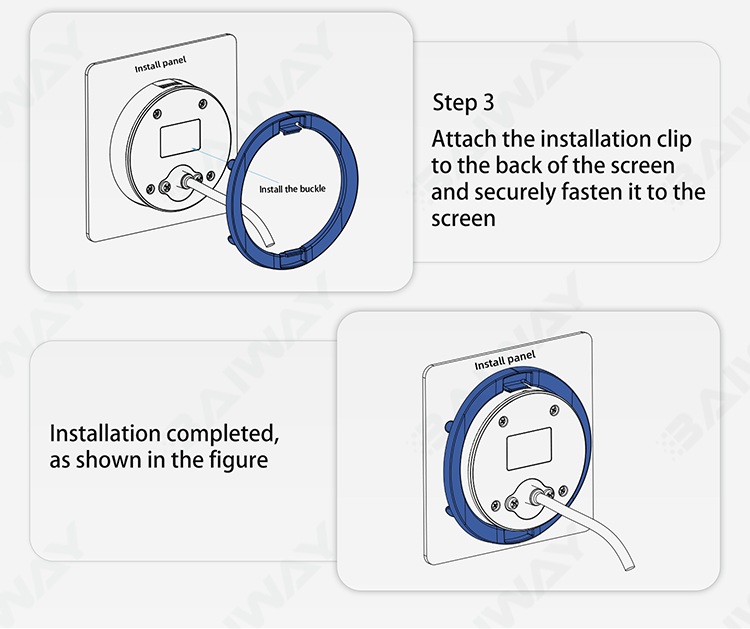

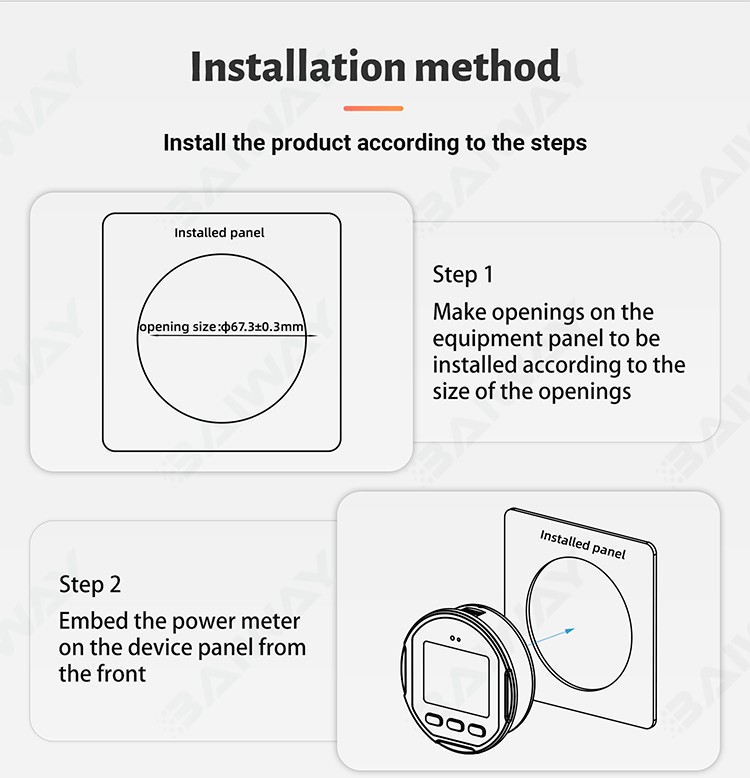

Installation & Usage

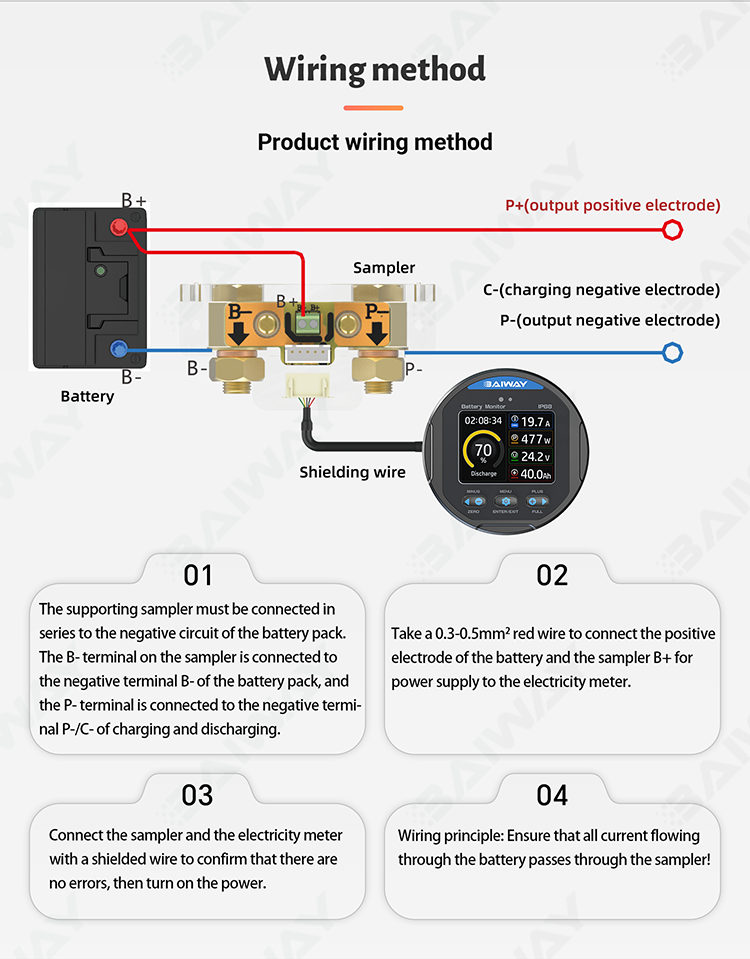

1. Wiring Steps
   • Connect the current sensor in series between the battery pack and the load.
   • Connect the device's power supply positive and negative poles to the battery pack.
   • Connect to a BMS via the RS485/RS232 interface (optional).
2. Parameter Settings
   • After powering on, use the buttons to select the battery type, capacity, and alarm threshold.
   • Manual calibration of the current sensor is supported to ensure measurement accuracy.
3. Precautions
   • Ensure correct wiring during installation to avoid short circuits.
   • Keep the device away from high-temperature and strong magnetic field environments.
   • Regularly check sensor connections to prevent loosening, which could affect data accuracy.

---
