Single-mode QSFP112 400G FR4 2km LC 1271/1291/1311/1331nm Optical Transceiver
This Transceiver is a high performance, cost effective module for optical data communication applications supporting 400G Ethernet. This product is designed to operate in switch and router applications supporting QSFP112 MSA compliant traffic for up to 2000m links. 425 Gigabit signal is carried over CWDM4 lanes.
The Transceiver can convert 4-channel 106.25Gb/s electrical data to 4-channel 106.25Gb/s optical signals. Similarly, it optically converts 4-channel 106.25Gb/s optical signals to 4-channel electrical data output on the receiver side. It has been designed to withstand the maximum range of external operating conditions including temperature, humidity and EMI. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.
Features
QSFP112 MSA compliant
4x106.25Gb/s PAM4 electrical interface
Maximum power consumption 9W@ Tcase = 70℃
Duplex LC connector
CWDM4 MUX/DEMUX design
Up to 2Km transmission on single mode fiber
Operating case temperature: 0℃~70℃
Single 3.3V power supply
Application
400G Ethernet
Data Center Applications
Compliance
QSFP112 MSA Rev2.1
100G Lambda MSA
IEEE 802.3ck
CMIS Rev5.2
RoHS compliance
GR-468-CORE

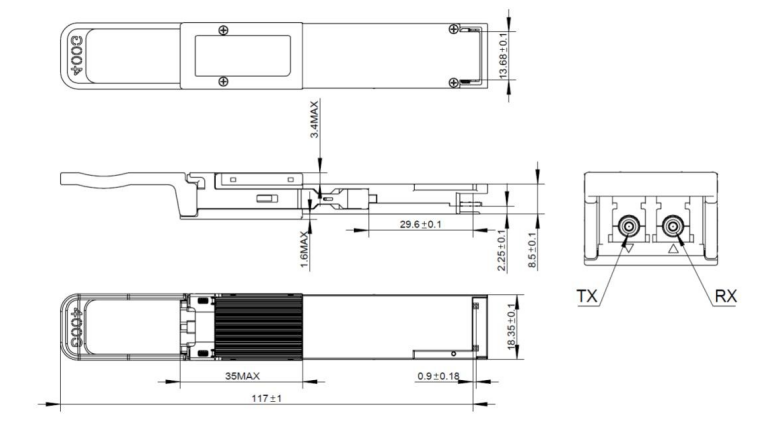

Mechanical Dimensions
Special reminder
Our production process is continuously improved, so there may be slight differences in appearance and color among products produced in different batches. These differences do not affect the functionality of the product or your experience in using it. Thank you very much for your understanding.
