Single-mode QSFP 400G DR4 SIP 500m MPO12-APC 1311nm Optical Transceiver

This product is a a high performance, cost effective module for optical data communication applications supporting 400G InfiniBand and Ethernet.

The module is designed to operate in switch and router applications supporting OSFP MSA compliant traffic for up to 500m links.
This module can convert 4-channel 106.25Gb/s electrical data to 4-channel 106.25Gb/s optical signals. Similarly, it optically converts 4-channel 106.25Gb/s optical signals to 4-channel electrical data output on the receiver side.
It has been designed to withstand the maximum range of external operating conditions including temperature, humidity and EMI. The module offers very high functionality and feature integration, accessible via a two-wire serial interface.

Features

OSFP MSA 5.0 compliant

4x106.25Gb/s PAM4 electrical interface

Maximum power consumption 9W@ Tcase = 70℃

1xMPO-12 APC connector

Up to 500m transmission on single mode fiber

Operating case temperature: 0℃~70℃

Single 3.3V power supply

RoHS-6 compliant

Application

400G InfiniBand

400G Ethernet

Compliance

OSFP MSA Rev5.0

IEEE 802.3ck

IEEE 802.3bs

CMIS Rev5.2

RoHS compliance

GR-468-CORE

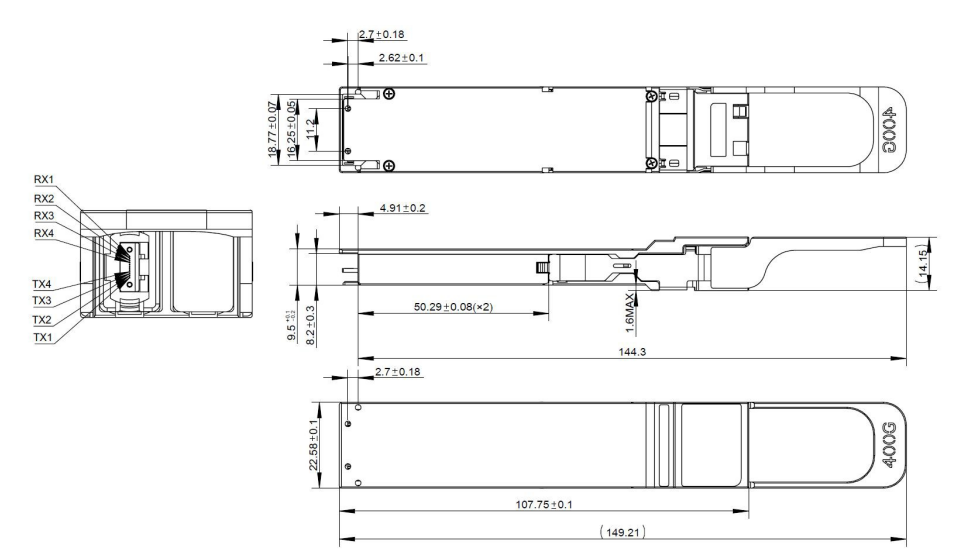

 Mechanical Dimensions
