Transformer Hand Cranking Machine Winding Machine Automatic Counting Machine
Specification:
Product Name: Hand-Crank Transformer Counting Winding Machine
Ratio: 1: 5 (gear ratio, chain type)
Adaptation: parallel winding, winding, transformer winding
Enameled wire / copper wire diameter: 0.05 - 2.0mm
Winding product size: small diameter of 100mm or 80 * 60 * 60mm high within the small products

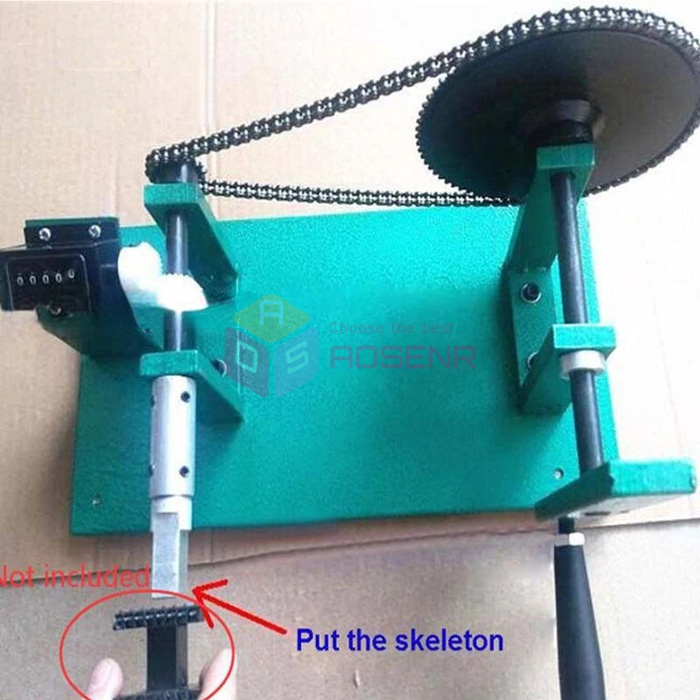

The inner diameter of the sleeve is 12mm

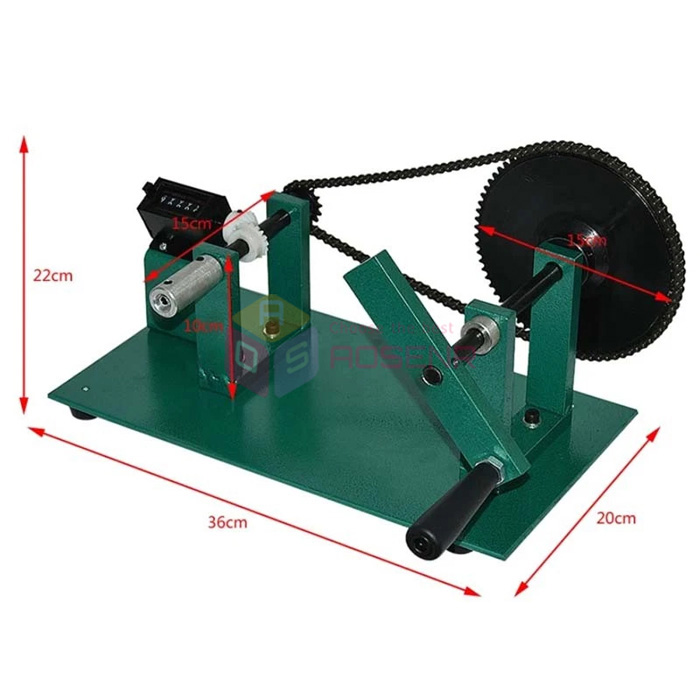

Item Size: 36*22*20cm
Weight: 9kg
Description:

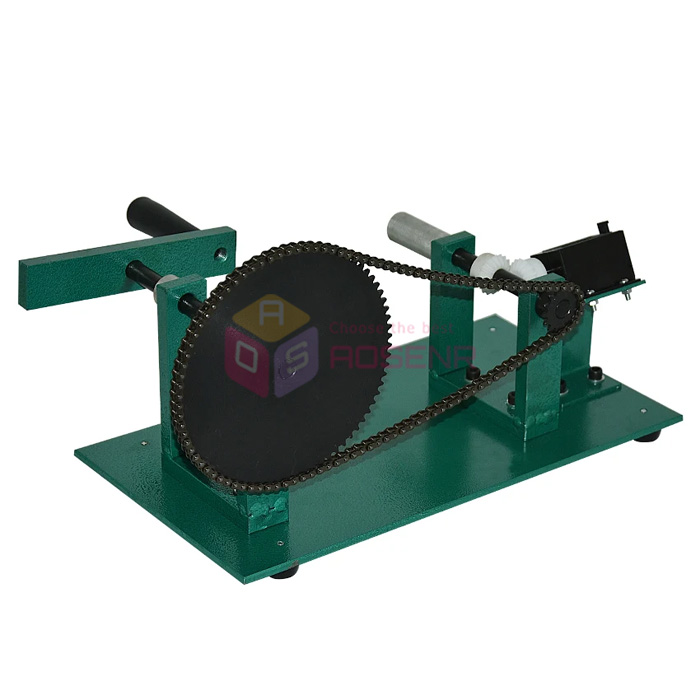

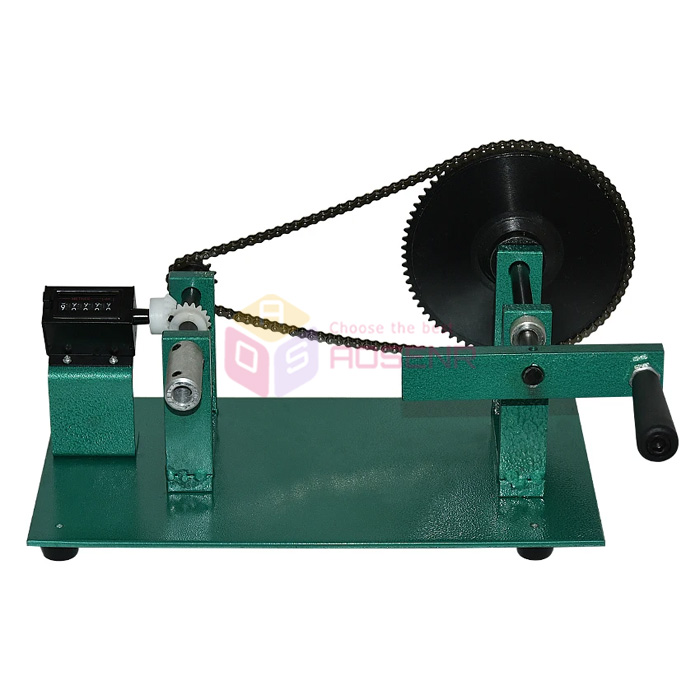

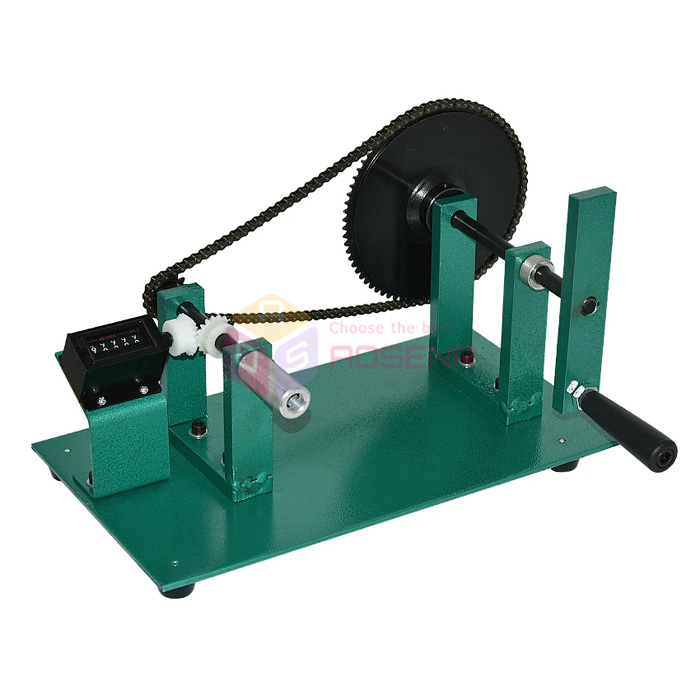

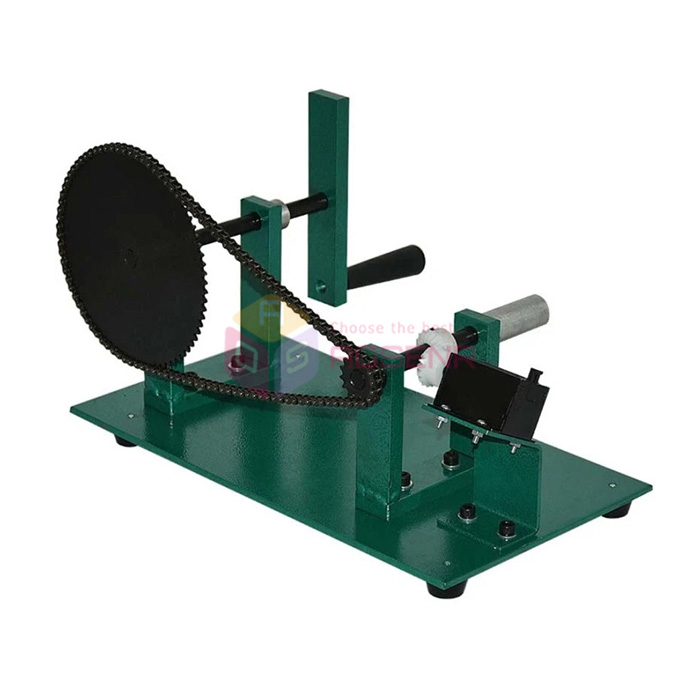

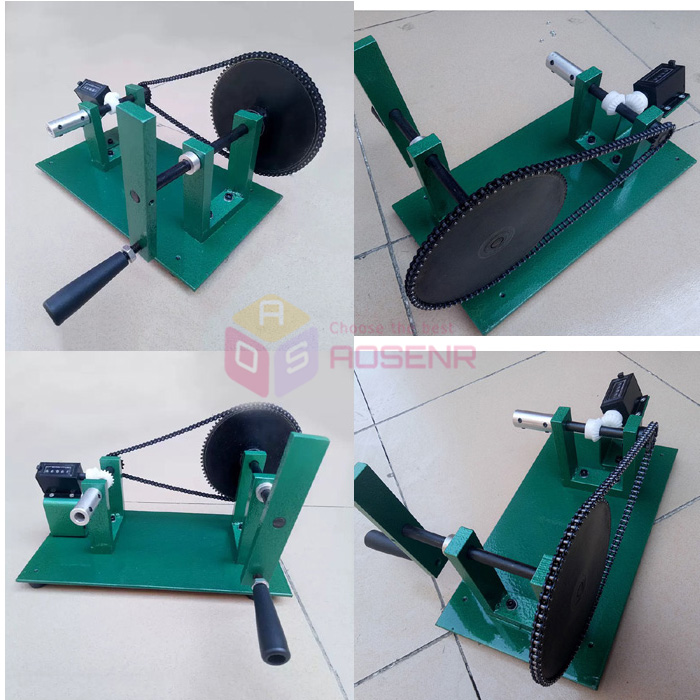

The machine features a base made of thickened steel plate and a chain-and-gear drive system, ensuring smooth, stable operation and long-lasting durability. It is equipped with a mechanical digital counter that accurately records the number of windings, and features a universal spindle compatible with a variety of transformer cores. Featuring an ergonomic hand crank handle, it is easy to operate and suitable for prototyping and small-batch winding of transformers, inductors, and small motor coils.
⚠️ Important Note: Be sure to press the counter reset button only when the machine is completely at a standstill.
Resetting the counter while the machine is running will damage the counter; please instruct operators to follow these guidelines.
Package Includes:
1 X Hand Winding Machine
