Features:
* Support GPS L1/L2/L5, for Galileo, GLONASS, Beidou full-band signals, differential technology to achieve ±2.5cm agricultural surveying and mapping accuracy.
* IP67 waterproof and dustproof shell, resistant to -40°C~85°C extreme temperature, suitable for tractors, seeders and other agricultural machinery operating environments.
* Suppress electromagnetic interference to stable reception in complex farmland environments.
* SMA/TNC interface is suitable for mainstream agricultural machinery systems, no need to drive, ready to install.
* High sensitivity antenna design, support 50,000 hours of continuous , 40% longer life than ordinary antennas.
* Suitable for high-load scenarios such as agriculture and land leveling.
Specification:

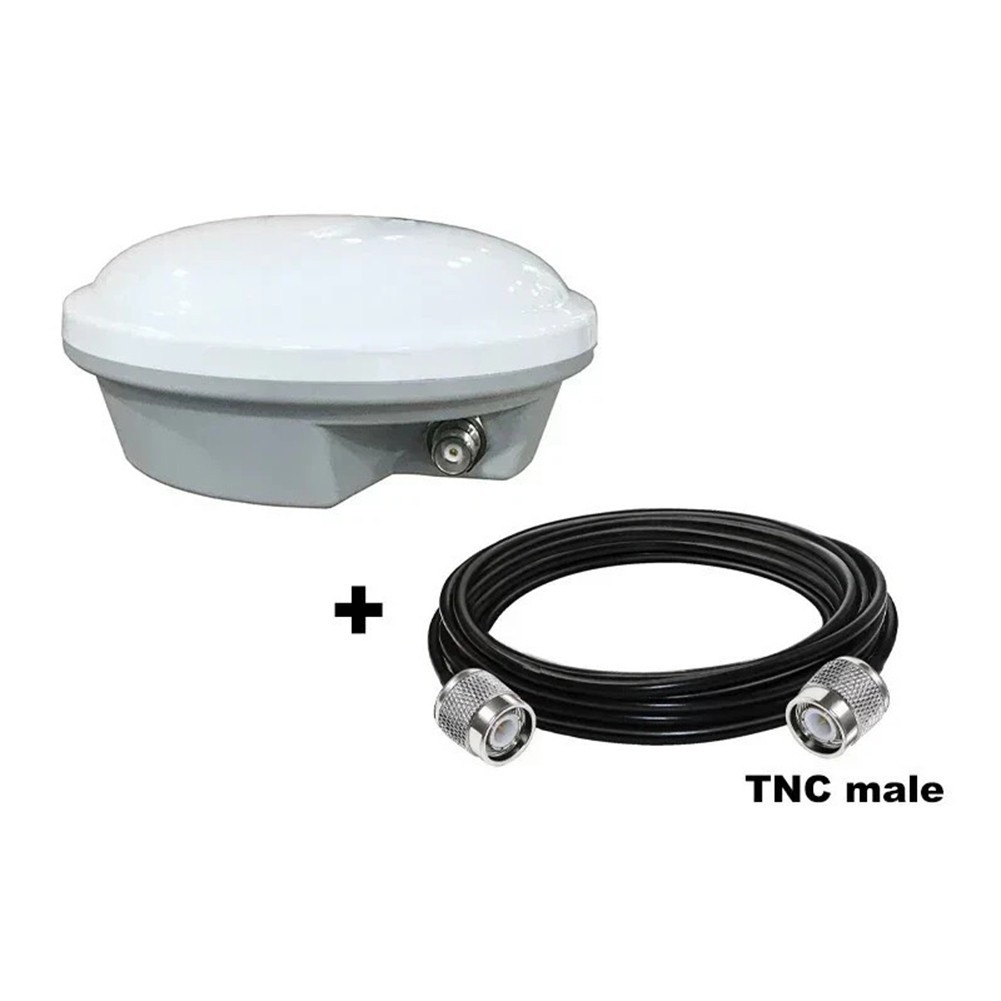

Part Name: Full Range Measurement Antenna
Connecting cable (optional): TNC-TNC, TNC-SMA
Material: ABS, metal
Color: white
Size: 152mm*67.5mm
Antenna structure: four feed points, double-layer superposition structure
Supported for SATELLITE signals: GPS: L1/L2/L5; BDS：B1/B2/B3; GLONASS: G1/G2/G3Galile0: El/E5a/E5b/E6L bands
Maximum gain: >5.0dBi@FC
Polarization: Right-handed circular polarization (RHCP)
Antenna Ratio @ : <1.5dB
Horizontal coverage angle: 360°
Characteristic impedance: 50 ohms
Phase Error: ≤2.0mm
Repeatability of the Phase Center: ≤1.0mm
Working frequency: 1164MHZ~1300MHZ; 1525MHZ~1621MHZ
Low noise gain: 40 2.0dB (typical @25°C)
Cable length: 5M
Mounting thread: 5/8-11
Package Contents:
Listing 1: 1 x Full-range measurement Antenna
Listing 2: 1 x Full Range Measurement Antenna 1 x TNC-TNC Cable
Listing 3: 1 x Full Range Measurement Antenna 1 x TNC-SMA Cable
