7.5 HP 212CC Petrol Engine – 20mm Shaft OHV Pull Start

This 7.5 HP petrol engine is a versatile and reliable power source designed for a variety of equipment and applications, including generators, water pumps, go-karts, agricultural machinery, and other compatible machines. Featuring a 212CC 4-stroke OHV engine, air-cooled design, and manual pull-start system, it delivers strong and dependable performance without requiring an electric starter.

The single-cylinder engine uses unleaded gasoline and features a float-type carburetor for efficient fuel delivery. Its 20mm diameter shaft with a 50mm shaft height makes it suitable for compatible equipment requiring this shaft specification.

Key Features

• Powerful Performance: 212CC engine delivers up to 7.5 HP / 4.0 kW of maximum power.
• 4-Stroke OHV Design: Provides reliable operation and efficient power delivery.
• Air-Cooled: Helps maintain stable engine temperatures during operation.
• Easy Pull Start: Manual recoil starter allows convenient starting without a battery.
• 20mm Shaft: Features a 20mm diameter shaft with a 50mm shaft height.
• Large Fuel Tank: 3.6L fuel tank provides extended operating time between refills.
• Efficient Lubrication: 0.6L engine oil capacity supports smooth engine operation.
• Durable Construction: Made with aluminum, iron, plastic, and nylon components for a balance of strength and weight.
• Versatile Applications: Suitable for compatible generators, water pumps, go-karts, agricultural equipment, and other machinery.
• Unleaded Gasoline: Designed to operate with standard unleaded gasoline.

Specifications

• Engine Type: OHV, Single Cylinder, 4-Stroke
• Displacement: 212CC
• Maximum Power: 7.5 HP / 4.0 kW
• Output Speed: 3600 RPM
• Maximum Torque: 12 N·m at 2500 RPM
• Cooling: Air-Cooled
• Carburetor: Float Carburetor
• Starting System: Hand Pull Start
• Fuel Type: Unleaded Gasoline
• Fuel Tank Capacity: 3.6L / 0.79 gal
• Engine Oil Capacity: 0.6L / 0.13 gal
• Fuel Consumption: ≤365 g/kWh
• Cylinder Bore × Stroke: 70 × 54mm
• Shaft Diameter × Height: 20 × 50mm

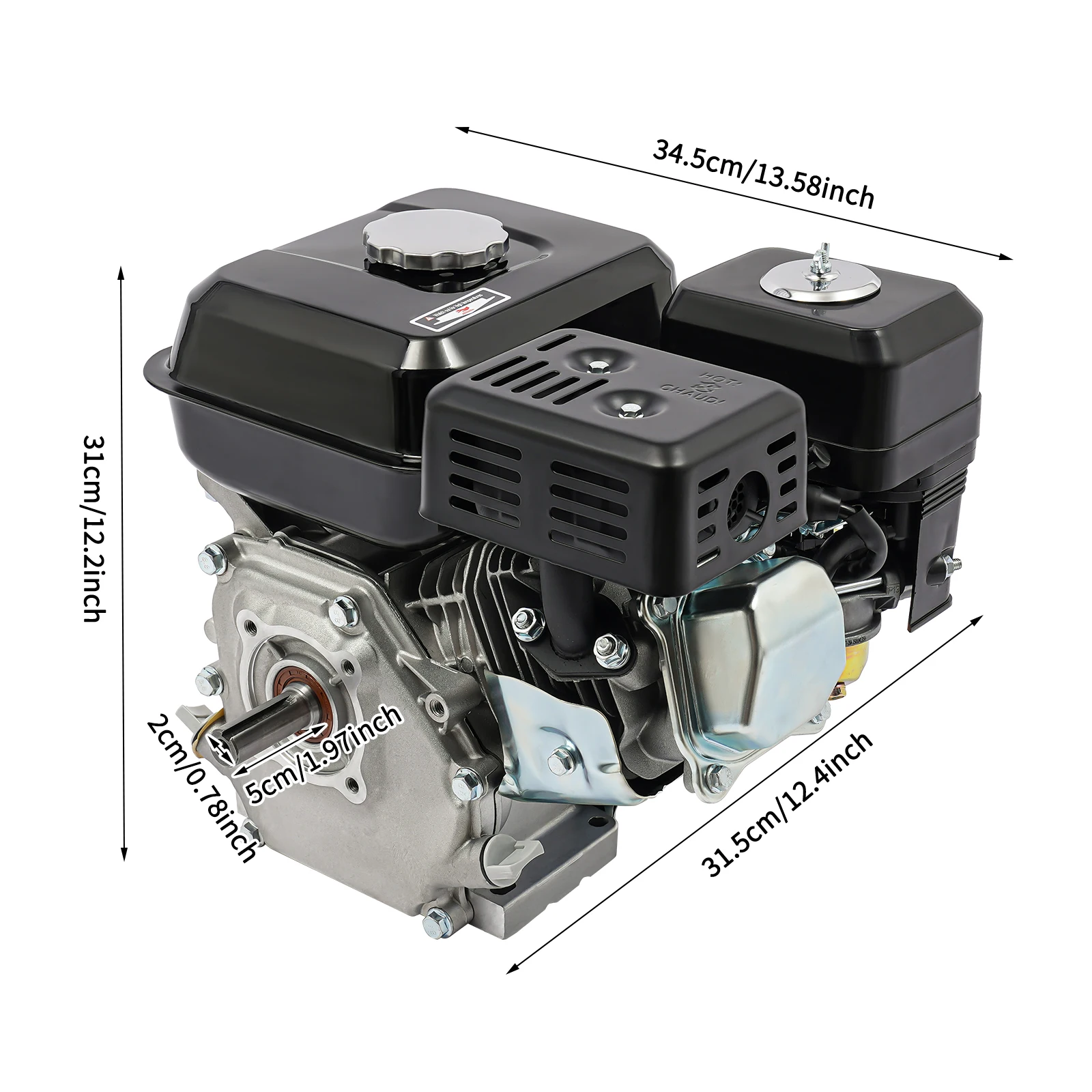

• Product Dimensions: 34.5 × 31.5 × 31cm
• Net Weight: 14.25kg
• Gross Weight: 15kg
• Color: Black

Important: Before purchasing, confirm that the 20mm × 50mm shaft dimensions, shaft configuration, mounting dimensions, rotation direction, and power requirements are compatible with your equipment.

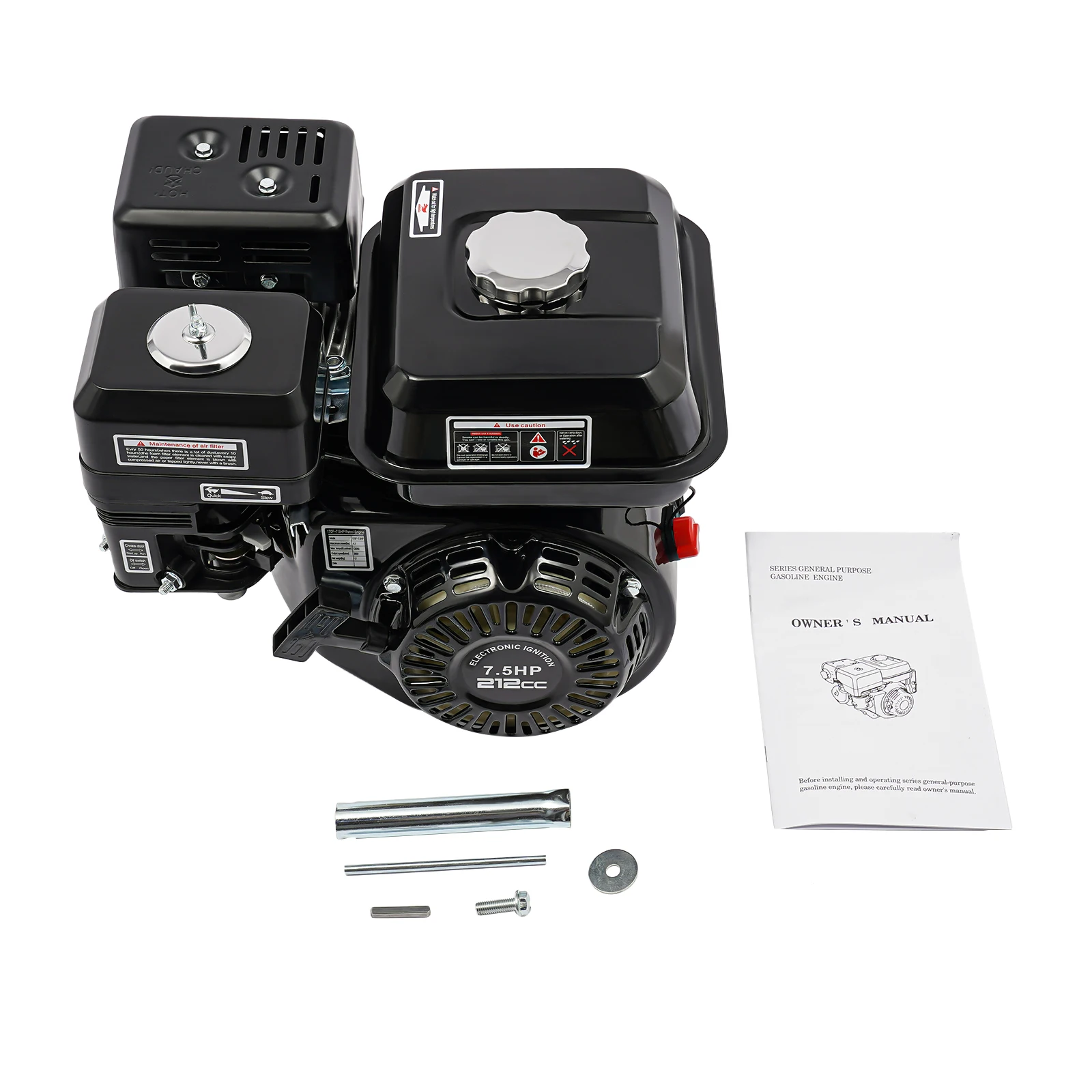

Package Included

1* Gasoline Engine

1* English & French & German & Italian Manual

Other Needed Accessories
