TOPDON Phoenix Scope 4 Channel Oscilloscope Kits for Phoenix Max/Phoenix Lite 3

PRODUCT DESCRIPTION

International Buyers - Please Note:

a)  Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.

b)  Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.


TOPDON Phoenix Scope 4 Channel Oscilloscope with Accessories

Phoenix Scope allows technicians to quickly diagnose issues with automotive electronics and wiring. It captures circuit signals swiftly and displays signal waveforms at a slower speed for simultaneous observation and analysis. Furthermore, it can record tested signal waveforms and replay them for further observation and fault analysis.


Note: Not sold in Czech & Slovakia, Norway, Bulgaria, Finland, Portugal, Brazil, Mexico, Peru。



Product Highlights:
Work Exclusively with Phoenix Tools
23 Types of Automatic Measurements
High Memory Depth
Special Fast Storage Function
Convenient Cursor Operation
Soft Keyboard Input
Customizable and Loadable System Settings
Waveform Recording and Playback
Supports Mathematical Operations on Waveforms
Supports a Variety of Automotive Tests



Warranty & Updates: 1 Year Warranty



Product Features:

Work Exclusively with Phoenix Tools
The Phoenix Scope is compatible with the Phoenix Max, Phoenix Smart, Phoenix Elite, Phoenix Lite 3, Phoenix Lite 2, Phoenix Plus, and Phoenix Plus 2. It does not work independently of these tools.



23 Types of Automatic Measurements
Displayed in one screen and clear at a glance, this feature supports one-tap selection and clearing, eliminating the tediousness of flipping pages and searching, making automatic measurements useful and convenient.



Powerful Trigger Function: This feature supports edge, pulse width, and other triggers. Simple and intuitive setup with quick trigger source switching makes the most difficult parts of using the scope extremely easy.



High Memory Depth
With a memory depth of up to 50M combined with zoom technology, the Phoenix Scope allows both global and detail to be fully displayed. The upper area can be browsed globally, and the lower area can be searched for details making debugging more than twice as fast.



Special Fast Storage Function
Compared with ordinary scopes which require 3 to 5 steps, the Phoenix Scope can save waveforms with just one tap, reducing save time by more than 70%.



Convenient Cursor Operation
When inputting names and characters, ordinary scopes can only use the knob to select characters one by one. The Phoenix Scope supports soft keyboard input, which improves efficiency by more than 90%.



Customizable and Loadable System Settings
Various preferred system settings are available and can be saved as configuration files. This allows you to load configuration files directly to view them according to your preferences without having to set them repeatedly.



Waveform Recording and Playback
The waveform can be recorded and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel.



Supports Mathematical Operations on Waveforms
This feature supports addition, subtraction, multiplication, and division calculations of two-channel waveforms in addition to Fast Fourier Transform.



Supports a Variety of Automotive Tests
This feature supports circuit tests, sensor tests, actuator tests, ignition tests, communication tests, combination tests, etc. Various parameters and specific connection methods are preset for each kind of test.
TOPDON Phoenix Scope  1

Work Exclusively with Phoenix Tools

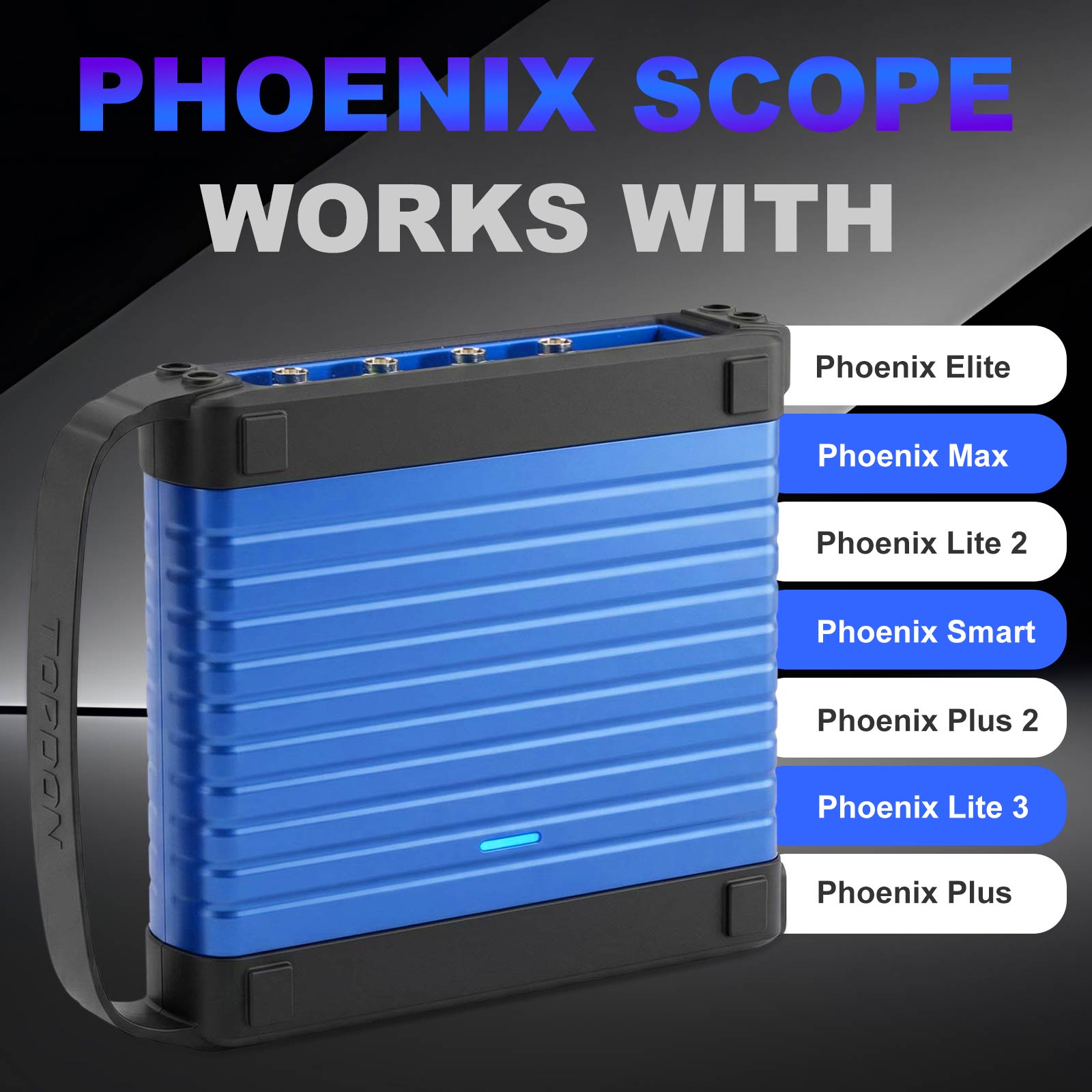

The Phoenix Scope is compatible with following Phoenix diagnostic scanners. Note: It does not work independently of these tools.

  • Phoenix Elite
  • Phoenix Max
  • Phoenix Smart
  • Phoenix Lite 2
  • Phoenix Plus 2
  • Phoenix Lite 3
  • Phoenix Plus

TOPDON Phoenix Scope for phoenix scanners


Waveform Analysis

The 4 Channel Oscilloscope waveform can be recorded, playback and saved in a specified format, which can be directly recalled later and displayed as the reference waveform of the corresponding channel. This feature supports addition, subtraction, multiplication, and division calculations of two channel waveforms in addition to Fast Fourier Transform.

TOPDON Phoenix Scope waterform
TOPDON Phoenix Scope feature 2
TOPDON Phoenix Scope feature 4


Specifications:

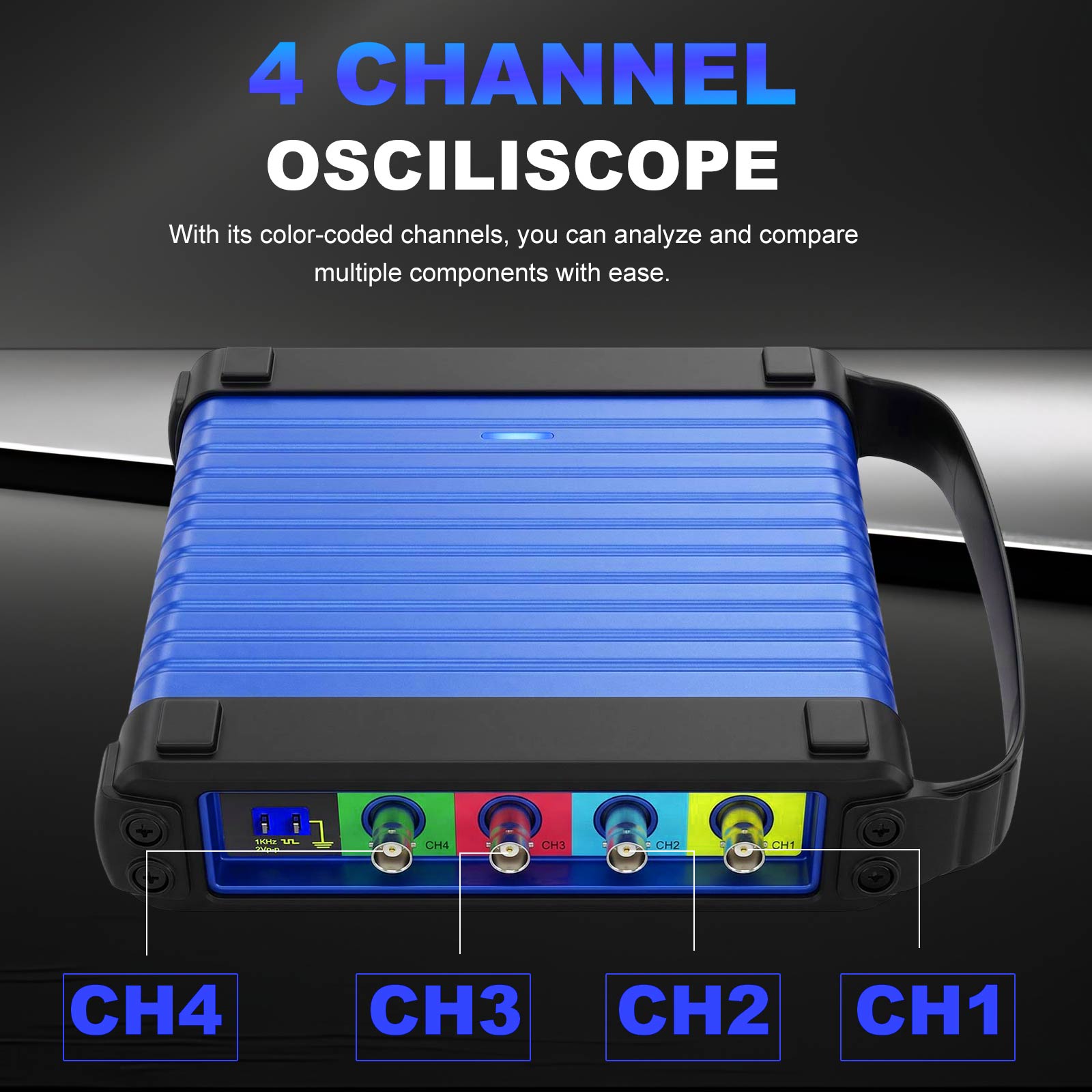

Number of Channels: 4

Bandwidth: 100MHz

Rise Time: ≤3.5ns (typical)

Protocol Decoding: CAN, LIN

Trigger Type: Edge, Pulse Width

Trigger Mode: Normal, Auto, Single Sequence

Real-Time Sampling Rate (Max): 1Gsa/s(single channel); 500MS/s(dual channel); 250MS/s(four channels)

Input Impedance: 1MΩ±1.5%

Memory Depth: 50M (shared by 4 channels) Auto, 10K, 100K, 1M, 10M

Sample Bit: 8

Vertical Accuracy: ±3%

Vertical Stall: 5mV~10V

Vertical Offset: ± 2.5V (probe X1, <500mV/div) ±120V (probe X1, ≥500mV/div)

Invert: Support

Channel Coupling: DC, AC • Math: Dual Waveform/FFT

Time Base Accuracy: 20ppm(typical value,ambient temperature +25℃)

Power Supply: USB Port & DC Port

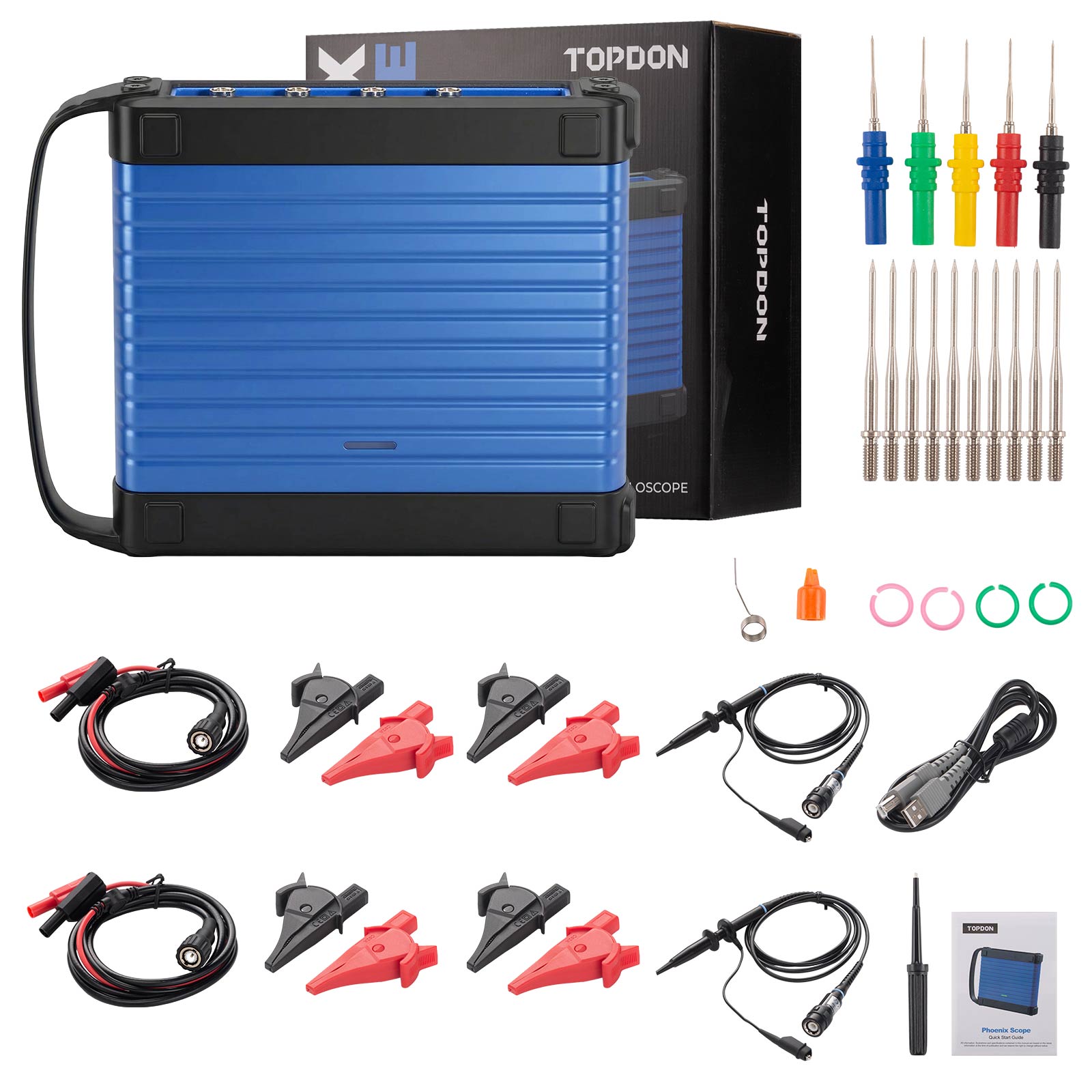

Package includes:
1pc x Phoenix Scope
1pc x MDCI Pro Type A to B Cable
1pc x Phoenix Scope Back Probe Pins Suite
1pc x Phoenix Scope Probe Assembly
8pcs x Crocodile Clips (4 Red, 4 Black)
1pc x BNC to 4mm Test Leads
1pc x Phoenix Scope Quick Start Guide
1pc x Phoenix Scope Probe Assembly User Manual
