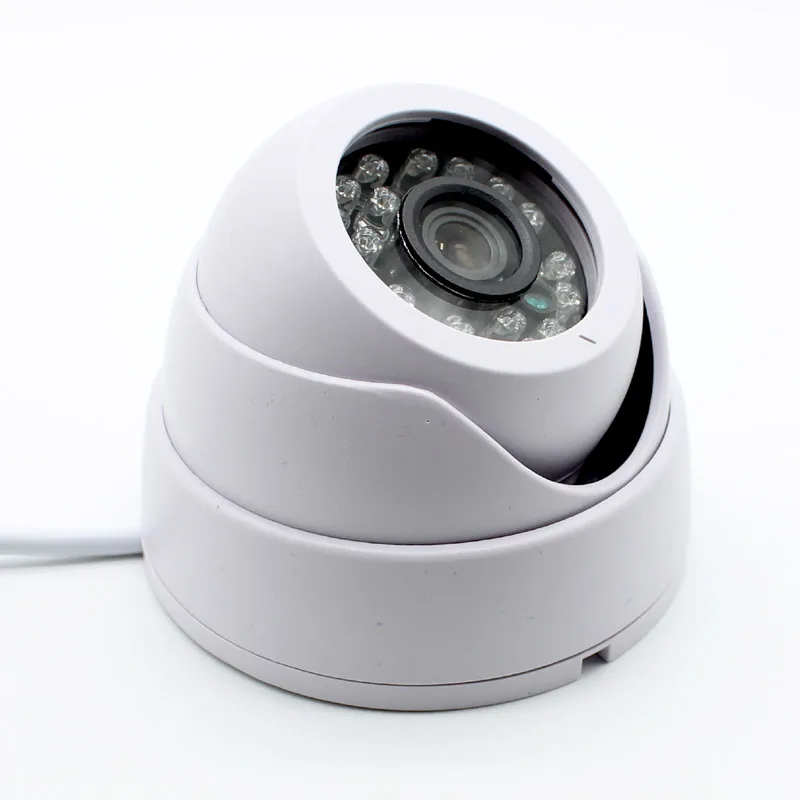

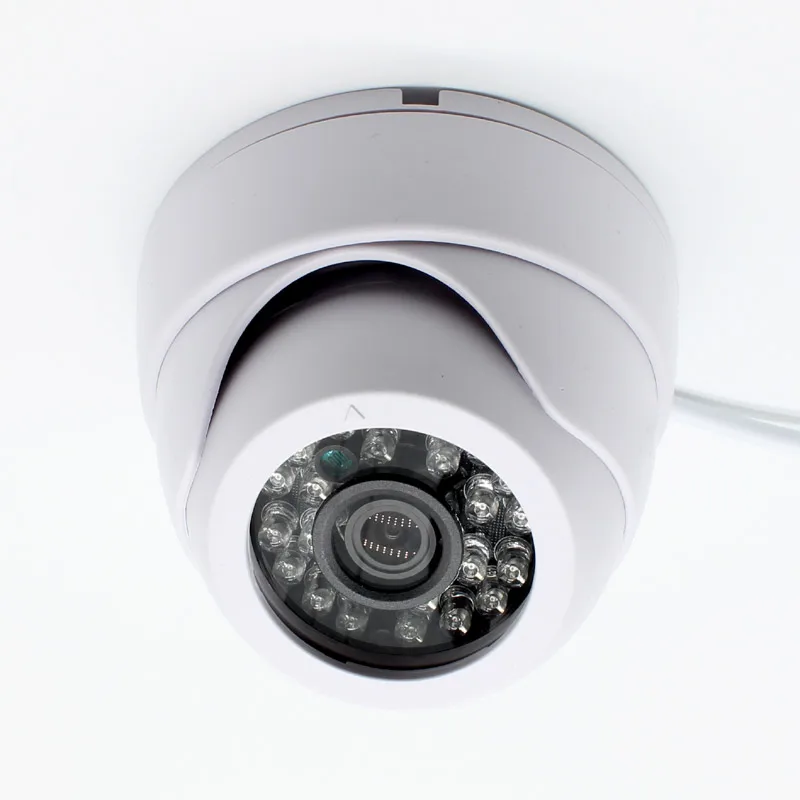

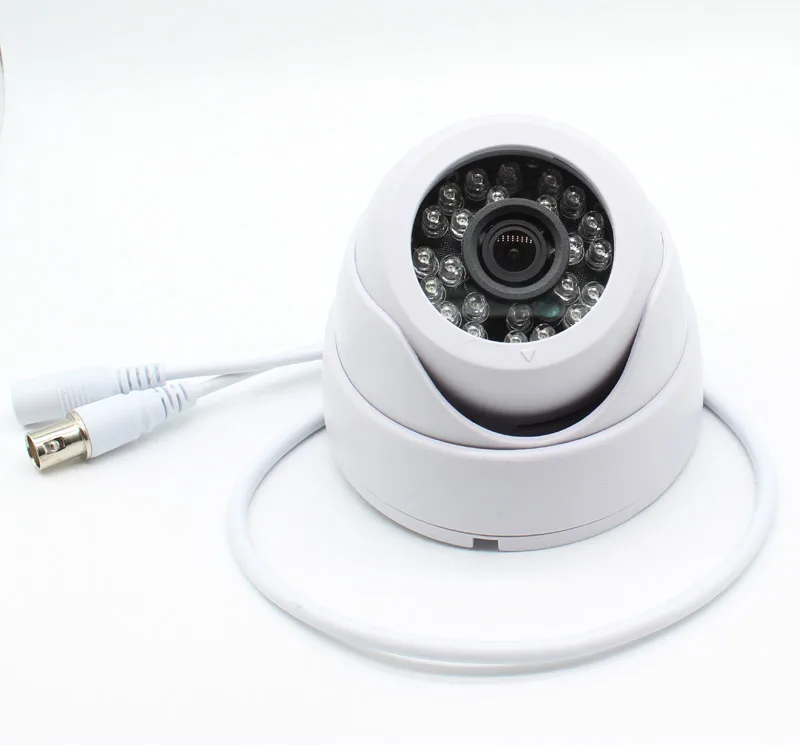

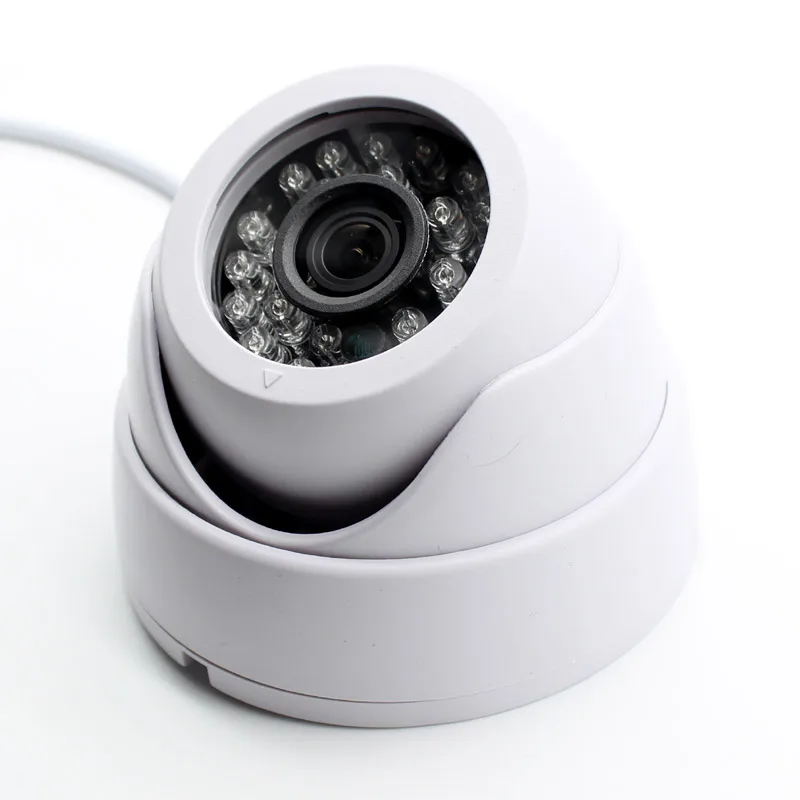

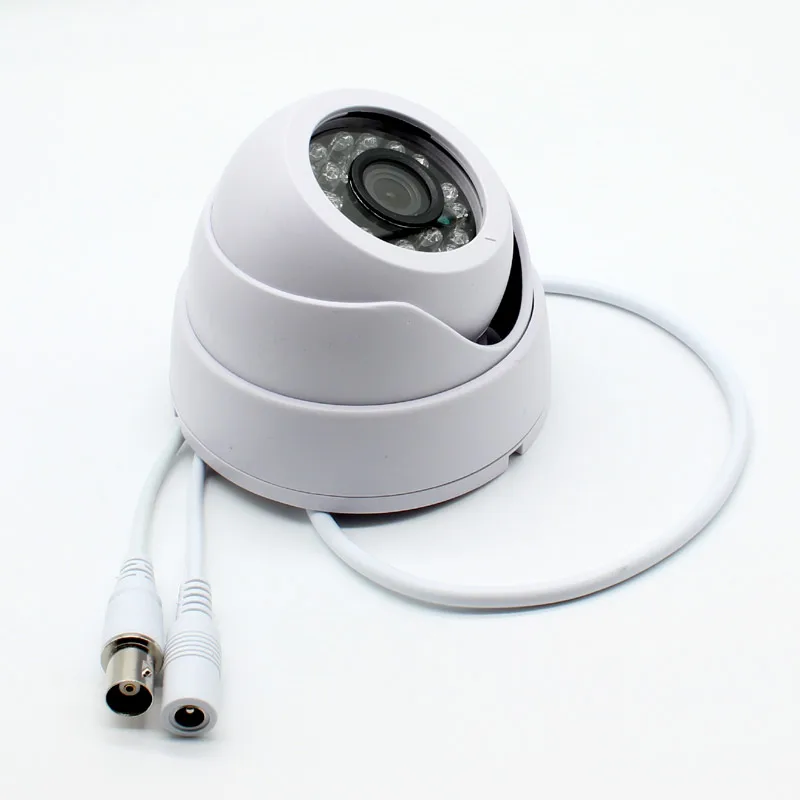

HD 5.0MP AHD Coaxial high-definition 4in1 AHD TVI CVI CVBS CCTV Camera

5MP AHD Camera MUST be used with 5MP or 8MP AHD DVR

It Cannot work with standard 2MP AHD DVR

Please make sure your AHD DVR supports 4MP AHD camera before purchasing.

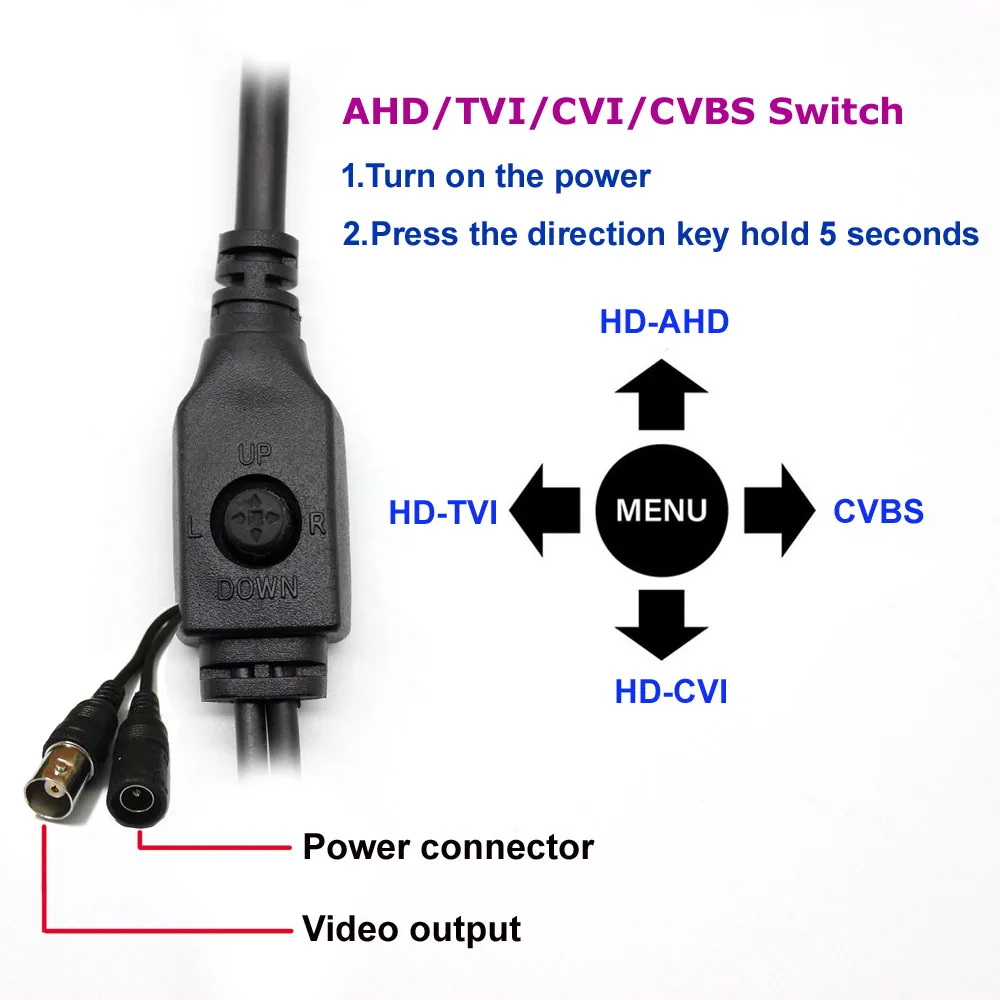

 Default signal is HD AHD, How to shift AHD/CVI/TVI/CVBS Signal by OSD?
 UP: AHD   Down: CVI    Left: TVI    Right: CVBS
 (Press button in different direction for 5 seconds to be related signal)
 PAL/NTSC in one

5.0MP TVI / CVI / AHD / CVBS 4 in 1 Security Camera, Compatible with 5MP-AHD/CVI/TVI/CVBS DVR. Default signal is HD AHD. If you are using other DVR, you need to switch to other signal firstly.

Feature:

 * 1/2.9" 5MP FH8538M + V51 progressive scan CMOS Sensor,

 * Excellent performance, clear and bright picture.

 * Resolution: 2560(H)*1920(V) 5mp 4:3; 2560(H)*1440(V) 4mp 16:9

 * TV system: NTSC / PAL in one

 * Video Output: Multi-resolution (5mp/4mp)AHD.

 * Capture moving images, AHD Excellent performance, with clear and bright image

 * Illumination: 0.001Lux/(F1.2,AGC ON), 0LUX with IR

 * D/N Switch: support IR-CUT switch, CDS external control

 * Support OSD menu control, Suitable for user-defined Settings.

 * Support DWDR. Support UTC function

 * Adaptive Digital Noise Reduction, 2D-DNR, 3D-DNR

 * 24IR Leds

 * Weatherproof: No

 * Power supply: DC12V/1A (don't include)

 * Material : Plastic

Lens: 2.8mm Lens, Optional: 2.8mm/3.6mm/4mm/6mm/8mm/12mm
(If you need to choose the lens, please leave message when you buy it)

 * This camera have 4 MODE for video output: AHD, CVI, TVI and CVBS
 * Default MODE is AHD MODE, please change to corresponding VIDEO MODE by OSD cable according to your DVR.

Specifications:

Sensor
1/2.9" FH8538M+V51 5MP CMOS
 Format

PAL/NTSC

 Effective Pixel

2560(H)*1920(V) 5mp 4:3 ​

2560(H)*1440(V) 4mp 16:9

FPS: 5MP/20fps, 4MP/25fps, 4MP/30fps

Illumination
0.001Lux/(F1.2, AGC ON), 0LUX with IR
Shutter
AUTO
D/N Mode
EXT (Default) /AUTO/COLOR/B/W
Synchronously
Internal
 Video Output
AHD/TVI/CVI/CVBS switch
 Exposure
Shutter/AGC/Brightness/DWDR
White BalanceATW/MWB
D/N Mode
Infrared/Internal AUTO/Color/B&W
AdjustSharpness/Display Screen/Edge DPC/Output mode
Language
CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JAP/ENG
Operation Temperature
-20℃  to  60℃
Working Humidity
Relative humidity less than 90 %
Power
DC 12V / 1A
Weight
0.25kg

Packaging included:

1x HD 5mp AHD TVI CVI CVBS 4in1 Wide angle Dome CCTV Camera

Warranty Term: One Year Warranty
