Specifications
High-concerned chemicalNone
ElectricNo
Photography Accessories TypeTools
Model NumberKH00008
PackageYes
Brand Namelightdow

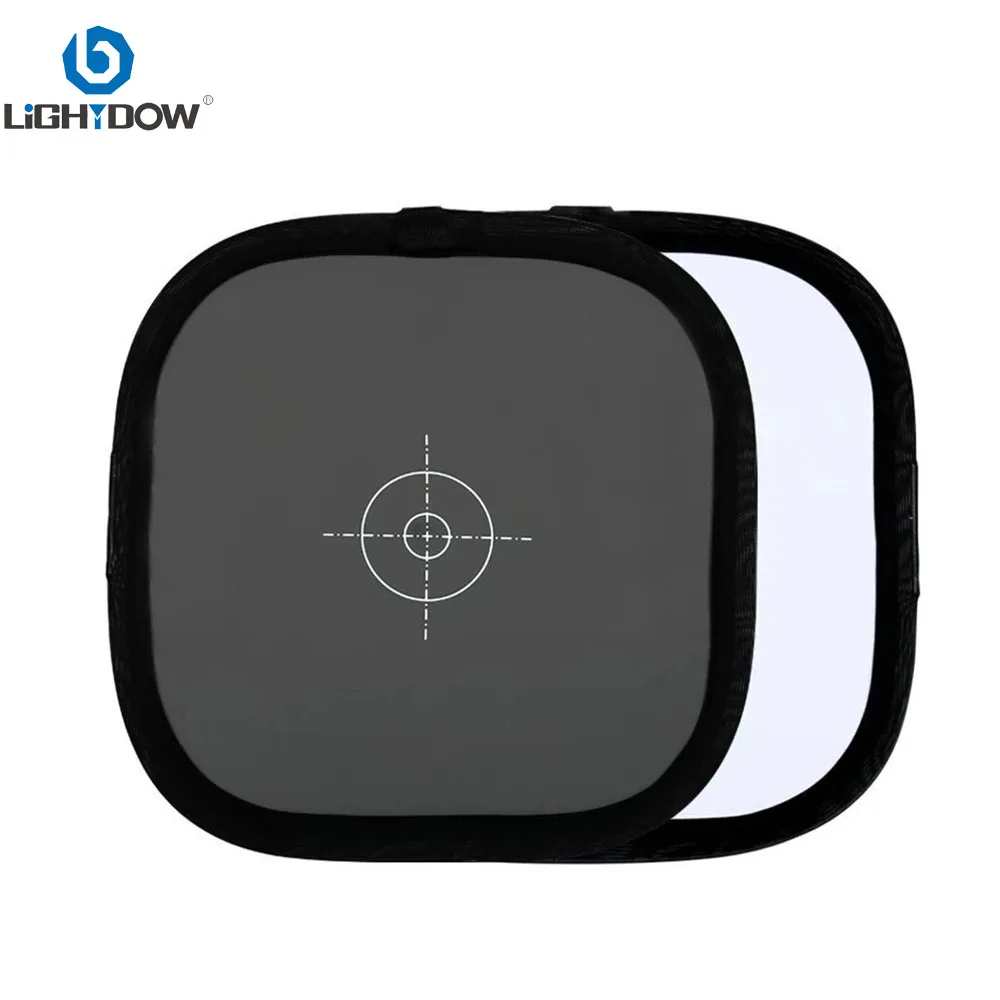

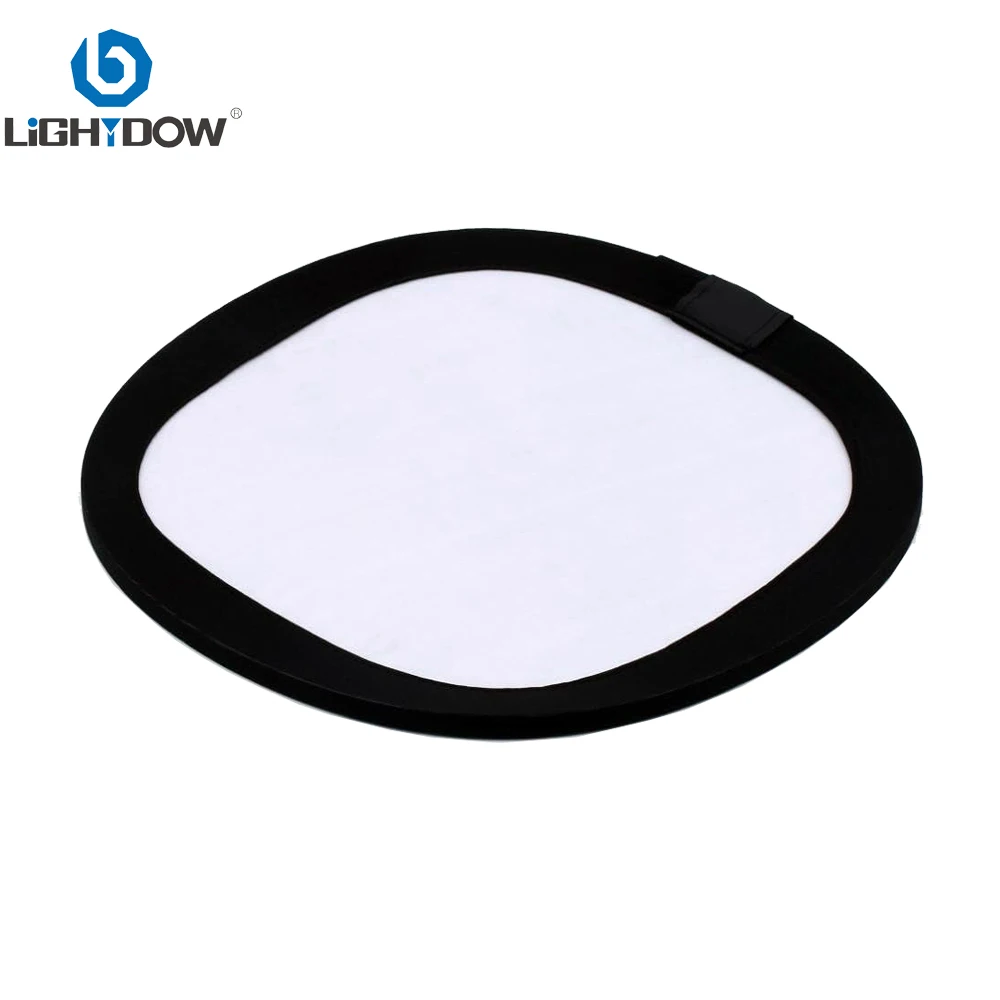

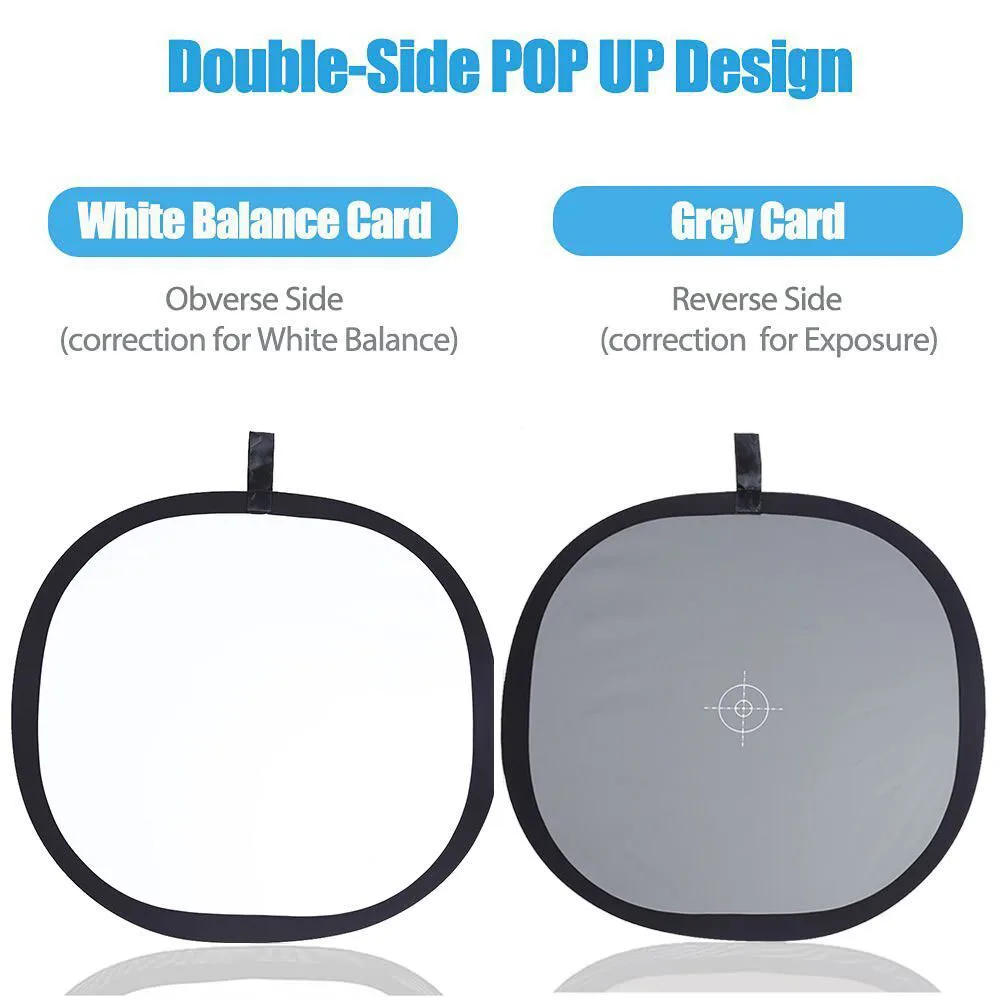

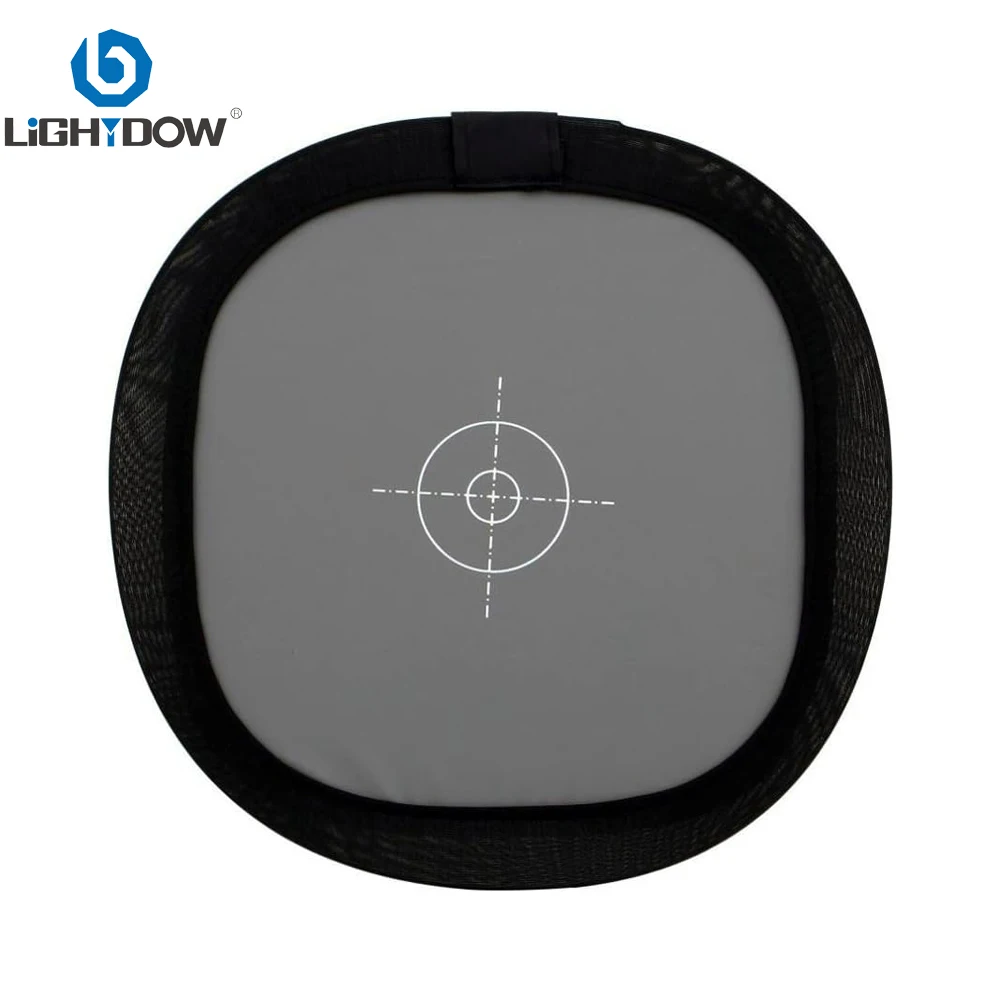

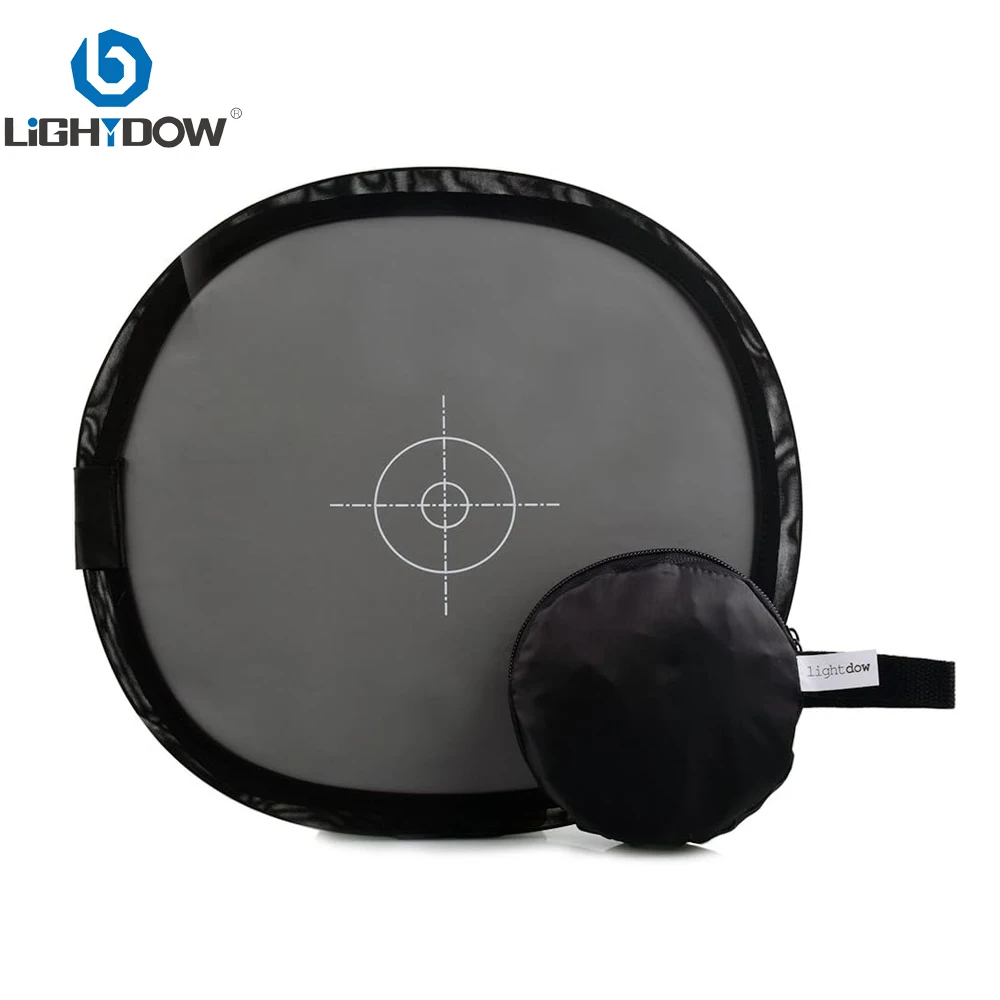

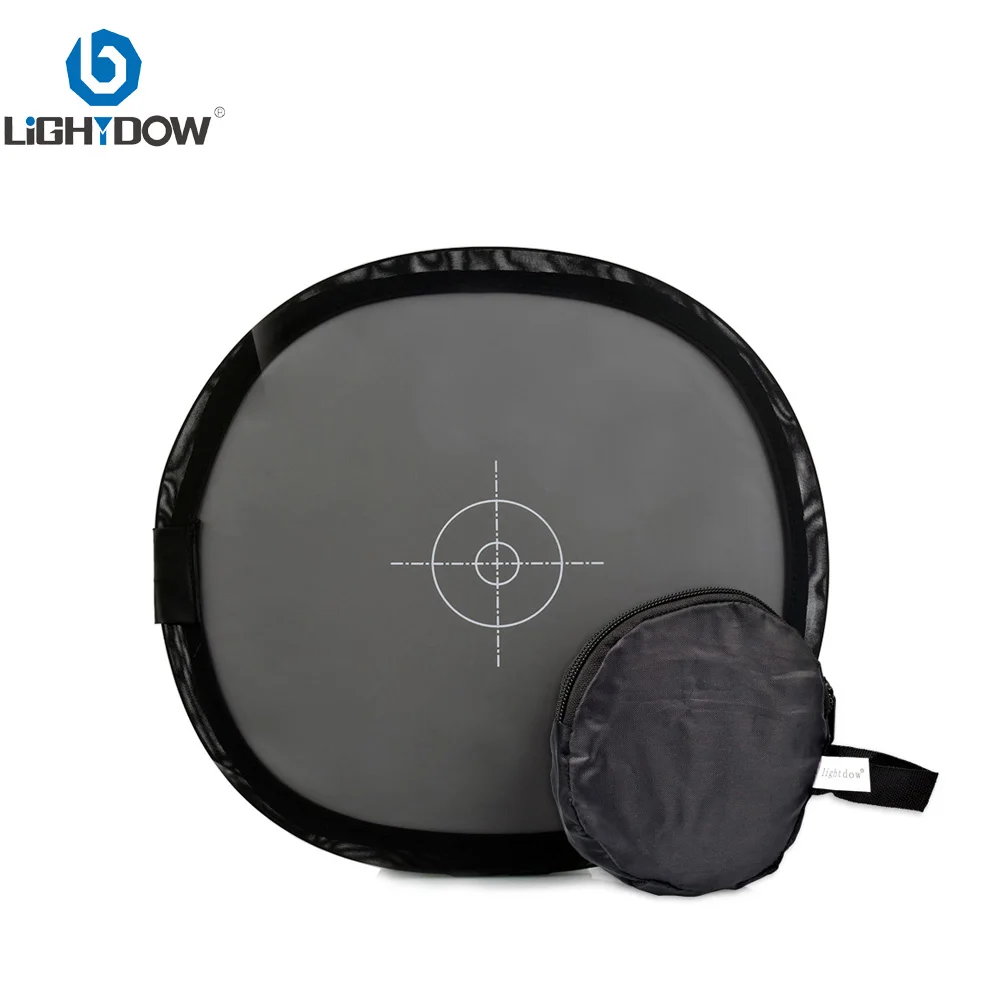

Lightdow 12 x 12 Inch (30 x 30 cm) White Balance 18% Gray Reference Reflector Grey Card with Carry Bag [Folded Version]

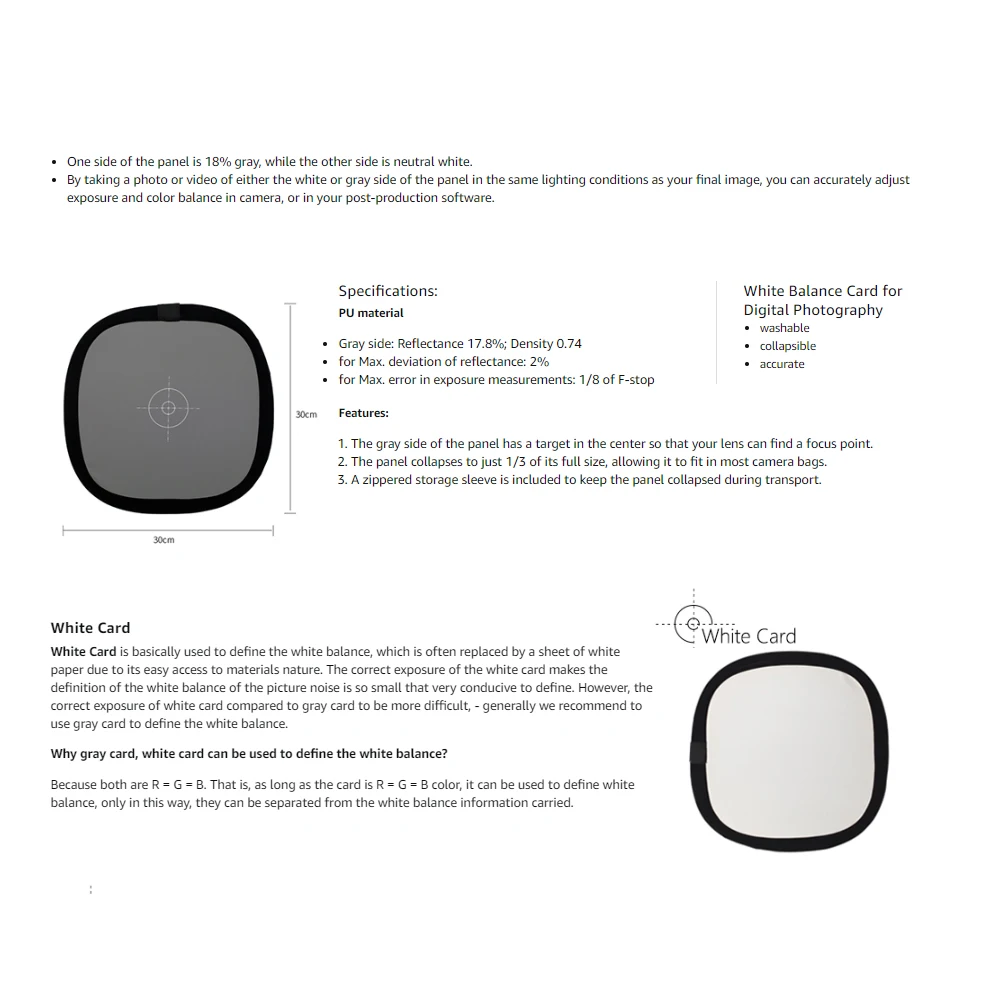

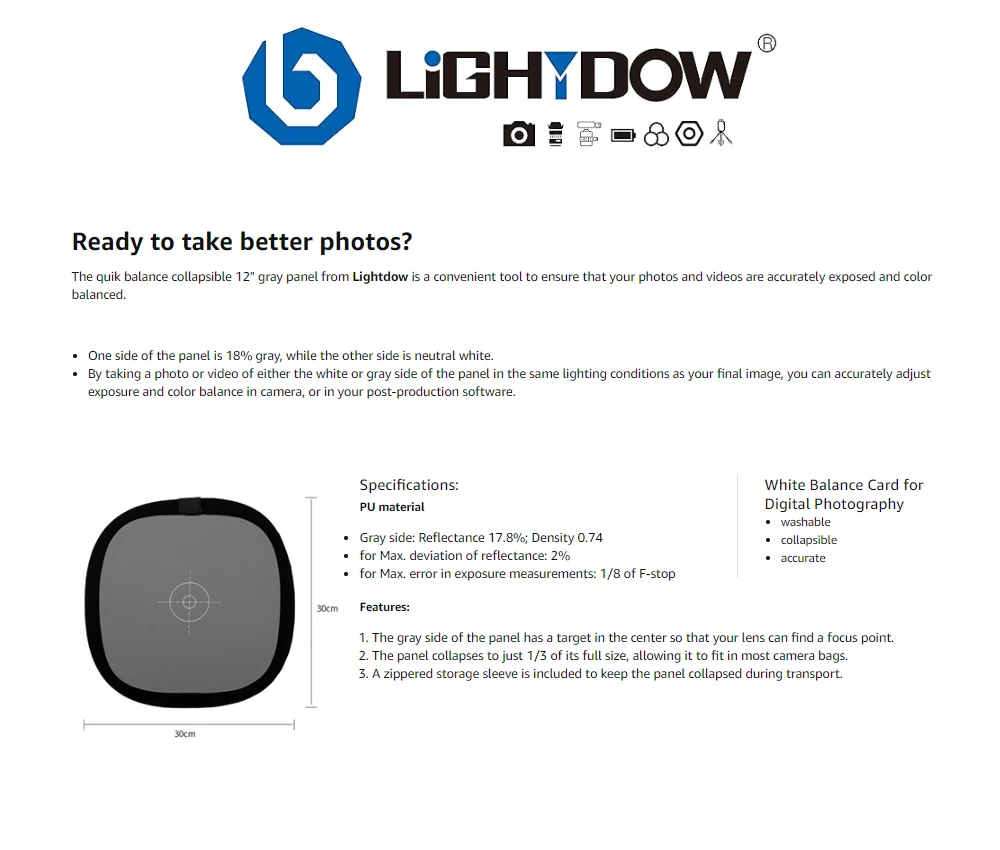

Specifications:
Gray side: Reflectance 17.8%; Density 0.74
Max. deviation of reflectance: 2%
Max. error in exposure measurements: 1/8 of stop
Size:30 x 30cm
Net weight:about 70g

How to use it :

1. Turn the camera's power on and set it in any shooting mode. Toggle the camera's main control wheel to set the white balance to the LCD display PRE position, hold down the WB key more than 3 seconds, and the display Pre starts to blink You can make a manual white balance setting. At this point the lens alignment gray card press the shutter, if the measurement is successful, the LCD display will show Gd ..


2. The distance between the lens and the gray card should be kept above 15 cm, and the gray card should be filled with the entire screen as much as possible, and any projection should be avoided on the gray card.

3. The gray balance process is independent of the focal length of the lens, and AF auto focus can be converted to MF manual focus and the lens focal length is adjusted to infinity. The purpose is to make the gray card more blurred and soft. Exposure compensation function may interfere with the measured data, it is recommended to close the exposure fill function

Package contents:

1 x 12 "/30cm Grey/White Balance Card

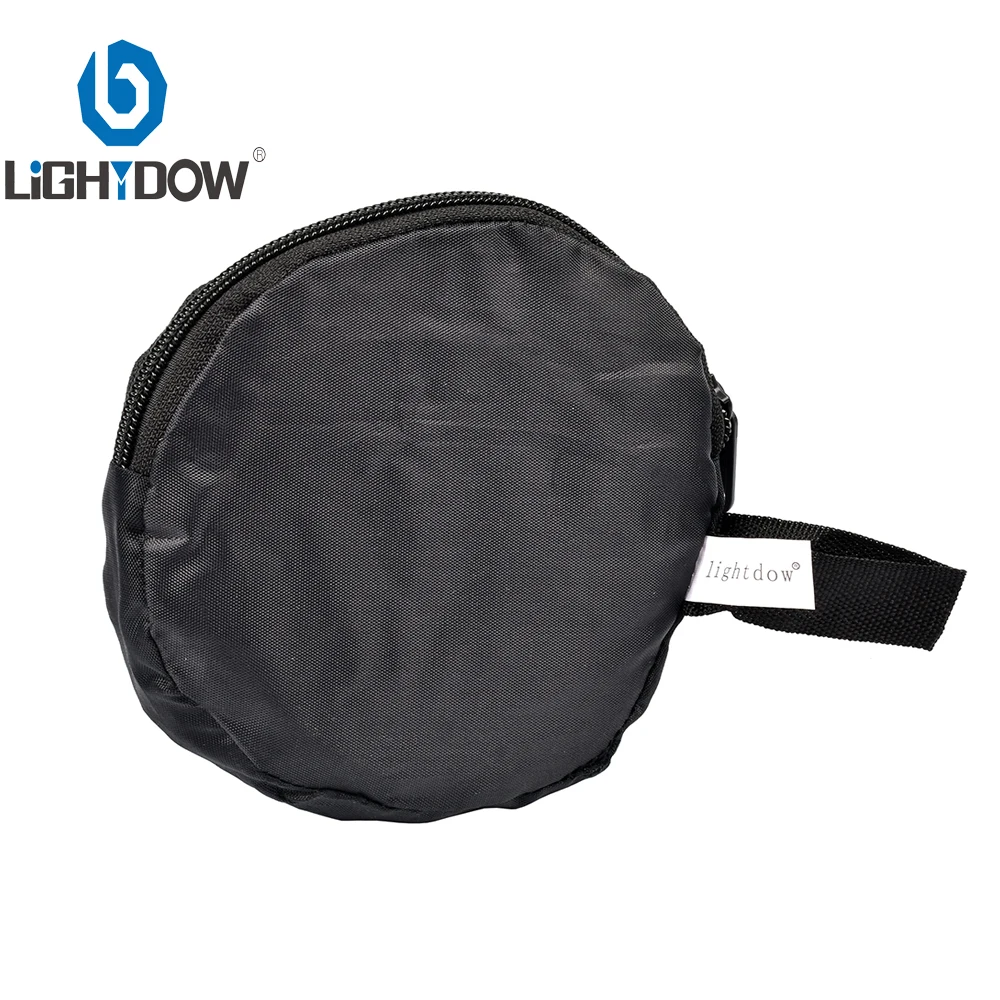

1 x carrying bag

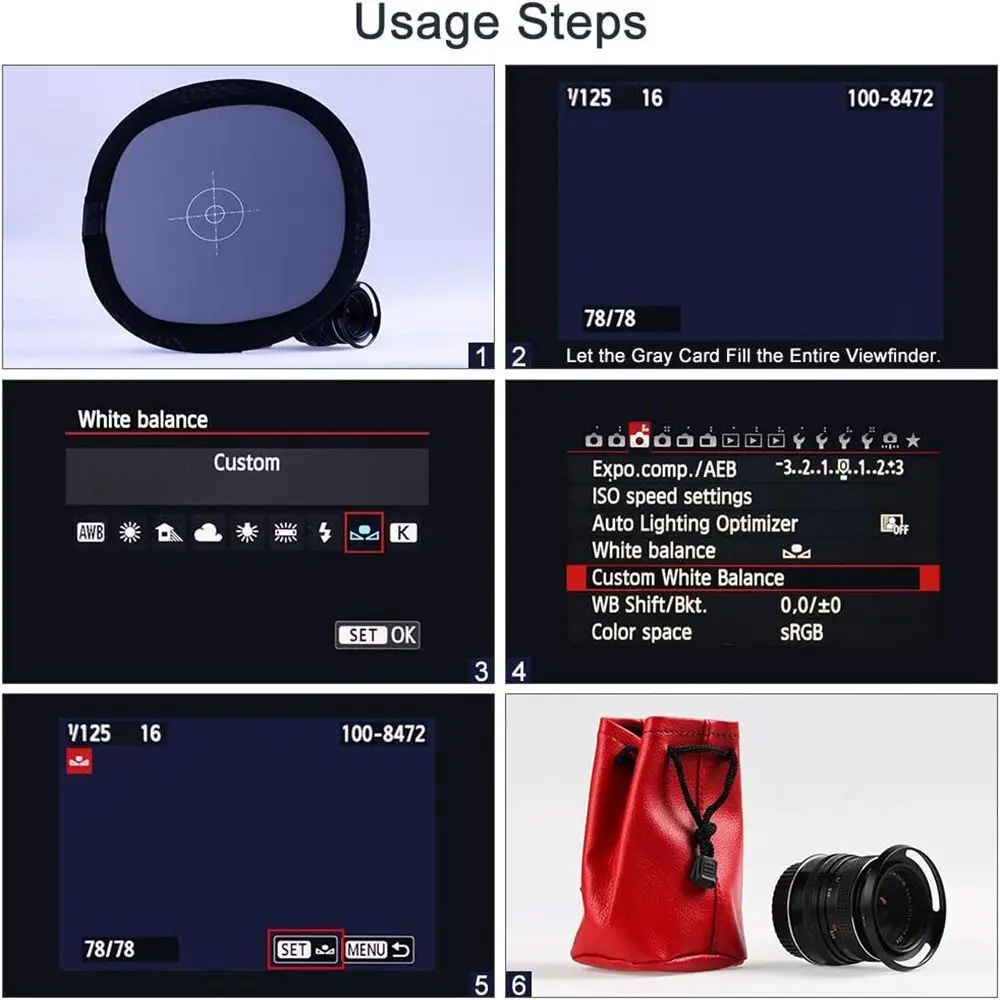

How to Fix WB In-Camera With a Grey Card

The exact way of setting the white balance in camera with a grey card might differ from below, depending on the manufacturers.

Check your camera manual or search on Google about custom white balance and specify your camera’s model.

  • Place the grey card in the scene;

  • Set the camera to manual focus;

  • Frame the shot so that the grey card fills the whole frame. Don’t worry about the sharpness of the image. It will work fine even if it’s out of focus;

  • Check exposure and adjust if you need to;

  • Press the WB button while turning the main dial until you select PRE.

  • Release the button. Press and hold it again until the letters PRE start flashing.

  • Take the photo of the grey card before PRE stops flashing.

  • That´s all! The camera has just created a WB preset based on the photo you just took.

In other camera models, you might need to take a photo of the grey card and then select it in the Custom White Balance as the reference image.
