Features:

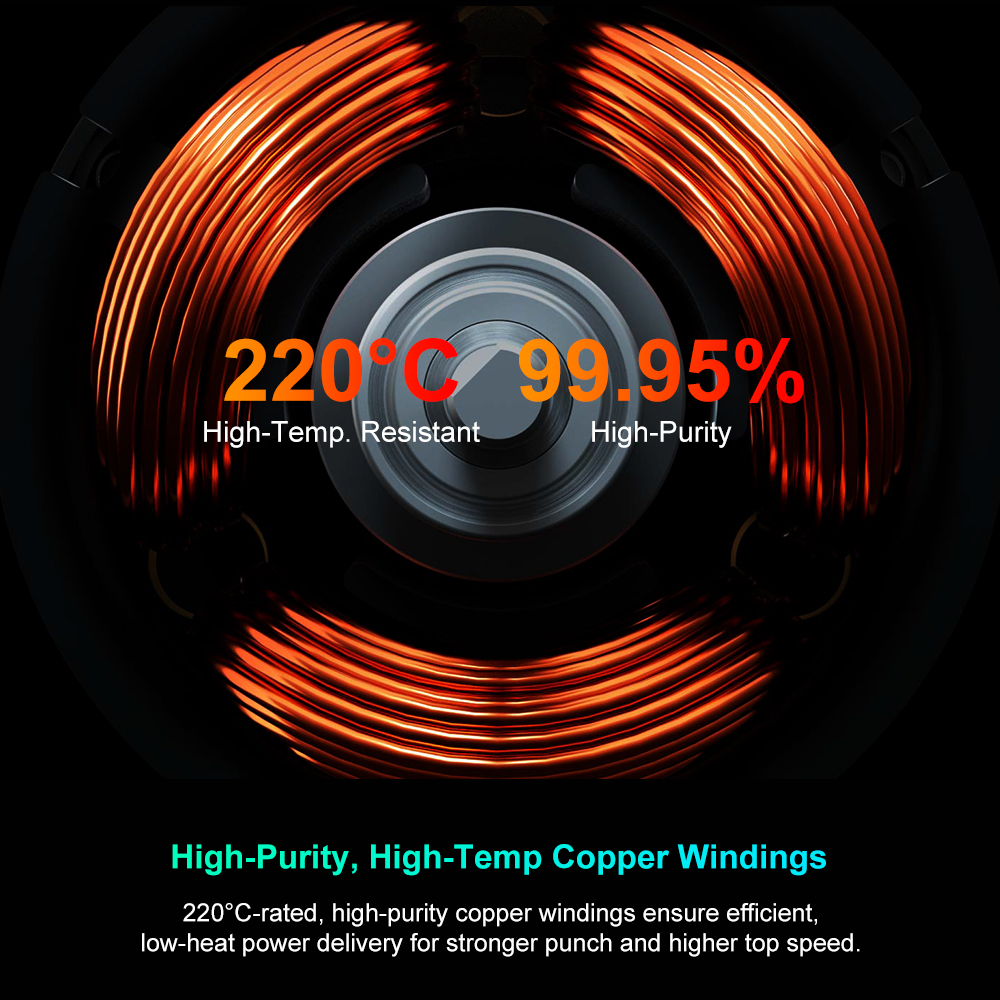

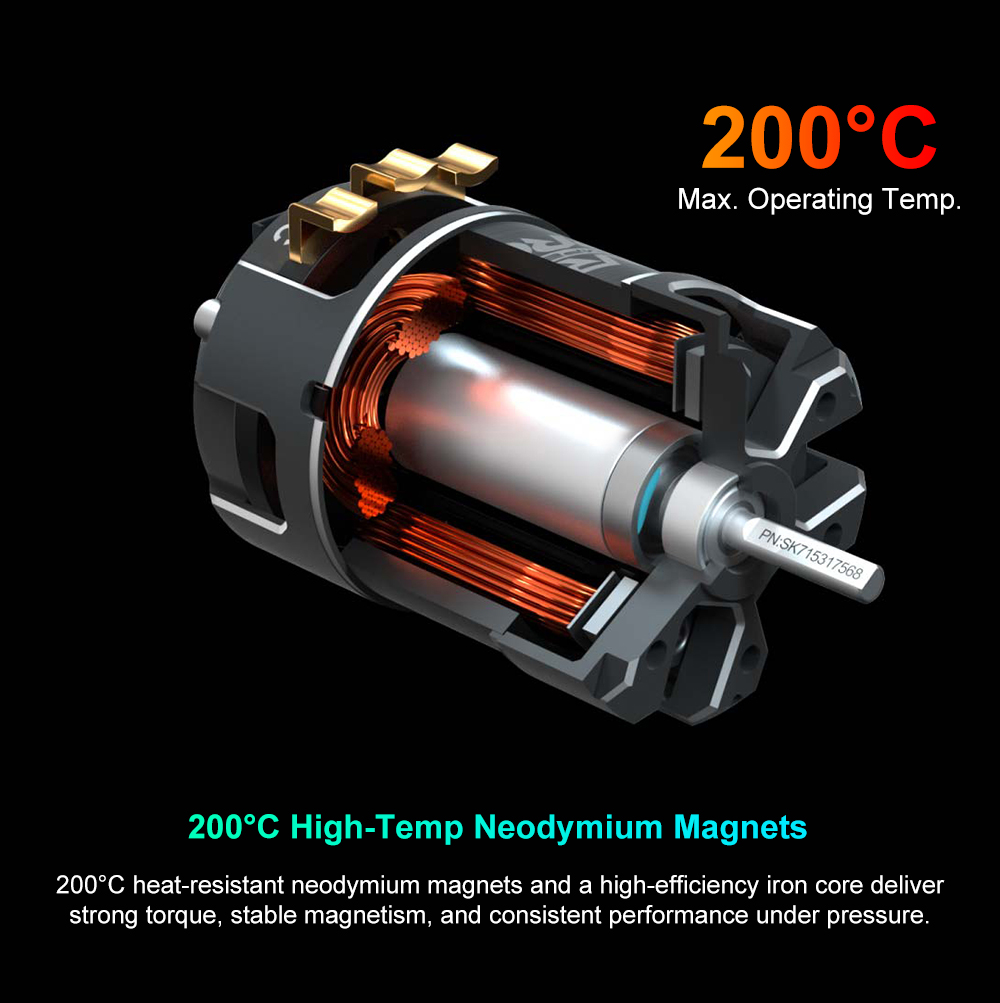

1. ROAR-certified ARES PRO 4 features professional-grade power output. Built with high-temperature copper windings & neodymium magnets, it delivers strong torque, higher top speed and stable performance under heavy load across all race tracks.

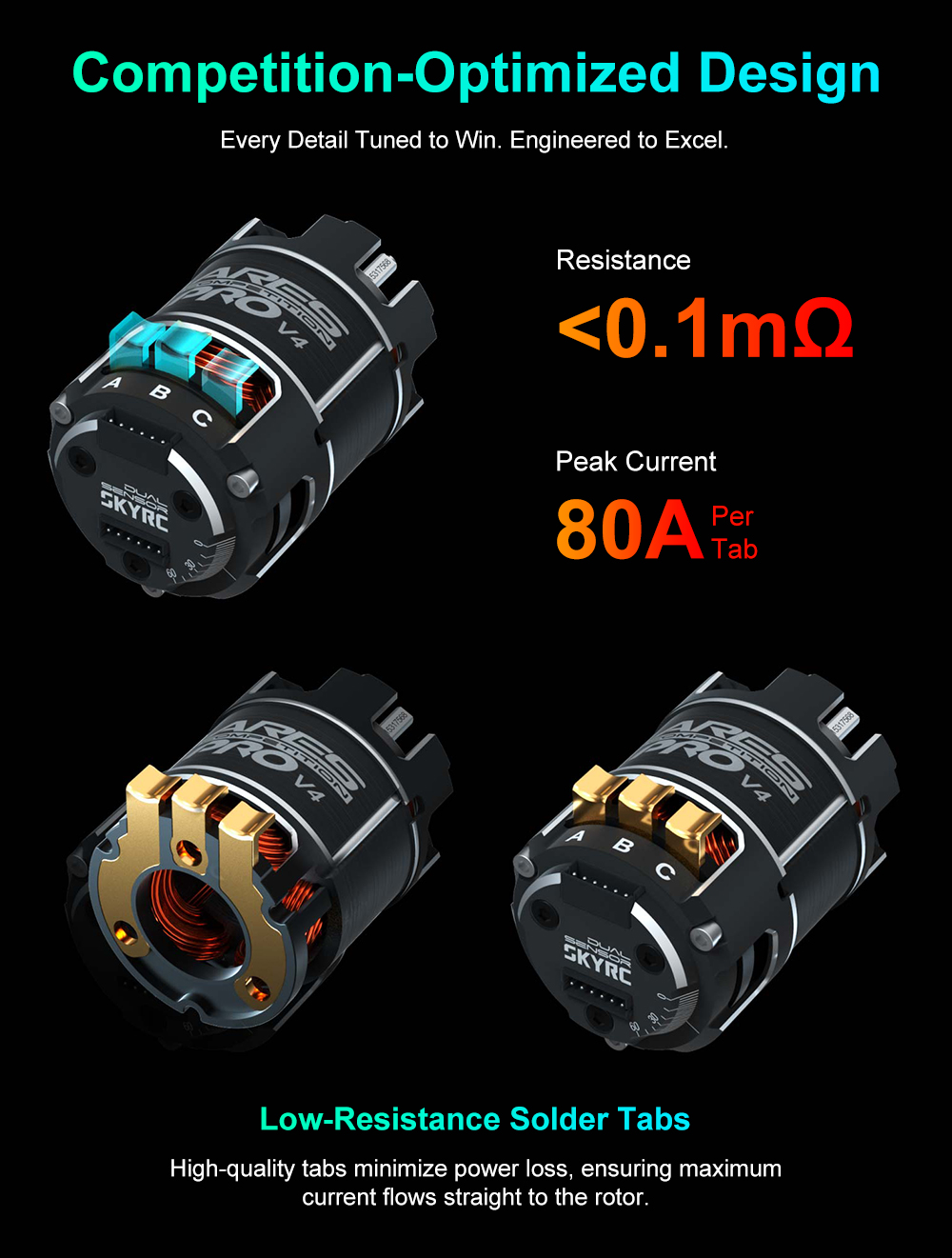

2. Race-optimized construction adopts low-resistance solder tabs to minimize power loss and maximize current transmission, bringing outstanding acceleration and consistent racing performance for RC competitions.

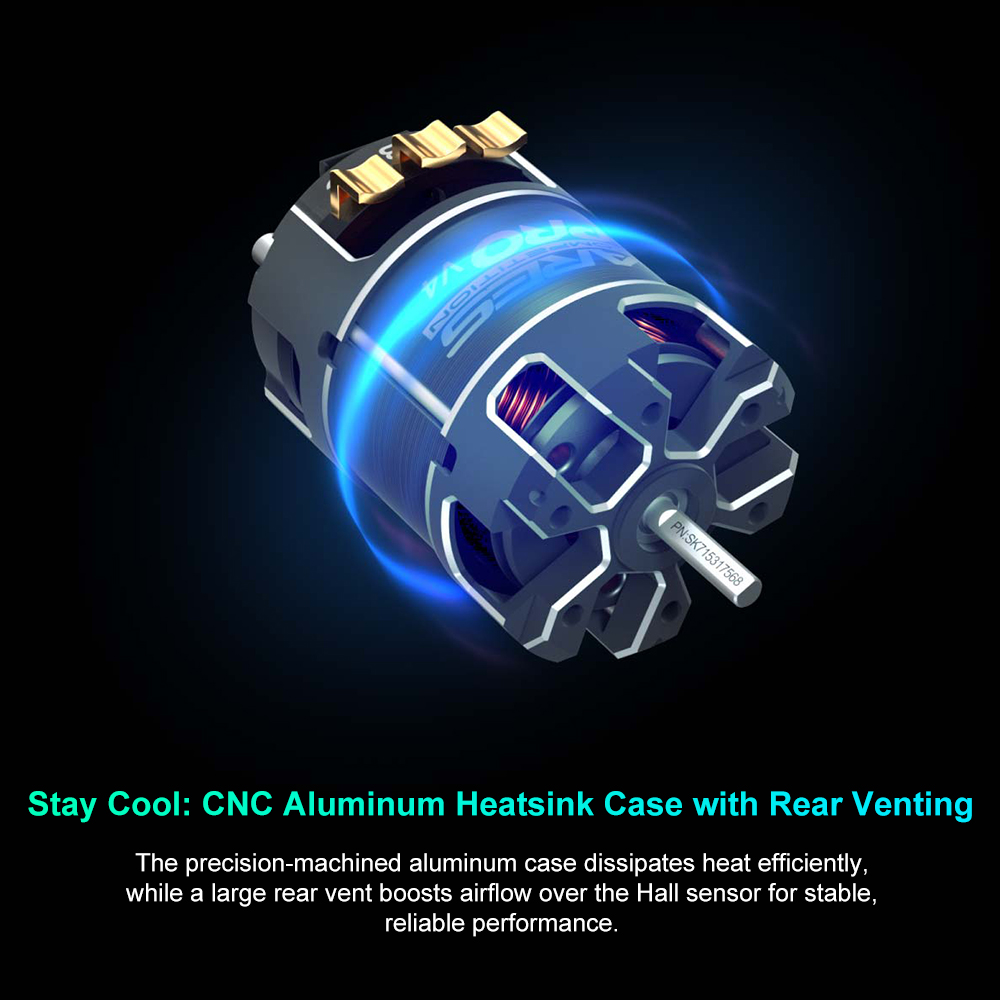

3. Precision CNC aluminum heatsink case with rear ventilation optimizes airflow around Hall sensor, accelerating heat dissipation to maintain stable long-time operation during intense races.

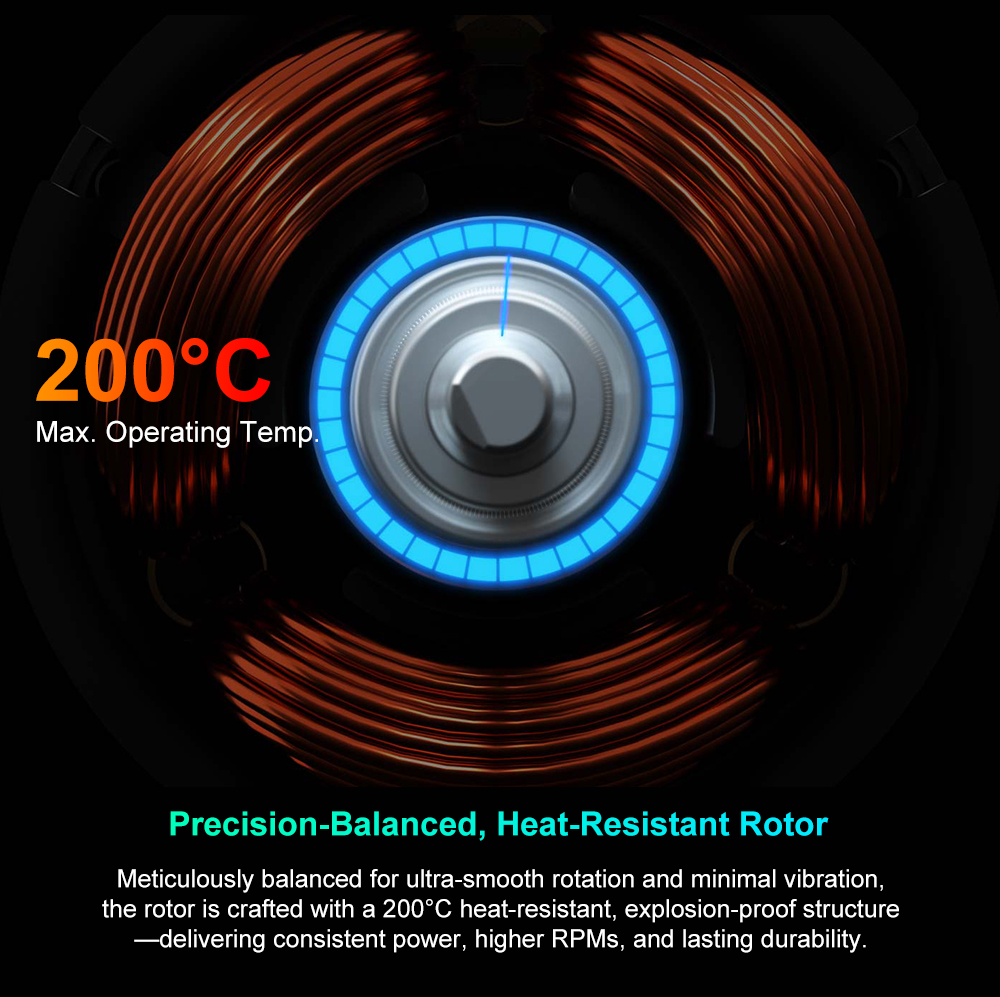

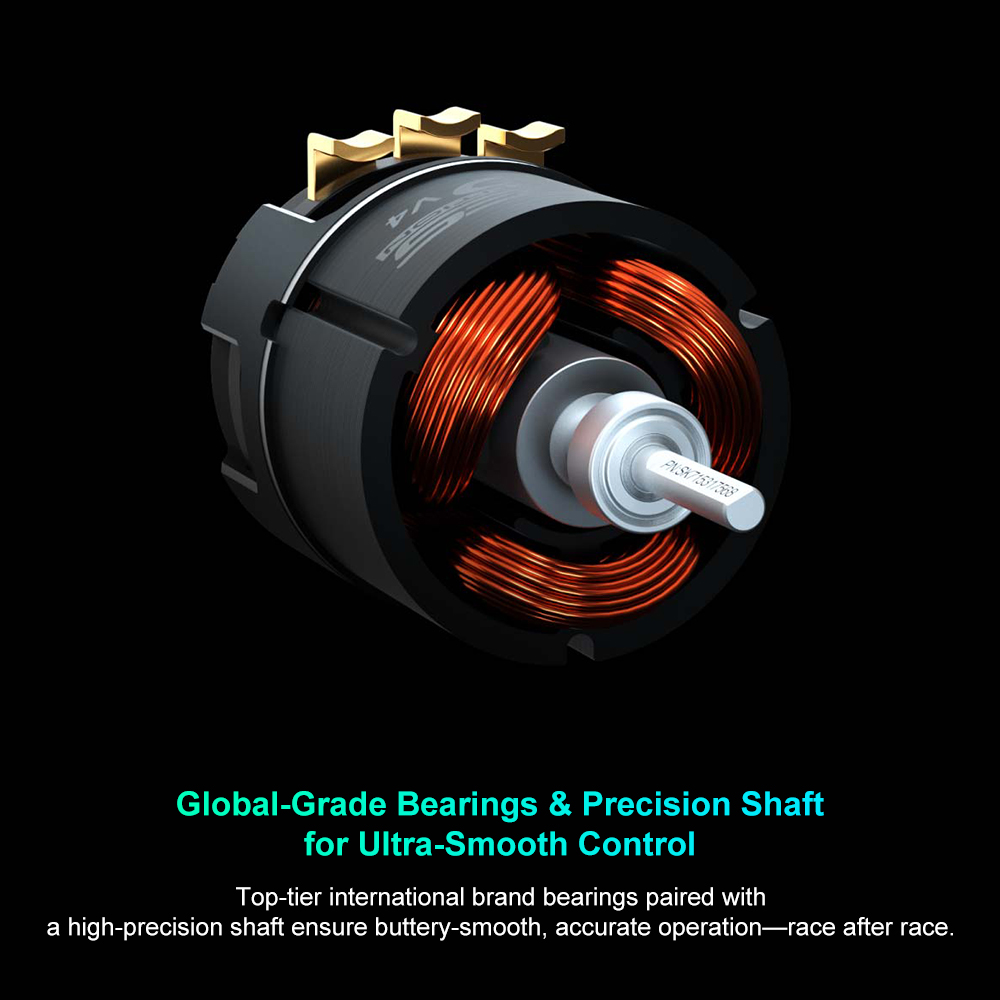

4. Premium international bearings paired with precision shaft & dynamically balanced 200°C explosion-proof rotor greatly reduce vibration, enabling ultra-smooth rotation, high RPM and extended service life.

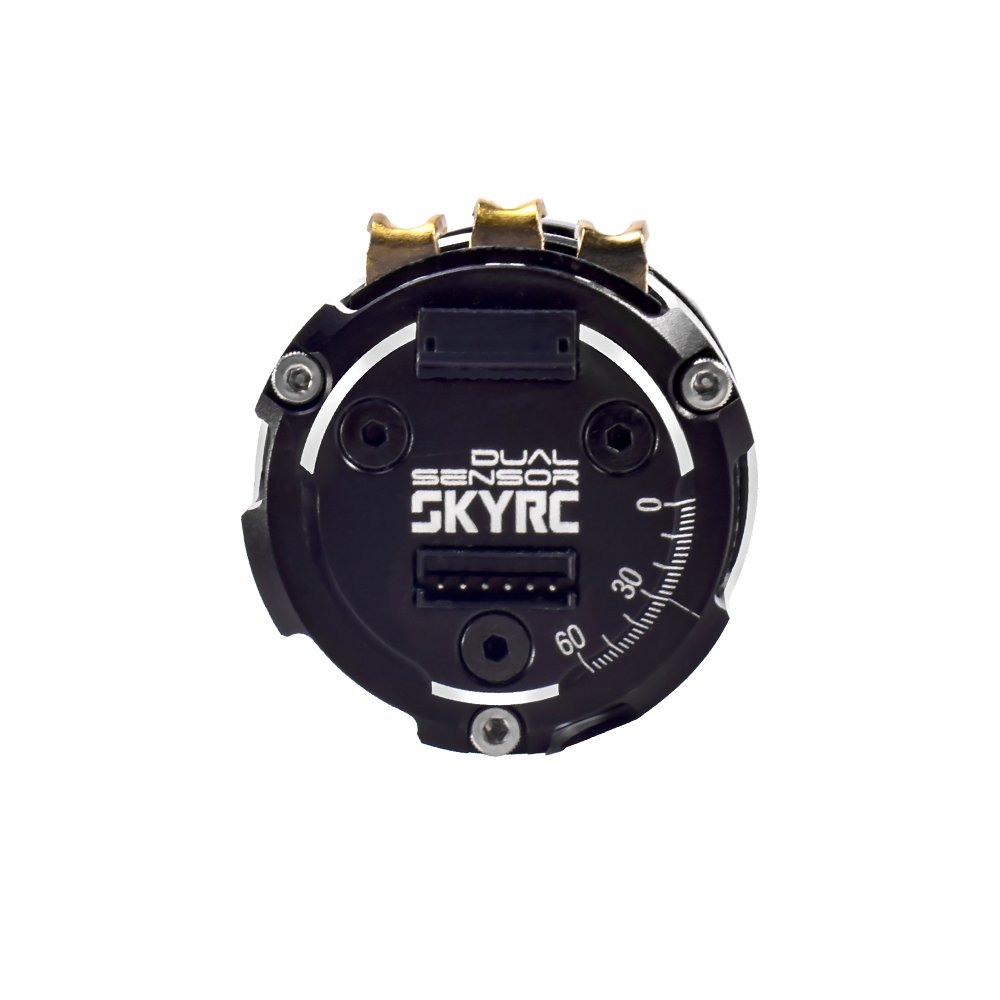

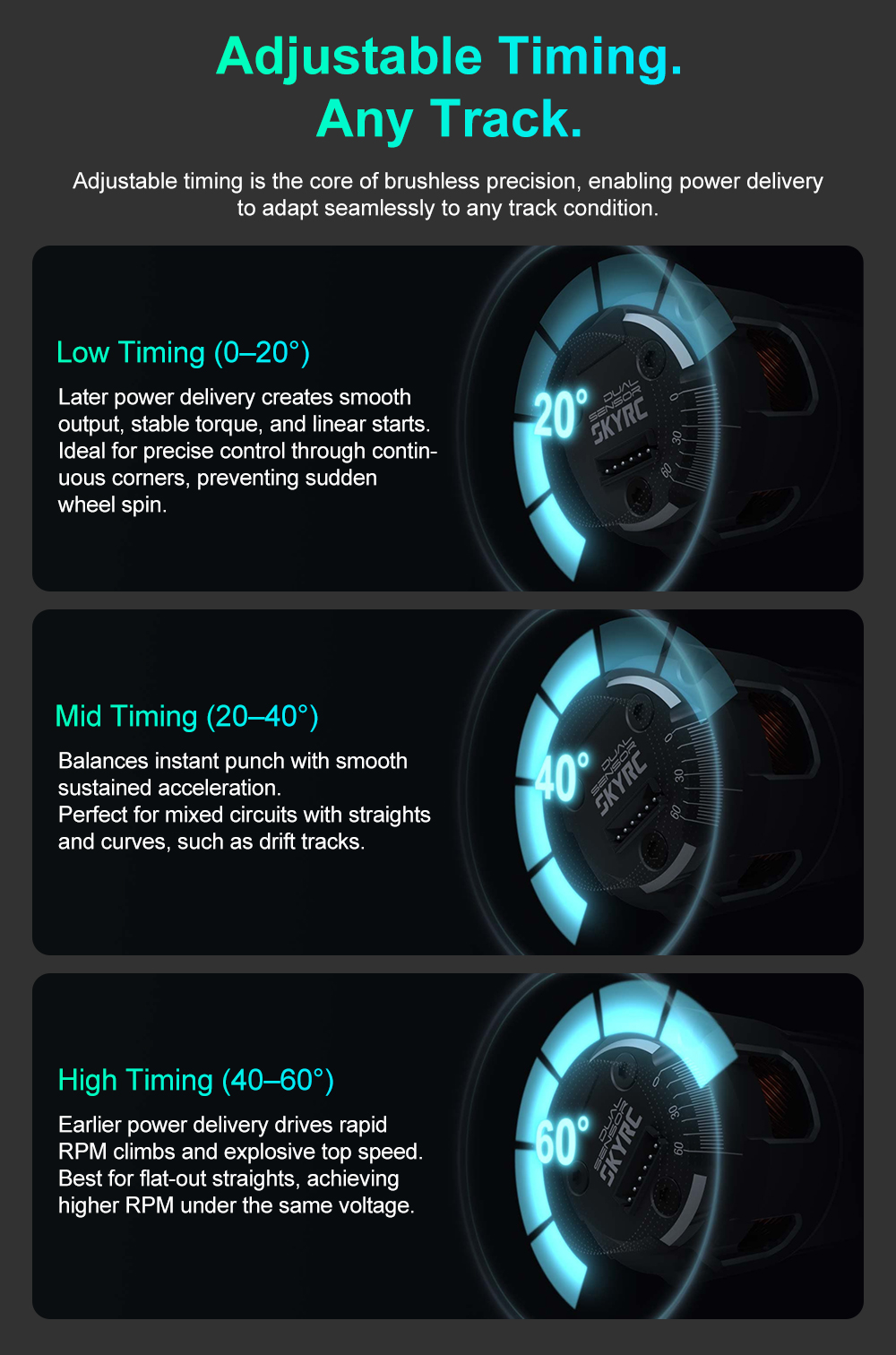

5. Advanced sensor eliminates low-speed cogging & throttle delay for precise corner control; customizable 0°~60° adjustable timing switches power mode for corner/drift/straight-track
racing as needed.

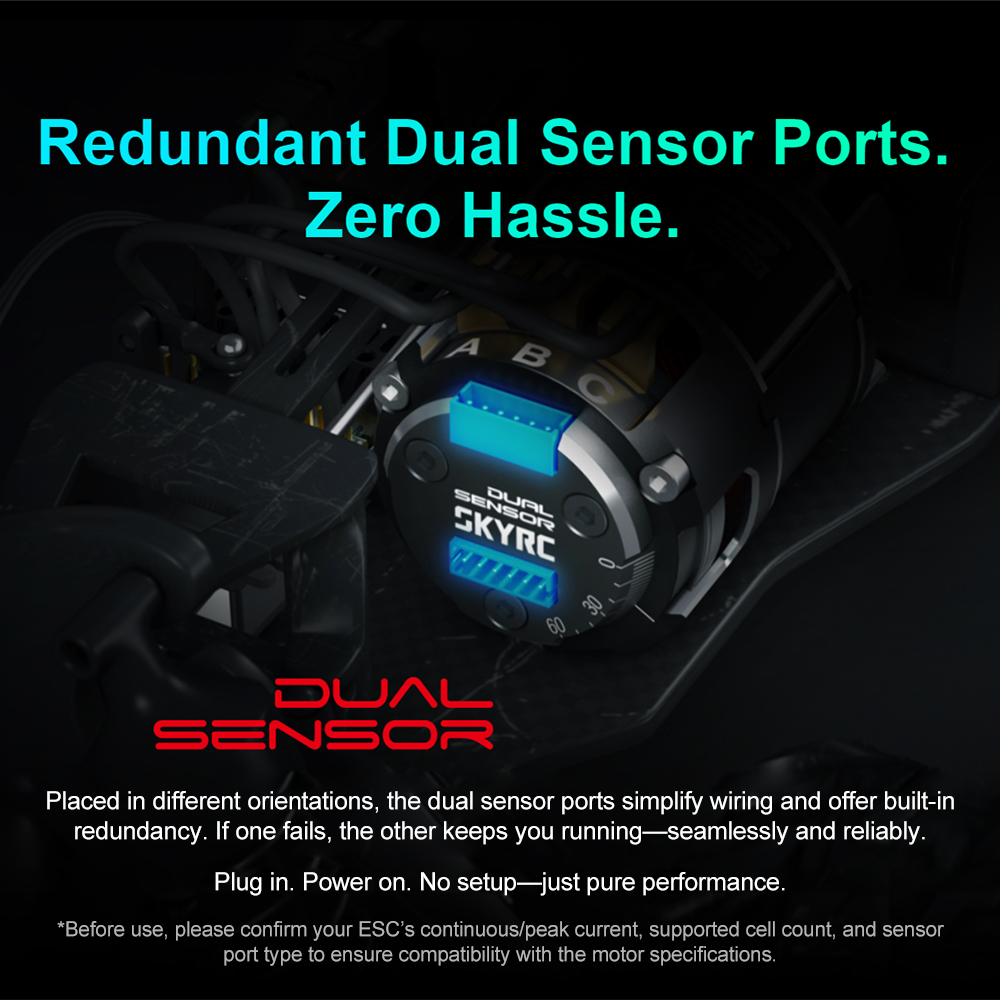

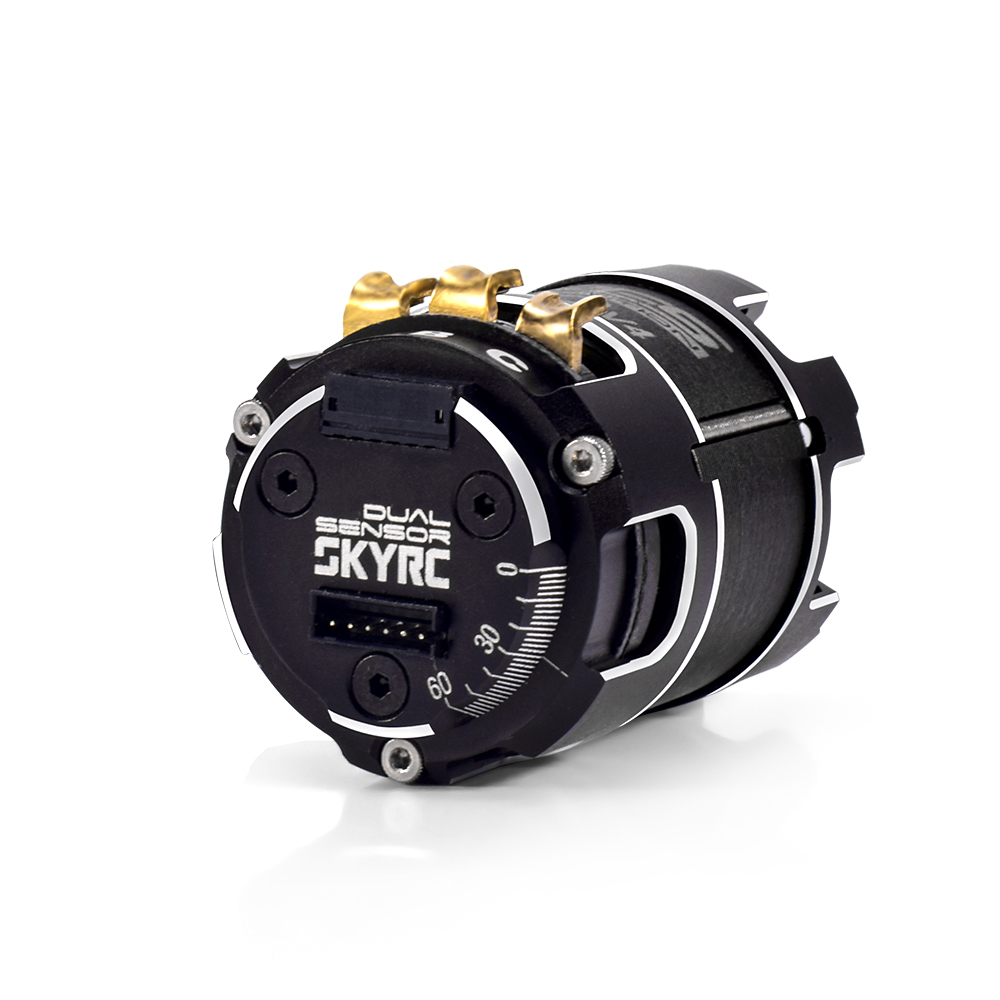

6. Dual-direction redundant sensor ports simplify wiring and keep racing going if one port malfunctions;

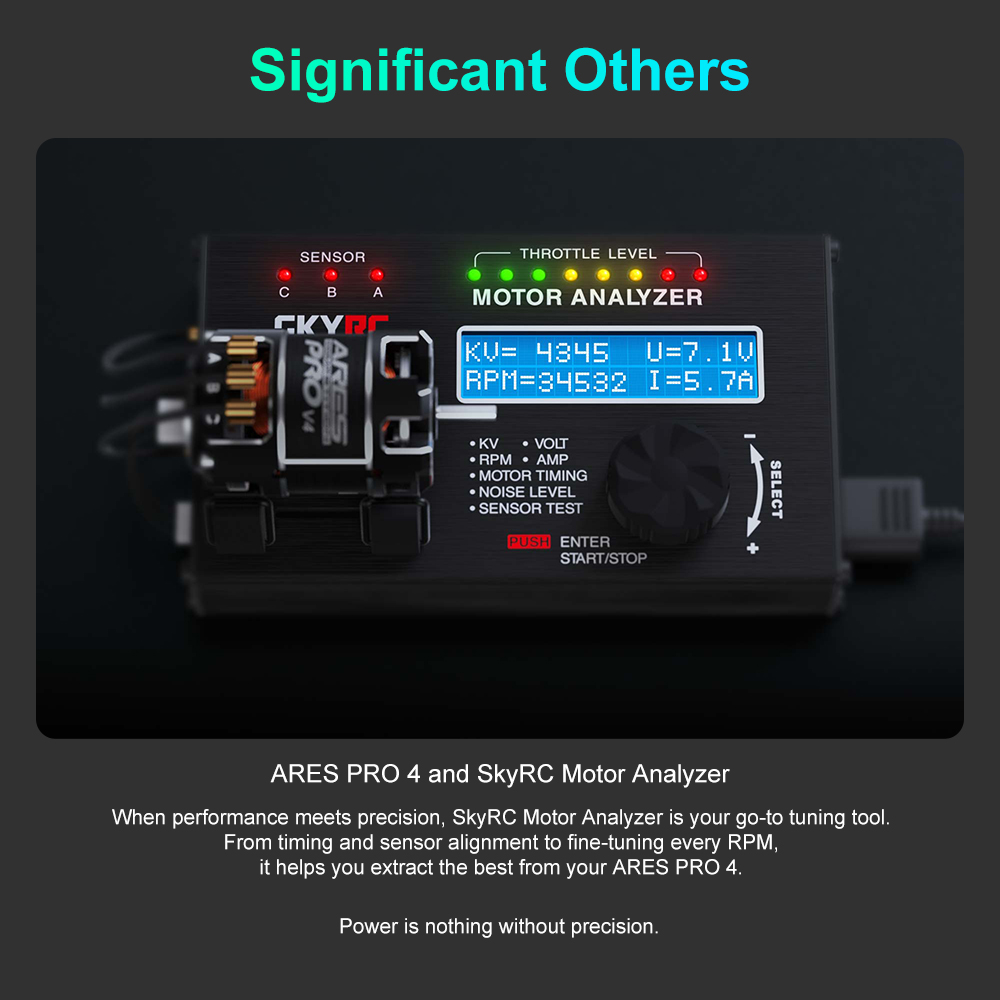

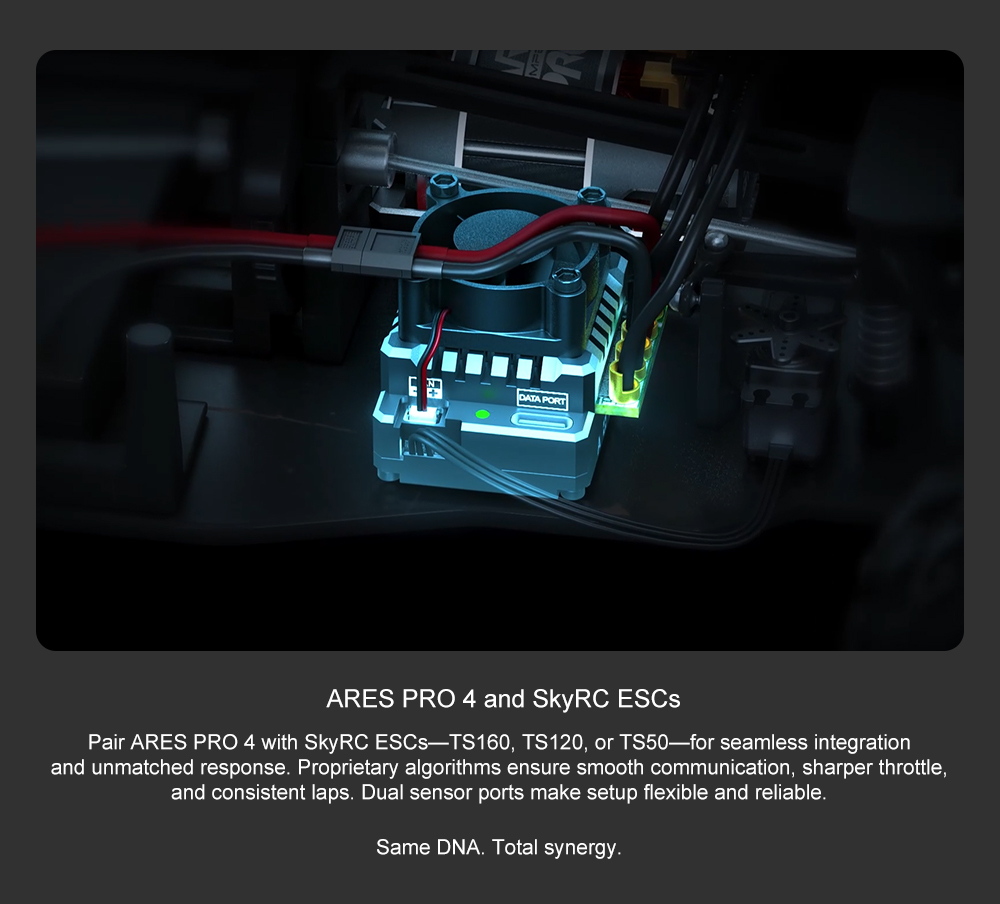

7. Seamlessly matched with SkyRC TS50/TS120/TS160 ESCs via proprietary algorithms for sharp throttle response; also tunable with SkyRC Motor Analyzer to unlock the motor’s full racing potential.
Description:
ROAR-approved SKYRC ARES PRO 4 racing motor delivers stable powerful performance with premium heat-resistant components, adjustable timing, dual sensor ports & modular build, perfectly compatible with SkyRC ESCs and tuning analyzer.

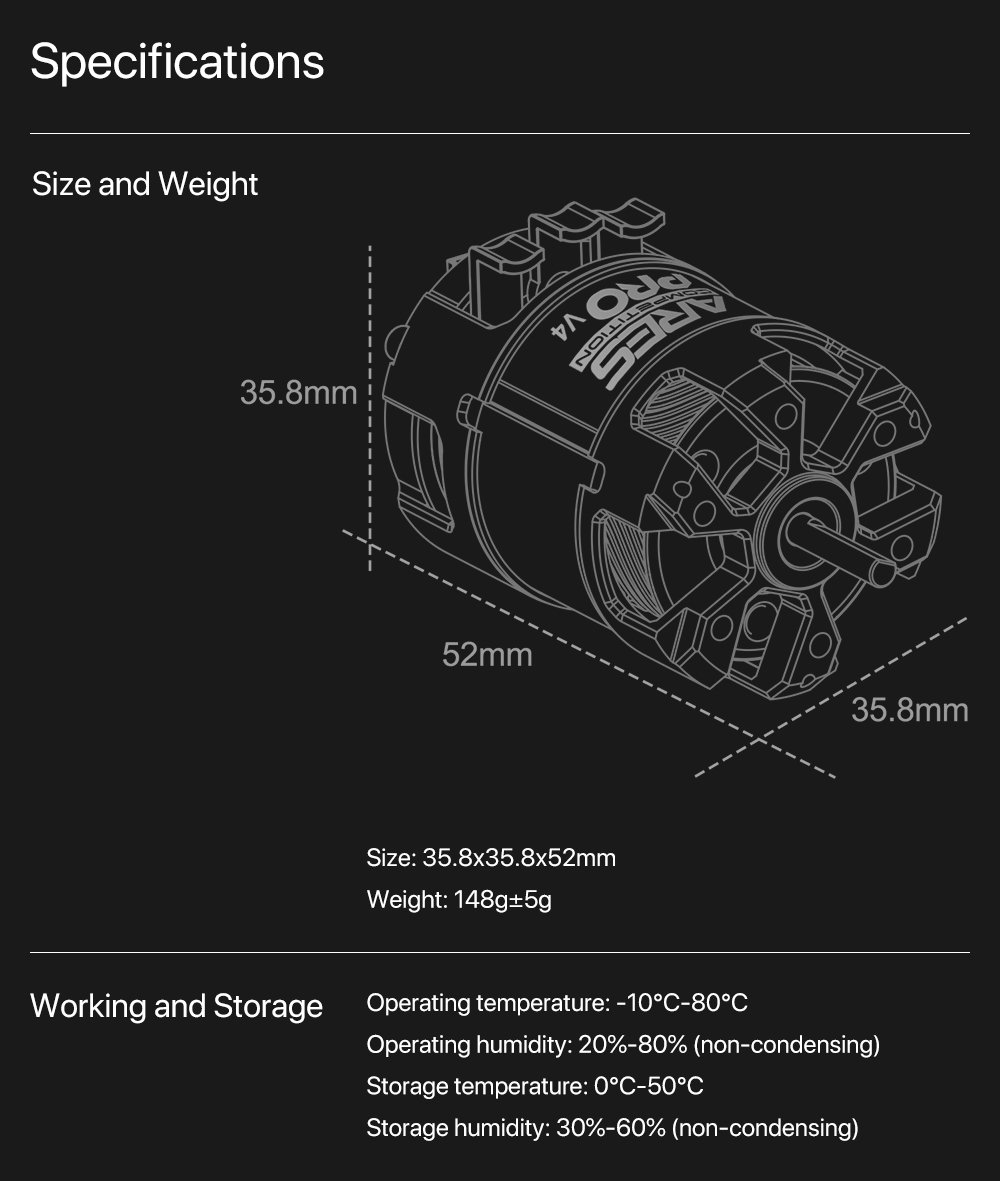

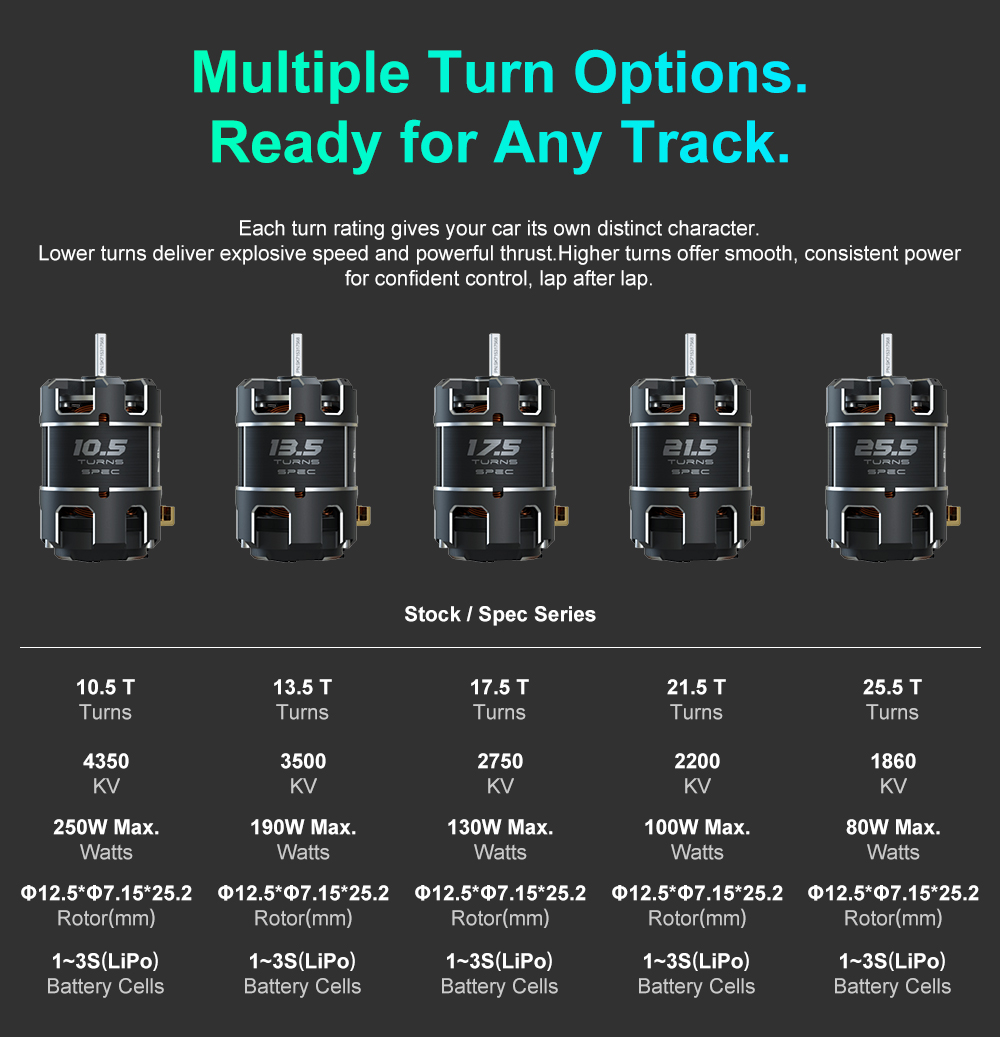

Specifications:
SPEC Series 10.5T
Turns: 10.5T
KV: 4350KV
Watts: 250W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1~3S(LiPo)
SPEC Series 13.5T
Turns: 13.5T
KV: 3500KV
Watts: 190W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1~3S(LiPo)
SPEC Series 17.5T
Turns: 17.5T
KV: 2750KV
Watts: 130W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1~3S(LiPo)
SPEC Series 21.5T
Turns: 21.5T
KV: 2200KV
Watts: 100W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1~3S(LiPo)
SPEC Series 25.5T
Turns: 25.5T
KV: 1860KV
Watts: 80W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1~3S(LiPo)

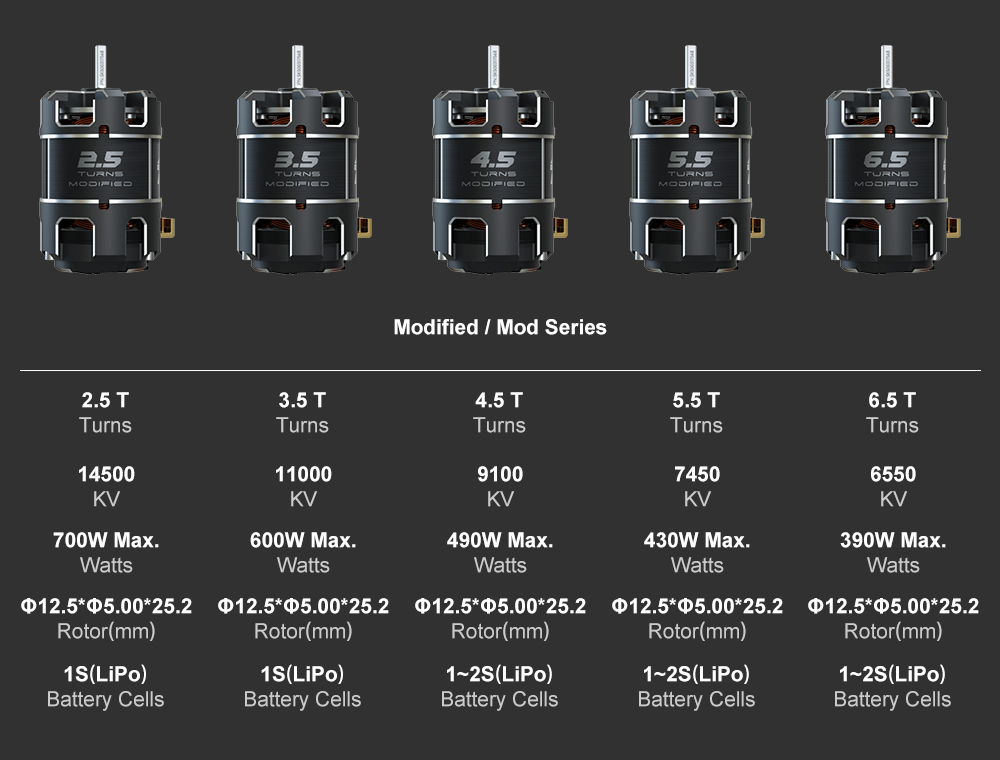

MODIFIED Series 2.5T
Turns: 2.5T
KV: 14500KV
Watts: 700W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1S(LiPo)
MODIFIED Series 3.5T
Turns: 3.5T
KV: 11000KV
Watts: 600W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1S(LiPo)
MODIFIED Series 4.5T
Turns: 4.5T
KV: 9100KV
Watts: 490W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1-2S(LiPo)
MODIFIED Series 5.5T
Turns: 5.5T
KV: 7450KV
Watts: 430W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1-2S(LiPo)
MODIFIED Series 6.5T
Turns: 6.5T
KV: 6550KV
Watts: 390W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1-2S(LiPo)

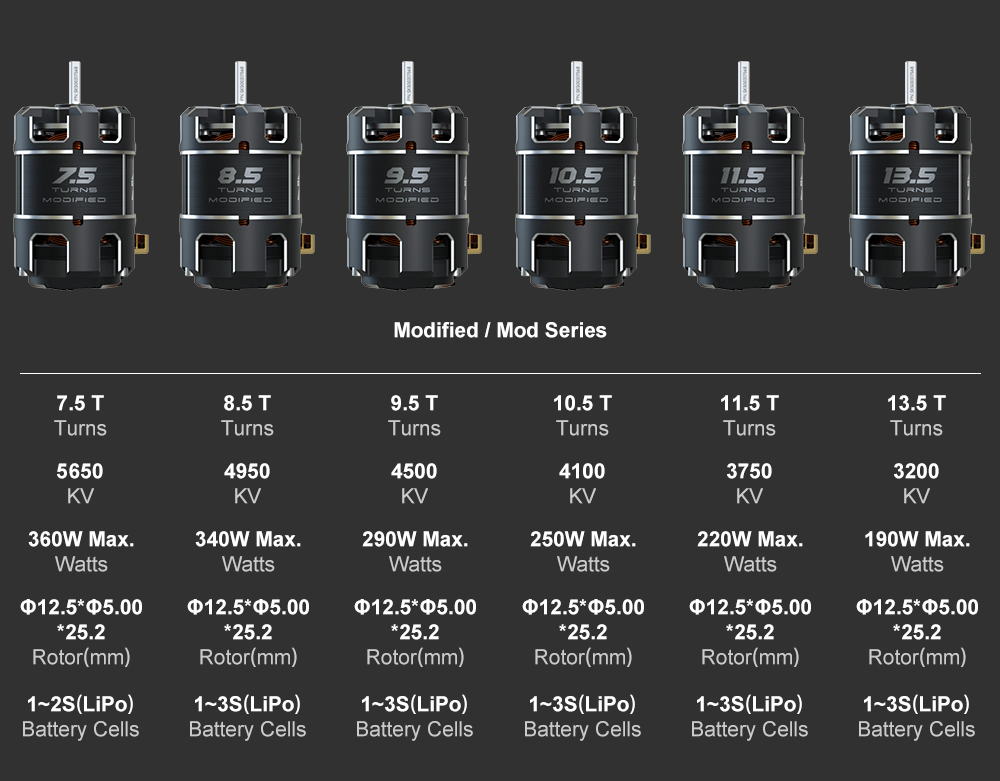

MODIFIED Series 7.5T
Turns: 7.5T
KV: 5650KV
Watts: 360W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1-2S(LiPo)
MODIFIED Series 8.5T
Turns: 8.5T
KV: 4950KV
Watts: 340W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1-3S(LiPo)
MODIFIED Series 9.5T
Turns: 9.5T
KV: 4500KV
Watts: 290W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1-3S(LiPo)
MODIFIED Series 10.5T
Turns: 10.5T
KV: 4100KV
Watts: 250W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1-3S(LiPo)
MODIFIED Series 11.5T
Turns: 11.5T
KV: 3750KV
Watts: 220W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1-3S(LiPo)
MODIFIED Series 13.5T
Turns: 13.5T
KV: 3200KV
Watts: 190W Max.
Rotor(mm): 12.5*7.15*25.2
Battery Cells: 1-3S(LiPo)
Package contents:

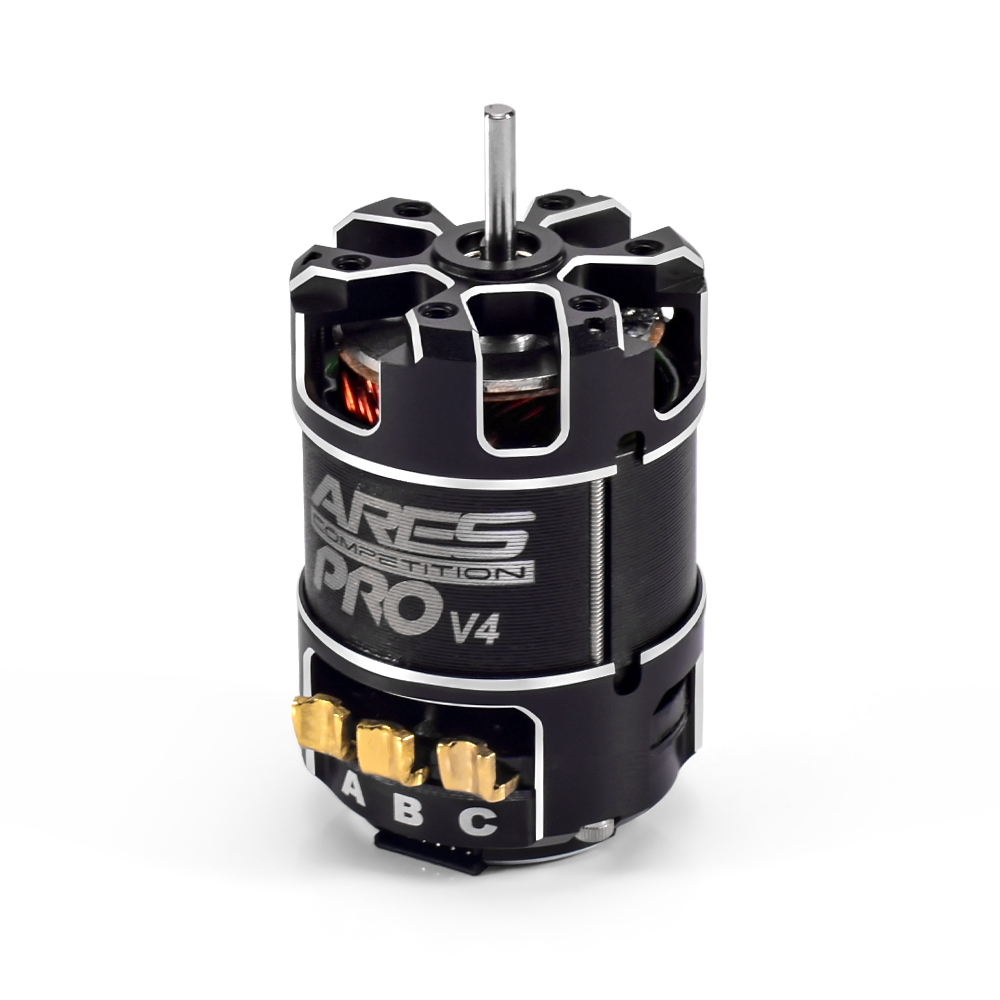

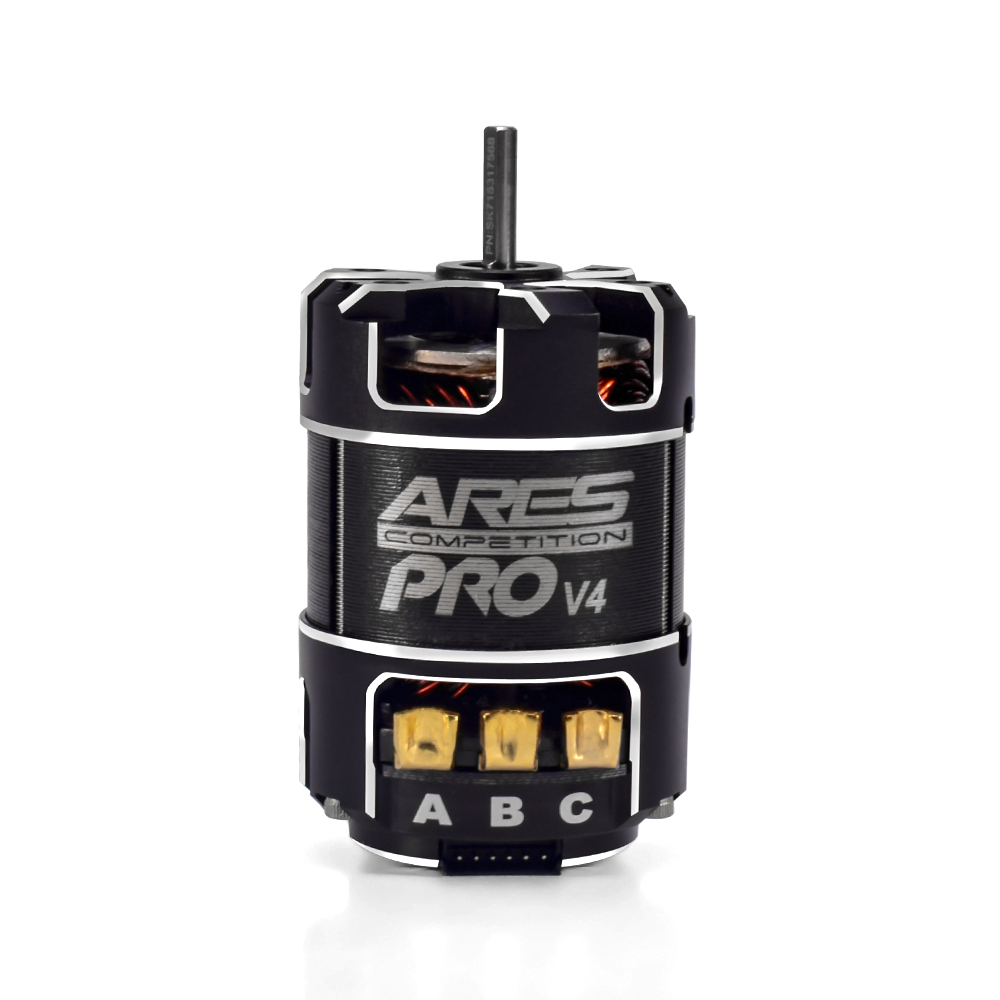

1* ARES PRO4 540 Motor
1 * Sensor line
1 * Stickers
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
